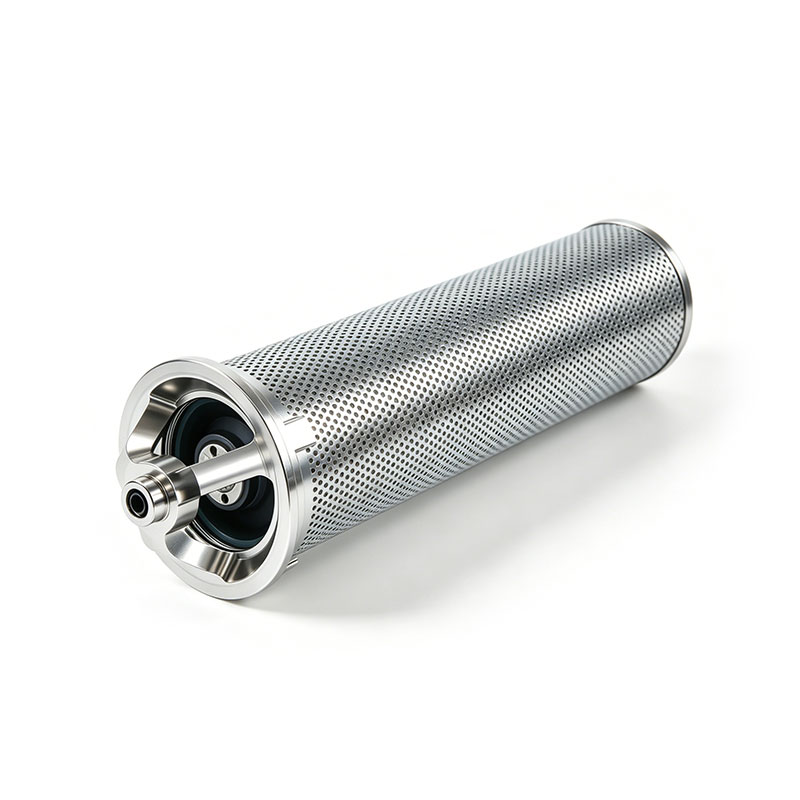

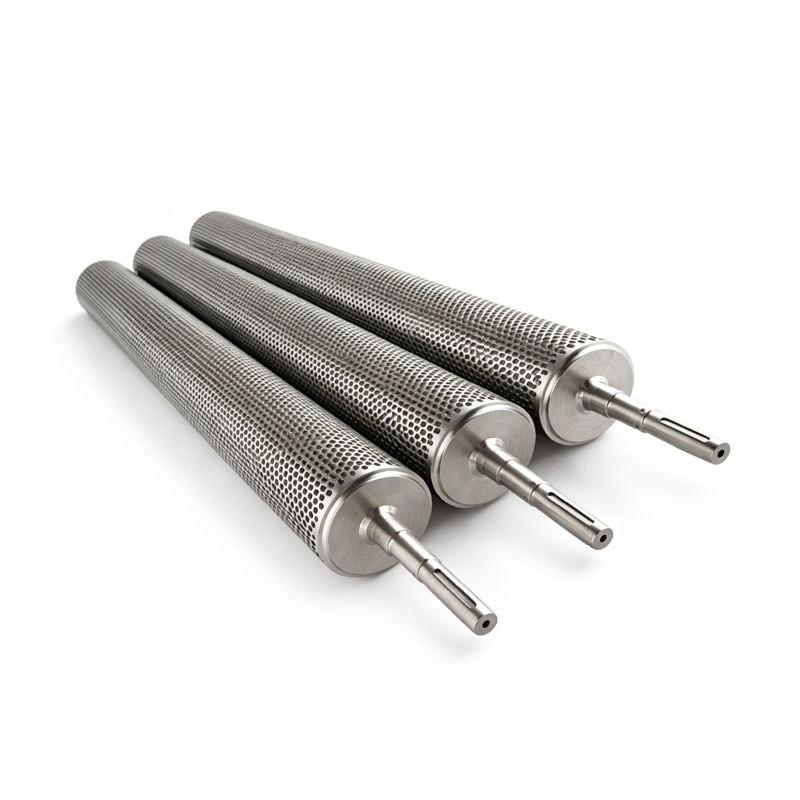

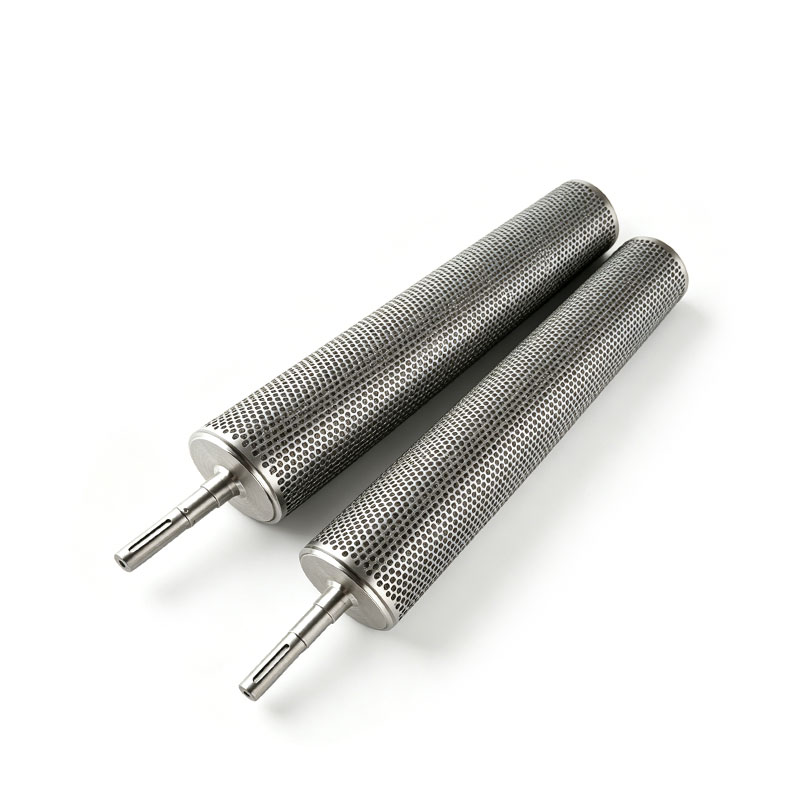

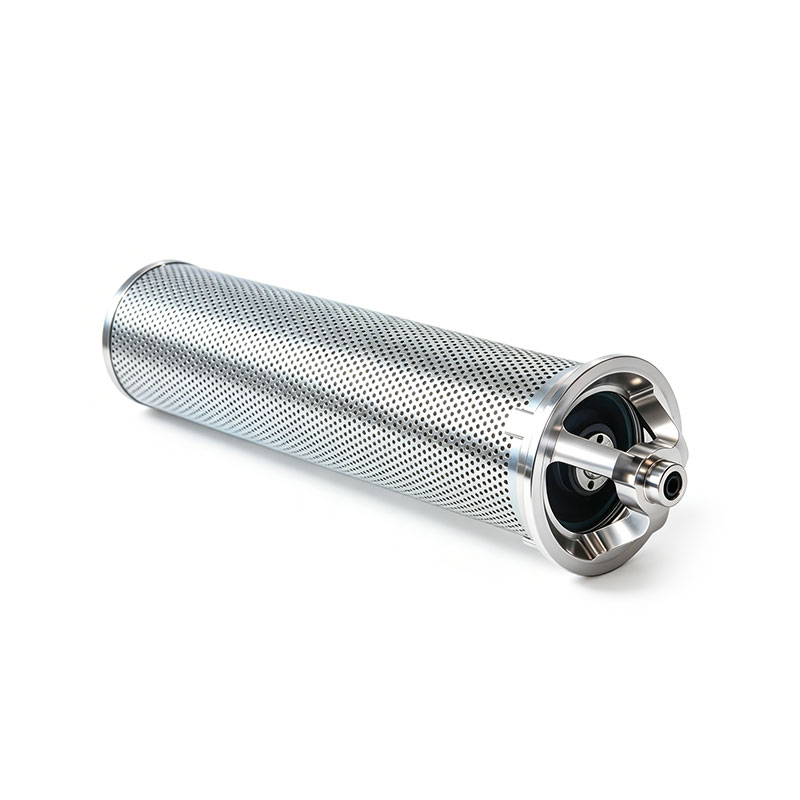

Custom Perforated Shell Vacuum Roller

The AstraRoll Custom Perforated Shell Vacuum Roller (also widely integrated into production lines as a precision suction roll) represents the ultimate technical solution for contact-free web tension tracking and wrinkle-free material isolation. In modern converting processes—such as thin polymer film extrusion, high-speed slitting, and lithium-ion battery foil handling—traditional rubber nip rollers often crush delicate coatings, trap destructive air pockets, or create localized tension wrinkles.

AstraRoll solves these process instabilities by replacing aggressive mechanical nipping with a gentle, uniform atmospheric pressure matrix. The entire structural shell of our roller is machined using multi-axis CNC drilling arrays to form highly consistent, burr-free micro-perforated suction patterns. Connected to an internal vacuum chamber with precise zone-control baffles, the roller applies suction strictly where the web wraps around the cylinder. This ensures stable, slipless web tracking, instantaneous speed synchronization, and efficient air evacuation under the highest continuous industrial running velocities.

Technical Parameter

Product Framework: Precision Perforated Shell Vacuum Suction Roller Matrix

Shell Base Material: Premium 304/316 Stainless Steel / High-Strength T6 Aircraft Aluminum

Surface Finish Coating: Hard Anodizing, Electroless Nickel Plating, or Industrial Hard Chrome

Perforation Hole Diameter: Range from 0.5mm to 3.0mm (Sub-micron internal bore finish)

Hole Pattern Topography: Staggered Grid, Linear Inlines, Helical Array, or Custom Zone Sealing

Total Indicator Runout (TIR): ≤0.01mm (Maintained across maximum working web widths)

Parallelism & Cylindricity: ≤0.005mm to guarantee unvaried cross-web tension tracking

Dynamic Balance Rating: ISO 21940 G2.5 precision calibrated on multi-axis test rigs

Internal Vacuum Zoning: Adjustable 90°, 120°, 180° internal suction arcs with custom seals

Application Industries

Engineered for continuous, non-marking suction gripping and high-accuracy web isolation:

Ultra-Thin Plastic Film Converting: Providing reliable tension isolation and slip prevention for sensitive optical films (BOPP, PET, TAC) without using marking rubber nip rolls.

Lithium-Ion Battery Electrodes: Safely tracking double-sided coated anode and cathode foils through drying ovens and slitting sections without damaging the fragile chemical slurry layer.

High-Speed Slitter Rewinders: Acting as a master pull roller to smoothly control web tracking and completely eliminate air entrainment (trapped air bubbles) before rewinding.

Digital Printing & Coating Lines: Maintaining absolute flat web parallelism across inkjet arrays or slot-die coating heads to lock in microscopic layer thickness consistency.

Why Choose AstraRoll's Perforated Shell Vacuum Roller?

Burr-Free Micro-Hole CNC Machining for Zero Web Marking: If the internal edges of a perforated roller’s holes harbor microscopic burrs, they will instantly scratch or puncture high-end optical films and battery foils under vacuum pressure. AstraRoll implements proprietary multi-axis CNC drilling combined with multi-stage internal honing and micro-polishing. Every suction hole features perfectly radiused edges, allowing sensitive substrates to float and release smoothly without a single indentation mark.

Precision Internal Zone Control & Energy Efficiency: Wasting vacuum pressure on open air spaces ruins suction efficiency and demands massive, expensive pumps. Our vacuum rollers are equipped with fully adjustable, precision-machined internal graphite or PTFE sealing baffles. This confines the vacuum force exclusively to the exact wrap angle where your material meets the roll shell, maximizing holding power while slashing factory air consumption.

Deflection-Free Rigid Core Matrix (≤0.01mm Runout Excellence): At high linear production speeds, any geometric sagging or eccentricity in a hollow perforated cylinder turns it into a vibration generator, causing web flutter and coating streaks. AstraRoll constructs its shells from thick-walled, stress-relieved stainless steel tubes or forged aerospace aluminum. Keeping total radial runout strictly below ≤0.01mm ensures a whisper-quiet, ultra-stable rotation under continuous high-tension loads.

Tailored Porosity & Custom Surface Armors for Corrosive Environments: Different web materials and chemical environments require distinct air-evacuation coefficients and structural defenses. Our technical team tailors the hole diameter, spacing density, and pattern matrix to your exact CAD line data. Furthermore, we apply advanced hard-anodizing or hard-chrome plating to seal the porous surface, completely preventing chemical corrosion or oxidation buildup inside the suction channels.
