Custom Segmented Metal Bowed Roller for Wrinkle Elimination

The AstraRoll Custom Segmented Metallic Bow Roller represents the pinnacle of mechanical wrinkle elimination for heavy-duty, high-tension, and high-temperature web-handling applications. While standard elastomer-faced rollers struggle under substantial web tension or suffer from premature surface wear when handling abrasive materials like nonwovens and heavy kraft papers, our metallic expander roll is engineered to withstand severe industrial environments without sacrificing tracking accuracy.

At the core of this system is a mathematically calibrated, pre-curved structural steel mandrel. Rather than utilizing a continuous flexible sleeve, the working face is comprised of precision-machined, interlocking aluminum alloy segments mounted onto an internal chain of low-torque sealed bearings. As the web wraps over the curved profile, each metal segment rotates independently, generating a smooth, progressive outward vector from the centerline to the edges. This structural design not only eliminates stubborn material wrinkles and baggy centers but also provides an exceptionally long service life and high resilience against knife nicks during slitting operations.

Technical Parameter

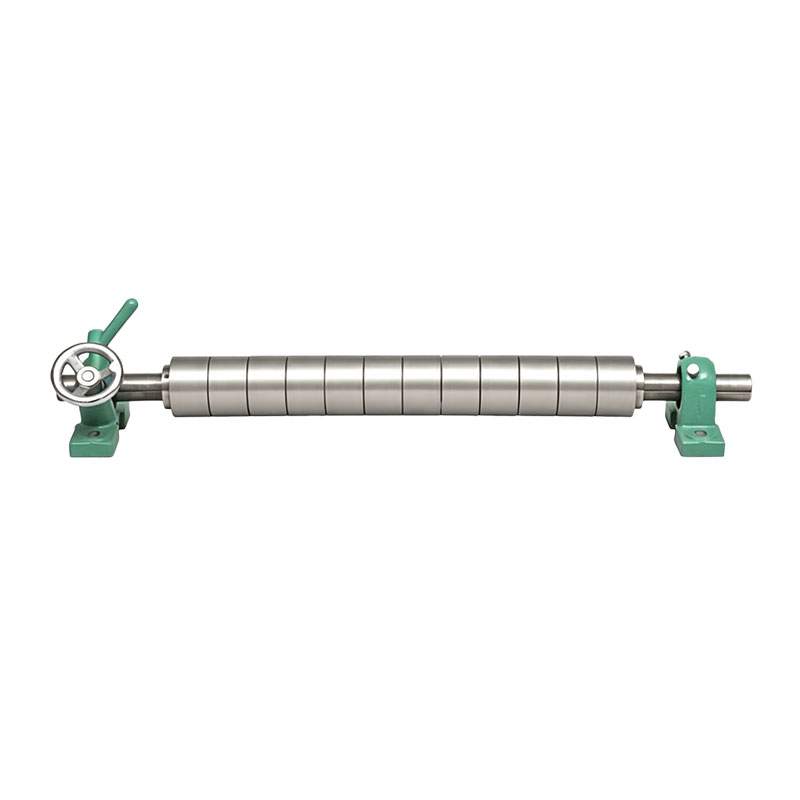

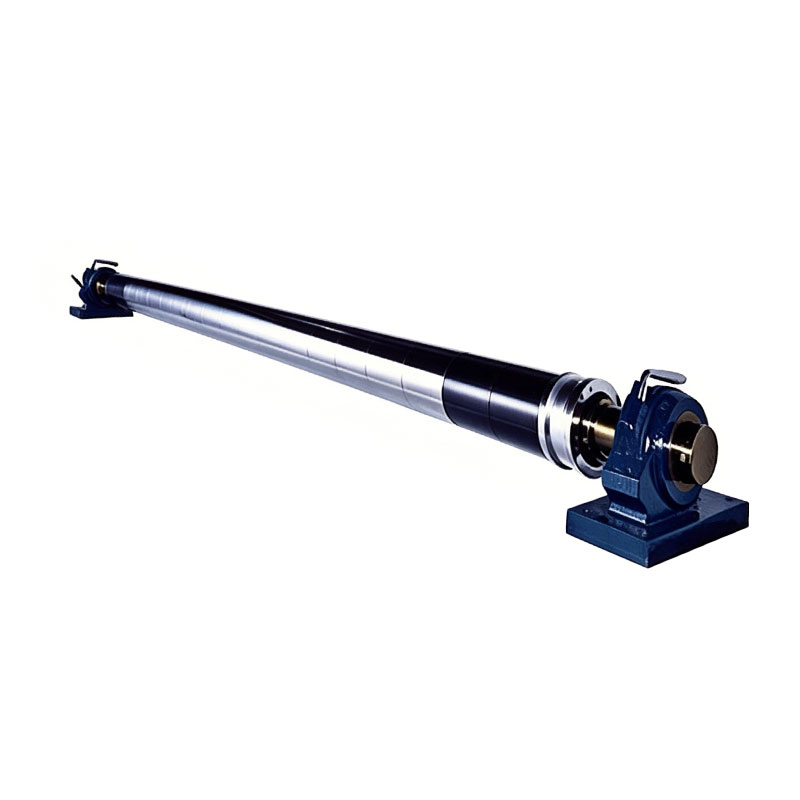

Product Framework: Foot-Mounted Segmented Metallic Bow Expander Roller

Internal Shaft Core: Induction-Hardened Alloy Steel (42CrMo)

Rotating Segment Material: High-Grade Tensile Aluminum Alloy / Hard-Chromed Mild Steel

Mounting Configurations: Heavy-Duty Foot Pedestal Bracket / Flange Wall Mount

Total Indicator Runout (TIR): ≤0.005mm (On individual segments relative to the axis)

Surface Finish Profiles: Plain Mirror-Polished, Hard-Anodized, or Diamond-Slit Texture

Bow Curvature Angle: Custom fixed curve (1 - 4 deflection based on web engineering data)

Bearing Assembly Type: Low-Friction, Double-Sealed Precision Deep Groove Ball Bearings

Dynamic Balance Rating: ISO 21940 G2.5 multi-plane balanced for vibration-free rotation

Max Tension Capacity: Rated up to 2 - 5 Tons (Custom heavy-duty frame specifications available)

Application Industries

Engineered specifically for web environments requiring high wear resistance, high speeds, and rigid structural execution:

Papermaking & Paper Converting: Ideal for high-stress locations such as paper machine poop reels, size presses, and heavy calender stacks where rubber rollers fail due to heat and pressure.

High-Speed Slitter Rewinders: Installed right before the rewind mandrel to smoothly spread multi-slit ribbons, preventing overlapping, interleaving, and interlocking of finished rolls.

Textile & Fabric Processing: Guiding technical nonwovens, woven meshes, and tufted materials through hot dye lines or stenter frames without structural dynamic sagging.

Heavy Foil & Laminating Plants: Maintaining uniform cross-direction tension control for wide-web aluminum foils and composite building substrates.

Why Choose AstraRoll's Custom Metallic Bowed Roller?

Independently Segmented Design for Zero Web Slippage: If a bowed roller has high rotating inertia, the web will slide over it, causing serious back-scratching on the material. AstraRoll machines each aluminum segment with a lightweight aerospace alloy framework and pairs it with ultra-low-friction bearings. The segments match your web line speed instantly, protecting both thin papers and robust textiles from friction markings.

Micro-Level Concentricity (≤0.005mm) to Subdue Web Flutter: When running at high speeds up to 2000RPM, any slight manufacturing error in the multi-segment layout will cause high-frequency vibration, resulting in uneven coating or web breaks. Every individual segment we produce goes through strict cylindrical grinding to lock the TIR within ≤0.005mm, guaranteeing whisper-quiet, steady web tracking.

Thermal-Tempered Anti-Fatigue Steel Core: Under multi-ton industrial tension loads, standard shafts experience structural bending fatigue, changing the preset bow curve. AstraRoll subjects every 42CrMo alloy shaft to thorough heat tempering before final machining. This locks the precise expansion vector into place, ensuring consistent wrinkle removal across decades of continuous service.

Superior Lifespan vs. Standard Rubber Sleeves: Rubber bowed rollers face ozone aging, chemical swelling, and accidental knife cuts during slitting cycles. Our hard-surfaced metallic bow rollers are completely immune to environmental aging and blade marks, dramatically lowering your client's maintenance downtime and operational replacement costs.
