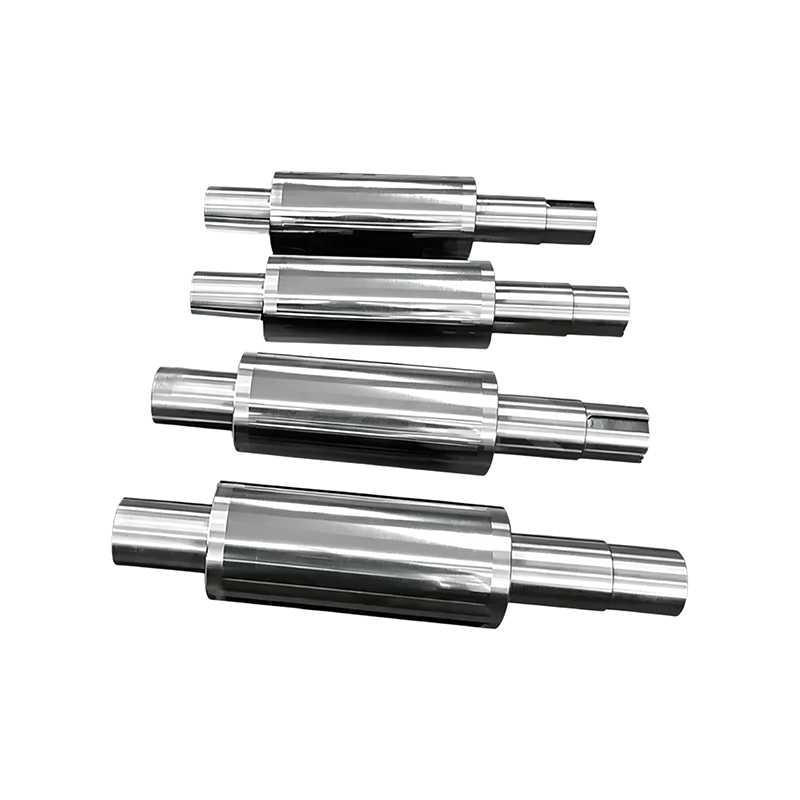

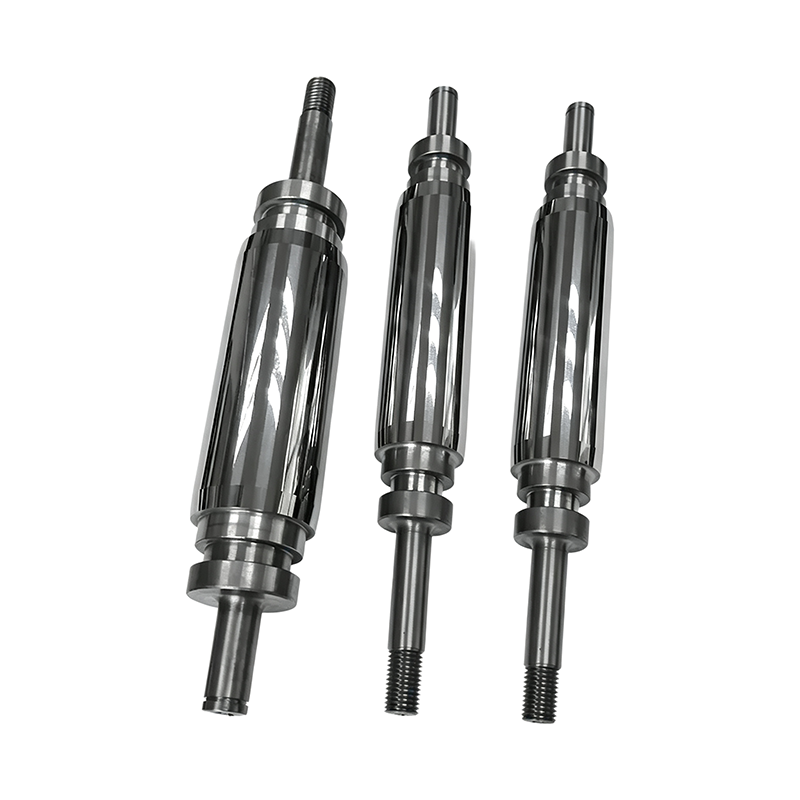

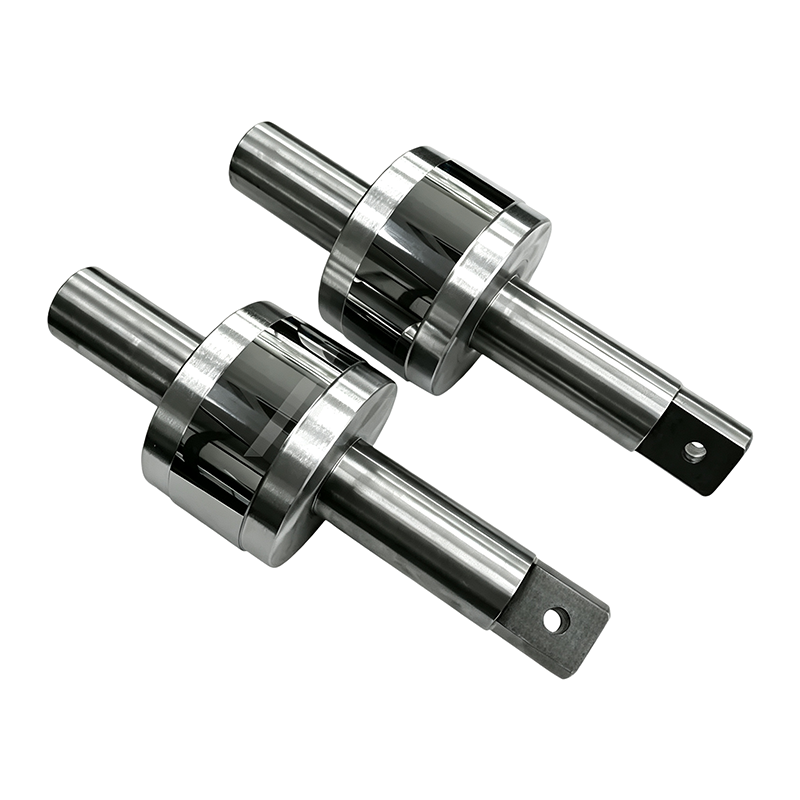

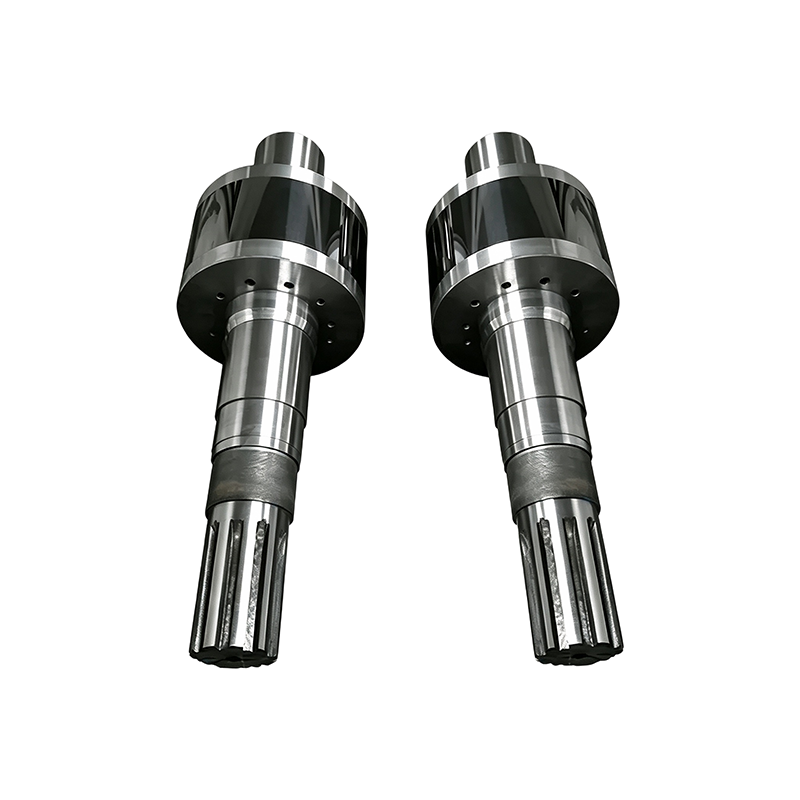

Custom Composite Tungsten Carbide Rolls

The AstraRoll Custom Composite Tungsten Carbide Wire‑Rod Rolling Rolls with interference hot‑fitted assembly are engineered to satisfy stringent high‑speed rolling load, thermal fatigue resistance, and continuous production requirements of modern high‑speed wire‑rod rolling mills. In high‑speed wire‑rod finishing and intermediate rolling stands, composite rolls are exposed to cyclic thermal shock, heavy rolling pressure, high‑speed rotational load, and abrasive metal friction. Conventional roll solutions often suffer from rapid surface wear, thermal crack propagation, poor dimensional stability and premature roll failure, bringing about frequent roll‑change downtime, unstable wire‑rod product quality and unplanned mill downtime.

Our precision‑manufactured composite tungsten carbide wire‑rod rolling rolls address these critical continuous rolling challenges. According to mill load, rolling speed, stand position and installation dimensions, AstraRoll supplies well‑proven carbide grade selections within the YGR series for different working conditions. Constructed with interference hot‑fitted assembly without welding or key connections, each unit combines wear‑resistant tungsten carbide roll ring and high‑strength alloy steel support shaft. Integrated with tight‑tolerance CNC machining, controlled interference fit parameters and strict metallurgical quality management, these composite rolls realize stable high‑speed rotation, outstanding thermal‑fatigue performance and extended service life. Designed for demanding metallurgical wire‑rod production, they effectively guarantee consistent finished wire‑rod quality, lower roll‑change downtime and minimize unplanned maintenance downtime for your rolling mill.

• Product Framework: Custom Composite Tungsten Carbide Wire‑Rod Rolling Roll / Assembled Carbide Mill Roll Unit
• Assembly Method: Interference Hot‑Fitting (No welding, no key‑way connection)
• Carbide Roll Ring Grades: YGR30 (Standard for Finishing Stands),YGR45, YGR55, YGR60
• Carbide Composition: WC 70‑90%, Binder phase (Ni+Co+Cr) 10‑30%
• Shaft Material: High‑strength alloy steel for rolling mill service
• Machining Standard: Precision CNC turning & grinding for roll ring and shaft
• Fit Control: Custom interferencetolerance matched to operating speed and load
• Surface Finish: Fine ground carbide working surface; machined shaft surface with spline ends
• Dynamic Balancing: ISO 21940 G2.5‑G6.3 compliant for high‑speed mill operation
• Concentricity Profile: TIR (TotalIndicator Runout) ≤0.02 mm achieved by precision cylindrical grinding
• Mounting: Custom shaft & spline dimensions to fit existing mill stand bearing housings
• Note: Alloy steel support shaft has finite service life; periodic non‑destructive inspection is required after repeated hot‑fitting cycles.

High‑Speed Wire‑Rod Finishing Mills: Serves as core working rolls for high‑speed wire‑rod finishing blocks, producing carbon steel, low‑alloy steel wire‑rod with stable dimension and surface quality, reducing roll‑change downtime.

Intermediate Wire‑Rod Rolling Stands: Provides high toughness and wear resistance for intermediate rolling passes under heavy reduction ratio, adapting to large deformation and cyclic thermal‑shock working environment.

Wire‑Rod Mill Modernization & Retrofit Projects: Replacement spare composite carbide rolls for upgrading existing wire‑rod production lines, improving output stability and lowering overall consumable‑related downtime.

Metallurgical Roll Distributors & Roll Reconditioning Workshops: Supply of complete composite roll assemblies as well as separate replaceable tungsten carbide roll ring spare parts. Separate ring installation requires customer‑side hot‑fitting equipment and shaft inspection capability, for mill maintenance and roll‑reconditioning operations.

Professional Customization Capability

AstraRoll delivers fully tailored composite tungsten carbide wire‑rod rolling rolls according to your drawings, sample dimensions or real‑mill operating conditions including rolling speed, reduction ratio, stand position and target service life. We support small‑batch trial orders through large‑volume serial supply, providing roll assemblies precisely matching your wire‑rod mill equipment. OEM & ODM services are available.

Adopting mature interference hot‑fit assembly technology without welding or key connections. Carefully‑controlled interference values prevent roll ring loosening under high‑speed heavy‑load rolling. Replaceable tungsten carbide roll ring permits reuse of qualified and inspected alloy steel shaft, helping optimize your long‑term operating expenses. Please note that steel shafts possess limited service life and shall be inspected before reuse.

Every composite roll set implements full‑range quality management covering raw carbide roll ring incoming inspection, alloy steel shaft non‑destructive testing, hot‑fitting process monitoring, dimensional inspection and final run‑out checking. We enforce metallurgical manufacturing standards to control thermal‑crack risk, dimensional deviation and early‑stage failure probability. Excellent wear‑resistance and impact resistance for high‑temperature, high‑pressure rolling environments.

We supply complete composite roll assemblies as well as separate spare tungsten carbide roll rings, custom‑machined alloy steel shafts. This simplifies your spare‑part procurement workflow. We regard each customer as a long‑term partner, offering priority production scheduling and technical support for mill application problems.
