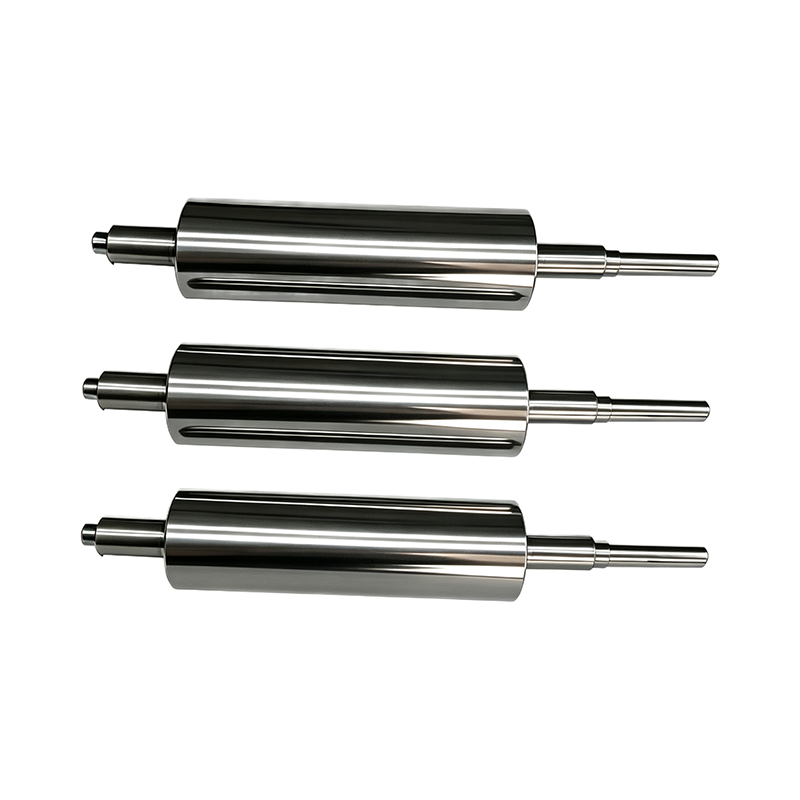

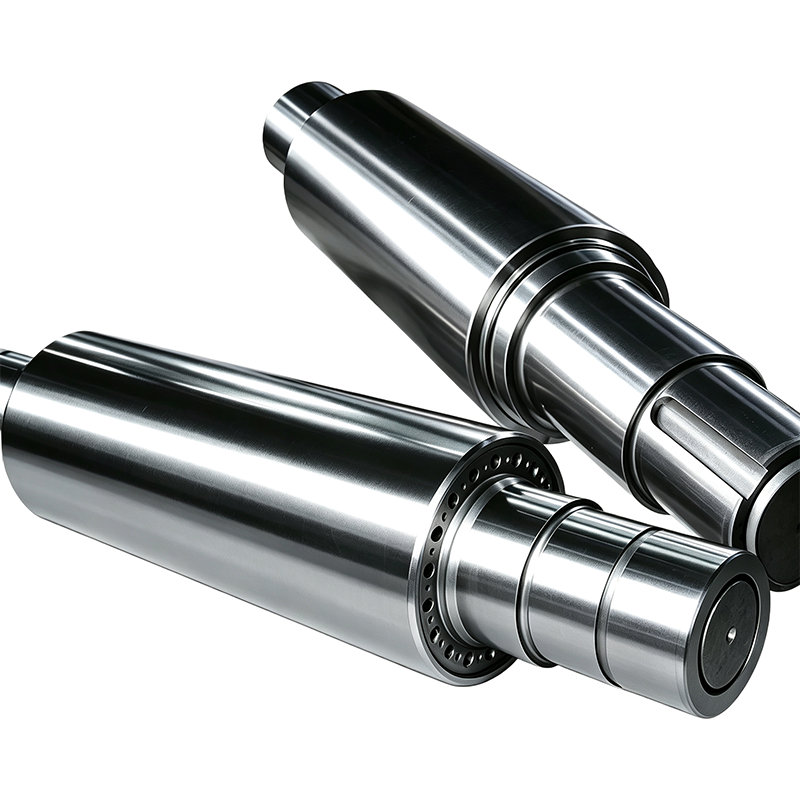

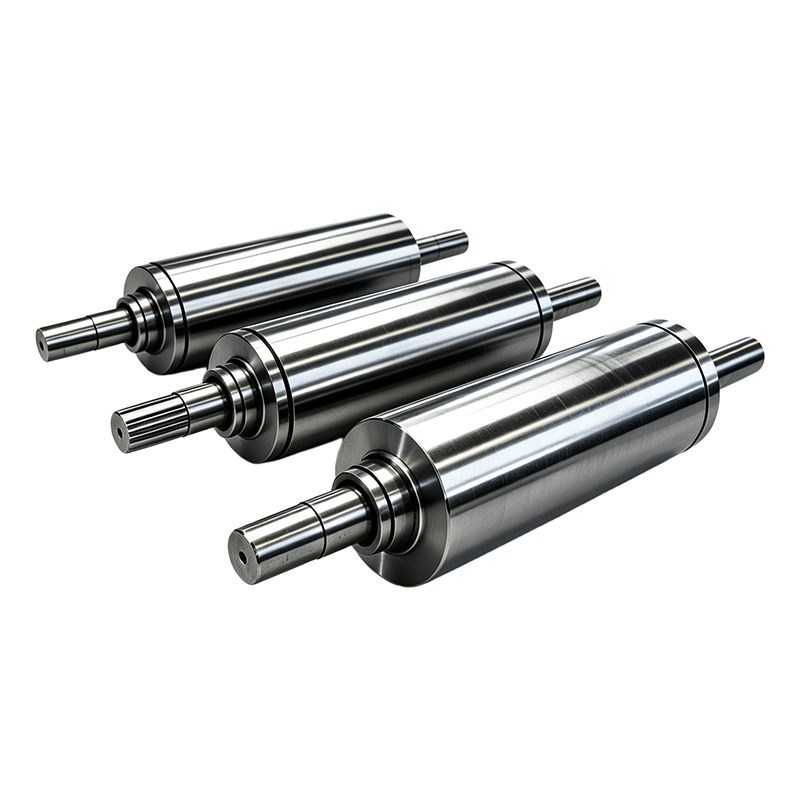

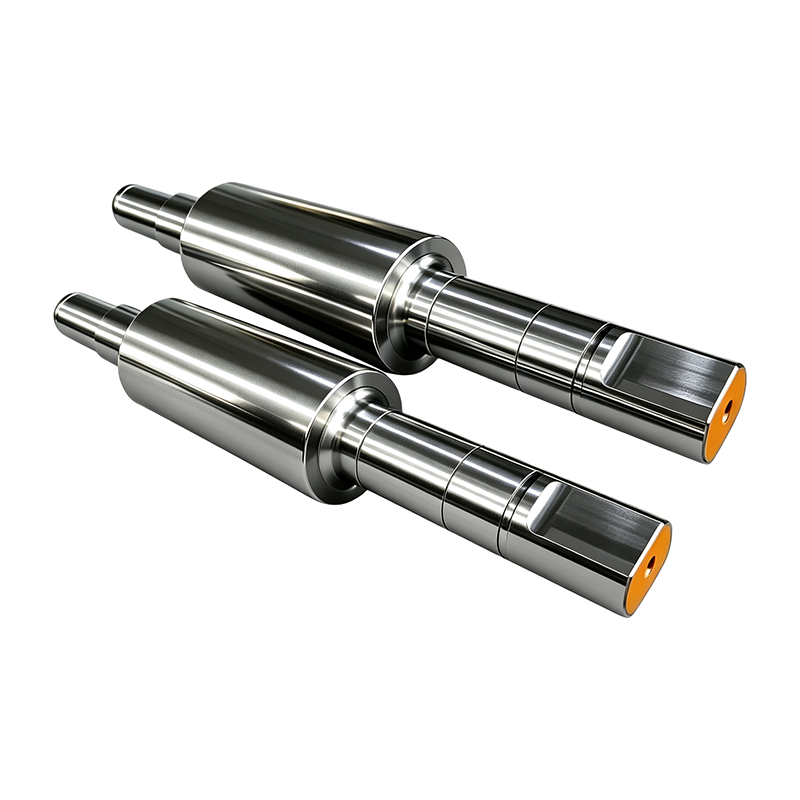

Custom Solid Tungsten Carbide Work Rolls

Engineering a solid cemented tungsten carbide work roll for metal finishing rolling demands strict powder‑metallurgy control, uniform sintered microstructure, and ultra‑precision grinding:

1.Monolithic Sintered Cemented‑Carbide Construction: Manufactured via high‑temperature powder metallurgy sintering, AstraRoll solid tungsten carbide work rolls combine tungsten‑carbide hard phase with cobalt‑nickel binder to form one dense monolithic body. This is a fully solid roll, not a steel base with sprayed carbide coating. The homogeneous sintered microstructure delivers outstanding compressive strength and rigidity under extreme rolling loads, resisting roll‑body deflection that commonly troubles ordinary alloy‑steel rolls during high‑pressure cold rolling. The integrated structure avoids coating delamination and guarantees consistent performance across the entire working surface.

2.High Hardness & Low‑Thermal‑Expansion Stability: Standard alloy‑steel rolls suffer progressive softening, thermal distortion and accelerated wear under cyclic friction heat generated in continuous rolling production. AstraRoll selects carefully graded cemented carbide with high hot‑hardness retention and low thermal‑expansion properties. Even with cumulative frictional heat during 24/7 mill operation, the roll maintains its geometry, minimizing dimensional drift and keeping consistent strip‑thickness tolerance for long production runs. This drastically reduces frequent roll re‑grinding and unplanned mill downtime.

3.Ultra‑Precision Surface Grinding, Mirror‑Ground Available: Scratches, micro‑defects or uneven surface topography on work rolls will transfer directly onto steel strip, wire‑rod, copper, brass and aluminum workpieces. AstraRoll executes multi‑step precision grinding processes. Surface roughness can be delivered from standard precision‑ground Ra 0.4‑0.8 μm up to optional mirror‑ground Ra ≤0.02‑0.04 μm for non‑ferrous metal applications. The ultra‑smooth finished surface significantly mitigates metal‑sticking risks for soft copper‑brass‑aluminum materials, preventing workpiece scratching and surface contamination during finishing rolling.

4.Tight Geometric Tolerance & Dynamic‑Balance Integrity: Tiny concentricity error or residual unbalance will introduce strip thickness fluctuation, strip wandering and harmful vibration in high‑speed rolling lines. Every AstraRoll solid tungsten carbide work roll is CNC precision ground for strict geometric accuracy. Finished rolls go through computer‑aided dynamic balancing inspection. Strict tolerance control suppresses vibration, supporting stable high‑speed finishing‑stand operation for both ferrous and non‑ferrous metal production.

Please note: Every AstraRoll Solid Tungsten Carbide Work Roll is custom‑engineered based on your rolling mill stand dimensions, rolling‑load requirements, and workpiece material characteristics. Non‑standard fabrication with CAD / DXF format drawings is fully supported.

• Outer Diameter (O.D.): Custom range from 100 mm up to 380 mm
• Working Face Length: Custom manufactured from 400 mm up to 800 mm
• Roll Body Material: Monolithic cemented tungsten carbide (WC‑Co / WC‑Co‑Ni grades selected for different rolling‑load conditions)
• Surface Roughness: Precision‑ground Ra 0.4 μm ~ 0.8 μm (Standard); mirror‑ground Ra ≤0.02‑0.04 μm (Optional for non‑ferrous metal applications)
• Concentricity (TIR): CNC precision ground to ≤ 0.02 mm to maintain consistent roll gap across the full face width
• Hardness: HRA 88‑93, carbide grade matched to your rolling application
• Dynamic Balancing: Balanced to ISO 1940 Grade G2.5 for stable high‑speed mill operation

Primary Applications

AstraRoll Solid Tungsten Carbide Work Rolls serve as high‑performance finishing‑stand components for cold‑ and hot‑rolling mills processing ferrous and non‑ferrous metals:

• Precision Narrow‑Strip Finishing Mills: Finishing rolling for carbon‑steel, spring‑steel and stainless‑steel narrow strip requiring tight thickness tolerance.
• Wire‑Rod Finishing Stands: High‑speed finishing rolling for carbon‑steel and stainless‑steel wire‑rod.
• Copper & Brass Strip Mills: Cold finishing rolling for copper strip, busbar stock and brass alloy where anti‑sticking and bright workpiece surface are critical.
• Aluminum Alloy Strip Rolling: Finishing passes for thin aluminum strip demanding scratch‑free surface quality.

Why Choose AstraRoll?

Metallurgy & Application Engineering Support

Selecting improper carbide binder grade will bring either chipping risk or fast wear for your rolling conditions. AstraRoll application engineers analyze your actual rolling pressure, rolling speed and workpiece material to recommend optimal cemented‑carbide material grade. We optimize roll profile and surface finish specification specifically for your finishing‑stand process, avoiding premature roll failure and helping you achieve stable target strip quality.

Our manufacturing system is ISO 9001 certified. Before any solid carbide work roll departs our facility, it passes layered quality verification. Every roll undergoes hardness spot‑check, full dimensional inspection, surface defect visual examination and ultrasonic non‑destructive testing to detect hidden sintering micro‑cracks inside carbide body. In addition, each finished roll is subjected to computer‑controlled dynamic balancing certification, delivering low‑vibration rotation for continuous mill production. Third‑party test reports such as SGS are available upon request, including material analysis, ultrasonic inspection and dynamic balancing test.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
