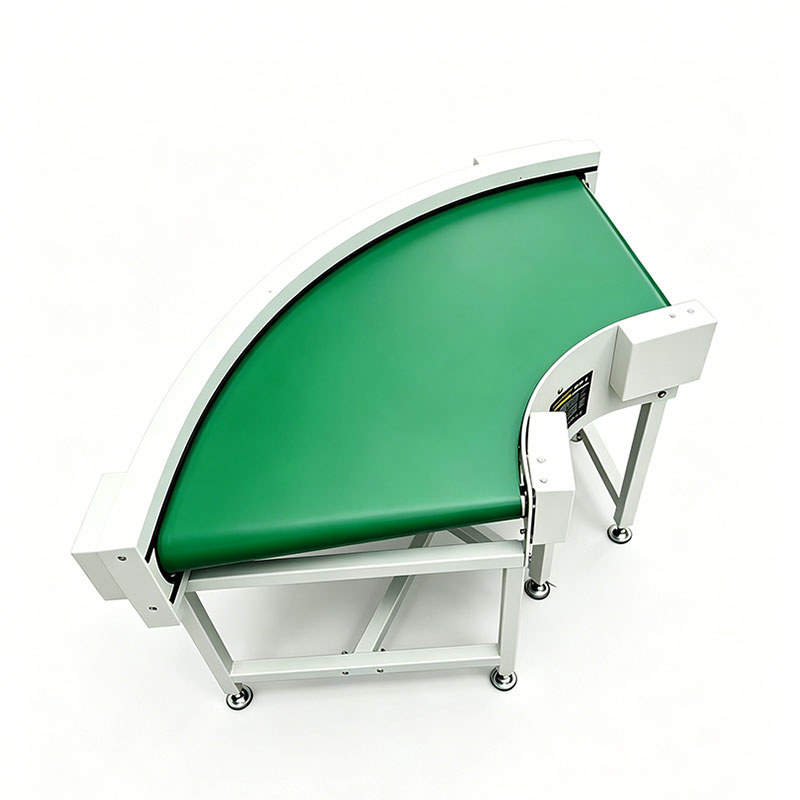

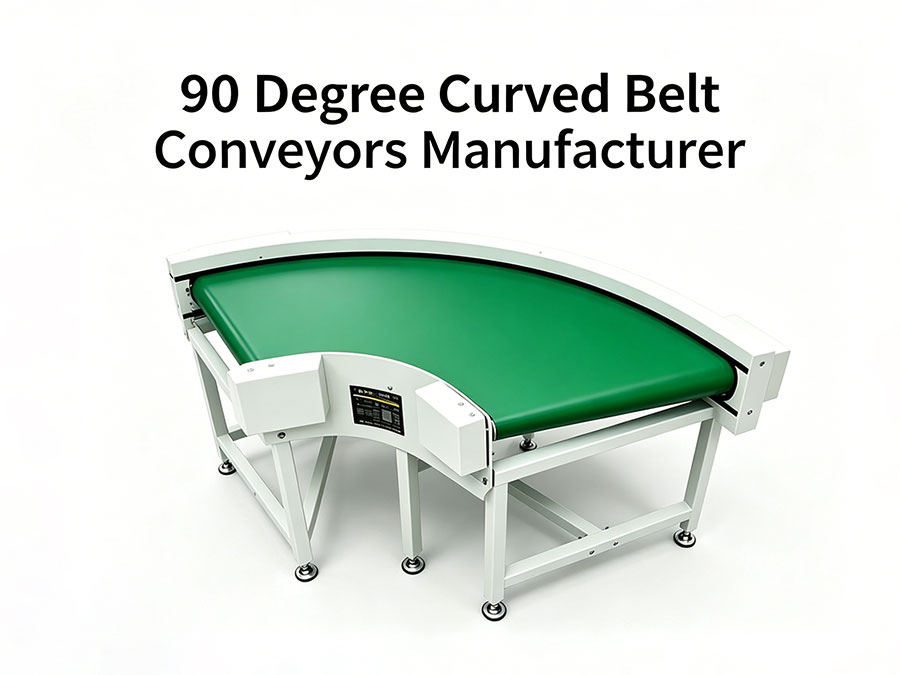

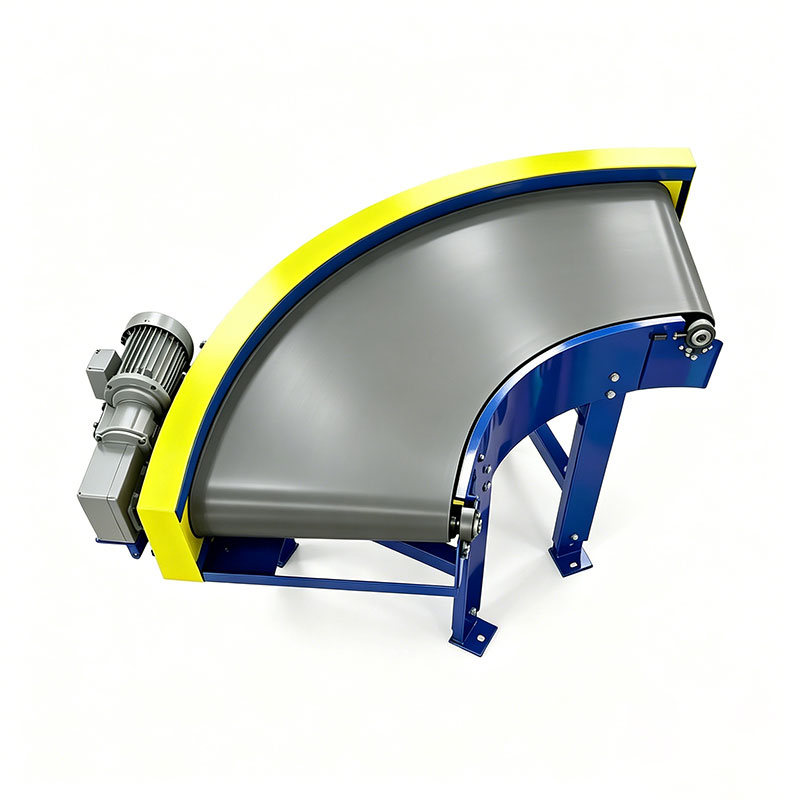

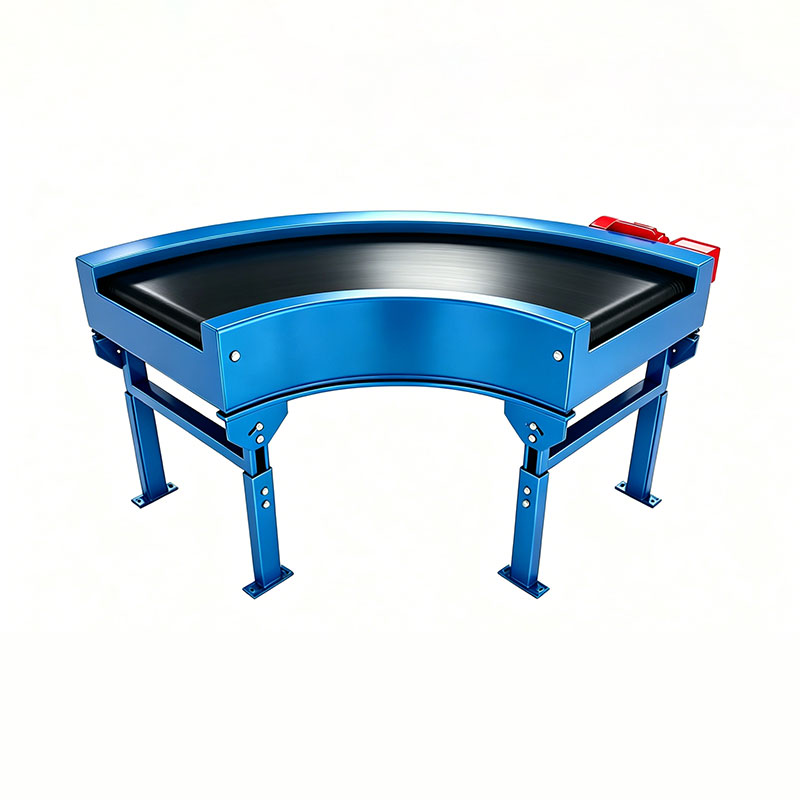

90 Degree Curved Belt Conveyors Manufacturer

AstraRoll's 90 Degree Curved Belt Conveyors are the ultimate solution for optimizing floor space and achieving precise directional changes within automated production lines. Unlike standard conveyors, our curved systems are engineered to maintain the exact orientation and positioning of products throughout the turn, ensuring the smooth moving of materials even at high speeds.

Designed for seamless integration into complex layouts, these conveyors feature a robust frame that supports a higher loading capacity. By utilizing precision-tapered rollers and advanced belt-tracking technology, AstraRoll systems deliver exceptional driving quiet wear resistance, minimizing noise and extending the service life of the equipment. Whether you are transporting delicate electronics or bulk packaged goods, our 90°conveyors ensure vibration-free and consistent smooth driving around every corner.

Technical Parameter

Turning Angle: Standard 90° (Custom 45°, 60°, or 180° available)

Belt Material: High-friction Anti-static PVC, Food-grade PU, or Rubber

Inner Radius: 300mm / 600mm / 900mm (Fully Customizable)

Frame Material: Extruded Aluminum Profile, Powder-Coated Steel, or SUS304

Loading Capacity: Engineered for higher loading capacity (up to 100kg/m)

Roller Type: Precision Tapered Rollers for synchronized smooth moving

Drive System: High-efficiency gear motor with VFD for precise speed control

Application Industrial

Logistics & Warehousing: High-speed parcel sorting and directional changes in distribution centers.

Food & Beverage Packaging: Smooth cornering for bottled or boxed products in hygienic environments.

Electronics Manufacturing: Precise transport of delicate components through multi-stage assembly lines.

Airport Baggage Handling: Heavy-duty, reliable turning sections for continuous luggage flow.

E-commerce Fulfillment: Modular cornering units for complex picking and packing networks.

Why Choose AstraRoll's 90 Degree Curved Belt Conveyors?

Maintained Product Orientation: Our tapered roller technology ensures that items experience smooth moving without rotating or shifting, which is critical for downstream scanning or labeling.

Structural Rigidity: Built with a heavy-duty framework to support a higher loading capacity, ensuring the conveyor remains perfectly aligned during high-speed cornering.

Quiet & Durable Operation: Precision-engineered components provide superior driving quiet wear resistance, creating a quieter working environment and reducing maintenance costs.

Optimized Speed Synchronization: Advanced drive systems guarantee constant linear speed across the belt width for ultra-stable smooth driving.

Seamless System Integration: Furthermore, our 90°curved belt conveyors are fully customizable to interface seamlessly with various models of motors, reducers, and encoders for advanced PLC control.

FAQ

Q: How do you prevent the belt from slipping during a 90-degree turn?

A: We use a positive-drive system with a specialized bead-tracking mechanism or chain-driven edge. This ensures smooth moving and prevents the belt from pulling toward the inner radius under load.

Q: Can these conveyors handle heavy industrial parcels?

A: Absolutely. Our curved systems are specifically engineered for a higher loading capacity, featuring reinforced supports and high-strength belts to handle heavy-duty industrial requirements.

Q: Is it possible to adjust the speed to match my existing production line?

A: Yes. Our 90° belt conveyors are fully customizable to interface seamlessly with various models of motors and VFDs, allowing for precise speed synchronization and smooth driving.

Q: What is the minimum radius you can manufacture?

A: We offer a variety of standard radii, but we can also provide high quality custom designs with tight radii to fit into extremely compact workspace layouts.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
