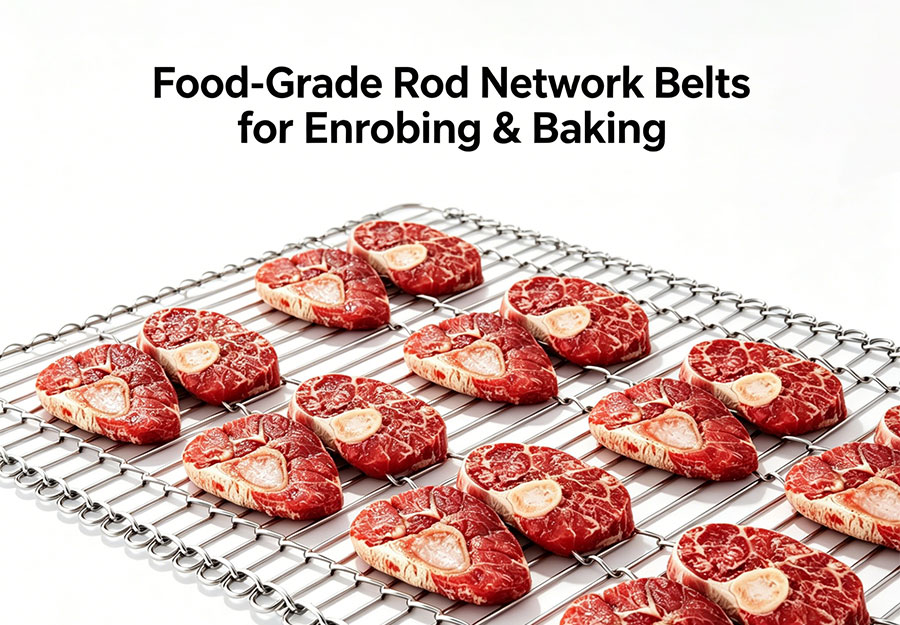

Food-Grade Rod Network Belts for Enrobing & Baking
Product Overview:

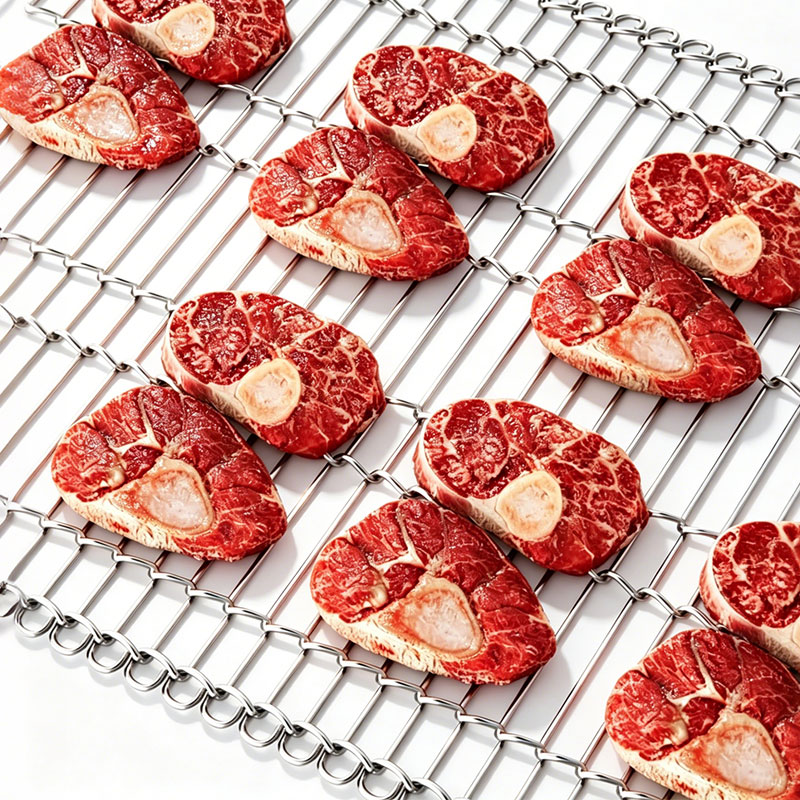

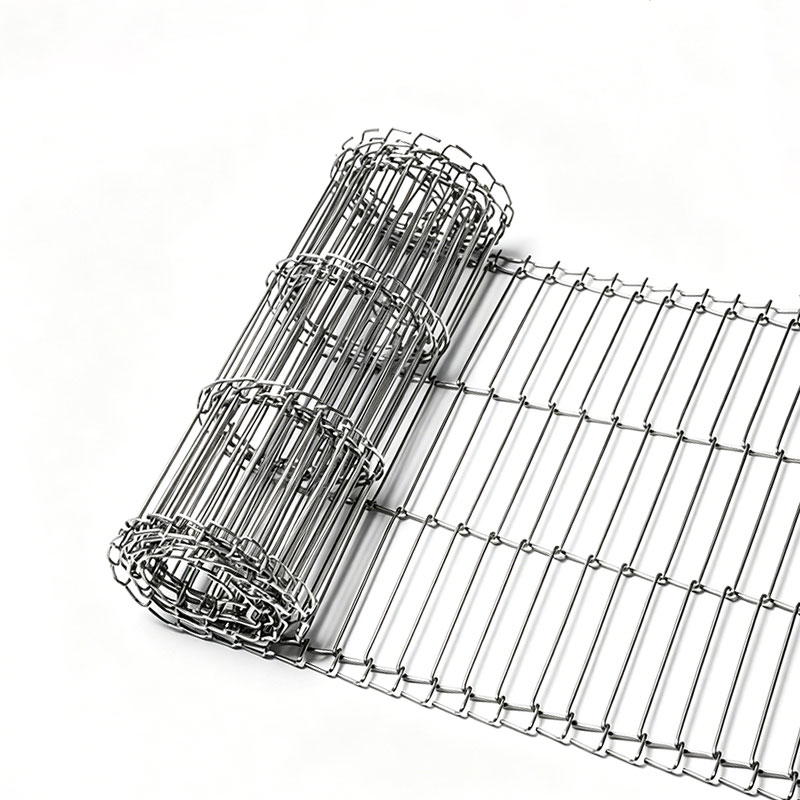

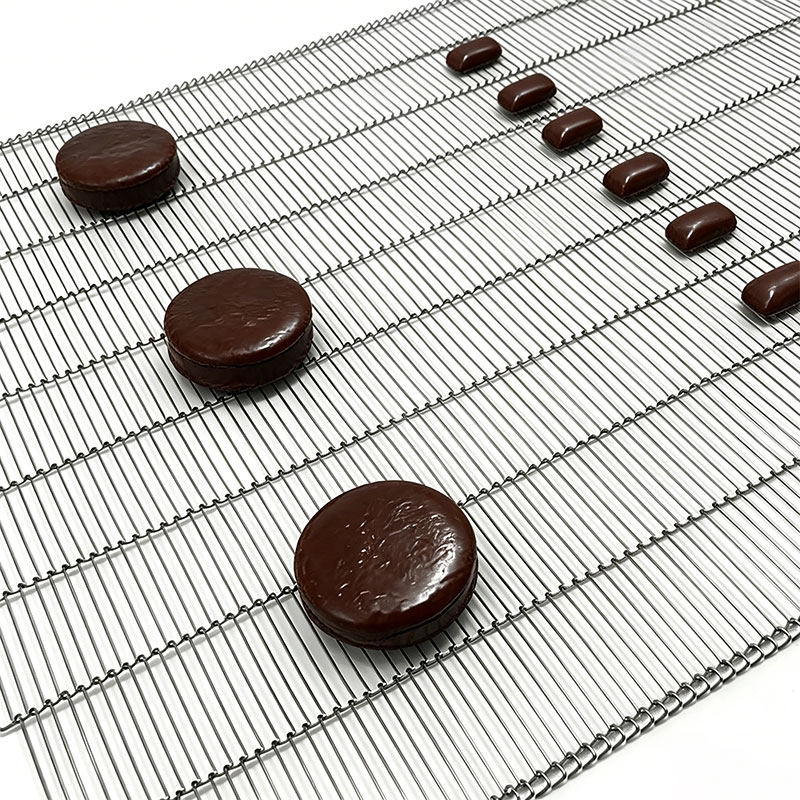

When processing delicate foods like chocolates, cookies, or battered meats, standard conveyor belts create two massive problems: they trap expensive liquid coatings, and they require large transfer gaps that cause small products to drop and jam. The AstraRoll Rod Network Belt (widely known as an Enrober or Flat Flex Belt) is the ultimate solution for food coating and light baking lines. Constructed from interwoven, pre-crimped stainless steel spring wires, this belt boasts an astonishing open area of up to 85%. This allows chocolate, icing, batter, or frying oil to flow freely through the belt, coating your product perfectly while allowing excess liquid to drain and be recycled. Furthermore, its ultra-flexible, single-layer design allows the belt to wrap around incredibly small "nose bars" (micro-rollers). This creates a razor-thin transfer gap between conveyors, ensuring that even the smallest candies or delicate pastries transfer smoothly without tipping or falling. As a direct OEM manufacturer, AstraRoll custom-forms every belt to perfectly match your existing sprockets and machinery.
Roll Function:
Industry Applications: Food
Food-Grade Rod Network Belts for Enrobing & Baking Details
The AstraRoll Technical Advantage: The Hygienic Coating Master
Food coating lines are notoriously messy and difficult to clean. We engineered our Rod Network series to maximize your ingredient efficiency and hygiene ratings:
Maximum Open Area: The minimalist rod design provides the highest open-area-to-wire ratio of any metal belt. This ensures rapid, unobstructed drainage of expensive chocolate, glazes, or frying oils, preventing a thick "foot" of dried coating from forming on the bottom of your products.
Micro-Transfer Radii: Traditional mesh belts require large end-rollers, creating a wide gap where small items fall through. AstraRoll Rod Network belts are so flexible they can wrap around knife-edges or small-diameter nose bars. This allows two conveyors to sit practically flush against each other, safely transferring items as small as a single peanut.
Zero-Slip Sprocket Drive: Because the belt consists of precise, repeating wire loops, it is perfectly suited for positive sprocket driving. This eliminates the tracking issues, slipping, and edge damage associated with friction-driven belts.
Ultimate CIP Hygiene: With no hidden crevices, overlapping spirals, or dense weaves, the Rod Network belt is incredibly easy to clean. High-pressure steam and CIP (Clean-In-Place) foam can instantly blast away sticky sugars, dough, and meat residues.
Key Specifications & Custom Capabilities
Please note: We manufacture entirely to your specifications. The following are our standard operating ranges.
Wire Pitch : 4.0mm to 20.0mm+ (Customized based on your product size).
Wire Diameter : 0.9mm to 2.8mm (Utilizing high-tensile spring wire to prevent stretching).
Belt Width: Custom built from 100mm up to 3,000mm.
Temperature Range: -50°C to 250°C (Standard SS) / Up to 400°C for baking lines.
Joining Method: Splice tubes, interlocking clips, or manual weaving of a joining strand.
Why Choose AstraRoll? (Your Food Processing OEM Partner)
1. Matched Sprockets & Blanks

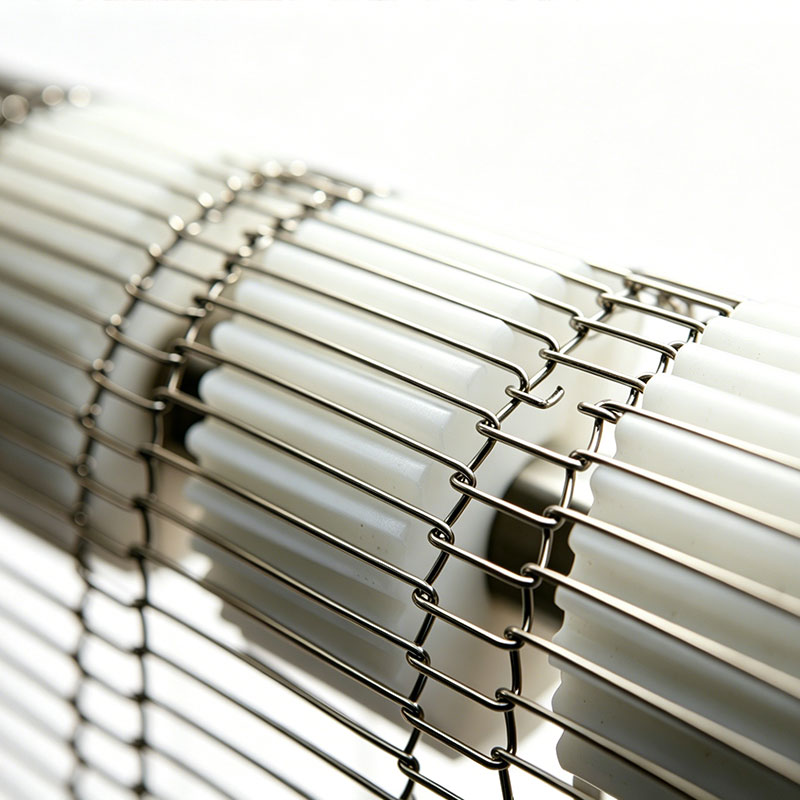

A rod network belt will only run as smoothly as the sprockets driving it. Instead of guessing if our belt will fit your existing drive system, AstraRoll manufactures the custom POM (Polyacetal) or Stainless Steel drive sprockets alongside your belt. We guarantee perfect pitch engagement, extending the life of your wire belt by years.
2. 1:1 OEM Replacement
Whether your machinery uses proprietary belts from Wire Belt Company (Flat-Flex®), Ashworth, or European chocolate enrobers, we don't require you to modify your machines. Provide us with your existing wire pitch, strand diameter, and width, and we will reverse-engineer a flawless drop-in replacement at aggressive B2B factory pricing.
Frequently Asked Questions (FAQs)
Q: Is this the same thing as a "Flat Flex" belt?
A: Yes. "Flat Flex" is a widely used trade name in the industry for this exact style of interwoven zigzag wire. As an independent manufacturer, AstraRoll produces premium Rod Network Belts that are fully compatible and interchangeable with all major "flat flex" style machinery.
Q: How do we join the belt ends together on our machine?
A: We supply the belts with easy-to-use splicing clips or joining tubes. Your maintenance team simply brings the two ends of the belt together around your conveyor frame and hooks the joining clips into place using standard needle-nose pliers—a process that takes minutes.
Q: Can this belt be used to make a 90-degree curve?
A: The standard Rod Network belt is designed for straight-line running. However, we do manufacture a specialized variant called the Radial Rod Network Belt (or Curve Belt), which features tapered pitches on one side, allowing it to navigate 90° or 180° corner conveyors flawlessly.
Q: The wires on our current enrober belt keep snapping. Why?
A: Premature wire breakage (metal fatigue) happens when manufacturers use standard stainless steel wire instead of spring-tempered stainless wire, or when the drive sprockets are misaligned, causing excess tension. AstraRoll uses only premium high-tensile spring wire to absorb continuous flexing over micro-rollers without snapping.
Q1. Are you a trader or direct factory?
We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.
Q2. What are your main products?
AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.
Q3. What about delivery time?
We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.
Q4. How can I get a quote for customized products?
Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.
Q5. What is your payment?
TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
