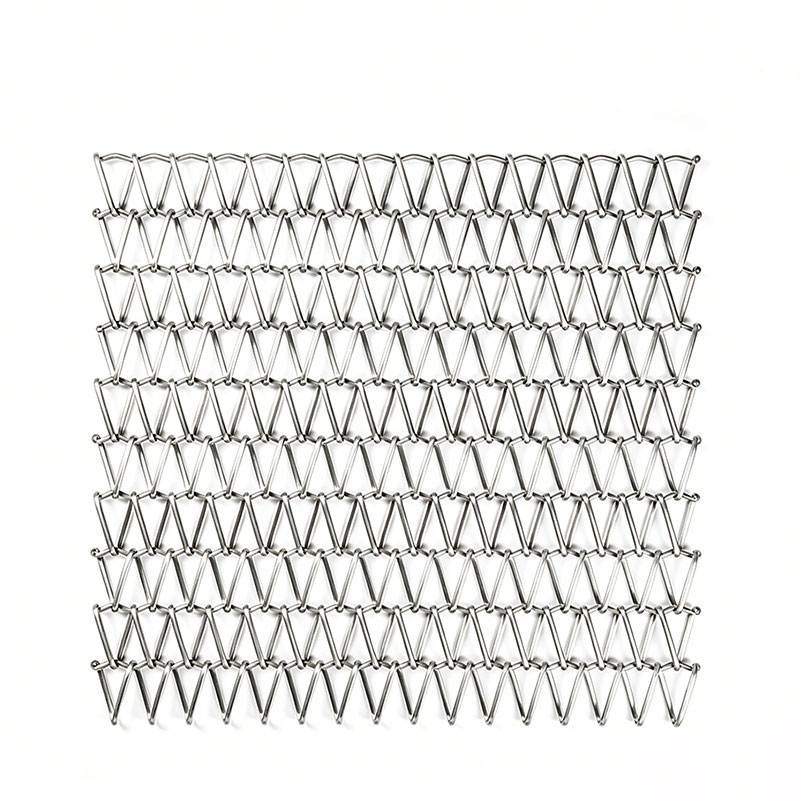

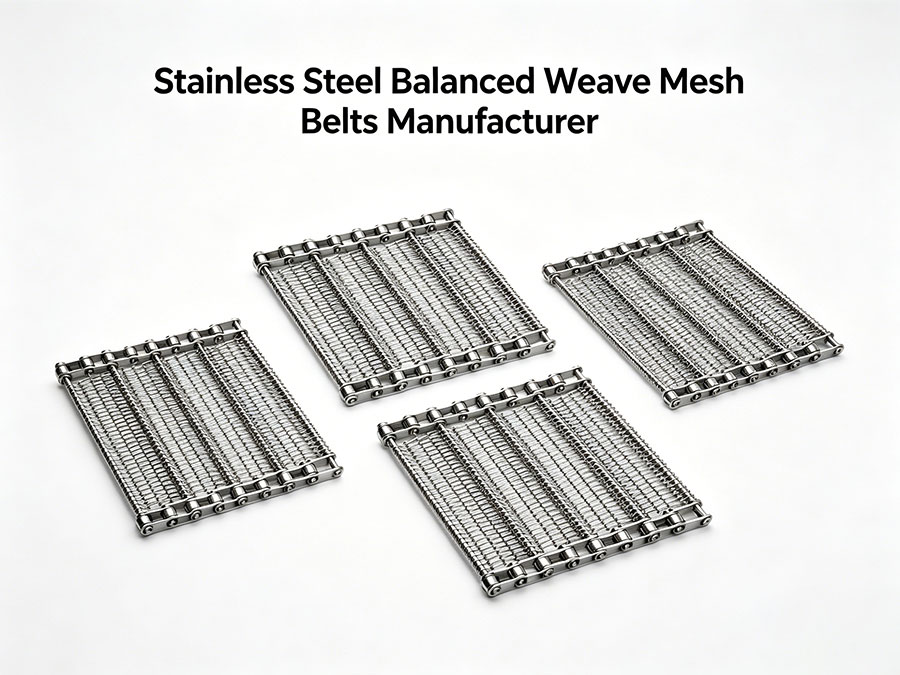

Stainless Steel Balanced Weave Mesh Belts Manufacturer

The AstraRoll Technical Advantage: Perfect Geometry
A mesh belt that constantly tracks off-center will destroy itself and your conveyor frame. We engineer our balanced weave belts for absolute stability and longevity:

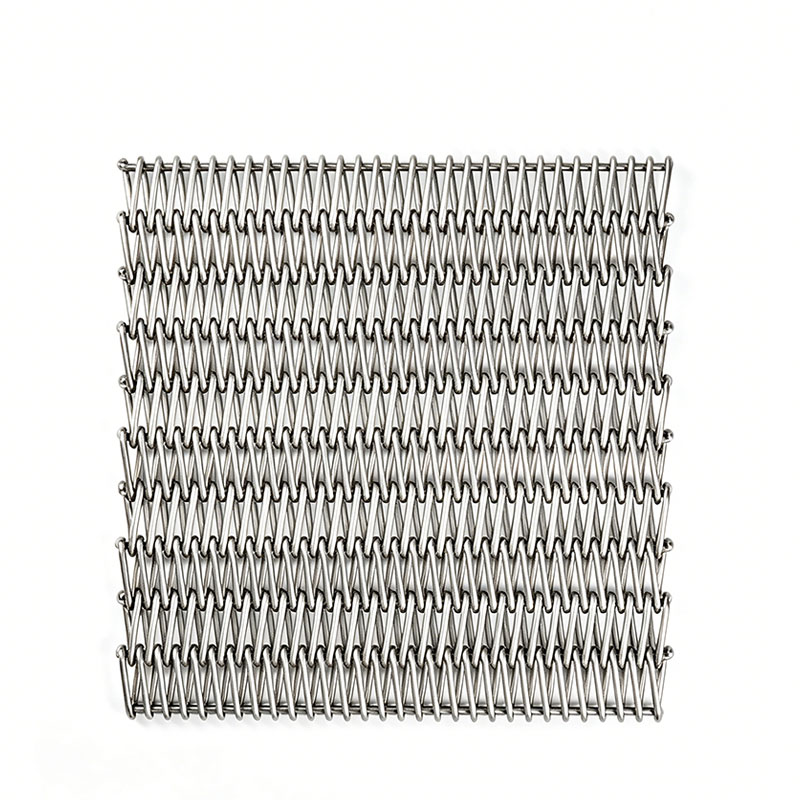

True-Tracking "Balanced" Design: By perfectly alternating left and right-wound spirals, the forces that cause a belt to drift are canceled out. This self-tracking nature drastically reduces maintenance downtime and prevents the edges of the belt from grinding against your conveyor frame.

Crimped Wire Locking: We precisely crimp (corrugate) the cross wires before assembly. The spiral coils nest perfectly into these crimps, completely preventing the spirals from shifting sideways under heavy loads or thermal expansion.

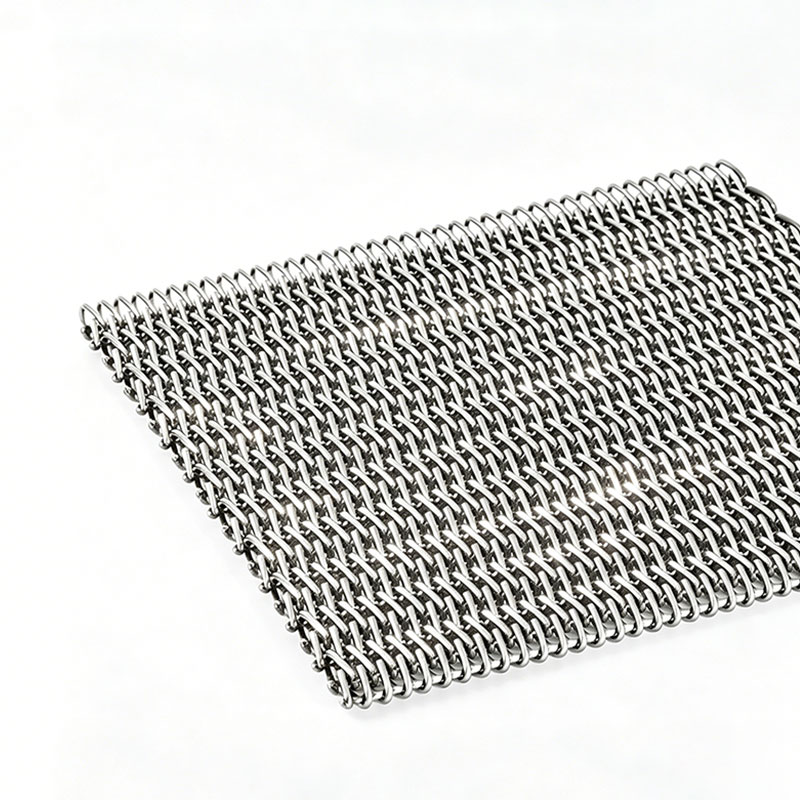

Exceptional Surface Flatness: Because the spirals are tightly integrated, the resulting conveying surface is incredibly flat. This prevents tall products (like glass bottles or baked goods) from tipping over, and prevents delicate dough from sinking deeply into the mesh.

Maximized Thermal Efficiency: The balanced weave offers the perfect ratio of wire mass to open area. This allows hot air in baking ovens, or frigid air in freezing tunnels, to instantly penetrate the load, accelerating your processing times while conserving energy.

Key Specifications & Custom Capabilities

Please note: We manufacture entirely to your specifications. The following are our standard operating ranges.

Spiral Pitch: Custom (Typically 2.5mm to 50mm).
Cross Wire Pitch: Custom (Typically 3mm to 60mm).
Wire Diameter: 0.8mm to 5.0mm+ (Available in round or flat wire profiles).
Overall Width: Precision woven from 50mm up to 6,000mm+ (6 meters) for wide-web ovens.
Temperature Range: -100°C to 1150°C (Dependent on the selected alloy).

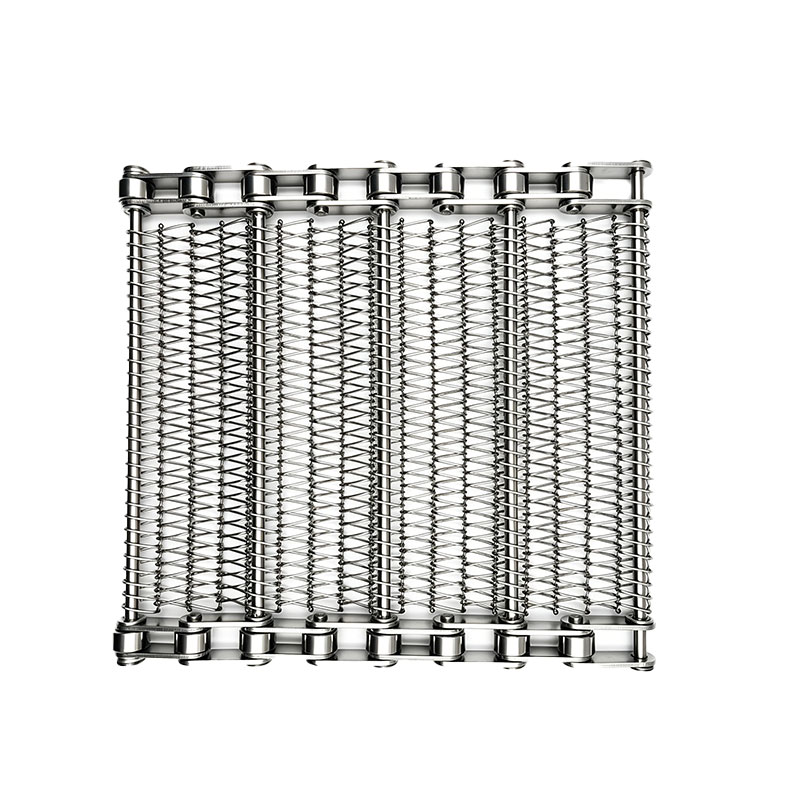

Accessories: Can be fitted with side guards, cross flights (cleats), and roller chain edges.

Why Choose AstraRoll? (Your Wire Mesh OEM Partner)

1. Exact Replacement Manufacturing

You do not need to change your conveyor's sprockets or rollers to switch to AstraRoll. Send us a small sample of your current belt, or provide the four critical dimensions (Spiral Pitch, Cross Pitch, Spiral Wire Dia, Cross Wire Dia), and our CNC weaving machines will replicate the exact geometry for a flawless drop-in fit.

2. Direct Factory Pricing for Consumables

Wire mesh belts are consumable items that require periodic replacement in high-heat or heavy-load facilities. Buying replacement belts from the original machine builder includes massive markups. Partnering directly with the AstraRoll factory ensures you get premium, high-alloy replacement belts at true B2B wholesale prices.

Frequently Asked Questions (FAQs)

Q: What is the difference between a "Crimped" cross wire and a "Straight" cross wire?
A: A Crimped cross wire has small waves pressed into it. The spiral coils sit inside these waves, locking them in place for maximum rigidity—this is best for heavy loads and high heat. A Straight cross wire is simply a straight piece of wire; it allows for the spirals to be packed much tighter together, creating a denser surface for very small products (like nuts or seeds).

Q: How do I measure my existing belt so you can make a replacement?
A: We only need a few simple measurements to replicate your belt:

• Spiral Pitch: The distance from the center of one spiral coil to the center of the next.
• Cross Pitch: The distance from the center of one cross wire to the center of the next.
• Wire Diameters: The thickness of both the spiral wire and the cross wire.   (Our sales team can provide a simple visual diagram to help your maintenance team measure this in 60 seconds).

Q: Do you offer the belts as an "endless" loop, or do we splice it on the machine?
A: We ship the belts in rolls with open ends. We provide extra cross wires and simple instructions so your maintenance team can easily splice (lace) the two ends together directly on the conveyor frame, creating a seamless endless loop without dismantling your machine.

Q: Can you add side plates to prevent our product from falling off the edges?
A: Absolutely. We can custom-weld flexible stainless steel side guards (up to several inches high) directly onto the edges of the balanced weave belt to contain bulk materials like vegetables, snacks, or hardware parts.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
