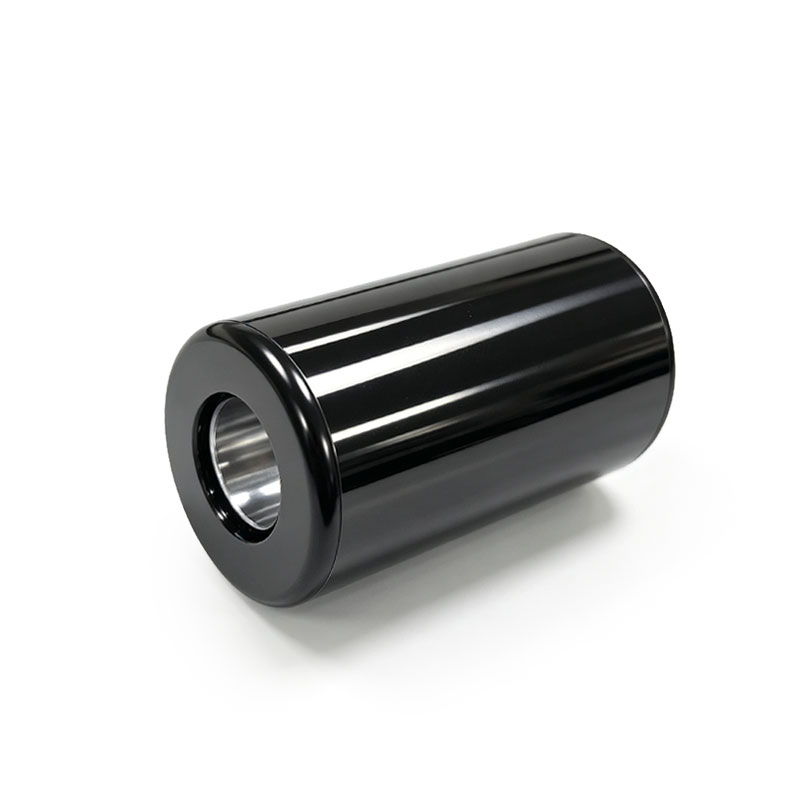

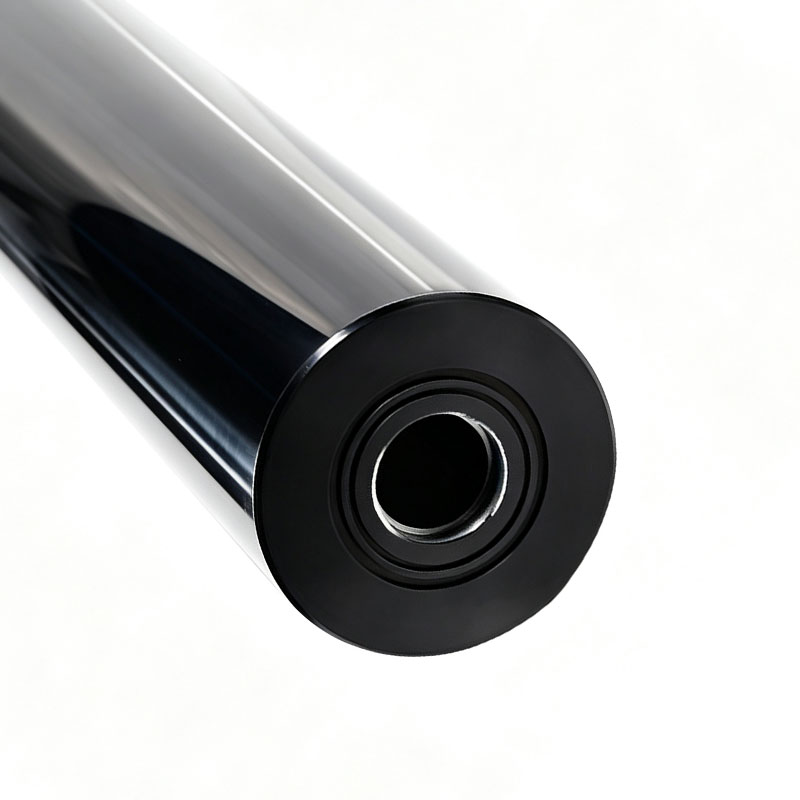

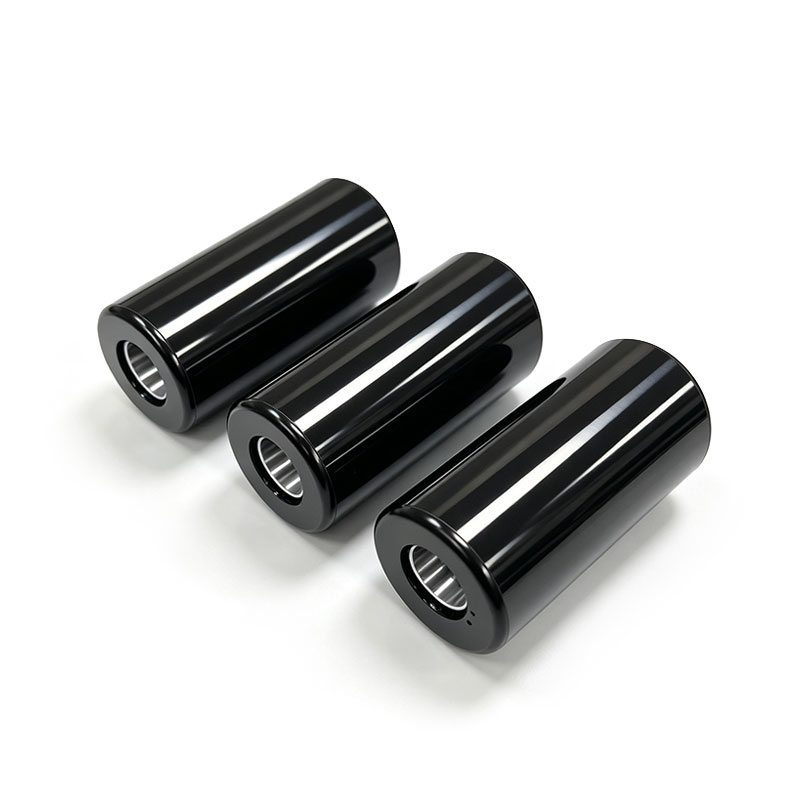

Black Anodized Aluminum Guide Roller with Hard Chrome Plated Shaft and Precision Bearings

Stable web handling requires a roller that rotates freely, maintains accurate alignment, and withstands continuous surface exposure throughout production.

AstraRoll's Black Anodized Aluminum Guide Roller combines a lightweight aluminum roller body with a precision bearing system and wear-resistant shaft structure. Black anodizing protects the aluminum surface against oxidation, corrosion, and general industrial wear, while the precision-machined roller geometry supports smooth contact with films, paper, fabrics, foils, and other flexible materials.

For applications requiring additional durability around the shaft and bearing interface, the steel shaft can be hard-chrome plated to improve surface hardness, wear resistance and corrosion protection.

The complete roller assembly can be customized according to machine dimensions, operating speed, web material and installation requirements.

The AstraRoll Technical Advantage

1. Black Anodized Protective Surface: Black anodizing forms a protective oxide layer directly on the aluminum surface, improving corrosion and oxidation resistance while providing a uniform dark finish. The low-reflection appearance is also suitable for equipment where glare or visual interference should be minimized.

2. Lightweight, Low-Inertia Aluminum Body: The aluminum alloy construction keeps rotating mass significantly lower than comparable steel rollers. Reduced inertia allows easier acceleration and deceleration, making the roller suitable for high-speed or low-tension web handling.

3. Hard-Chrome-Plated Steel Shaft: The steel shaft or journal surfaces can be finished with hard chrome plating to improve hardness, wear resistance, and corrosion protection, particularly around mounting, bearing, or repeated-contact areas.

4. Precision Bearing Assembly: Low-friction precision bearings support smooth roller rotation and low starting resistance. Bearing type, size and installation structure can be selected according to roller load, speed and machine configuration.

5. Precision Machining for Stable Web Guidance:  CNC machining controls the roller body, bearing seats and shaft interfaces to maintain concentricity and alignment. Runout and dynamic balance can be specified according to operating speed to reduce vibration and web tracking variation.

6. Built to Match Existing Equipment: Roller diameter, face length, shaft ends, bearing positions, mounting dimensions, and anodizing requirements can all be produced from customer drawings, samples, or existing machine specifications.

Key Specifications

Roller Type: Aluminum Guide / Idler Roller
Roller Material: Aluminum Alloy 6061 / 6063 or customized
Roller Surface: Black Anodized
Shaft: Steel, hard-chrome plated as required
Bearings: Precision Ball Bearings
Outer Diameter: Customizable
Face Length: Customizable
Shaft Ends: Customizable

Runout, balancing grade, bearing brand, anodizing thickness, surface roughness, and dimensional tolerances can be customized according to the application.

Surface Treatment: Black Anodizing: The black anodized finish improves surface corrosion and oxidation resistance while maintaining the lightweight characteristics of the aluminum roller body.

Hard Chrome Plating: Hard chrome plating can be applied to steel shaft and journal surfaces where additional hardness, wear resistance, and corrosion protection are required.

Function

Web Guidance: Maintains controlled material direction through continuous production equipment.
Material Handling: Provides smooth support and transport for films, paper, foil, fabric and other flexible web materials.
Tension Support: Low-friction bearing rotation helps the roller respond smoothly to changes in web speed and tension.
High-Speed Idling: The lightweight aluminum structure reduces rotational inertia for fast and stable free-running operation.

Application Industries

Printing, Flexible Packaging, Plastic Film, Converting, Coating, Laminating, Slitting & Rewinding, Textile, Paper Processing, Electronics, New Energy, Roll-to-Roll Manufacturing

Typical Applications

This black anodized guide roller can be integrated into:

Printing presses, Bag making machines, Film production lines, Flexible packaging equipment, Laminating machines, Coating lines, Slitting machines, Rewinding equipment, Textile processing machinery, Paper converting equipment, Film inspection equipment, Roll-to-roll production systems

It is particularly suitable for positions requiring smooth material guidance, low rotating resistance, and a durable aluminum surface.

Why Choose AstraRoll?

Complete Precision Roller Manufacturing

AstraRoll combines CNC machining, anodizing, shaft processing, bearing assembly, and dynamic balancing for integrated roller production.

Fully Customized Configuration

Dimensions, shaft ends, bearing arrangement, surface finish and balancing requirements can be matched directly to your machine.

Stable Performance for Continuous Production

Precision machining, low-friction bearings, and controlled roller balance support smooth rotation and reliable web handling in continuous industrial lines.
