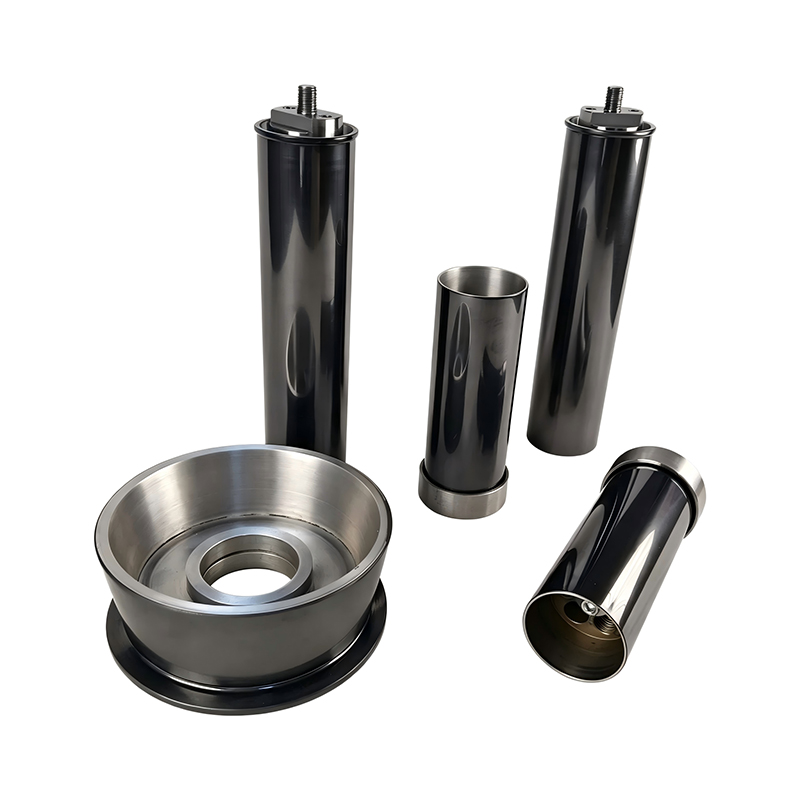

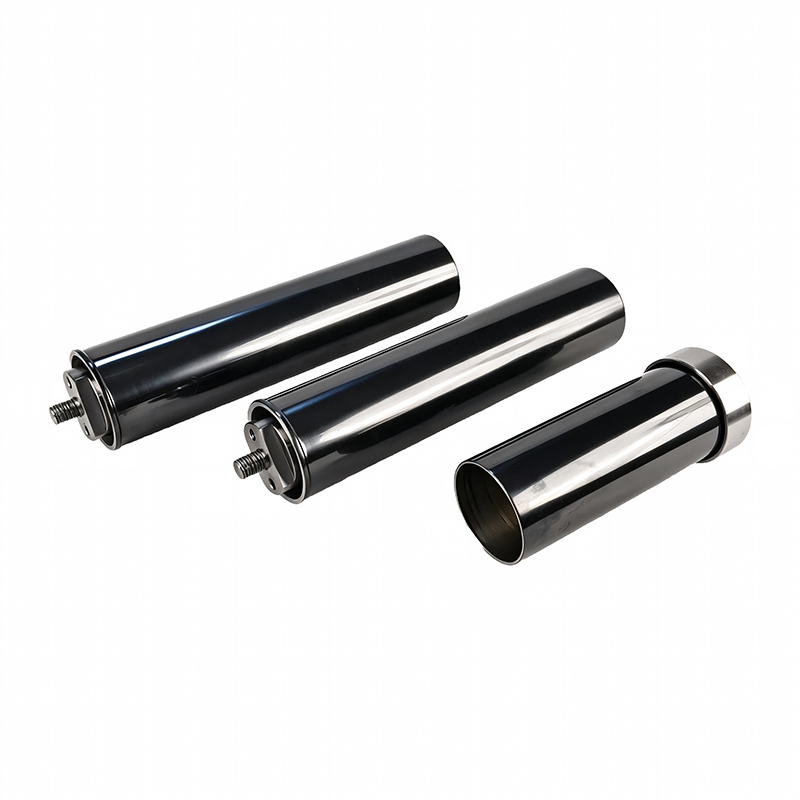

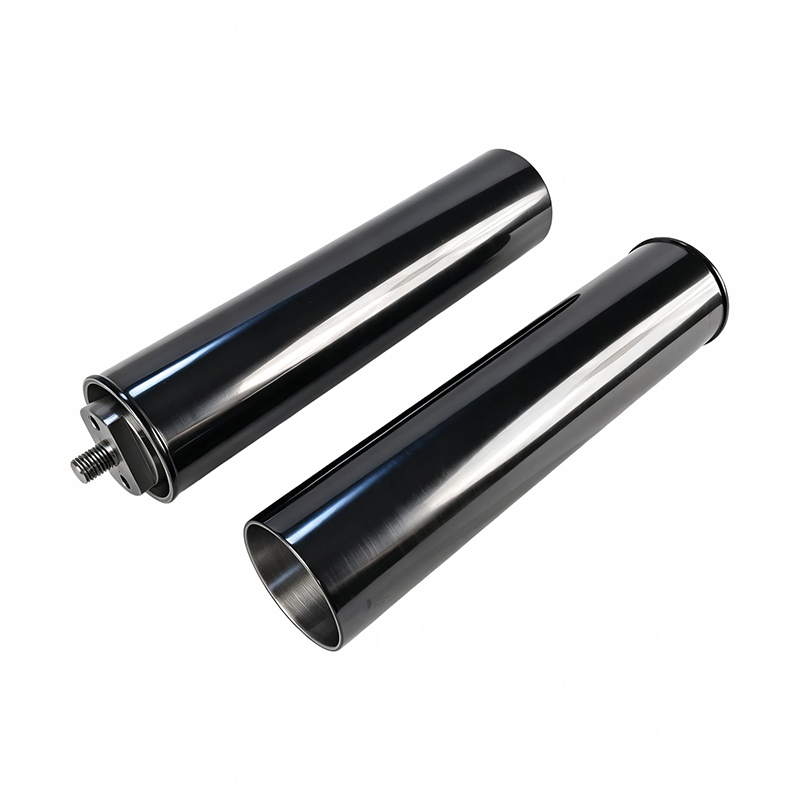

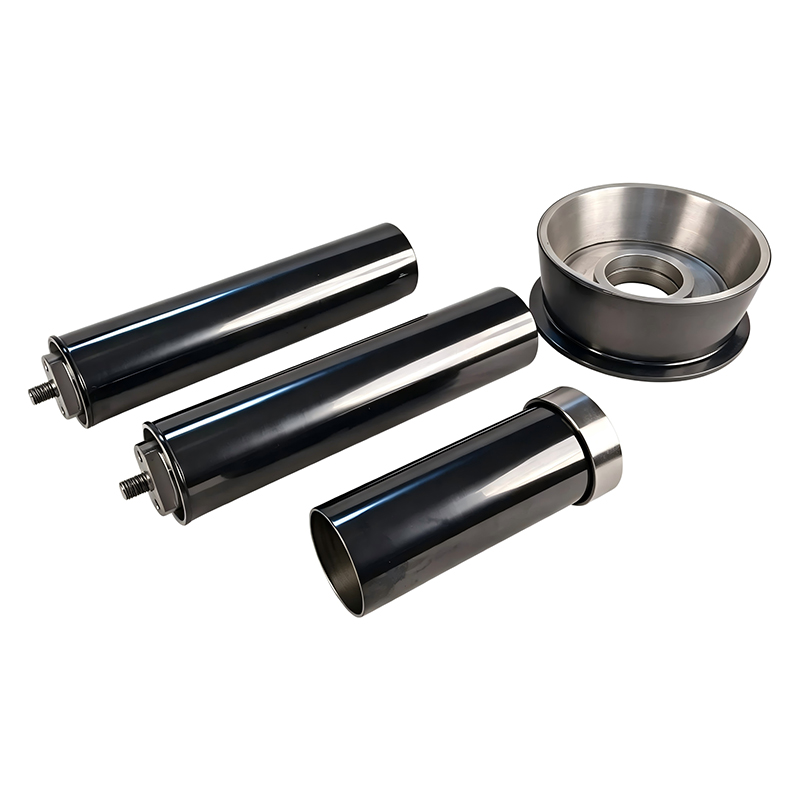

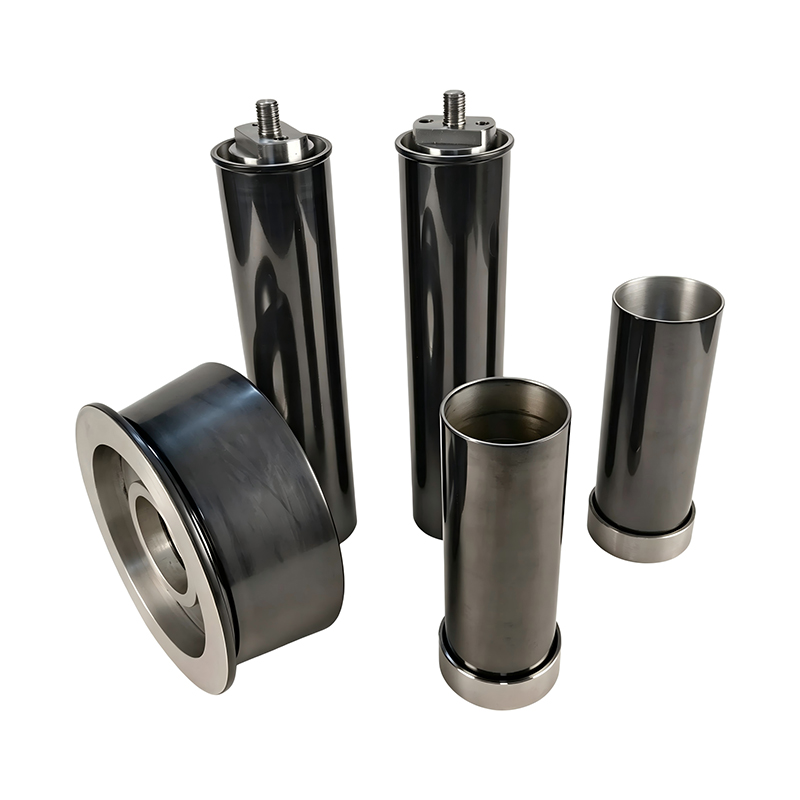

Custom Aluminum Annealer Guide Roller for Copper and Aluminum Wire Production

Continuous wire annealing places demanding requirements on guide rollers. Copper and aluminum wires travel through the production line at speed while the roller surface is exposed to repeated friction, elevated temperatures, and continuous mechanical contact. AstraRoll's Ceramic-Coated Aluminum Annealer Guide Roller is designed specifically for these conditions. The lightweight aluminum body provides low rotational inertia and responsive rotation, while the ceramic working surface offers the hardness and wear resistance required for long-term wire guidance.

Precision machining and controlled surface finishing help maintain stable wire tracking while reducing the risk of excessive friction, surface marking, and premature roller wear. The roller can be manufactured as a replacement component or customized according to the dimensions and interface requirements of existing annealing and wire-drawing equipment.

The AstraRoll Technical Advantage

1. Wear-Resistant Ceramic Working Surface: The ceramic coating provides a hard and durable contact surface for continuous copper and aluminum wire guidance. Compared with untreated aluminum, the ceramic layer offers significantly improved resistance to abrasion and repeated wire contact, helping extend roller service life.

2. Stable Performance in Annealing Environments: Ceramic materials maintain good surface stability under elevated-temperature operating conditions. Depending on the application, alumina, chromium oxide, zirconia, or other ceramic systems can be selected according to temperature, wear, and surface requirements.

3. Lightweight Aluminum Roller Body: The aluminum substrate keeps the roller lighter than comparable solid steel designs. Lower rotating mass supports fast response to wire-speed changes and reduces unnecessary bearing and drive-system loads.

4. Smooth, Wire-Friendly Surface Finish: The working surface can be precision ground and polished after ceramic coating to achieve controlled roughness. A smooth surface helps reduce unnecessary friction and protects copper and aluminum wire surfaces during continuous production.

5. Accurate Wire Guidance: Roller geometry, groove position, concentricity, and shaft interfaces are precision machined to support stable wire travel. This helps reduce lateral deviation, vibration, and inconsistent wire contact through the annealing process.

6. Customized for Existing Annealing Equipment: Roller diameter, width, groove profile, shaft design, mounting dimensions, ceramic type, and surface condition can be manufactured according to customer drawings, existing samples, or machine specifications.

Key Specifications

Roller Type: Annealer Guide Roller / Wire Guide Roller
Roller Body: Aluminum Alloy
Working Surface: Ceramic Coating
Ceramic Options: Al₂O₃ / Cr₂O₃ / ZrO₂ or customized
Surface Roughness: Typically Ra 0.2–0.4 μm, customizable
Roller Diameter: Customizable
Groove Profile: Customizable for wire diameter
Mounting / Shaft Design: Customizable

Coating thickness, hardness, dimensional tolerance, bearing arrangement, and other specifications can be engineered according to the annealing machine and operating conditions.

Surface Treatment

Ceramic Coating
A hard ceramic layer is applied to the aluminum roller body to improve wear resistance, thermal stability, and surface durability.

Plasma / Thermal Spray
Plasma spraying or other thermal-spray processes can be selected according to the required ceramic material and coating performance.

Precision Grinding & Polishing
Post-coating grinding and polishing control the final roller geometry and surface roughness required for smooth wire contact.

Functions

Wire Guidance
Maintains copper or aluminum wire in the required path through continuous annealing equipment.
Wire Support
Provides stable support between processing stations while minimizing unnecessary resistance.
High-Speed Rotation
The lightweight aluminum construction supports responsive rotation during continuous wire production.
Surface Protection
A smooth ceramic contact surface helps reduce wear on both the guide roller and processed wire.
High-Temperature Process Support
Suitable ceramic materials can provide stable surface performance in demanding annealing environments.

Application Industries

• Wire & Cable Manufacturing
• Copper Wire Production
• Aluminum Wire Production
• Electrical Cable Manufacturing
• Metal Drawing
• Continuous Annealing
• Electrical & Electronics
• New Energy
• Precision Metal Processing

The ceramic-coated annealer guide roller is suitable for:

• Copper wire annealing machines
• Aluminum wire annealing lines
• Rod breakdown machines
• Intermediate wire drawing machines
• Fine wire drawing equipment
• Continuous annealing systems
• Wire and cable manufacturing lines
• Metal wire guiding systems
• High-speed wire processing machinery

It can be adapted for different wire diameters, machine speeds, and annealing configurations.

Why Choose AstraRoll?

1. Ceramic Coating and Precision Roller Manufacturing
AstraRoll integrates aluminum machining, ceramic spraying, precision grinding and surface finishing into one engineered roller solution.

2. Customized for Your Wire Process
Groove profile, roller dimensions, ceramic material, and mounting interfaces can be matched to your wire diameter and existing machine.

3. Built for Continuous Production
Wear-resistant ceramic surfaces and controlled roller geometry support stable wire guidance and longer operating life in continuous annealing lines.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
