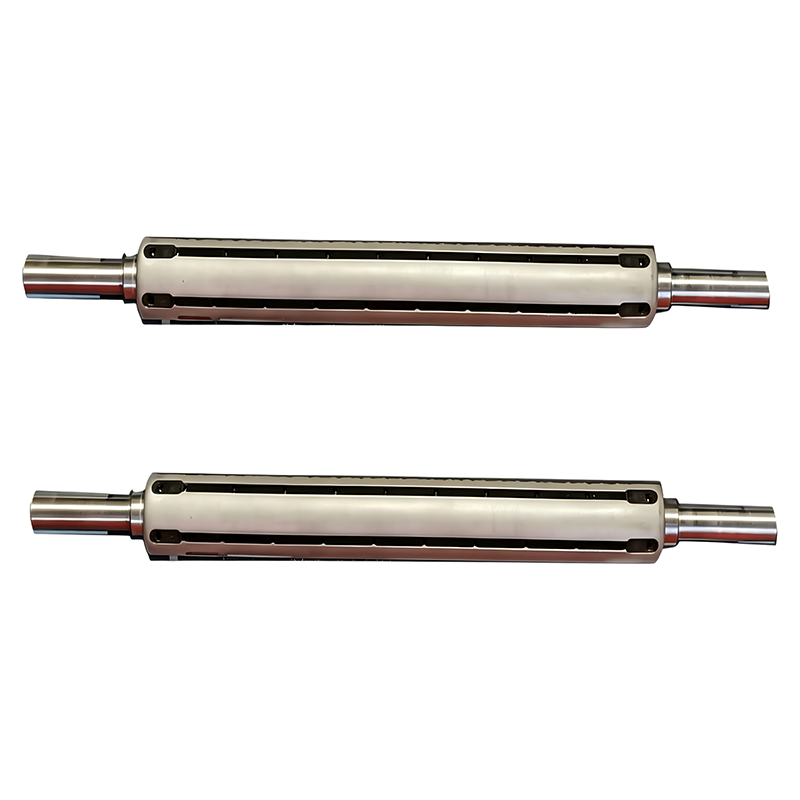

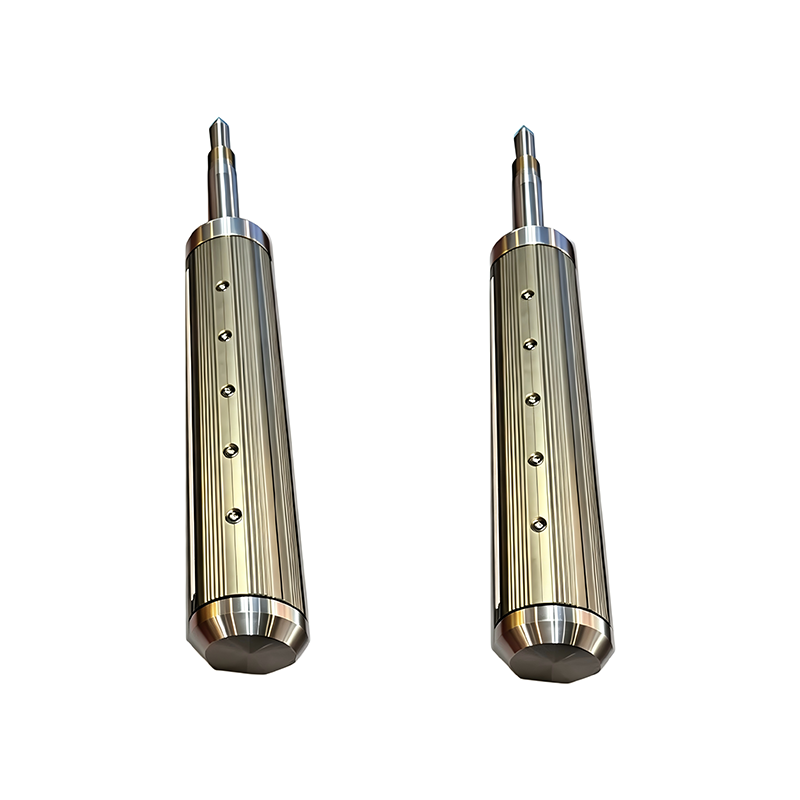

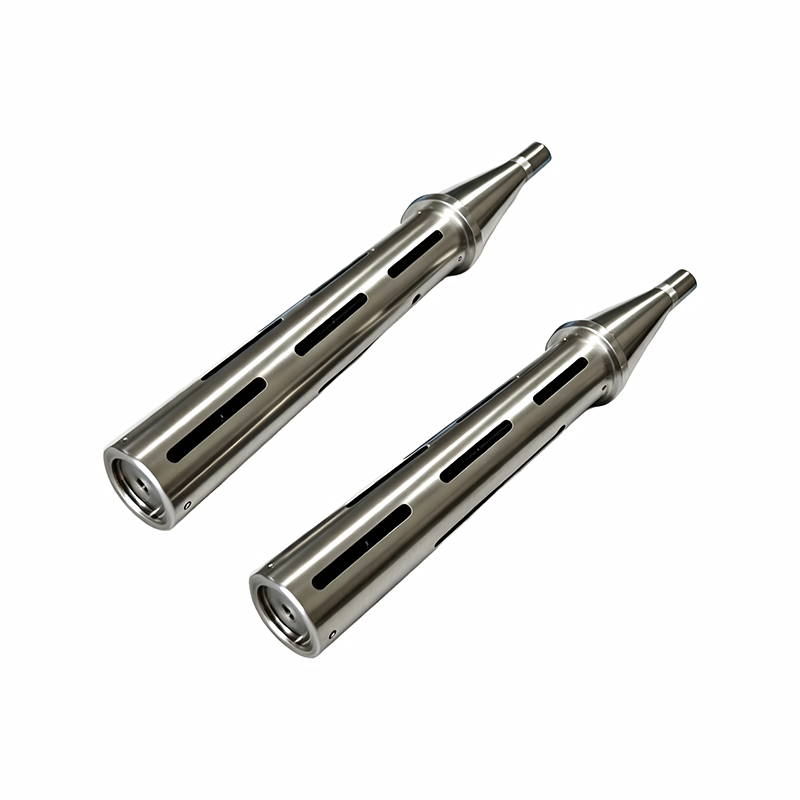

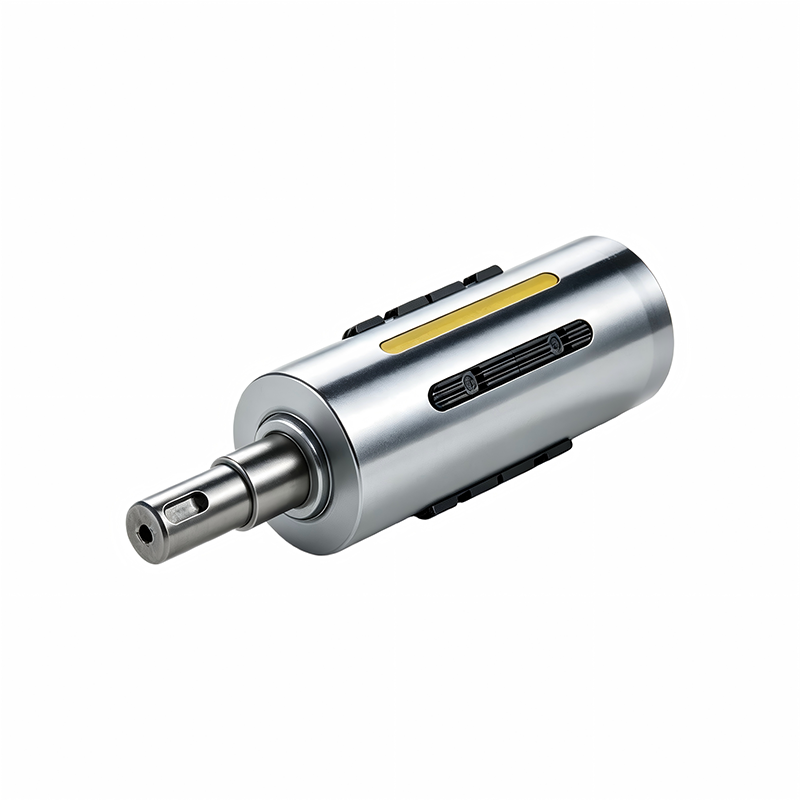

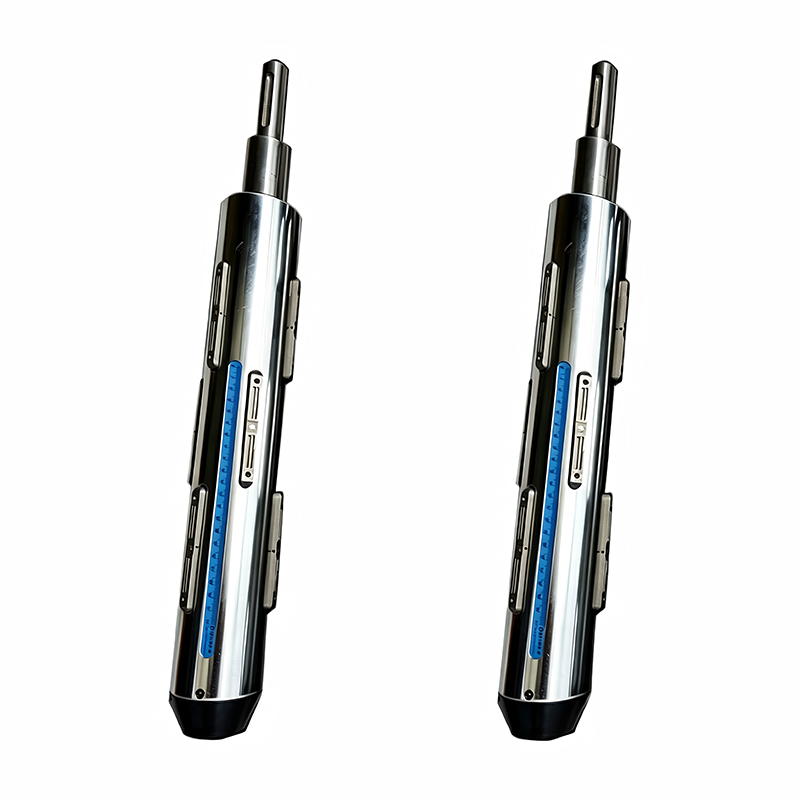

Custom Aluminum Pneumatic Expanding Key Bar Type Air Shaft

Efficient roll handling is essential in continuous web-processing industries. Printing, packaging, laminating, slitting and rewinding machines require reliable shaft systems that can quickly secure material rolls while maintaining accurate rotation during production. The AstraRoll Pneumatic Expanding Key Bar Air Shaft uses compressed air to activate expanding keys, allowing the shaft to securely grip the inner diameter of paper cores, film cores and other roll materials. When air pressure is released, the keys retract, allowing fast and easy roll removal.

Compared with mechanical clamping systems, pneumatic expanding shafts improve loading efficiency, reduce setup time and provide consistent core engagement during high-speed web processing. The shaft body is manufactured from lightweight aluminum alloy, providing reduced weight and good rotational response while maintaining sufficient structural strength for industrial roll handling applications.

The AstraRoll Technical Advantage

1. Reliable Pneumatic Core Expansion: The internal pneumatic mechanism expands the key bars evenly around the shaft circumference, creating secure contact with the roll core. This helps reduce core slipping and improves transmission stability during winding and unwinding operations.

2. Lightweight Aluminum Construction: The aluminum shaft body reduces overall rotating mass compared with traditional steel air shafts. Lower weight helps improve machine handling, installation efficiency and operator convenience, especially for frequently changed rolls.

3. Fast Roll Changeover: The expanding key bar design allows operators to quickly mount and remove rolls by simply controlling air pressure. This reduces machine downtime and improves production efficiency in continuous processing lines.

4. Stable Roll Positioning: Multiple expanding keys provide distributed gripping force around the core, helping maintain concentric positioning between the shaft and roll. This supports stable web tension and consistent material feeding.

5. Customized Core Compatibility: Key bar size, expansion range, shaft diameter, working length and mounting structure can be customized according to different roll cores, machine designs and production requirements.

6. Designed for Continuous Web Processing: AstraRoll air shafts are suitable for demanding roll-to-roll applications requiring reliable expansion, accurate rotation and repeated operation cycles.

Key Specifications

Shaft Type: Pneumatic Expanding Key Bar Air Shaft
Body Material: Aluminum Alloy
Expansion Type: Key Bar Expansion
Operation: Pneumatic Air Pressure
Core Type: Paper Core / Film Core / Custom Core
Shaft Diameter: Customizable
Working Length: Customizable
Key Bar Quantity: Customizable
Mounting Interface: Customizable
Air Pressure Requirement: According to design

Additional specifications including expansion stroke, load capacity, torque requirement, bearing interface and dimensional tolerances can be customized according to equipment requirements.

Surface Treatment

Aluminum Anodizing
Anodizing can be applied to the aluminum shaft surface to improve corrosion resistance, surface durability and appearance.

Precision Machining
CNC machining ensures accurate shaft dimensions, key bar positioning and mounting interfaces for reliable installation.

Surface Finishing
Additional finishing options can be customized according to operating environment and machine requirements.

Functions

Roll Core Clamping
Provides secure mechanical engagement between the shaft and material core during production.

Fast Roll Installation
Allows quick mounting and removal of rolls through pneumatic expansion and contraction.

Torque Transmission
Transfers rotational force between the machine drive system and material roll.

Web Tension Support
Maintains stable roll positioning during unwinding and rewinding processes.

Roll-to-Roll Automation
Supports continuous material handling in automated production equipment.

Typical Applications
The pneumatic key bar air shaft is widely used in:

• Printing presses
• Flexographic printing machines
• Gravure printing machines
• Slitting machines
• Rewinding machines
• Laminating equipment
• Coating machines
• Film winding systems
• Paper converting equipment
• Packaging production lines
• Roll handling systems

Typical materials include:

• Plastic film
• Paper rolls
• Aluminum foil
• Copper foil
• Adhesive film
• Textile rolls
• Flexible packaging materials

Why Choose AstraRoll?

1. Customized Air Shaft Solutions

AstraRoll provides customized shaft diameter, length, expansion structure and mounting design according to machine requirements.

Aluminum construction provides easy handling while maintaining stable performance during continuous roll processing.

Machining, surface treatment and assembly are controlled together to ensure accurate expansion, stable gripping and reliable operation.
