Custom Fluted Aluminum Guide Roller for Film Blowing and Printing Machines

Thin plastic films can be difficult to guide with conventional smooth rollers, particularly during film blowing, bag making and high-speed converting. Large continuous contact areas may increase drag, trap air, or make lightweight film more sensitive to surface adhesion.

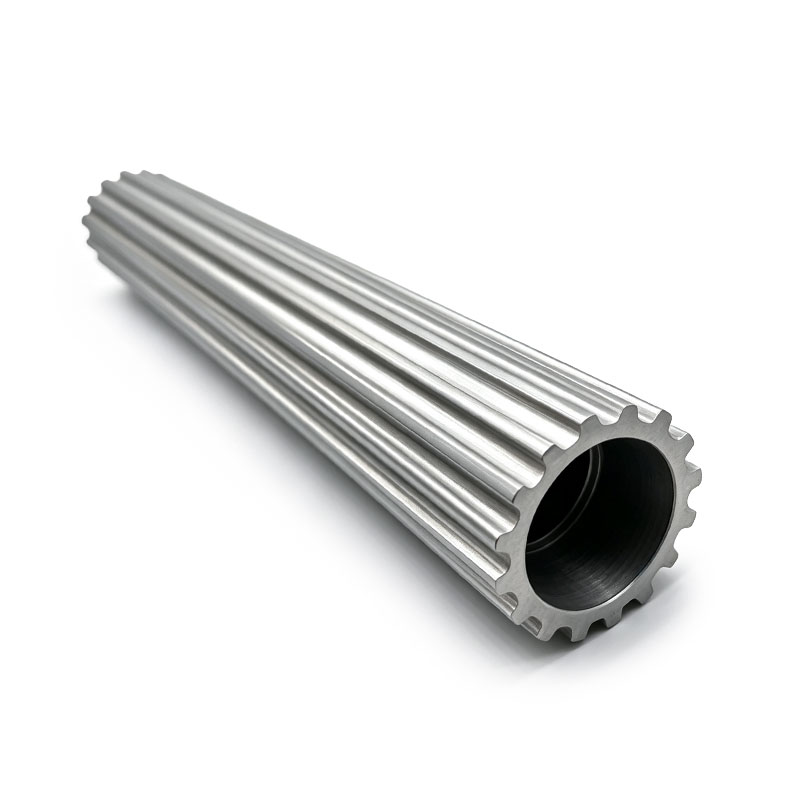

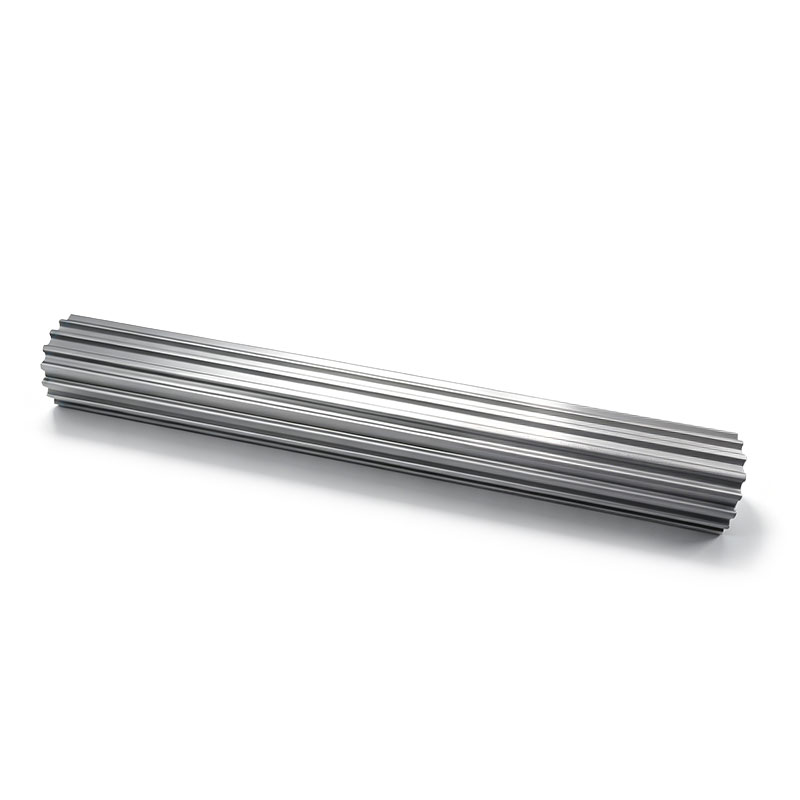

The AstraRoll Plum Blossom Aluminum Guide Roller uses a specially profiled aluminum surface with longitudinal raised sections and recessed channels. This geometry reduces unnecessary contact while maintaining reliable support across the web, making it particularly suitable for lightweight films and continuous roll-to-roll materials.

Combined with precision aluminum machining, anodized surface protection, and customized shaft interfaces, the roller offers a lightweight solution for OEM machinery and replacement applications.

The AstraRoll Technical Advantage

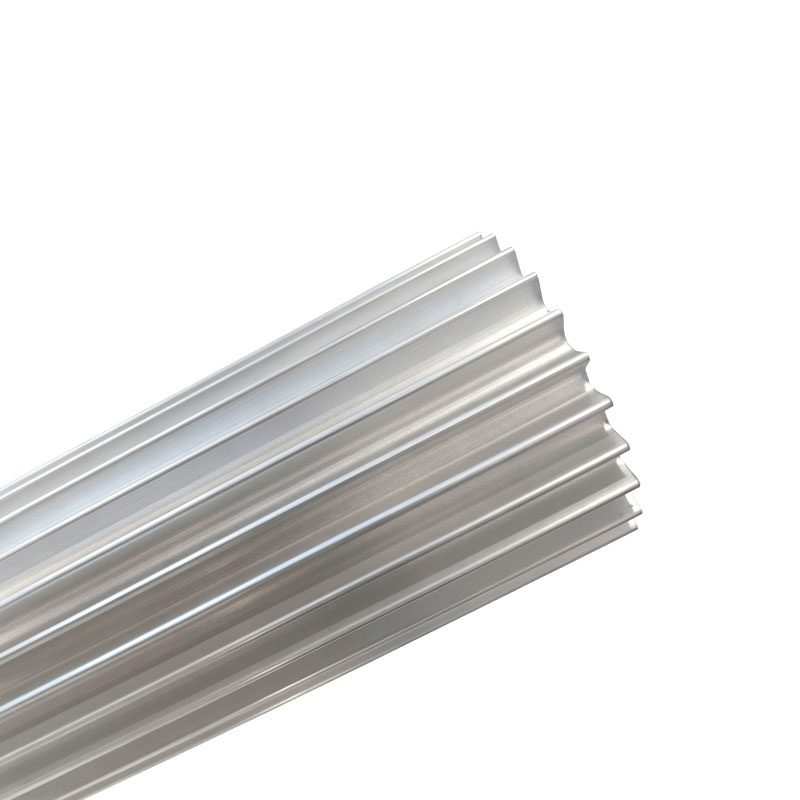

1. Plum-Profile Surface Design: The characteristic multi-lobed profile creates alternating contact areas and longitudinal channels along the roller face. Profile size, number of lobes, and geometry can be adapted to the film thickness, width, and machine requirements.

2. Reduced Film Contact Area: Compared with a completely smooth cylindrical roller, the profiled surface limits continuous contact between the film and roller. This can help reduce sticking and unnecessary drag when handling thin, lightweight or flexible materials.

3. Natural Air-Release Channels: The recessed sections running along the roller provide paths for displaced air to escape as the web passes over the surface, supporting more stable contact during continuous film transport.

4. Lightweight Aluminum Construction: Aluminum alloy keeps roller mass and rotational inertia low, allowing faster response during machine acceleration and deceleration while reducing loads on bearings and supporting structures. AstraRoll uses lightweight aluminum constructions extensively in high-speed web-handling rollers.

5. Durable Anodized Finish: Anodizing improves the aluminum surface's wear and corrosion resistance while retaining the roller's lightweight construction. Standard or hard anodizing can be selected according to operating conditions and customer requirements.

6. Customized for Existing Equipment: Outer diameter, working length, plum profile, shaft configuration, bearing positions and mounting features can be manufactured according to drawings, samples or existing machine dimensions.

Key Specifications

Roller Type: Plum Blossom / Fluted Aluminum Guide Roller
Material: Aluminum Alloy 6061 / 6063 or customized
Surface Profile: Plum Blossom / Longitudinal Fluted Profile
Surface Treatment: Anodizing / Hard Anodizing
Roller Diameter: Customizable
Face Length: Customizable
Shaft Design: Customizable
Profile Geometry: Customizable

Runout, dynamic balancing, anodizing thickness, surface finish, and dimensional tolerances can be specified according to machine speed and application requirements.

Typical Applications

The plum blossom aluminum guide roller is particularly suitable for lightweight film and flexible-web handling in:

• Film blowing machines
• Plastic bag making machines
• Flexible packaging lines
• Printing presses
• Film extrusion equipment
• Slitting and rewinding machines
• Laminating machinery
• Plastic film converting equipment
• Protective film production
• Roll-to-roll processing systems

Typical materials include PE, PP, and other flexible plastic films, packaging films, and lightweight continuous web materials.

Why Choose AstraRoll?

Specialized Aluminum Roller Manufacturing
AstraRoll combines precision aluminum machining, profile processing, anodizing, and balancing for customized industrial rollers.

Profile Designed Around Your Film
Diameter, working length, plum-shaped profile, shaft ends, and surface treatment can be matched to your material and machine configuration.

Stable Performance for Continuous Web Handling
Controlled roller geometry, runout, and balance support smooth rotation and consistent film transport in high-speed production lines.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
