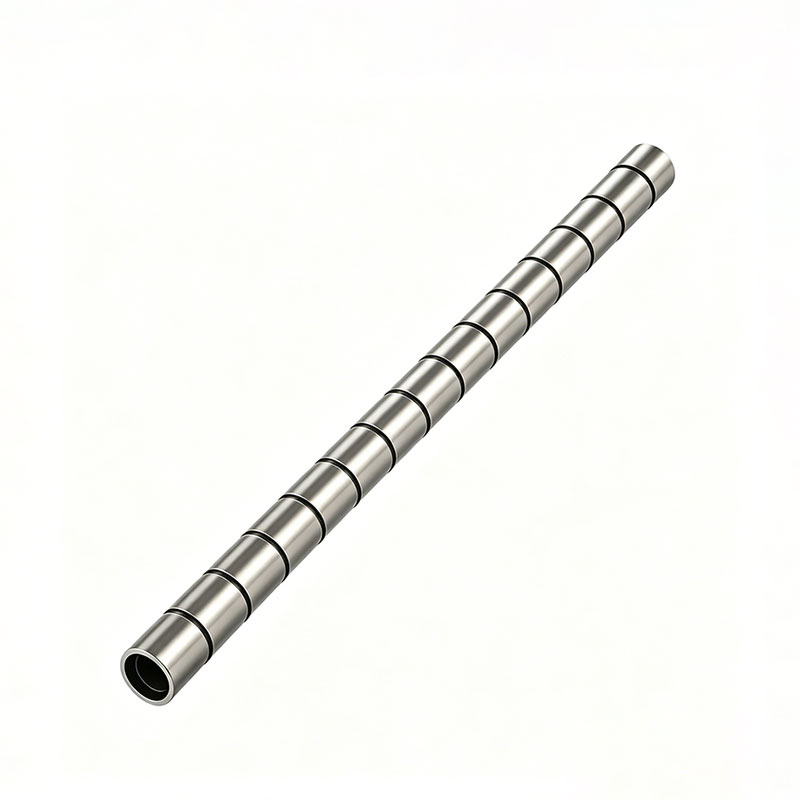

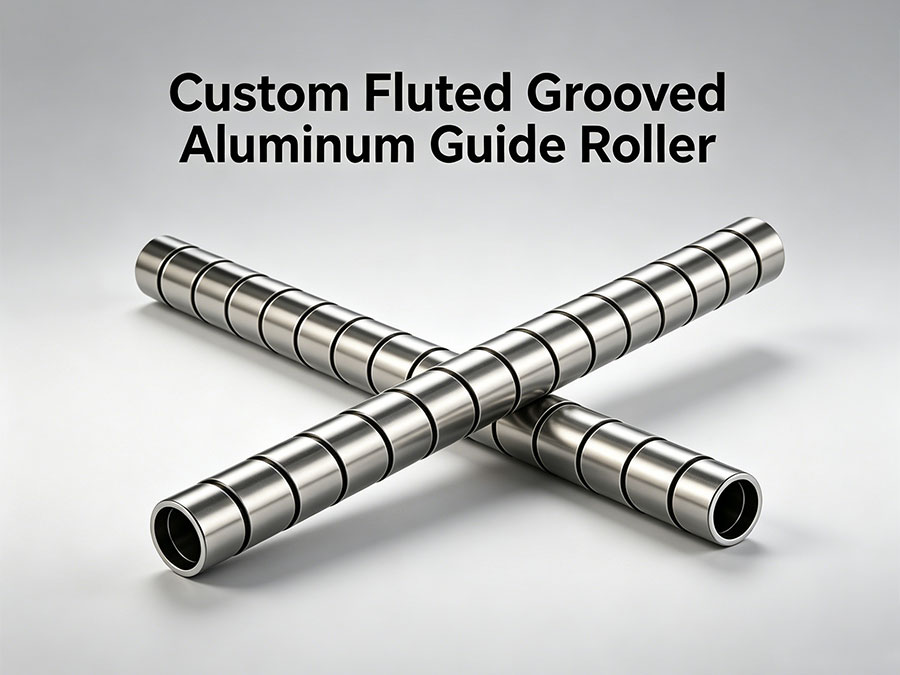

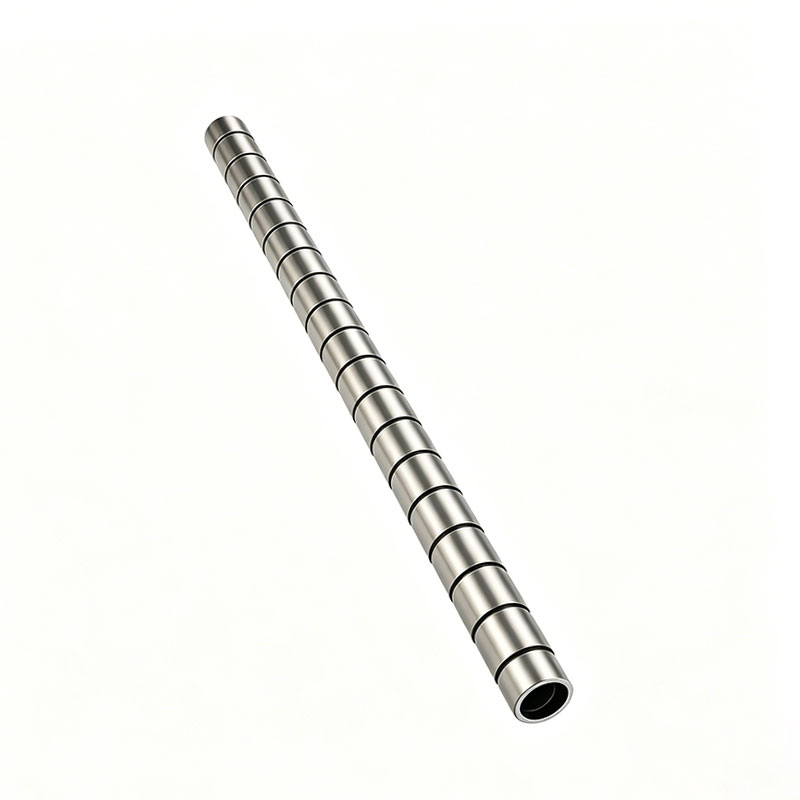

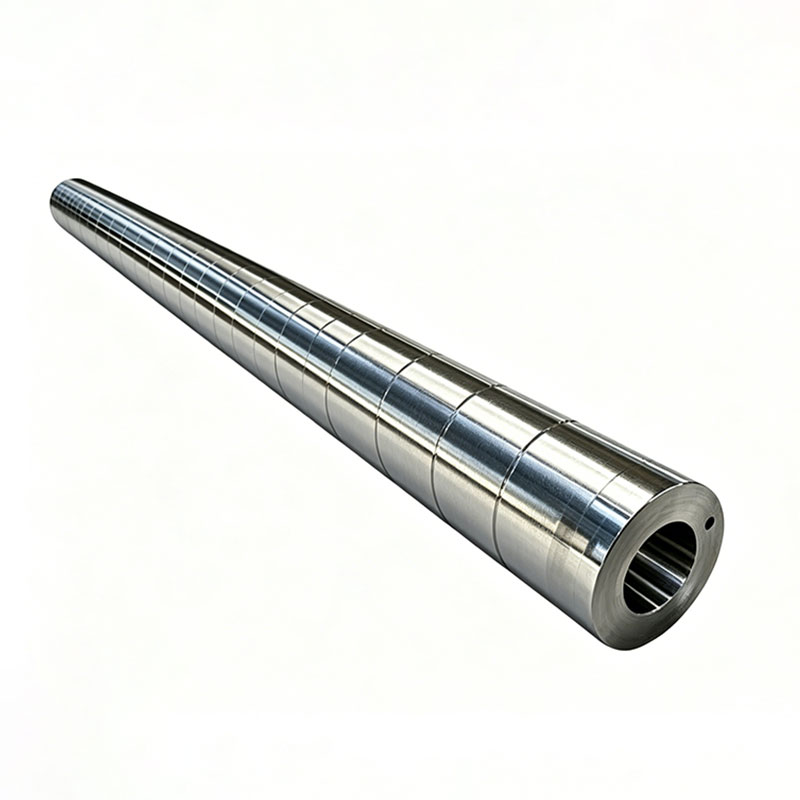

Custom Fluted Grooved Aluminum Guide Roller

The AstraRoll Technical Advantage

We engineered our grooved rollers to provide the perfect balance of web grip, air expulsion, and delicate material handling:

Aerodynamic Air Relief: The engineered flutes act as immediate pressure-relief zones. By giving the trapped air a place to go, the roller maintains 100% surface-to-web contact, eliminating the "hydroplaning" effect at speeds exceeding 500 meters per minute.

Precision CNC Profiling: We do not use extruded grooved tubing. Every slot and flute is CNC-machined to exact depths and pitches. The "lands" (the flat areas between grooves) are meticulously polished and radiused to ensure zero scratching or marking on your web.

Ultra-Low Rotational Inertia: Cutting grooves into an already lightweight aluminum tube reduces rotational mass even further. The roller accelerates and decelerates in perfect synchronization with your web, preventing the skidding that causes surface defects.

Hard Anodized Durability: Continuous friction from paper or film edges will quickly wear down standard aluminum. Our Type III hard anodizing process creates a ceramic-like oxide layer (HV400+), locking in the groove geometry for years of continuous industrial use.

Key Specifications

Please note: We manufacture entirely to your machinery's specifications and required tolerances.

Outer Diameter (O.D.): Custom from 40mm up to 300mm+.
Face Length: Custom manufactured up to 3,000mm.
Groove Configurations: Straight Flute, Single Spiral, or Cross-Hatch.
TIR (Total Indicator Runout): ≤ 0.02mm (Ensures perfectly uniform web tension).
Dynamic Balancing: ISO G2.5 at your maximum specified mechanical speed.
Base Material: 6061-T6 or 6063 Aerospace Aluminum Alloy.

Why Choose AstraRoll?

1. Custom Land-to-Groove Ratios

A roller with grooves that are too wide will cause a thin plastic film to crease or sink into the slots. A roller with grooves that are too narrow won't expel enough air for thick paperboard. AstraRoll engineers calculate the exact "Land-to-Groove" ratio tailored strictly to your material's caliper and line speed.

2. Factory-Direct Precision Balancing

Cutting asymmetrical or deep grooves can throw a roller out of balance, causing severe vibrations at high speeds. AstraRoll performs computerized dynamic balancing after the grooving and anodizing processes are complete, ensuring a flawless, vibration-free rotation out of the box at aggressive wholesale pricing.

Frequently Asked Questions (FAQs)

Q: Should I choose Straight Flutes or a Spiral Groove?
A: Straight Flutes (parallel to the shaft) are excellent for general air relief and preventing the web from slipping forward or backward. Spiral Grooves are highly recommended if you also need to push the trapped air outward to the edges of the web, which provides a very slight, passive spreading effect to keep the web flat.

Q: Will the grooved edges leave continuous lines or marks on my product?
A: No. After the CNC grooving process, we apply a finishing pass to slightly round (radius) the edges of every groove, followed by polishing. This removes all sharp corners, ensuring that even under high tension, delicate films and foils are not embossed or scratched.

Q: Do these rollers generate more noise than smooth rollers?
A: At extremely high speeds, deeply grooved rollers can create a slight whistling sound as air rushes through the flutes. If acoustic levels are a strict concern in your facility, we can engineer "micro-groove" patterns or asymmetrical pitches that effectively break up sound waves while still exhausting the air.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
