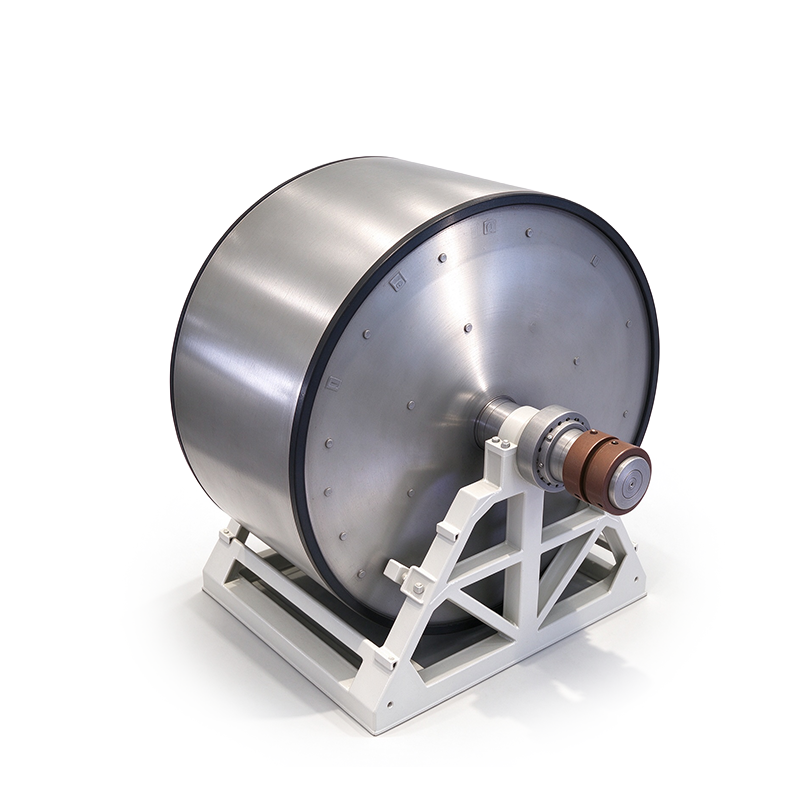

Cathode Drum For Copper Foil Equipment

Cathode Drum for Copper Foil Equipment
AstraRoll manufactures custom cathode drums for electrolytic copper foil equipment, providing non-standard solutions tailored to different foil production lines, equipment layouts, and operating requirements. As the rotating cathode at the heart of the electrodeposition process, the drum provides the working surface on which copper ions are continuously deposited to form copper foil. Its dimensional accuracy, surface condition, structural design, and electrical performance all need to work together to support stable and consistent foil production.

Core Component for Electrolytic Copper Foil Production
The cathode drum is one of the key components in an electrolytic copper foil production line. During operation, the rotating drum is partially immersed in the electrolyte while copper ions are deposited onto its working surface under an applied electrical current. The deposited foil is then continuously separated from the drum surface. This makes the drum more than a conventional industrial roller—it is an electrochemical working component whose performance can directly affect foil formation and production stability.

Engineered Working Surface
The drum working surface is manufactured and finished according to the requirements of the copper foil production process. A smooth, uniform, and precisely controlled surface helps provide consistent conditions for copper deposition. Surface quality is particularly important because imperfections, unevenness, or unwanted surface patterns can be transferred to the foil during continuous electrodeposition. Industry manufacturers therefore place significant emphasis on surface finish, weld uniformity, and drum maintenance.

Customized Dimensions and Structure

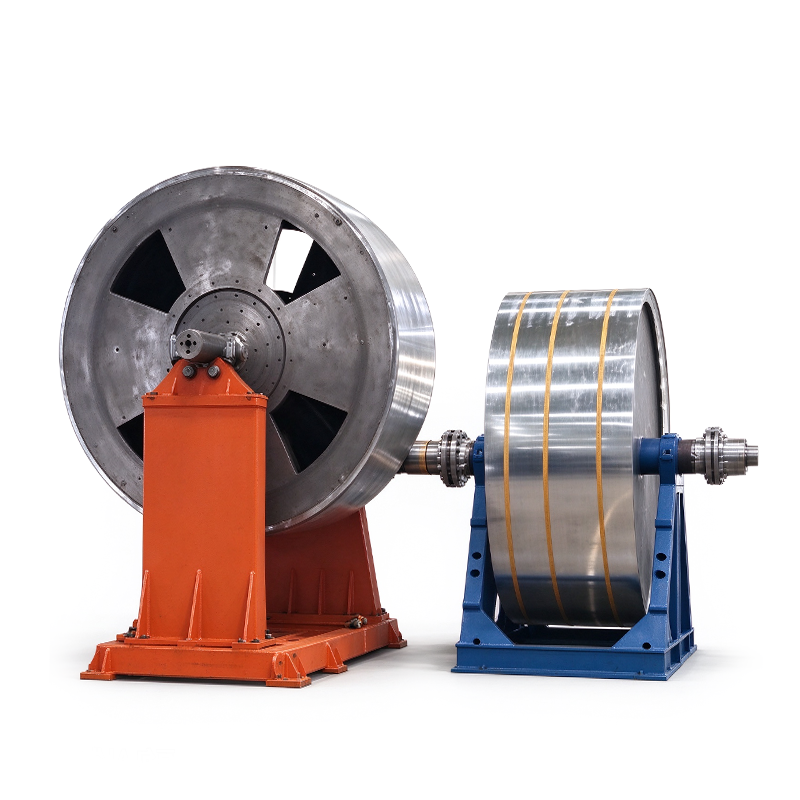

Cathode drums are typically large, application-specific components rather than fixed-size standard rollers. AstraRoll supports customized drum diameters, widths, structures, materials, and other critical dimensions to suit different copper foil equipment and production capacities.

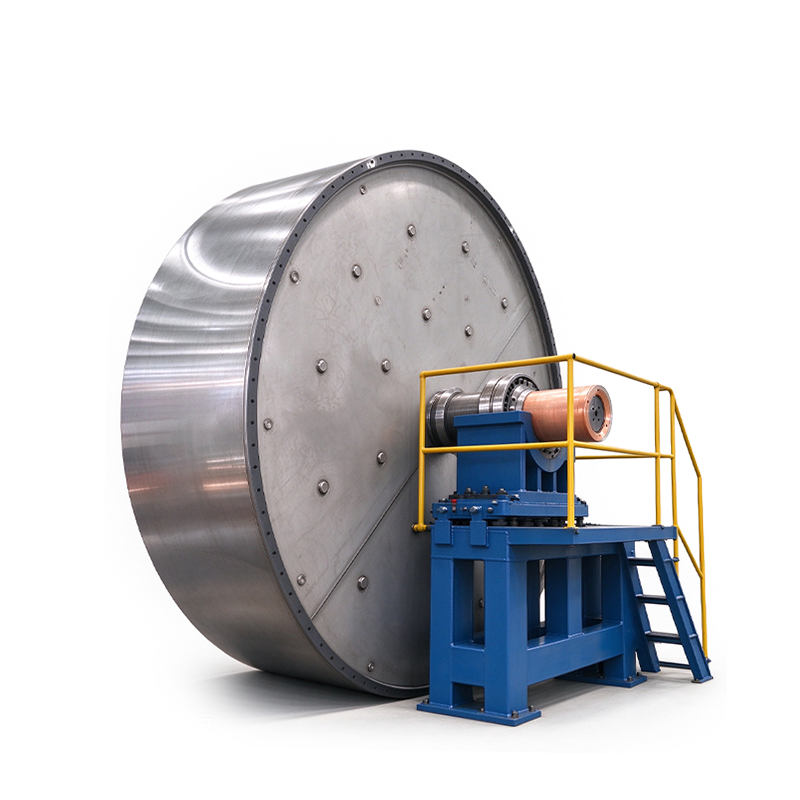

Depending on the equipment configuration, the drum can be engineered with titanium working components or other specified material structures. Large-diameter designs are also available for wide copper foil production lines and high-capacity applications. Industry examples range from approximately 1,500 mm to 3,600 mm in diameter, with customized widths and specifications available for different production systems.

Designed for Stable Current Distribution
Electrical performance is another important consideration in cathode drum manufacturing. The drum must provide reliable current transfer and maintain stable electrical conditions across the working surface during continuous operation. Advanced cathode drum designs may incorporate conductive internal structures to support high-current operation and improve current distribution.

AstraRoll can manufacture the drum according to specified electrical and mechanical requirements, including voltage, power, current-related requirements, rotational conditions, and equipment interface dimensions.

Built for Different Copper Foil Applications
Our cathode drums are designed for electrolytic copper foil production equipment serving applications such as lithium-ion battery copper foil, PCB copper foil, and other electronic copper foil products. Depending on the production target, the drum can be configured for different foil widths, thickness ranges, line speeds, and operating conditions.

Non-Standard Manufacturing from a China Source Factory
AstraRoll provides direct manufacturing rather than simply supplying an off-the-shelf roller. Our production team works from customer specifications and equipment requirements to manufacture cathode drums with the required dimensions, structure, surface finish, and functional configuration.

As a China source factory, AstraRoll manages manufacturing and quality control directly, helping reduce intermediary costs and provide competitive factory-direct pricing. This also gives customers greater flexibility when replacing an existing drum, developing new copper foil equipment, or requiring a cathode drum with non-standard specifications.

From initial technical requirements through manufacturing and final inspection, AstraRoll provides engineering support and a practical manufacturing solution focused on equipment compatibility, dimensional accuracy, surface quality, and cost efficiency.

Key Product Features

Application: Electrolytic Copper Foil Equipment

Function: Rotating Cathode for Copper Electrodeposition

Material: Titanium / Stainless Steel / Customized

Diameter: Customized

Drum Width: Customized

Structure: Customized to Equipment Requirements

Working Surface: Precision Finished / Polished

Voltage & Power: Customized

Manufacturing: Non-Standard OEM Customization

Supply: China Source Factory / Factory-Direct Pricing

Applications: Lithium-Ion Battery Copper Foil, PCB Copper Foil, Electronic Copper Foil

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
