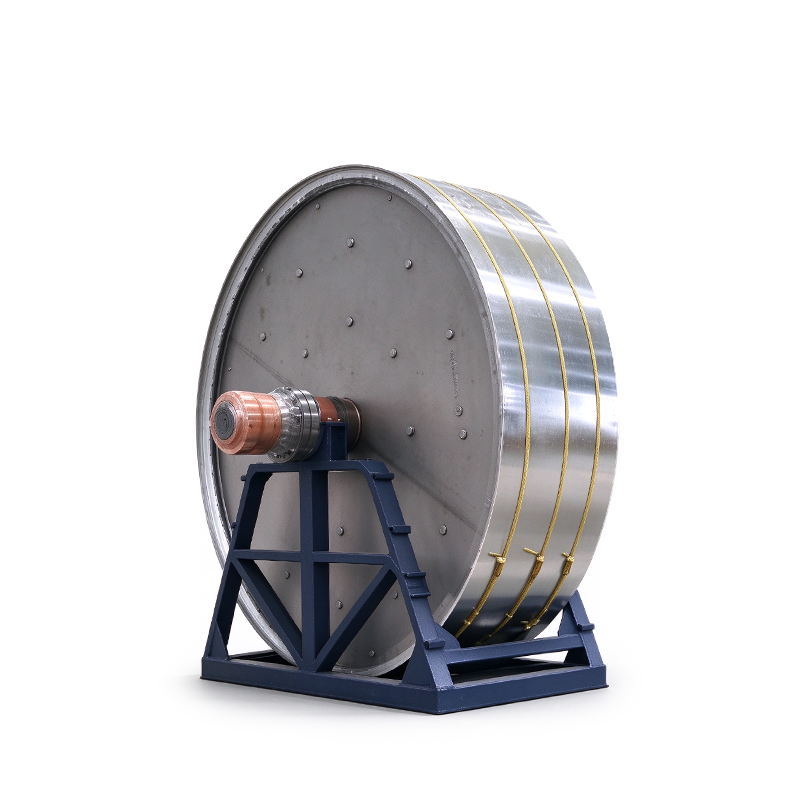

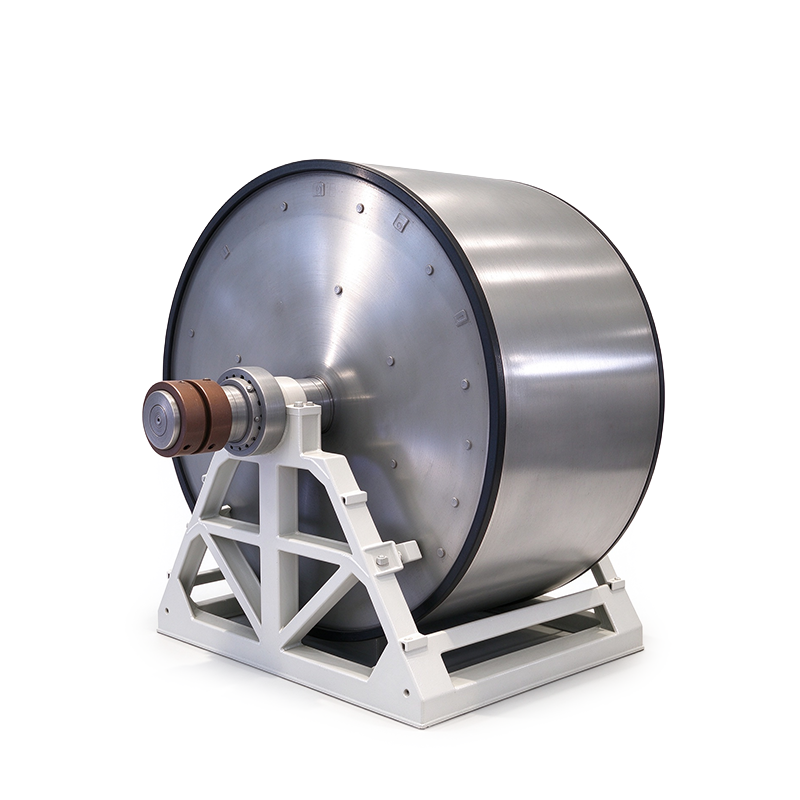

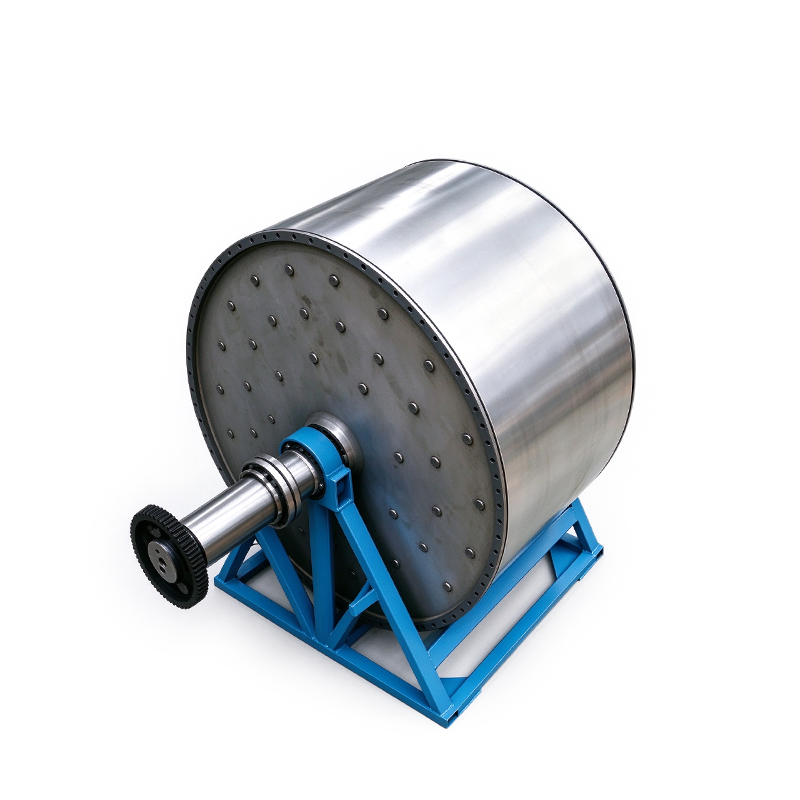

Factory Direct Integral Cathode Roller

Factory Direct Integral Cathode Roller
AstraRoll manufactures non-standard integral cathode rollers for electrolytic copper foil production, designed for raw copper foil electroforming where structural integrity, surface accuracy, and stable rotation are critical to the forming process. Unlike a conventional welded construction, an integral cathode roller is manufactured as a continuous drum structure, helping reduce weld-related irregularities and maintain consistent geometry across the working surface.

Integral Construction for Stable Foil Formation
The integral structure provides a continuous working body with fewer structural discontinuities around the roller. This is particularly valuable for large-diameter cathode rollers used in continuous copper foil production, where even small deviations in roundness, straightness, or surface condition can affect the uniformity of the deposited foil. A precisely manufactured roller helps provide a stable forming surface as copper is continuously electrodeposited and peeled from the rotating cathode.

Precision Working Surface
The cathode roller can be precision-machined and finished according to the requirements of the electroforming process. A smooth, uniform working surface supports consistent copper deposition and smooth foil release during continuous operation. Surface quality is especially important for thin copper foil, where scratches, surface irregularities, or local deformation can affect the finished foil.

Engineered for Continuous Operation
Designed for continuous electrolytic copper foil production, the roller is built around the operating conditions of the customer's equipment rather than a fixed standard specification. Diameter, working width, structure, surface finish, and other critical dimensions can be customized to match the production line, foil width, and equipment configuration.

AstraRoll can also manufacture the roller according to specified operating and electrical requirements, providing a practical solution for both new copper foil equipment and replacement projects.

Application in Raw Copper Foil Electroforming
During operation, the cathode roller rotates partially immersed in the electrolyte while copper ions are deposited onto its working surface. The continuously formed copper layer is then separated from the roller to produce raw copper foil. This makes the cathode roller a key process component rather than a conventional material-handling roller.

The roller is suitable for electrolytic copper foil production serving applications such as lithium-ion batteries, PCB materials, copper-clad laminates, and other electronic copper foil products.

Non-Standard Manufacturing from a Source Factory
AstraRoll provides cathode rollers according to actual equipment and process requirements, supporting non-standard dimensions, structures, and finishing specifications. Our source-factory manufacturing model allows customers to communicate directly with the production team, reduce unnecessary intermediary costs, and obtain more competitive factory-direct pricing.

For customers replacing an existing cathode roller, upgrading production equipment, or developing a new electroforming line, AstraRoll can manufacture the roller around the required equipment interface and operating conditions rather than forcing the project into a standard product range.

Key Product Features

Structure: Integral / Non-Standard Design

Application: Electrolytic Copper Foil Production

Process: Raw Copper Foil Electroforming

Working Surface: Precision Finished

Dimensions: Customized

Material: Titanium / Customized

Manufacturing: Non-Standard OEM Manufacturing

Supply: China Source Factory / Factory-Direct Pricing

Key Benefits: High Accuracy, Stable Operation, Easy Integration, Competitive Cost

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
