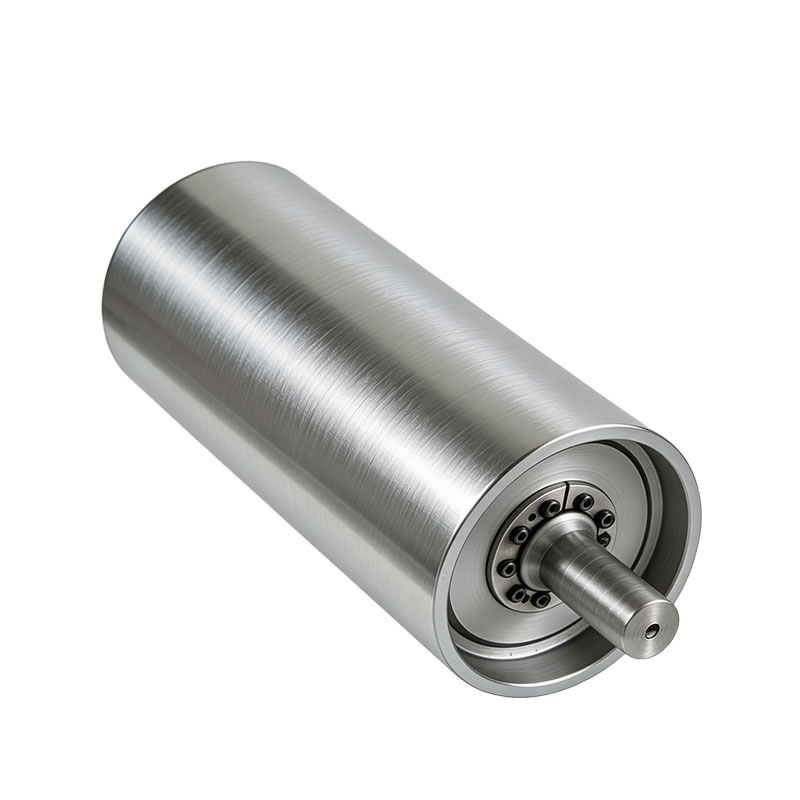

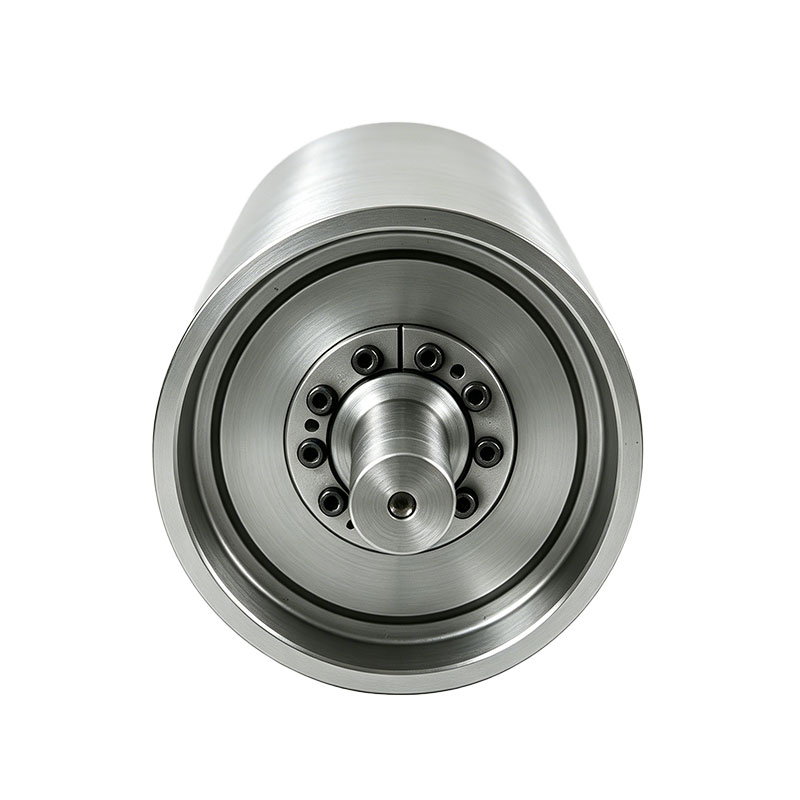

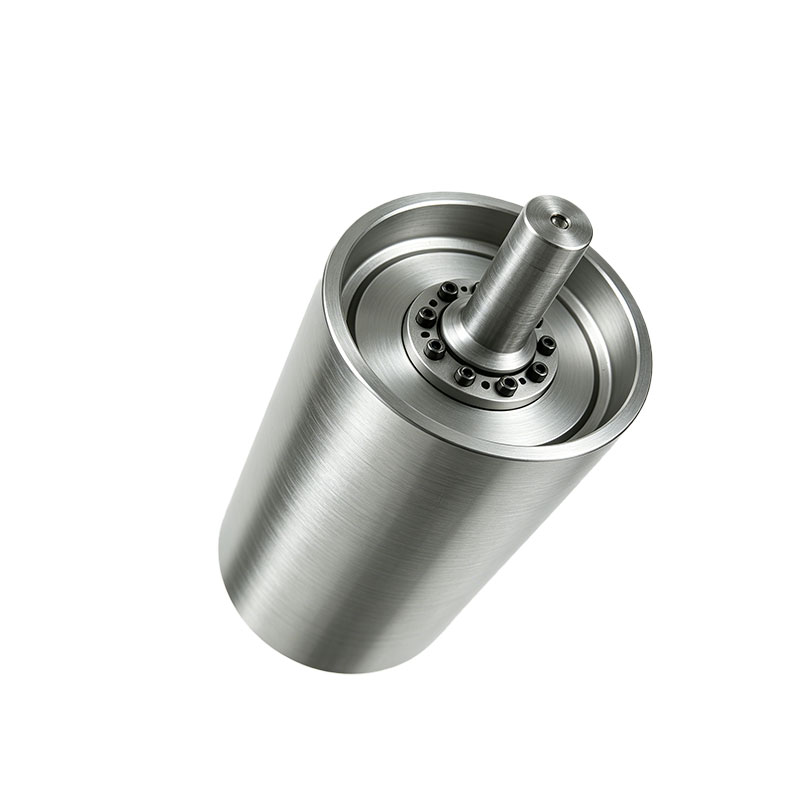

Heavy-Duty Stainless Steel Drive & Tail Drum Pulley

AstraRoll's Heavy-Duty Stainless Steel Drive & Tail Drum Pulleys are elite-tier conveyor components engineered specifically to deliver uncompromising performance in highly corrosive, humid, or sanitary environments. Unlike standard carbon steel pulleys that are prone to rust and chemical degradation, our high quality stainless steel architecture (available in SS304, SS316, or SS316L) provides absolute immunity to moisture, salt spray, acidic exposures, and harsh chemical washdowns. This premium construction facilitates the smooth moving of materials while eliminating the risk of material contamination.

Designed to serve as either high-torque drive components or rugged trailing/return units, these pulleys support a significantly higher loading capacity in severe-service operations such as chemical processing, coastal maritime terminals, and industrial food production. Each drum undergoes precision concentric machining and dynamic balancing to guarantee stable smooth driving and outstanding driving quiet wear resistance under continuous high-tension loads. Furthermore, our heavy-duty stainless steel drive and tail drum pulleys are fully customizable to interface seamlessly with various models of industrial conveyor frames, specialized marine gearboxes, and automated processing lines.

Technical Parameter

Product Type: Heavy-Duty Stainless Steel Drive, Head, Tail, or Bend Pulley

Material Options: Premium Stainless Steel Grades SUS304 / SUS316 / SUS316L

Diameter Range: Ø160mm – Ø1000mm (Standard and Custom industrial sizes)

Face Width: 300mm – 2200mm (Customizable to exact belt width specifications)

Surface Treatment: High Quality Passivation, Acid Pickling, Bead Blasting, or Fine Electro-polishing

Surface Finish: Plain Machined Stainless Steel, Crowned Face (for self-centering), or Diamond-grooved Food-Grade Rubber/Polyurethane Lagging

Load Capacity: Engineered to support a higher loading capacity exceeding CEMA and ISO standards

Bearing & Housing: Stainless steel pillow blocks or specialized cast iron housings with Taconite/Multi-labyrinth water-proof seals

Operating Temp: -40°C to +150°C (Reliable for smooth driving in cryogenic freezing tunnels or high-heat chemical baking loops)

Hub Connection: Keyless locking assemblies (XT / Taper-Lock) or solid welded stainless steel shafts

Application Industrial

Chemical & Fertilizer Processing: Conveying highly corrosive raw chemical salts, sulfur, and acidic fertilizers.

Marine & Port Terminals: Stacker-reclaimers and bulk ship loaders exposed to continuous coastal saltwater and high humidity.

Food & Agriculture Handling: Bulk transport of grains, sugar, sea salt, and raw agricultural products requiring strict sanitation.

Wastewater Treatment & Mining: Dewatering conveyor systems and leaching lines with intense moisture and chemical presence.

Pharmaceutical & Cleanrooms: Automated sorting frames demanding high quality rust-free components and easy washdown maintenance

Why choose AstraRoll's Heavy-Duty Stainless Steel Drive & Tail Drum Pulley?

Ultimate Corrosion Resistance: Fabricated from premium industrial stainless steel alloys to deliver exceptional driving quiet wear resistance against rust, chemical oxidation, and heavy washdown detergents.

Reinforced Heavy-Duty Geometry: Engineered with optimized wall thicknesses and heavy end plates to support a higher loading capacity, completely eliminating drum shell deflection under extreme belt tension.

Advanced Sanitary Engineering: Features smooth-ground finishes and crevice-free continuous welding that prevent material entrapment, facilitating smooth moving and quick sanitation compliance.

Precision Balance & Tracking: Available with a custom-machined crowned face that aids in natural belt centering, ensuring stable smooth driving and minimizing belt edge wear.

Flawless System Integration: Furthermore, our stainless steel drive and tail pulleys are fully customizable to interface seamlessly with various models of legacy conveyor structures and new automated plant frameworks.

FAQ

Q: When should we choose a stainless steel pulley over a standard lagged carbon steel pulley?

A: Stainless steel is mandatory when the operating environment involves continuous moisture, saltwater, acids, or strict hygienic mandates. It provides permanent rust-free performance and exceptional driving quiet wear resistance without relying on coatings that can chip or wear off.

Q: Can these stainless steel pulleys be outfitted with rubber lagging for drive applications?

A: Yes. To ensure maximum torque transfer and prevent belt slippage, we can vulcanize high quality, food-grade, or oil-resistant white rubber/polyurethane lagging onto the stainless shell, facilitating smooth moving under heavy bulk loads.

Q: Do you offer custom shaft lengths and keyway configurations?

A: Absolutely. Our engineering facility specializes in custom OEM configurations; our pulleys are fully customizable to interface seamlessly with your specific shaft dimensions, keyway metrics, or keyless locking assemblies.

Q: How do you protect the bearings from water ingress during high-pressure washdowns?

A: We equip our stainless steel pulley assemblies with specialized multi-stage labyrinth seals, V-rings, or Taconite seals. This advanced shielding prevents moisture and fine chemical dust from entering the bearing cavity, ensuring stable smooth driving and extended component life.
