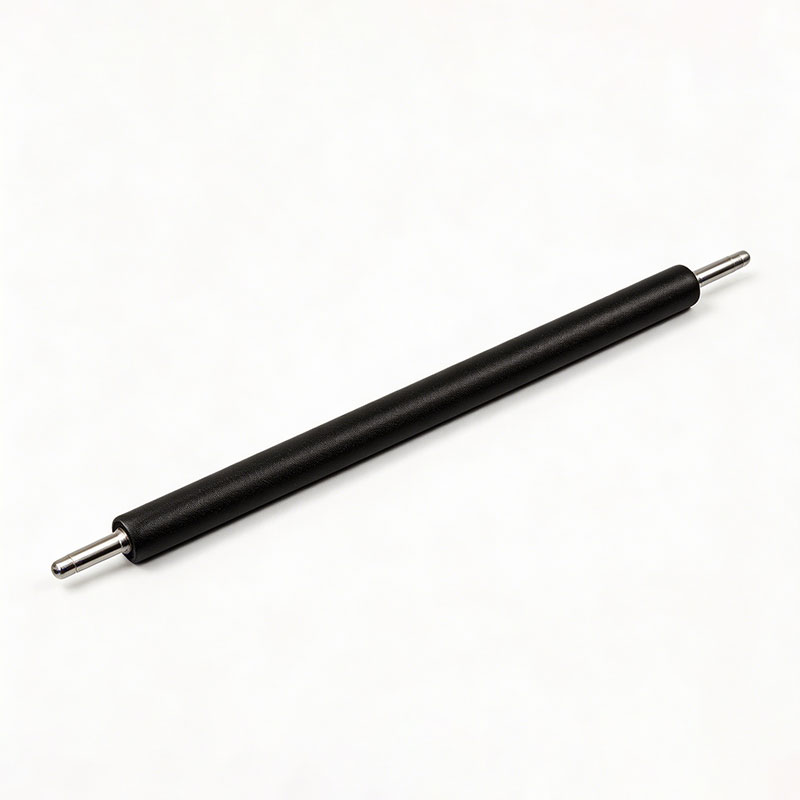

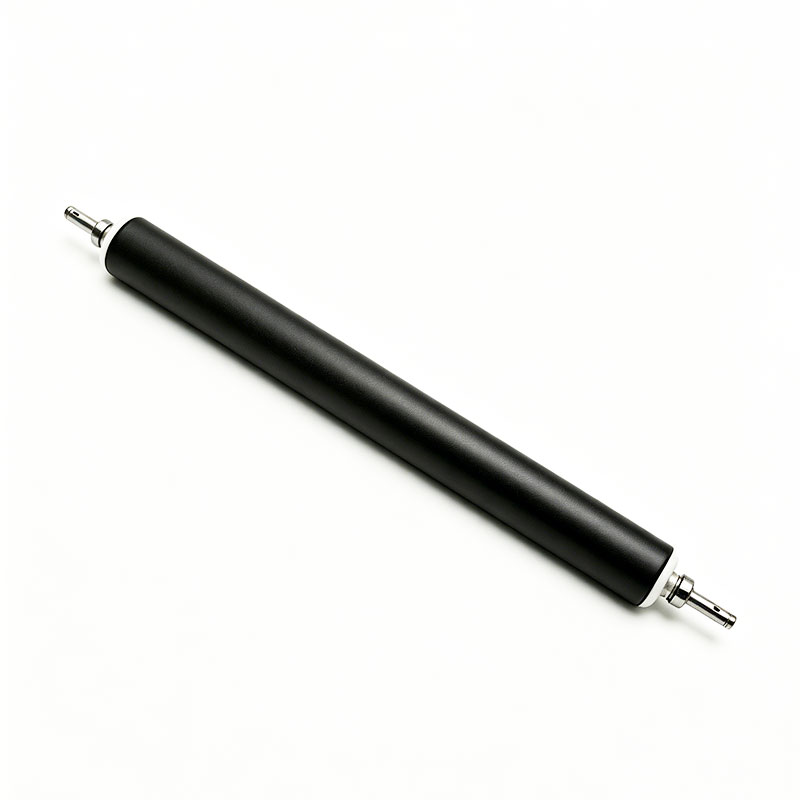

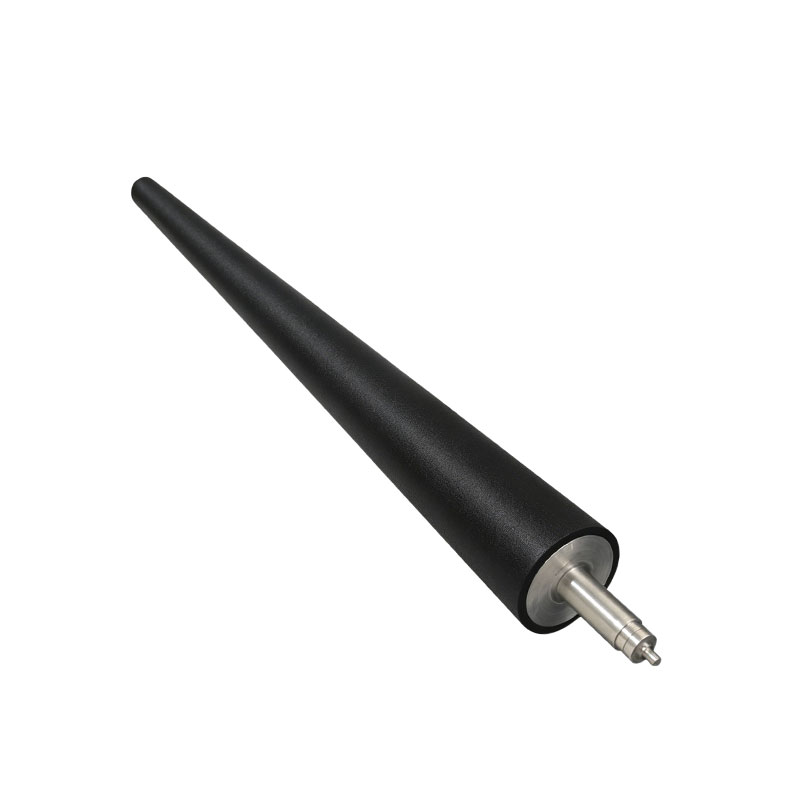

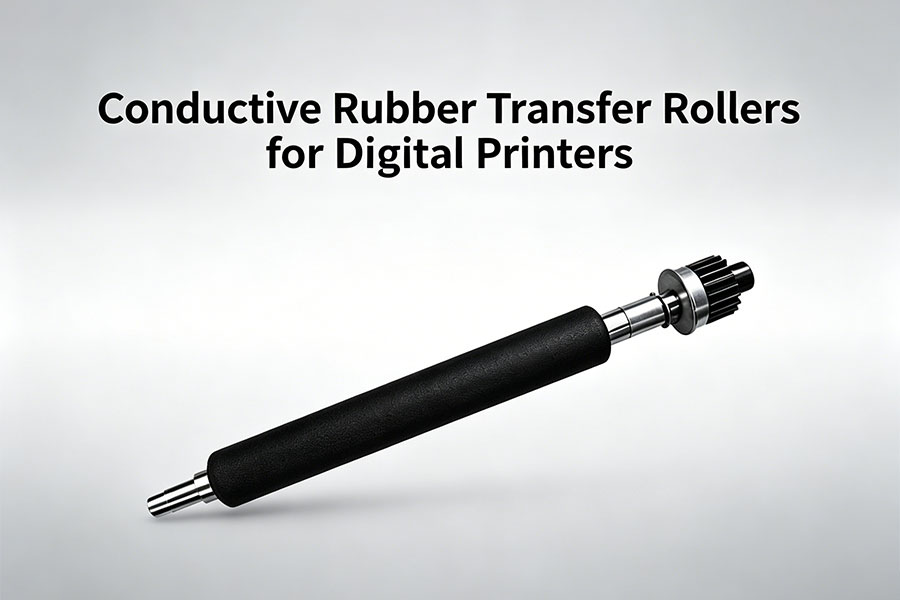

Conductive Rubber Transfer Rollers for Digital Printers

The AstraRoll Technical Advantage

We engineer our transfer rollers at the molecular level to ensure perfect electrostatic performance:

Stable Volume Resistivity: Inconsistent conductivity causes mottled or faded prints. We compound our rubber matrix with highly dispersed conductive carbon black or metal salts, ensuring absolute electrical uniformity across the entire length of the roller, regardless of running time or temperature.

Environmental Insensitivity: Standard cheap rollers absorb moisture in high humidity, dropping their resistance and causing print scatter. AstraRoll utilizes advanced cross-linked polymers that repel ambient moisture, ensuring consistent print density in both humid summers and dry winters.

Micro-Cellular Conformance: For machines requiring foam transfer rollers, we utilize a closed-cell micro-foaming process. This provides a "soft-touch" nip that gently presses the paper against the delicate OPC drum without scratching it or crushing the toner particles.

OEM-Matched Concentricity: A variance of just a few microns can cause paper skewing and image misalignment. Our rollers are CNC cylindrical-ground to achieve a Total Indicator Runout (TIR) of ≤ 0.02mm, ensuring plug-and-play compatibility and flawless paper feeding.

Key Specifications

Please note: We manufacture entirely to the strict OEM specifications of your target machine brand.

Outer Diameter (O.D.): Custom from 10mm up to 100mm+.
Face Length: Custom up to 2,000mm+ (For wide-format digital presses).
Hardness Range: 25 to 60 Asker C (Foam) or 40 to 80 Shore A (Solid).
Electrical Resistance: Custom engineered (Typically $10^4 \Omega$ to $10^9 \Omega$).
TIR (Total Indicator Runout): ≤ 0.02mm.

Why Choose AstraRoll?

1. Strategic Partner for Remanufacturers

If you are a large-scale remanufacturer refurbishing toner cartridges, drum units, or entire commercial presses, inconsistent aftermarket parts ruin your reputation. AstraRoll provides bulk, OEM-grade transfer rollers that pass strict quality control protocols, dramatically lowering your defect rates and warranty claims.

2. Custom Compounding for R&D

For OEMs developing new digital printing hardware, achieving the perfect toner transfer requires precise electrical tuning. Our material engineers will work directly with your R&D team, adjusting the durometer, foam density, and Ohm resistivity of prototype rollers until your machine achieves flawless image resolution.

Frequently Asked Questions (FAQs)

Q: Why are my prints coming out faded or with light bands on the edges?
A: Faded prints are the classic symptom of a failing transfer roller. Over thousands of pages, paper dust and stray toner contaminate the roller's surface, acting as an insulator. This prevents the roller from applying a strong enough electrostatic charge to pull the toner off the drum. Upgrading to a fresh AstraRoll transfer roller restores full print density.

Q: Can you manufacture replacement rollers for specific commercial brands like Roland, Ricoh, or Konica Minolta?
A: Yes. We manufacture replacement transfer rollers tailored to the specific dimensions, gear fittings, and electrical resistance requirements of all major digital commercial presses and office copiers. Simply provide the OEM part number or a physical sample for us to match.

Q: How should a technician clean a conductive transfer roller?
A: Extreme caution is required. Never use water, as it can be absorbed and alter the electrical resistance. Never use harsh solvents, which will break down the conductive rubber. Transfer rollers should only be gently cleaned with a dry, lint-free cloth, or carefully vacuumed with an ESD-safe toner vacuum to remove surface dust.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
