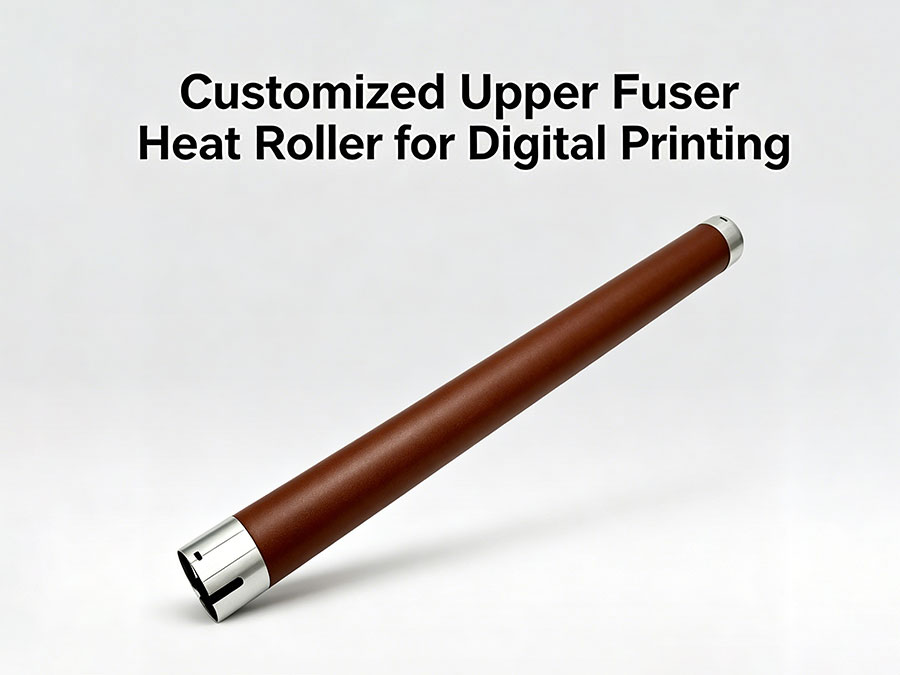

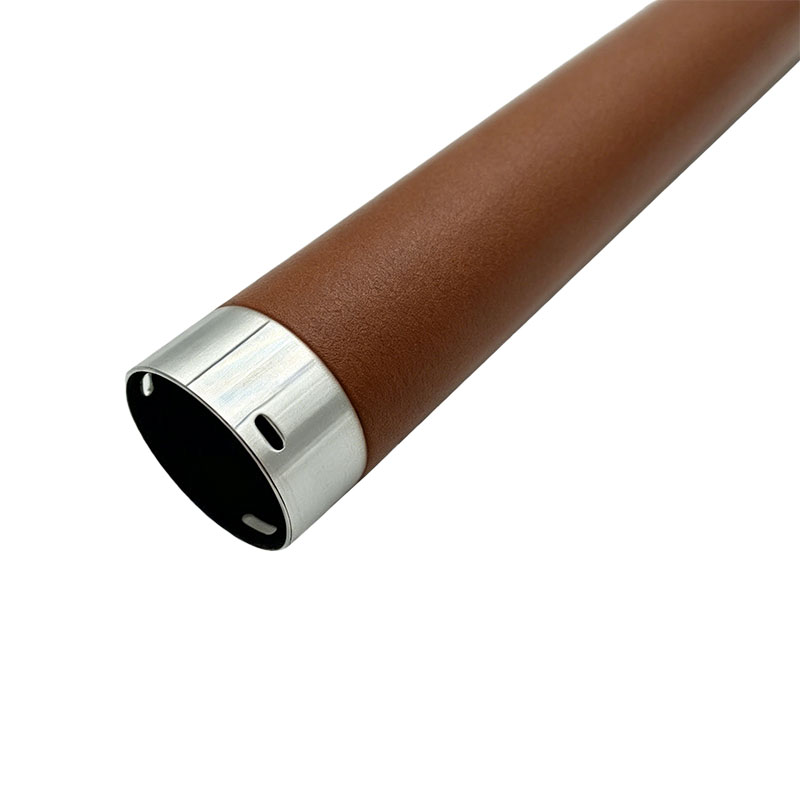

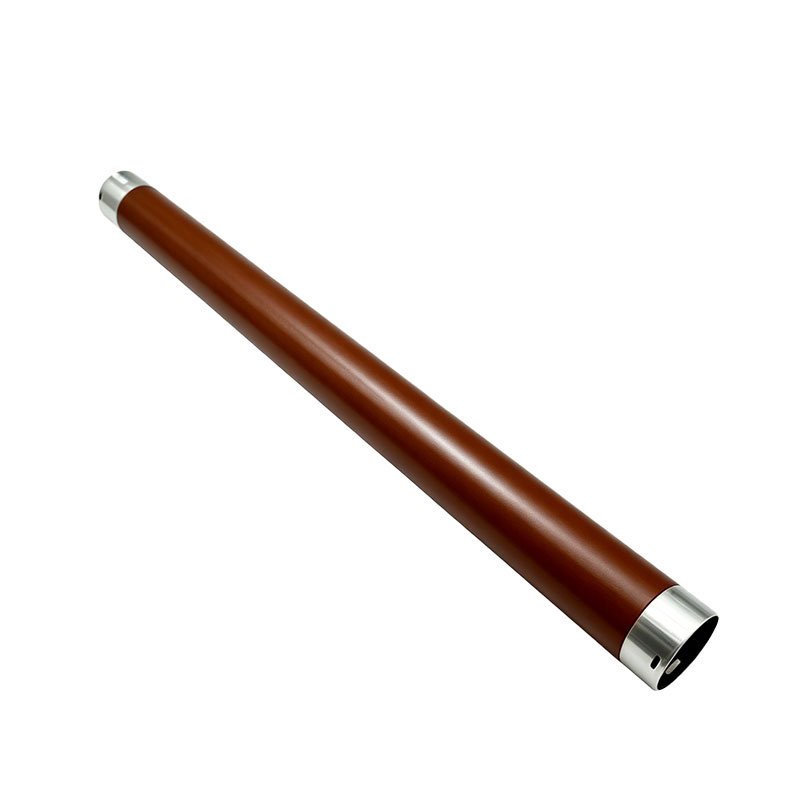

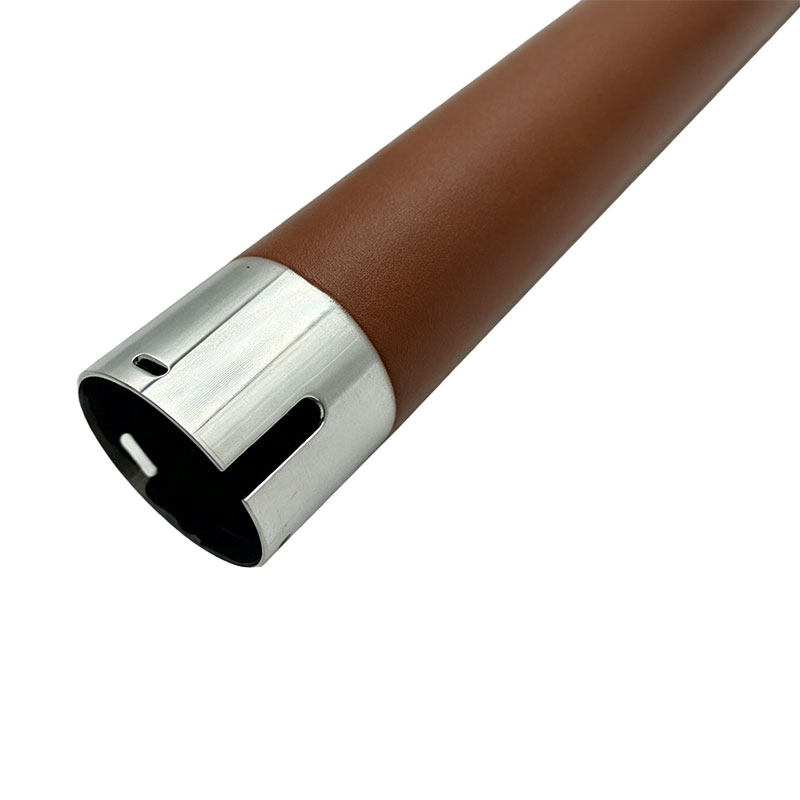

Customized Upper Fuser Heat Roller for Digital Printing

The Customized Upper Fuser Heat Roller is an OEM-grade, high-performance thermal component engineered for modern production-class digital printing presses and high-speed multi-functional copiers (MFPs). Positioned at the critical final stage of the electrophotographic imaging process, its primary purpose is to apply precise, consistent heat to melt and permanently fuse toner particles into the paper fibers.

Core Functions

Rapid & Uniform Thermal Conductance: Acting as the upper heating core, it rapidly transfers thermal energy from internal lamps or ceramic elements across the entire operational width of the roller.

Precision Toner Fusing: Reaches and maintains optimal fusing temperatures instantly to ensure deep, high-density toner setting without smudging or incomplete adhesion.

Non-Stick Media Release: Utilizes a proprietary industrial-grade outer coating to prevent melted chemical or physical toners from adhering to the roller surface, ensuring seamless paper discharge.

Technical Parameters

Base Substrate: High-thermal-conductivity seamless Aluminum Alloy / Thick-walled Steel Tube

Surface Coating: Multi-layer, fluoropolymer non-stick coating (Premium PFA / PTFE Teflon)

Surface Finish (Roughness): Ra≤0.4μm (Mirror-polished to minimize mechanical drag and paper friction)

Coating Thickness: 25μm–45μm (Strictly calibrated for optimal thermal transfer and abrasion wear-life)

Temperature Resistance: Continuous operation up to 260°C without coating degradation or deformation

Total Indicator Runout (TIR): ≤0.03mm (Guarantees zero wobble and uniform pressure across the pressure nip)

Concentricity: ≤0.02mm (Ensures perfectly linear web feeding at high linear velocities)

Hardness Control: Optimized rigid substrate with high-bonding sub-layers to prevent coating delamination

Application Products

AstraRoll's Upper Fuser Heat Rollers are drop-in replacement units engineered for high-volume, continuous-run digital production systems and office printing fleets:

Production Digital Presses: Heavy-duty digital commercial printing engines

High-Volume Copiers (MFPs): Large departmental workgroup color and monochrome laser copying infrastructure.

Commercial Remanufacturing: Premium components for specialized fuser unit rebuilding and compatible maintenance kit production.

Why Choose AstraRoll's Upper Fuser Heat Roller for Digital Printing?

In high-speed commercial digital printing, small component failures cause catastrophic downtime. AstraRoll designs fuser rollers specifically to eliminate the most frustrating B2B buyer pain points:

Tired of Frequent Paper Jams & Toner Smearing? (Flawless Fusing Yield): Poorly manufactured rollers suffer from uneven heat distribution, leaving localized "cold spots" that cause incomplete toner melting and paper wrap-around. AstraRoll utilizes premium seamless aluminum with exceptional thermal uniformity (≤±2 ℃ variance), completely eliminating cold-fusing defects and continuous paper jams.

Frustrated by Short Component Lifecycles & Ghosting? (Durable PFA Coating): Abrasive toner resins and cleaning blades easily scratch cheap fuser coatings, causing toner to stick and create "ghost" text on subsequent pages. We apply a reinforced, high-density PFA/PTFE coating that resists micro-scratches and chemical adhesion, safely extending the roller's operating lifecycle by up to 50% compared to standard aftermarket options.

Struggling with Coating Delamination & Blistering? (Advanced Thermal Bonding): High temperatures combined with continuous pressure often cause the outer non-stick layer to peel away from the metal core. AstraRoll uses an advanced molecular-bonding primer stage before coating, guaranteeing that the Teflon layer will never bubble, blister, or delaminate under extreme continuous shifts up to 260℃.

Need Exact OEM Specifications for Complex Machinery? (Precision Customization): Finding reliable, perfectly matching fuser parts for specific production-grade machinery can be a logistical headache. AstraRoll provides custom-tailored outer diameters, internal boring, gear fits, and coating thicknesses based on your exact engineering blueprints or OEM reference numbers (such as Kyocera, Ricoh, or Konica Minolta configurations).

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
