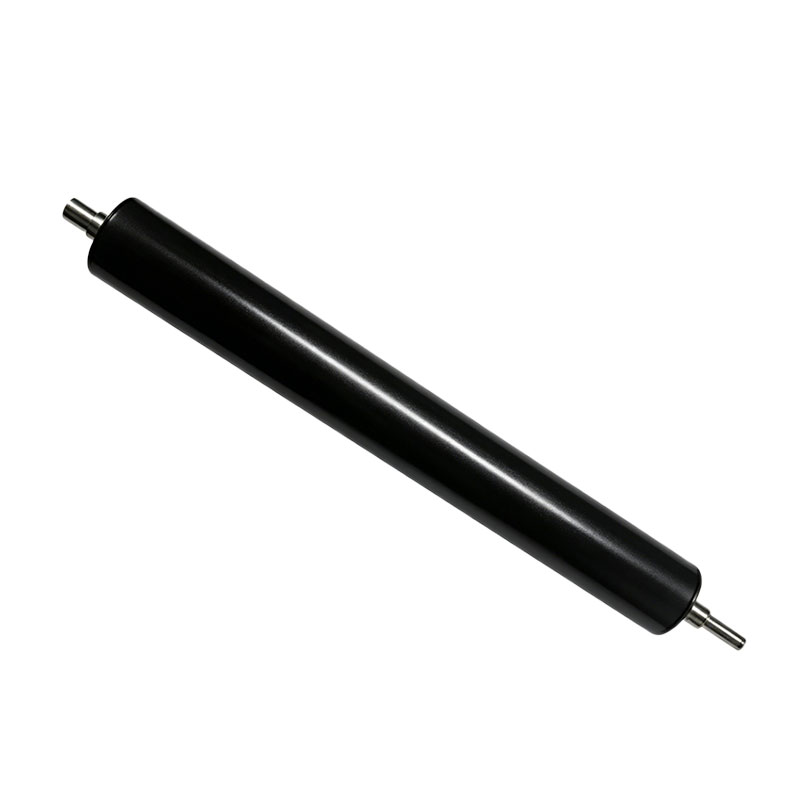

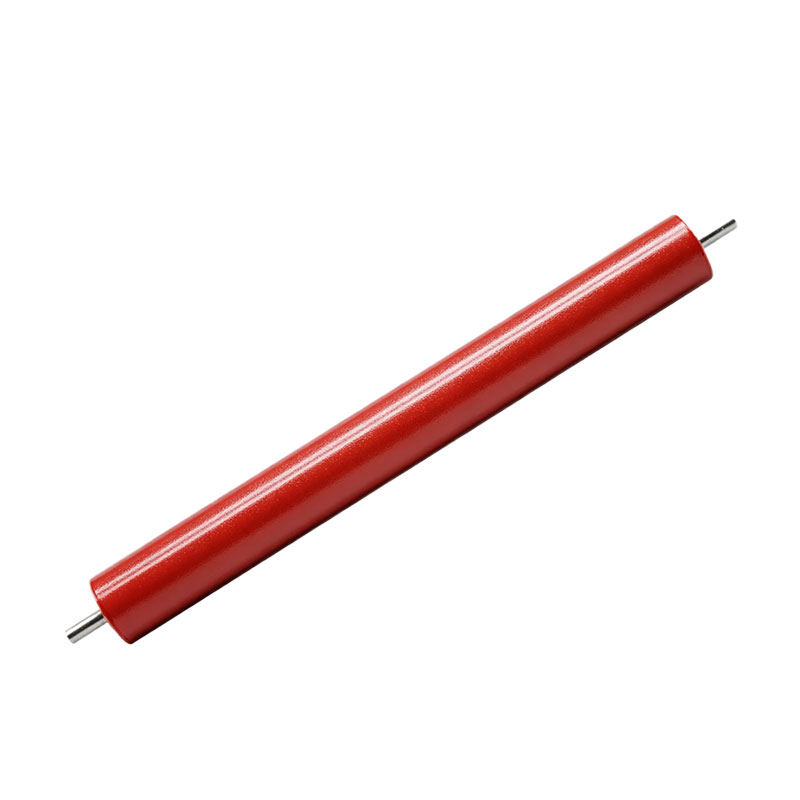

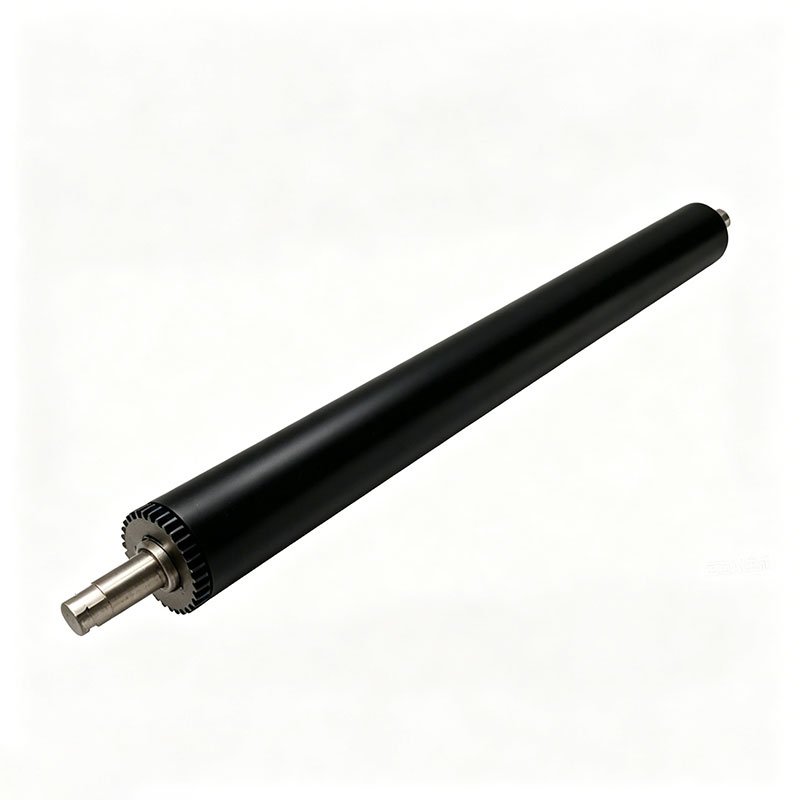

Customized Lower Fuser Pressure Roller for Copier Parts

The Customized Lower Fuser Pressure Roller is a high-precision, heavy-duty component designed for commercial copiers, multi-functional printers (MFPs), and digital presses. Working in perfect synchronization with the upper heat roller, its primary purpose is to provide continuous, high-elasticity mechanical pressure to compress and permanently bond melted toner resins into the media.

Core Functions

Uniform Nip Pressure Creation: Deforms precisely under load to create a perfectly flat contact zone (nip), forcing toner deeply into paper fibers without slipping.

High-Temperature Resiliency: Maintains its structural elasticity and outer diameter profile under constant exposure to fusing temperatures exceeding 200°C.

Anti-Wrinkle Media Transport: Prevents paper skewing and uneven web tension, ensuring crisp, wrinkle-free sheets are discharged efficiently.

Technical Parameters

Inner Core Material: High-tensile rigid Steel Axis / Reinforced Thick-walled Aluminum Tube

Elastomer Layer: Premium Liquid Silicone Rubber (LSR) / High-Density Silicone Sponge

Outer Protection: Heavy-duty, high-temperature PFA non-stick sleeve / coating

Hardness Range: 35- 55 Shore A (Customizable based on specific OEM press requirements)

Total Indicator Runout (TIR): ≤0.03mm (Eliminates localized pressure drops and uneven wear)

Concentricity: ≤0.02mm (Guarantees steady linear velocity and synchronous feeding)

Thermal Resistance: Intermittent peaks up to 240°C; continuous runtime stability at 200°C

Surface Smoothness: Smooth finish to maximize surface contact while resisting microscopic tearing

Application Products

AstraRoll's lower fuser pressure rollers serve as high-yield, drop-in replacement parts across major commercial printing lines:

Production Copiers & MFPs: Compatible maintenance replacements for heavy-duty office fleets

Fuser Kit Assembly: Key elastomeric component for international compatible cartridge and fuser unit remanufacturers.

Why Choose AstraRoll's Lower Fuser Pressure Roller for Copier Parts?

In high-volume document production, sub-standard pressure rollers lead to rapid fleet deterioration. AstraRoll designs rollers to solve the precise engineering pain points that plague global B2B buyers:

Tired of Paper Wrinkling and Skewing? (Perfect Concentricity Control): When a pressure roller suffers from low manufacturing tolerances or uneven hardness, the paper experiences uneven tension across its width, resulting in frustrating wrinkles and diagonal page jams. AstraRoll guarantees an industry-leading TIR of ≤0.03mm, ensuring completely flat, linear sheet travel at maximum speeds.

Struggling with Text Ghosting and Smudging? (Anti-Static PFA Technology): Microscopic breakdown of cheap outer layers lets stray toner particles adhere to the lower roller, printing "ghost images" on subsequent sheets. We fuse a premium, ultra-smooth PFA protective sleeve onto the silicone, rejecting toner buildup completely and maintaining sharp, crisp output.

Frustrated by Hardening and Loss of Elasticity? (Industrial-Grade Silicone): Standard aftermarket rollers quickly bake, dry out, and turn brittle under high operating heat, causing a drop in pressure that leads to incomplete toner fixing. AstraRoll uses proprietary, high-tier silicone rubber that preserves its original elastomeric bounce and durometer rating even after hundreds of thousands of high-temperature cycles.

Exhausted by Sourcing Incompatible Gear and Shaft Fits? (Flawless OEM Customization): Finding aftermarket parts with precise internal boring, specific durometers, or exact gear clearance can be incredibly difficult. AstraRoll provides custom engineering based directly on your blueprints or OEM part numbers, guaranteeing 100% mechanical compatibility right out of the box.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
