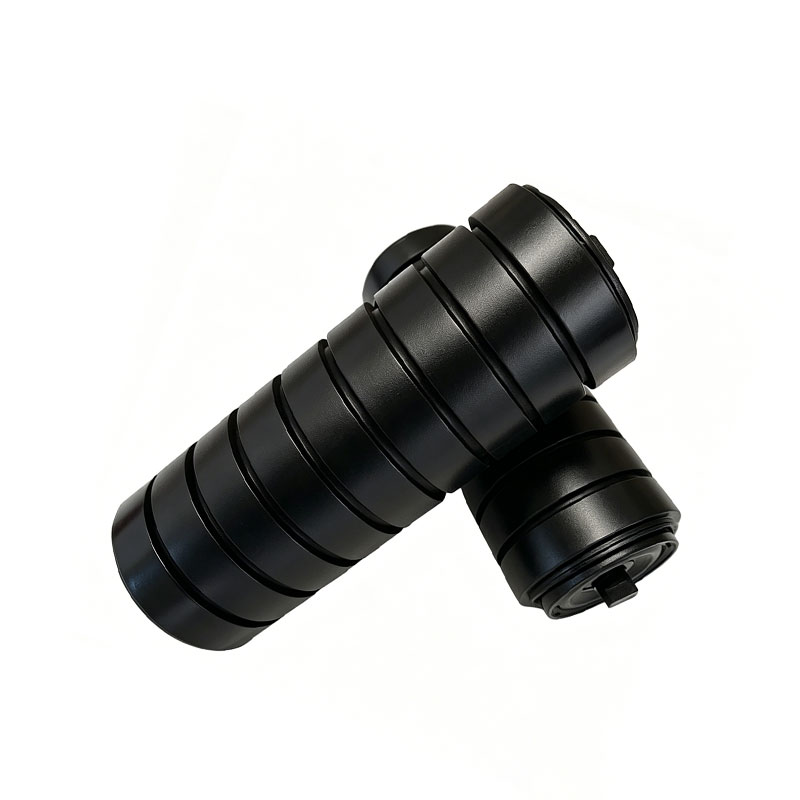

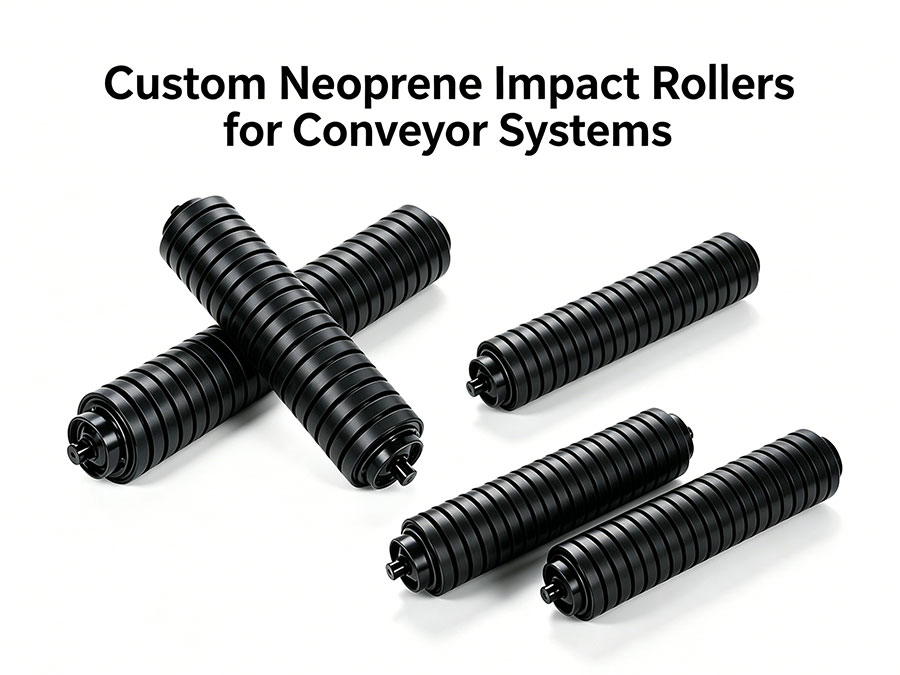

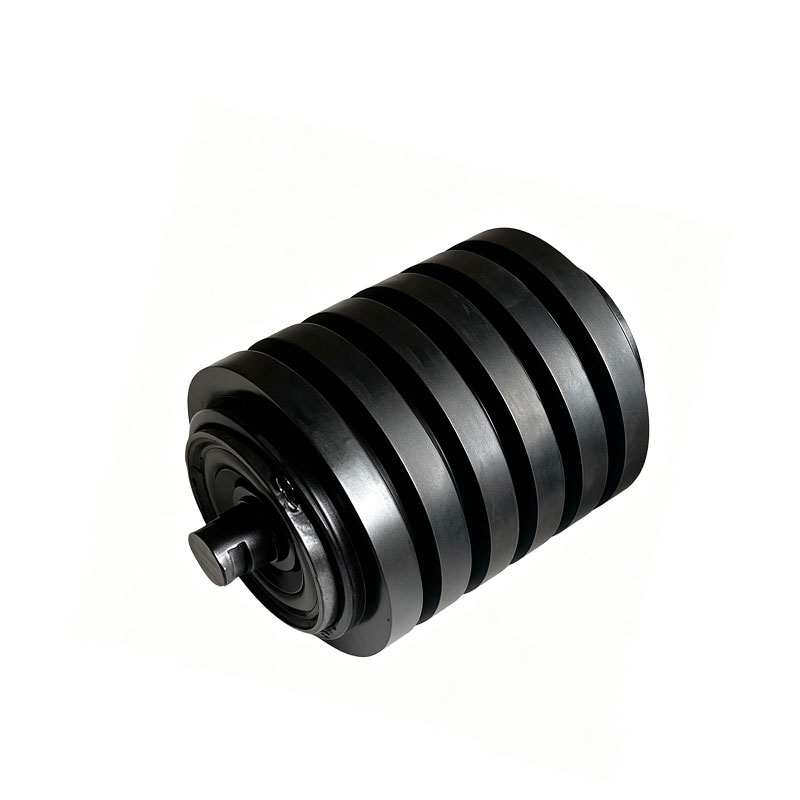

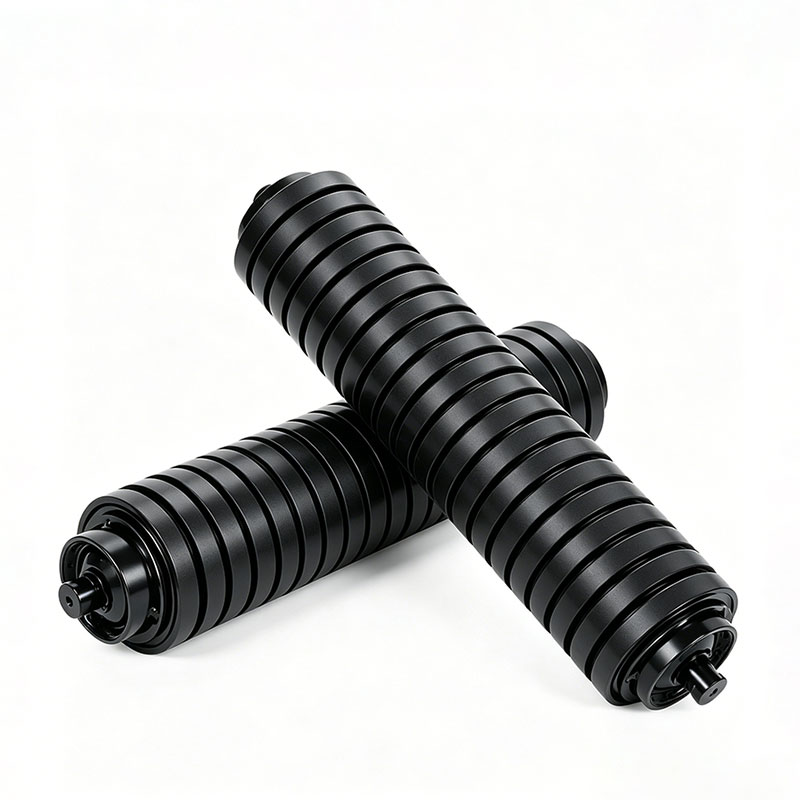

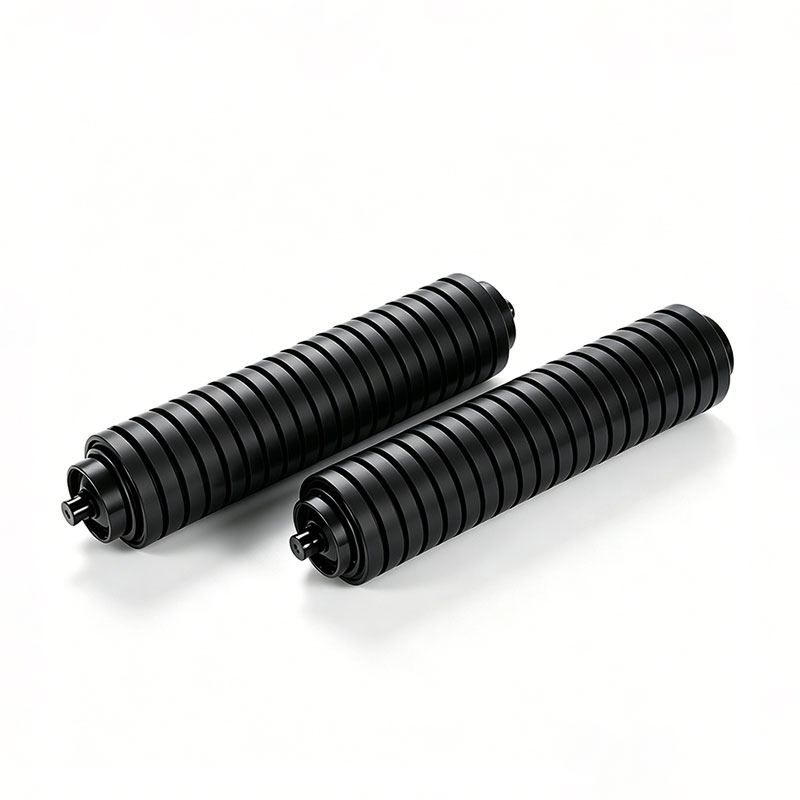

Custom Neoprene Impact Rollers for Conveyor Systems
Product Overview:
No two conveyor systems are exactly alike, especially in legacy mining operations or specialized bulk handling facilities. Forcing an off-the-shelf impact roller into your loading zone often leads to bracket modifications, misaligned belts, and premature failure. AstraRoll eliminates this problem by offering fully customizable Neoprene Impact Rollers built to your exact engineering drawings. We mechanically press thick, highly resilient Neoprene (CR) rubber rings onto a heavy-wall seamless steel core, creating a massive shock absorber that prevents falling rocks or heavy ores from puncturing your expensive conveyor belts. Beyond precision sizing, our use of premium Neoprene provides superior resistance to industrial oils, chemicals, and extreme weather, while meeting the strict flame-retardant safety standards required in underground mining. As your direct manufacturing partner, AstraRoll delivers the exact fit you need with the ultimate belt protection your system demands.
Roll Function:
Industry Applications: Industry, Mining, Agriculture
Custom Neoprene Impact Rollers for Conveyor Systems Details
The AstraRoll Technical Advantage: Custom Fit & Extreme Protection
A transfer point failure can shut down an entire plant. We engineered our Custom Impact Series to provide absolute protection without the headache of retrofitting:
100% Bespoke Sizing: Whether you use CEMA, DIN, JIS, ISO standards, or a completely proprietary frame design, our CNC machining centers will cut the steel core and mill the shaft ends to the exact millimeter. This ensures a true "drop-in" replacement, minimizing maintenance downtime.
The Neoprene (CR) Advantage: Standard natural rubber degrades rapidly when exposed to grease, oil, or ozone. Our premium Neoprene rubber rings not only absorb massive kinetic energy from falling rocks but are naturally resistant to harsh chemicals and UV degradation. Importantly, Neoprene is self-extinguishing and flame-retardant, making it the safest choice for coal handling.
Tapered Ring Design: The rubber discs are engineered with a specific profile that allows them to deform dynamically upon impact. This compression dissipates the shock outward, preventing the kinetic energy from slicing through the belt or shattering the internal bearings.
Impenetrable Labyrinth Seals: Transfer points are engulfed in abrasive dust. AstraRoll utilizes a multi-labyrinth nylon sealing system filled with high-temp lithium grease, ensuring the bearings remain pristine and the roller spins freely in the dirtiest environments.
Key Specifications & Custom Capabilities
Please note: As a custom manufacturer, every parameter below can be engineered to your exact requirements.
Outer Diameter (OD): Fully customizable.
Wall Thickness of Steel Tube: Custom selected based on payload (e.g., 3mm to 6mm+ seamless steel).
Rubber Hardness: 65 ± 5 Shore A (Optimized for maximum shock absorption).
Rubber Material: Premium Neoprene (CR) / Chloroprene Rubber.
Shaft Material: Cold-Drawn Round Steel (C45), precision milled.
Conveyor Standards: Can be manufactured to perfectly match CEMA (B, C, D, E, F), DIN, or proprietary profiles.
| Comparison Item | AstraRoll Neoprene Impact Roller |
| Vs. Steel Rollers in Loading Zones | Belt Lifespan: Steel rollers cause instant belt punctures from falling rocks. Impact rubber absorbs the shock, extending belt life by years. |
| Vs. Standard Rubber Rollers | Environmental Survival: Neoprene outlasts standard rubber by 3x in oily, chemical-rich, or outdoor UV-exposed environments. |
Why Choose AstraRoll? (Your Bulk Material Handling OEM)
1. From Prototype to Plant-Wide Rollout
We understand that engineering a custom roller requires testing. We offer rapid prototyping for your maintenance teams to verify fitment and performance in your specific loading zones. Once approved, our ISO-certified facility scales instantly to supply thousands of units for your entire plant.
2. Direct-to-Factory Pricing
Custom conveyor parts usually come with massive markups from local distributors. By sending your CAD drawings or dimensional requirements directly to the AstraRoll factory, you secure premium, custom-engineered Neoprene impact rollers at aggressive B2B wholesale pricing.
Frequently Asked Questions (FAQs)
Q: How do I order custom impact rollers if I don't have CAD drawings?
A: It's very simple. Our engineering team can provide a standardized dimension sheet. You only need to measure four key points on your existing roller: Overall Shaft Length, Roller Face Length, Outer Diameter, and the Shaft End dimensions (e.g., the width of the milled slot). We will build it exactly to those numbers.
Q: Why should I upgrade to Neoprene instead of standard rubber?
A: If your conveyor handles treated coal, oily materials, or operates in an environment with high fire risk, standard natural rubber will quickly swell, degrade, and become a fire hazard. Neoprene is oil-resistant, chemical-resistant, and flame-retardant, making it a crucial safety and longevity upgrade.
Q: Can you manufacture the entire troughing frame (bracket) as well?
A: Yes. If you are upgrading a loading zone, we can manufacture complete impact troughing idler sets (including the custom steel frames at 20°, 35°, or 45° angles) ready to bolt directly onto your conveyor stringers.
Q: What is the lead time for a custom-sized batch of rollers?
A: Because we control the entire manufacturing process—from cutting the steel to pressing the Neoprene rings—our turnaround times for custom sizes are extremely competitive. Exact lead times depend on the order volume, but we frequently accommodate urgent maintenance shutdown schedules.
Q1. Are you a trader or direct factory?
We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.
Q2. What are your main products?
AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.
Q3. What about delivery time?
We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.
Q4. How can I get a quote for customized products?
Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.
Q5. What is your payment?
TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
