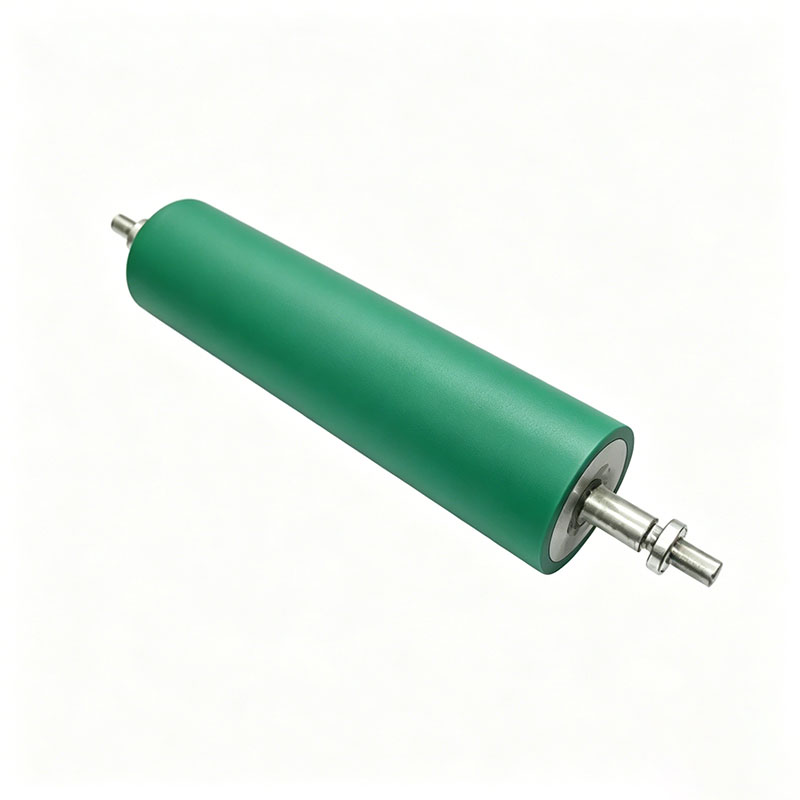

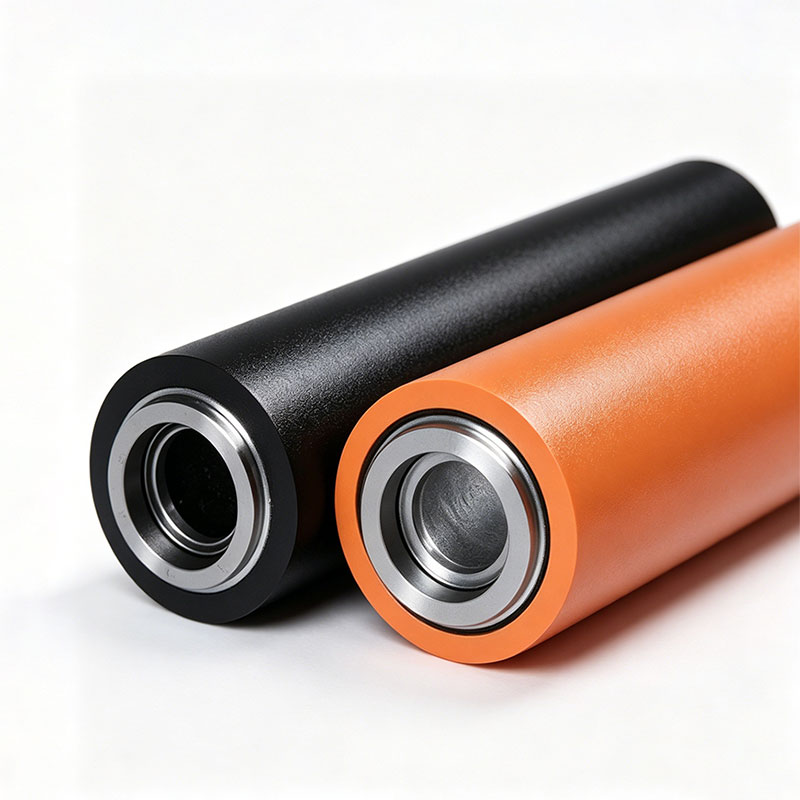

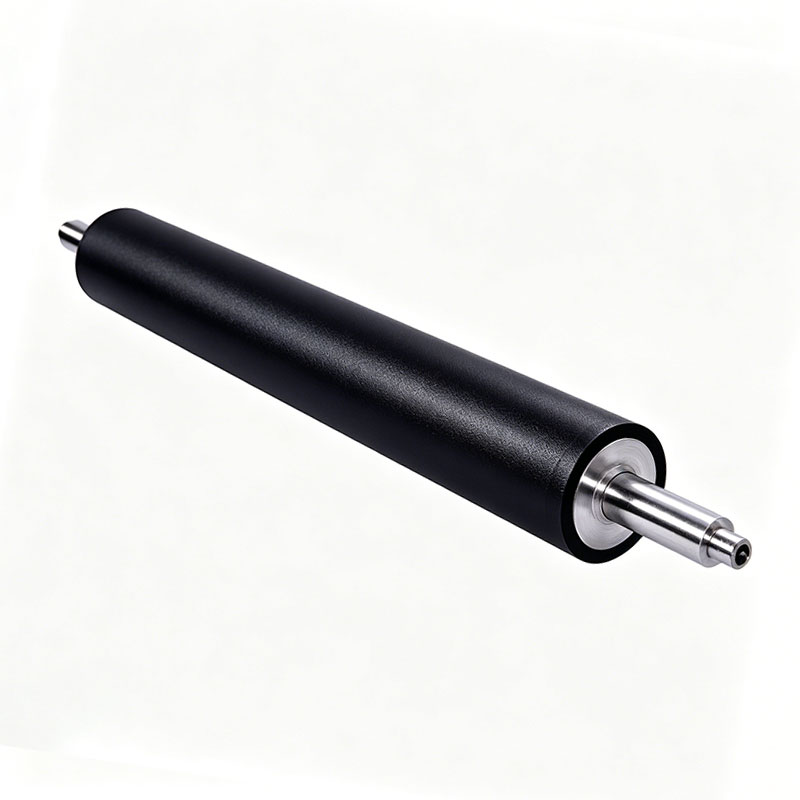

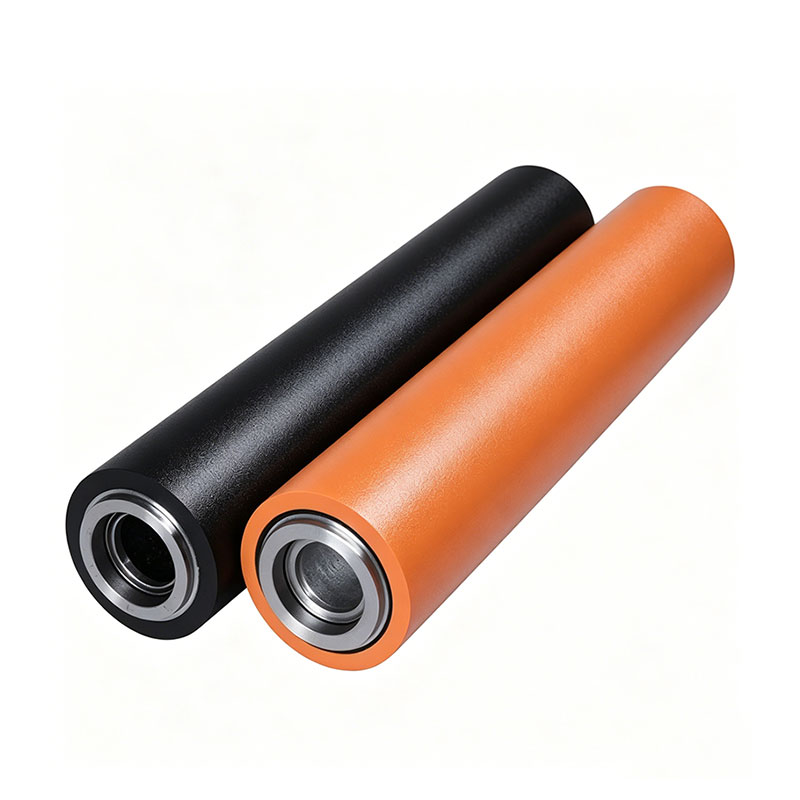

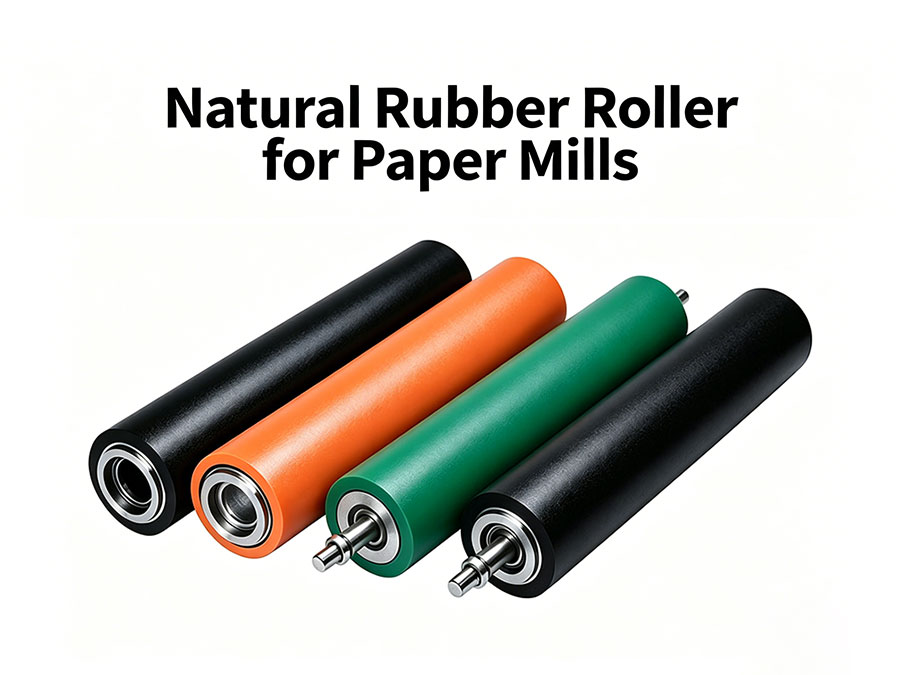

Natural Rubber Roller for Paper Mills

The AstraRoll Technical Advantage: Engineered for the Web
Standard industrial rubber rollers degrade quickly under the constant friction and wet environment of a paper mill. We engineered our NR series to conquer these specific papermaking challenges:

Superior Tear & Abrasion Resistance: High-speed paper edges act like razor blades over time. Our proprietary Natural Rubber compound boasts exceptional tensile strength, drastically reducing edge-wear and extending the time between regrinding cycles.

Precision CNC Crowning: A long, heavy roller will naturally sag in the middle under its own weight and machine tension, causing uneven paper moisture profiles. Our factory utilizes CNC roll grinders to apply a precise "crown" (making the center slightly thicker than the edges) to perfectly offset this deflection.

High-Speed Dynamic Balancing: Vibrations destroy paper webs. Every AstraRoll paper mill roller undergoes rigorous dynamic balancing at your machine's specific operating speed. This eliminates whip and runout, ensuring whisper-quiet, vibration-free rotation.

Anti-Delamination Bonding: The extreme nip pressures in the press section can cause soft rubber to shear off the steel core. We utilize a multi-step bonding process, including a specialized hard-rubber base layer (ebonite) that permanently locks the natural rubber to the blasted steel core.

Key Specifications & Technical Attributes

Roller Length: Custom manufactured up to 6,000mm+ (6 Meters) for wide web paper machines.
Diameter Range: From 100mm up to 1,500mm.
Rubber Material: Premium Natural Rubber (NR) Compound.
Hardness (Durometer): 30 Shore A to 100 Shore A (Tolerances of ±2 Shore A across the entire face).
Temperature Resistance: Continuous operation up to 90°C (194°F) in wet environments.
Chemical Resistance: Excellent resistance to mild acids, alkalis, and water typically found in paper sizing and pulp processing.

Why Choose AstraRoll? (Your Paper Mill OEM Partner)

1. End-to-End Core Fabrication & Rubber Covering

Many suppliers only do the rubber coating. AstraRoll is a complete manufacturing facility. We can either strip and re-cover your existing worn steel cores, or fabricate entirely new heavy-wall seamless steel cores, machine the journals, and apply the custom rubber compound all under one roof.

2. Customized Groove Engineering

For wet sections (like wire and press parts), removing water rapidly is critical. Our CNC lathes can cut precise spiral, diamond, or blind-drilled grooves into the natural rubber tread to optimize water drainage and improve the paper's moisture profile before it hits the dryer section.

Frequently Asked Questions (FAQs)

Q: Can natural rubber handle the chemicals in our pulp slurry?
A: Natural rubber is highly resistant to water, mild acids, and the alkaline solutions commonly used in standard paper and board production. However, if your specific section uses high concentrations of harsh solvents or oils, please inform our engineers so we can substitute a specialized NBR (Nitrile) or EPDM compound.

Q: What is the maximum length of roller you can manufacture?
A: Our heavy-duty cylindrical grinders and vulcanizing autoclaves can accommodate massive paper machine rolls up to 6 meters (approx. 20 feet) in overall length.

Q: Why is my current roller causing paper wrinkles?
A: Wrinkling is usually caused by either a loss of "crown" (the roller has worn flat in the middle) or incorrect dynamic balancing causing uneven nip pressure. AstraRoll can re-cover and re-profile your roller with the exact camber needed to restore a perfectly flat web tension.

Q: Do you offer Re-covering (Re-rubberizing) services for old cores?
A: Yes. Shipping new solid steel cores is expensive. You can send us your worn paper mill rollers; we will strip the old rubber, sandblast and inspect the steel core/journals, apply a fresh Natural Rubber coating, dynamically balance it, and ship it back like new.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
