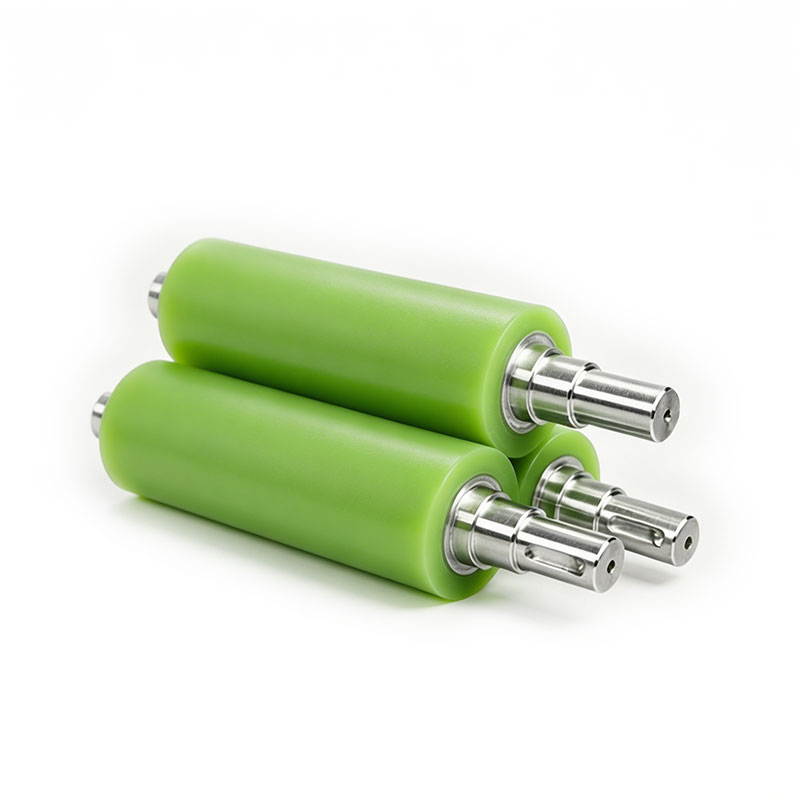

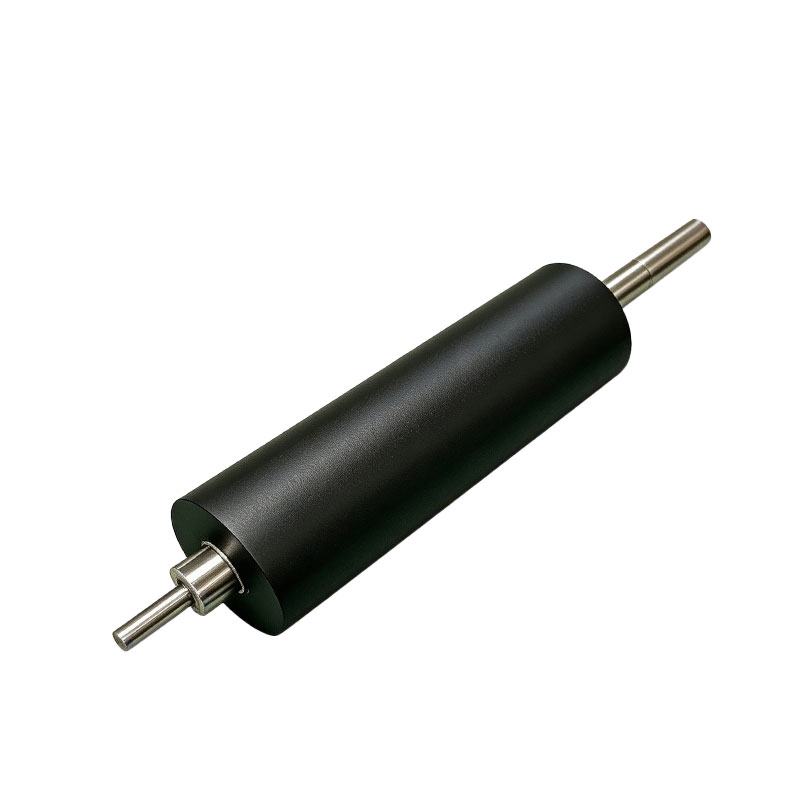

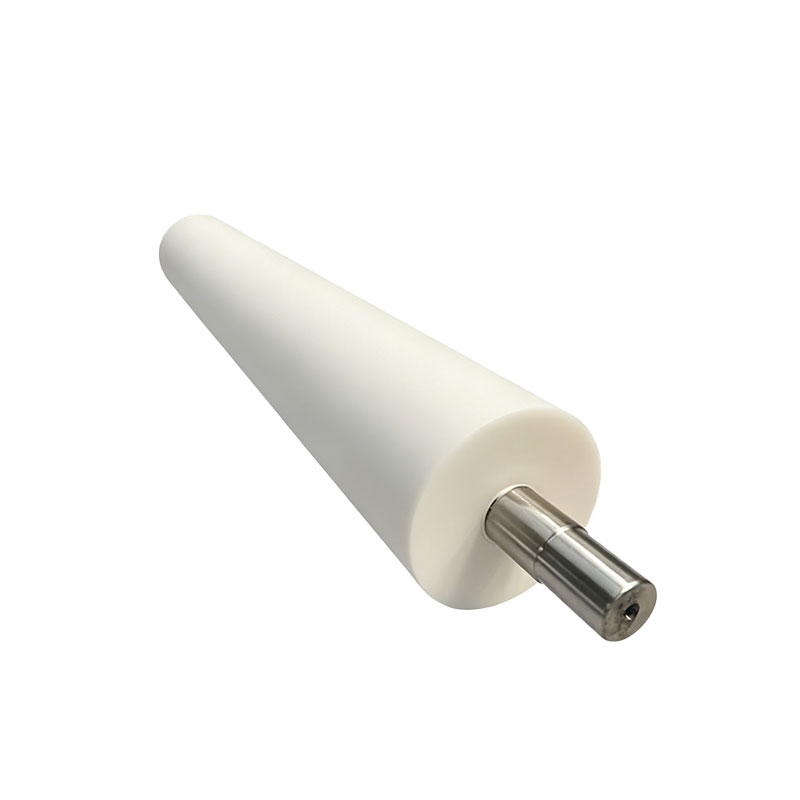

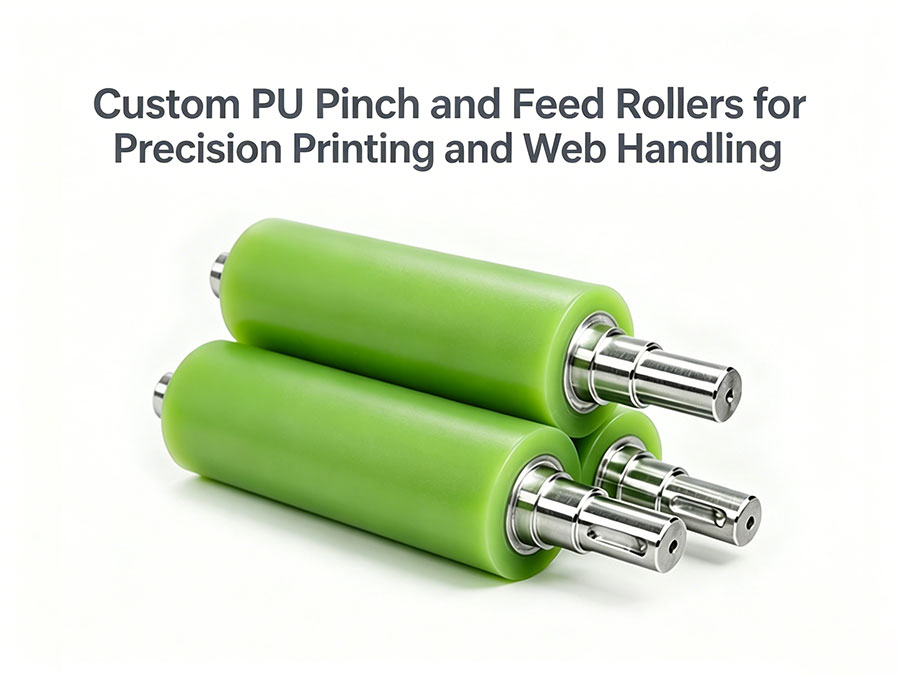

Custom PU Pinch and Feed Rollers for Precision Printing and Web Handling

The AstraRoll Technical Advantage

We formulate our printing feed rollers to master the precise mechanics of high-speed registration and paper handling:

Absolute Registration Grip: Web slip destroys color registration. We fine-tune the coefficient of friction of our PU compounds to match your specific substrate (glossy paper, matte cardboard, or slippery plastic films), ensuring the material is pulled at the exact speed of the printing cylinders.

100% Non-Marking Purity: Standard NBR or EPDM rubbers often contain carbon black, which easily transfers to light-colored paper under high nip pressure. AstraRoll's high-purity polyurethane contains zero carbon black, guaranteeing your finished prints emerge completely scuff-free and unblemished.

Paper-Edge Abrasion Resistance: High-speed paper and cardboard edges are incredibly abrasive, quickly carving deep grooves into standard rubber feed rollers. Polyurethane possesses a mechanical tear and abrasion resistance up to 5X greater than rubber, drastically extending the roller's operational lifespan.

Micro-Precision Concentricity: If a feed roller is slightly out of round, the nip pressure will be uneven, causing the paper to skew diagonally into the press. We CNC-grind every PU roller to a strict Total Indicator Runout (TIR) of ≤ 0.02mm, ensuring perfectly even traction across the entire width of the web.

Key Specifications

Please note: We cast the PU and manufacture the metal core entirely to your press OEM specifications.

Outer Diameter (O.D.): Custom from small 15mm feed tires up to 300mm+ web tension rollers.
Face Length: Custom-manufactured up to 3,000mm+ for wide-web presses.
Hardness Tolerance: ± 3 Shore A (Maintained uniformly to prevent paper wrinkling).
Color: Black, Red, Blue, Green, or Custom (Allowing press operators to color-code different durometers).

Why Choose AstraRoll?

1. Anti-Static (ESD) Formulations for Film Printing

High-speed friction between standard polyurethane and plastic film webs (like BOPP or PET) generates massive static electricity, leading to dangerous shocks, severe dust attraction, and printing fires. AstraRoll can engineer customized semi-conductive (Anti-Static) PU blends that safely ground electrical charges directly to the press frame.

2. Press-Ready Bearing Assembly

Downtime on a commercial press costs thousands of dollars per hour. You do not have time to struggle with pressing old bearings into new rollers. AstraRoll provides fully assembled feed and pinch rollers, complete with premium pre-installed precision bearings, allowing your maintenance team to execute lightning-fast drop-in replacements.

Frequently Asked Questions (FAQs)

Q: How do I select the right Shore A hardness for a sheet-fed offset press?
A: For the suction and primary feed zones handling delicate or thin paper stock, a softer PU (e.g., 40A to 55A) is ideal because it conforms slightly, providing a gentle but secure grip without denting the paper. For delivery zones or when feeding heavy, rigid corrugated cardboard, a firmer PU (e.g., 70A to 85A) is necessary to prevent the roller from distorting under the heavy mechanical load.

Q: Will polyurethane withstand the harsh chemical washes used to clean printing ink?
A: Standard polyurethane is incredibly tough mechanically, but it can swell if soaked in aggressive hydrocarbon printing solvents (like MEK, Toluene, or heavy blanket washes). Since feed rollers rarely touch wet ink directly, this is usually not an issue. However, if your feed rollers are exposed to heavy solvent splash, please inform us; we will utilize a specialized highly cross-linked, solvent-resistant PU formulation.

Q: Why does the web keep wandering or wrinkling when it passes through our current pinch rollers?
A: Web wrinkling or wandering (skewing) is almost always caused by uneven nip pressure. This occurs when a feed roller becomes "barrel-shaped" or "hourglass-shaped" due to uneven wear, or if it loses its concentricity. AstraRoll's stringent CNC grinding guarantees a perfectly flat, parallel profile, instantly resolving web tracking issues.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
