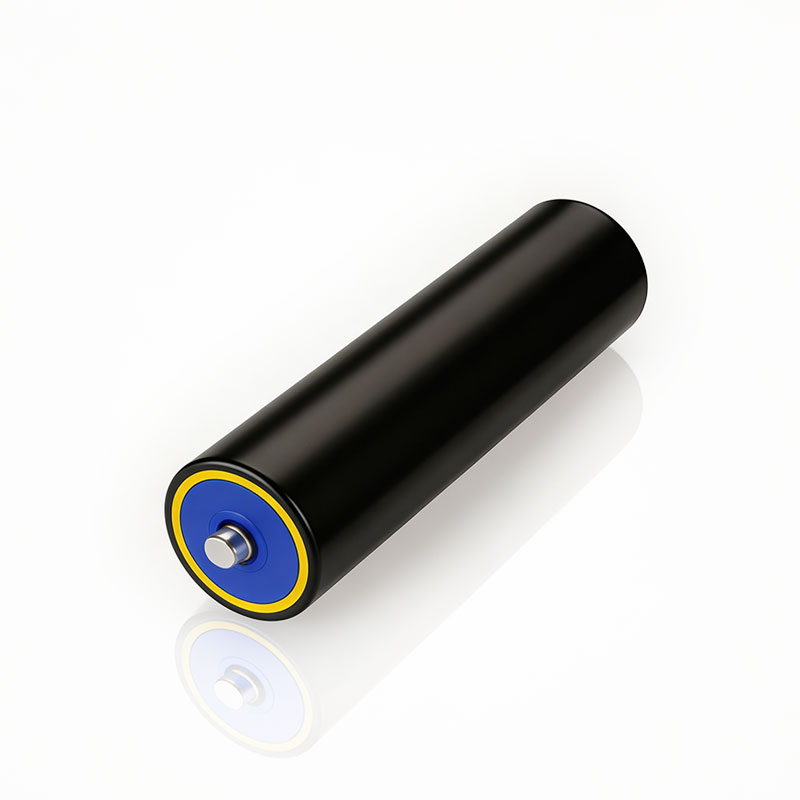

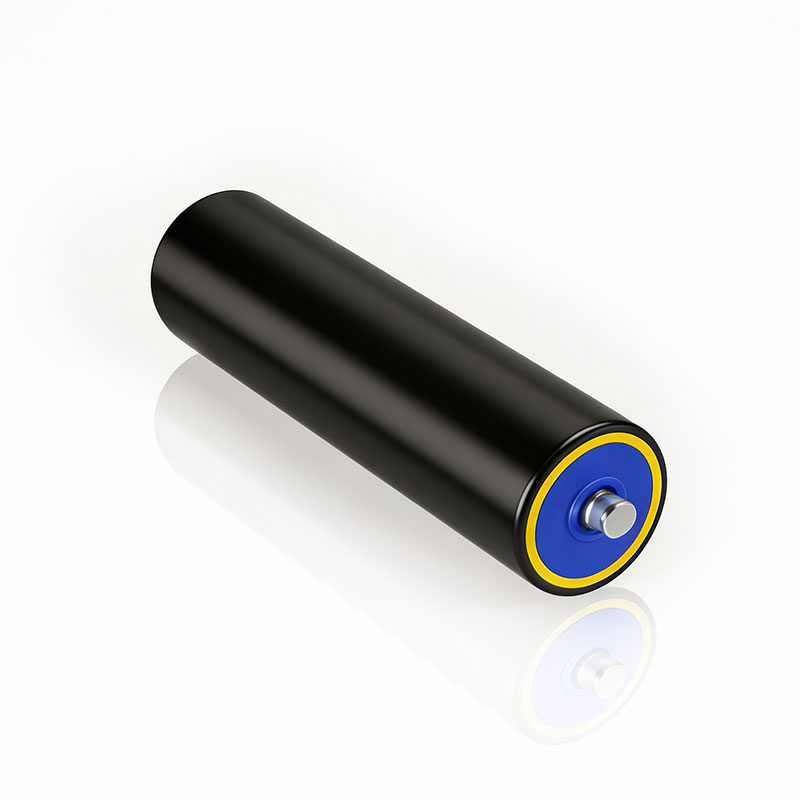

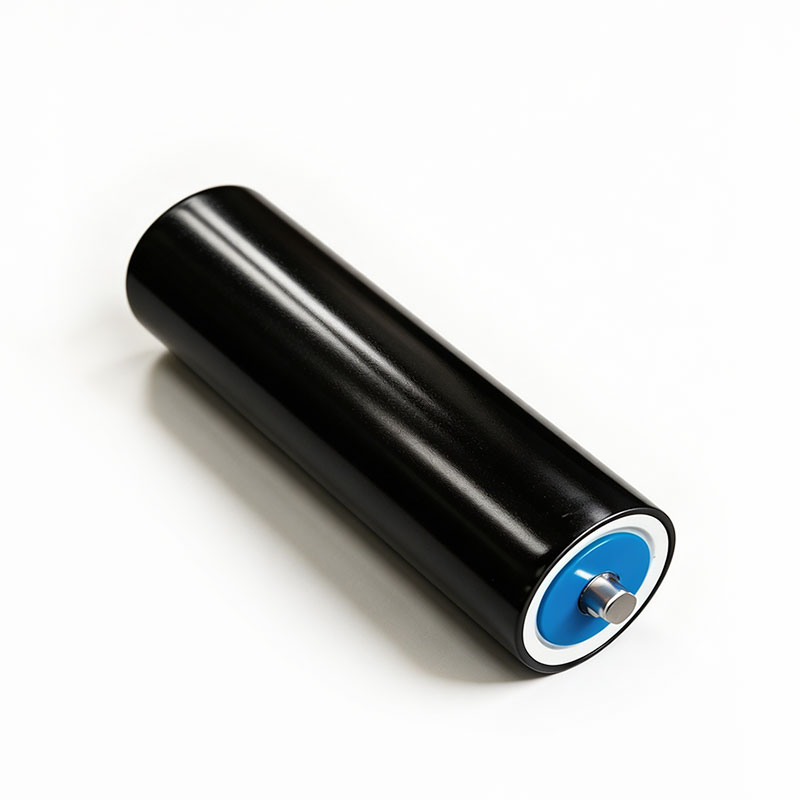

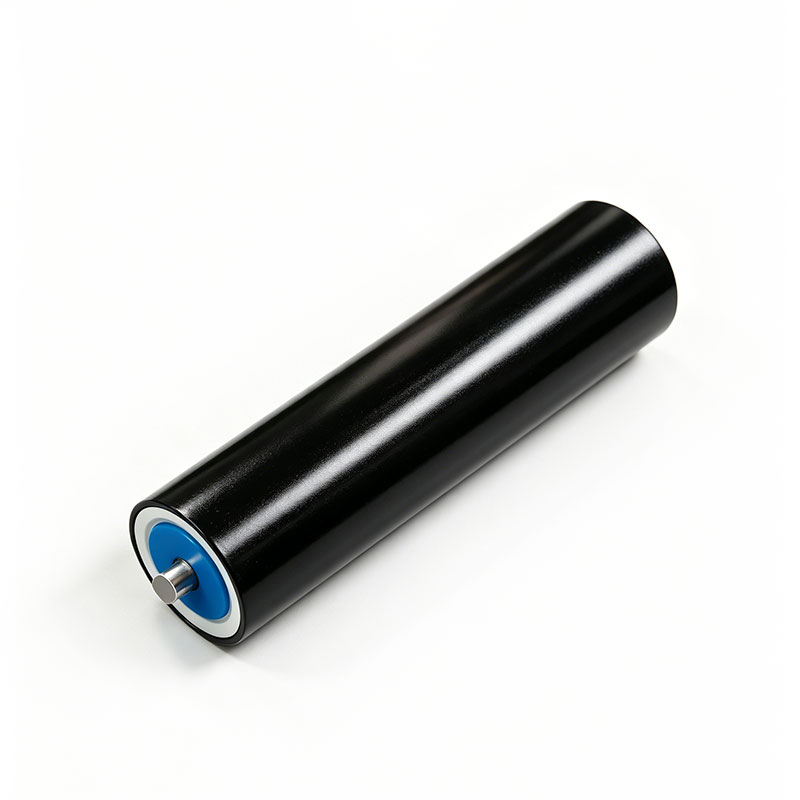

Heavy-Duty HDPE Conveyor Rollers Manufacturer

In heavy bulk material handling—such as salt mining, fertilizer production, and coal processing—standard steel conveyor rollers are a massive liability. Subjected to moisture, highly corrosive chemicals, and abrasive dust, steel rollers rapidly rust, scale, and seize. When a steel roller locks up, the fast-moving conveyor belt grinds against the stationary steel shell, acting like a saw blade that ultimately destroys the expensive belt. The AstraRoll Heavy-Duty HDPE Conveyor Roller completely eliminates this risk. Fabricated from ultra-thick High-Density Polyethylene, these rollers are 100% immune to rust and chemical corrosion. Their naturally low surface energy means wet, sticky material (carryback) simply slides off, preventing belt mistracking. Weighing up to 50% less than their steel counterparts, they dramatically reduce start-up power consumption and operator lifting injuries, ensuring a safer, hyper-efficient, and belt-friendly bulk handling system.

The AstraRoll Technical Advantage

We engineered our HDPE rollers to outperform and outlast traditional steel idlers in the harshest global environments:

Total Corrosion & Chemical Immunity: Unlike coated or painted steel that eventually flakes and rusts, solid HDPE is chemically inert. It will never oxidize, pit, or degrade when exposed to seawater, bulk sulfur, acidic fertilizers, or aggressive caustic washdowns.

Belt-Protective "Anti-Stick" Surface: HDPE possesses a naturally low coefficient of friction. Wet coal, mud, and sticky ores will not adhere to the roller shell. This self-cleaning property protects the bottom cover of your conveyor belt from excessive wear and prevents off-center belt tracking.

Massive Weight Reduction: HDPE rollers are roughly 50% lighter than equivalent steel rollers. This massive reduction in rotational inertia drastically lowers the electrical power required to start and run the conveyor line, while making manual installation and maintenance significantly safer for workers.

Advanced Multi-Labyrinth Sealing: Mining dust destroys bearings. Our proprietary multi-stage labyrinth seal, combined with a specialized centrifugal flinger, creates an impenetrable physical and grease barrier that ensures the internal precision ball bearings outlast the outer shell.

Key Specifications

Please note: We manufacture entirely to CEMA, DIN, JIS standards, or your custom bracket dimensions.

Outer Diameter (O.D.): 89mm, 108mm, 114mm, 133mm, 152mm, 159mm.
Wall Thickness: 10mm to 20mm+ (Engineered to withstand heavy structural loads).
Face Length: Ranging from 200mm up to 2,200mm+ (Supporting belt widths from 500mm to 2000mm).
Bearing Types: Deep groove ball bearings (e.g., 6204, 6205, 6306) sourced from top-tier brands.
Shaft Material: Cold-drawn carbon steel or stainless steel (with external ends coated for anti-rust protection).

Frequently Asked Questions (FAQs)

Q: Can a plastic (HDPE) roller really support the same massive weight as a steel roller?
A: Yes. We do not use thin-walled plastic. Our heavy-duty HDPE rollers feature wall thicknesses up to 20mm and house a continuous, heavy-duty internal steel shaft. The heavy radial load of the ore is transferred through robust, reinforced internal bearing housings directly to the steel shaft, providing load capacities that parallel standard steel idlers.

Q: Will the HDPE shell wear out faster than steel when handling abrasive rocks?
A: Surprisingly, no. In wet, abrasive slurry conditions (like sand, gravel, and wet coal), HDPE actually exhibits superior wear resistance compared to steel. The elasticity of the polymer allows it to absorb and deflect abrasive friction rather than being gouged away like rigid steel.

Q: What happens if an HDPE roller eventually gets jammed and stops spinning?
A: This highlights one of HDPE's greatest advantages. If a steel roller jams, the friction from the belt creates sparks and cuts the belt in half. If an AstraRoll HDPE roller jams, the low-friction plastic acts as a smooth slider-bed. It will not spark, it will not cut the belt, and it gives your maintenance team ample time to schedule a replacement without catastrophic downtime.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
