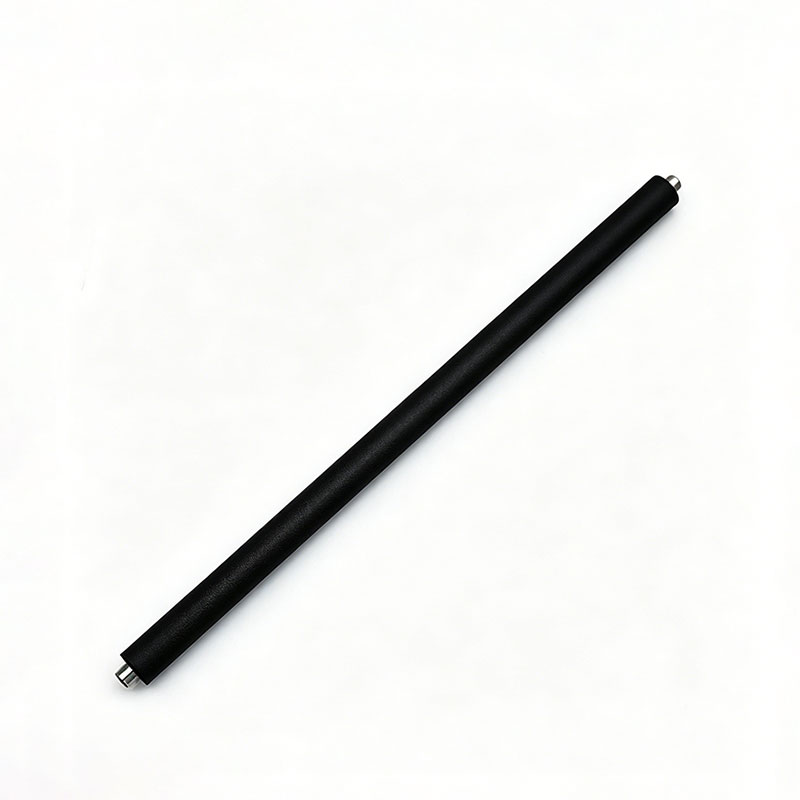

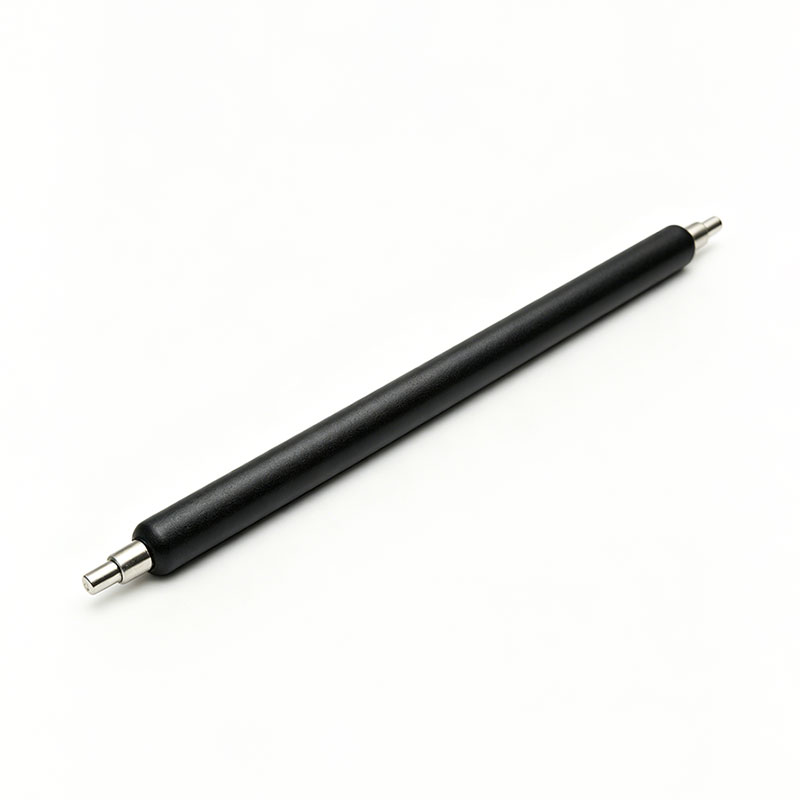

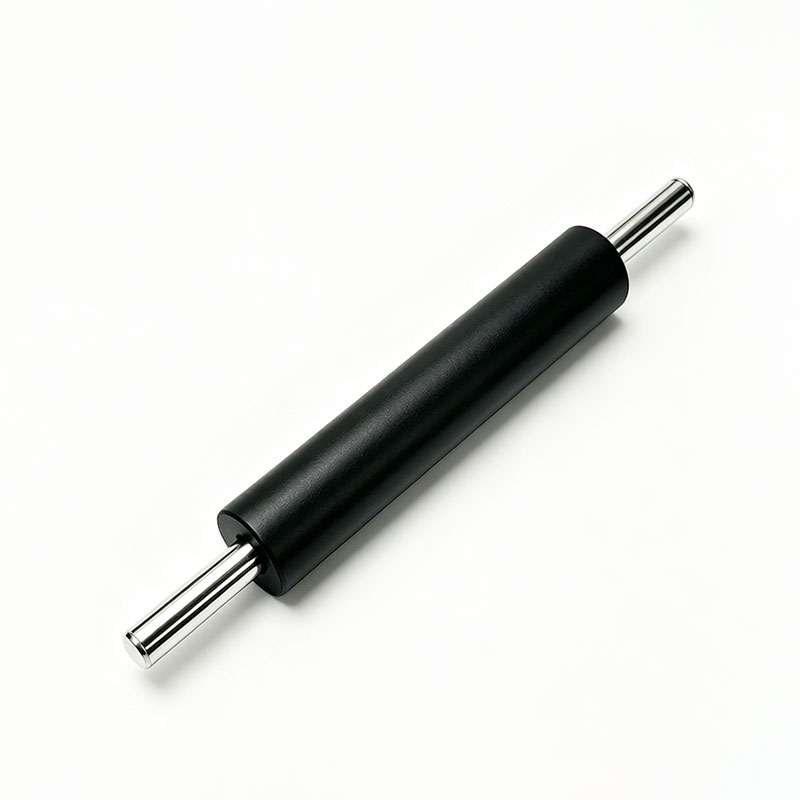

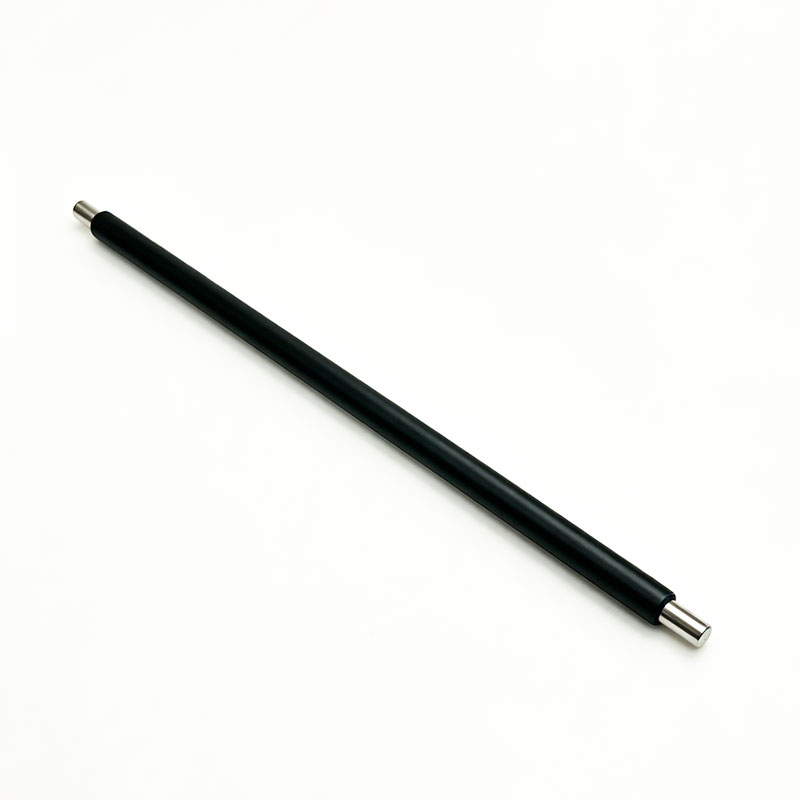

Laser Printer Dedicated Charging Roller

The Primary Charge Roller (PCR) is the foundational component responsible for conditioning the xerographic cycle in modern electrophotographic systems. Positioned inside the toner cartridge mechanism, the charging roller maintains direct mechanical contact with the rotating photoconductor drum.

By applying a precisely regulated electrical bias (DC or superimposed AC/DC), the PCR deposits a highly uniform electrostatic field across the drum surface, initiating the pristine "canvas" required for precise laser exposure. AstraRoll’s charge rollers are engineered with tight structural and electrical tolerances to minimize micro-discharge fluctuations, providing deep solid blacks and razor-sharp text graphics.

Technical Parameters & Specifications

Core Shaft Material: Precision-ground Carbon Steel or Stainless Steel (SUS303) with Anti-Corrosive Electro-galvanizing Treatment

Elastomer Coating: High-elasticity Conductive Polyurethane (PU) / EPDM / Silicone Rubber

Electrical Resistance: 10^5-10^7Ω (Strictly uniform distribution with a tolerance margin within ±0.1log Ω)

Surface Roughness: ≤4.0μm (Ultra-fine surface profile to minimize frictional chatter with the drum)

Hardness Shore A: 35 - 55 Shore A (Optimized for micro-elastic compliance under spring tension)

Straightness & Runout: ≤0.05mm across full functional width, ensuring uniform nip pressure

Environmental Stability: Maintains consistent impedance and charging capacity from

Application Products

AstraRoll Primary Charge Rollers are precisely matched for seamless integration into:

Medium-to-High Speed Office Copiers & Multi-Functional Printers (MFPs): (e.g., Canon iR Advance series, Konica Minolta Bizhub, Ricoh Aficio).

Desktop Monochrome & Color Laser Printers: Ideal drop-in replacement units for high-volume aftermarket toner cartridges.

Label Printing Machinery & Commercial Digital Presses: Catering to continuous web or sheet-fed industrial printing setups requiring consistent electrical charging.

Why Choose AstraRoll's Primary Charge Roller?

Flawless OPC Drum Synchronization: Engineered explicitly to complement a laser printer dedicated OPC drum, our PCRs eliminate electrical ghosting. By providing optimized AC/DC attenuation, they clear away "residual memory potential" from preceding print revolutions, ensuring clean white spaces and sharp imagery.

Strict Volumetric Impedance Control: Fluctuations in rubber electrical resistance cause uneven charging, which translates to vertical bands or light print densities. AstraRoll applies precision compound-mixing processes that lock the roller's resistance values in place, guaranteeing consistent print density from the first page to the last.

Extended Durability against Additives: Modern toners utilize abrasive additives like silica and titanium dioxide. AstraRoll’s dual-layer coated charging rollers feature reinforced surface matrices that resist chemical pitting and physical scoring, preventing premature component breakdown.
