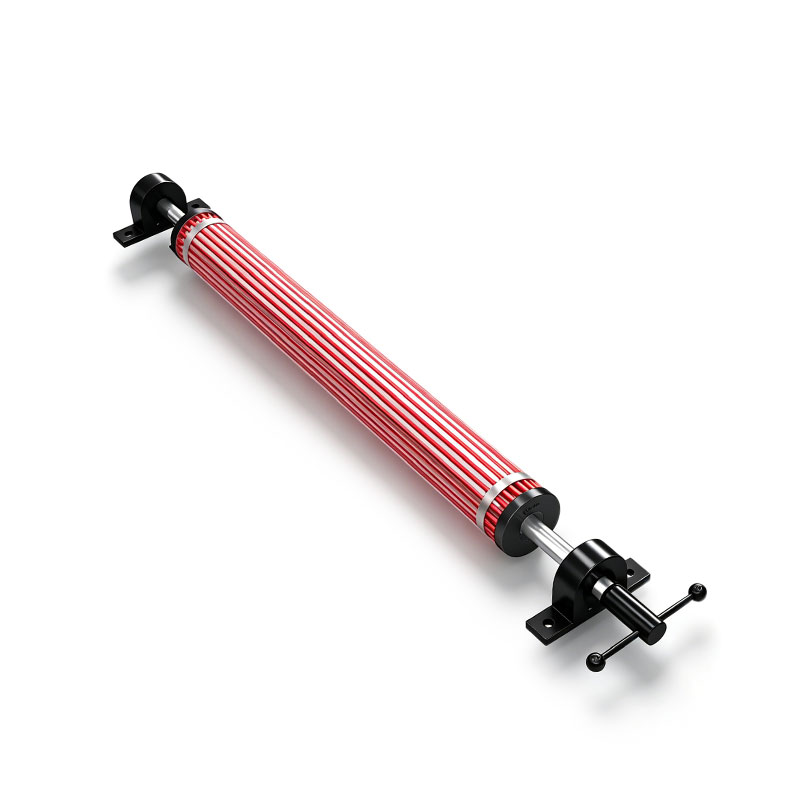

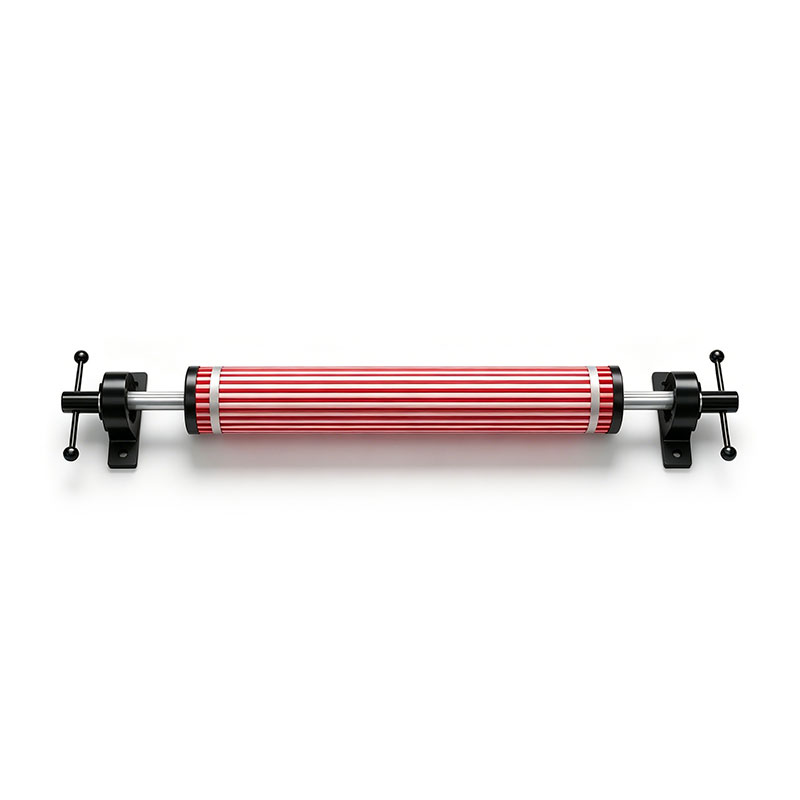

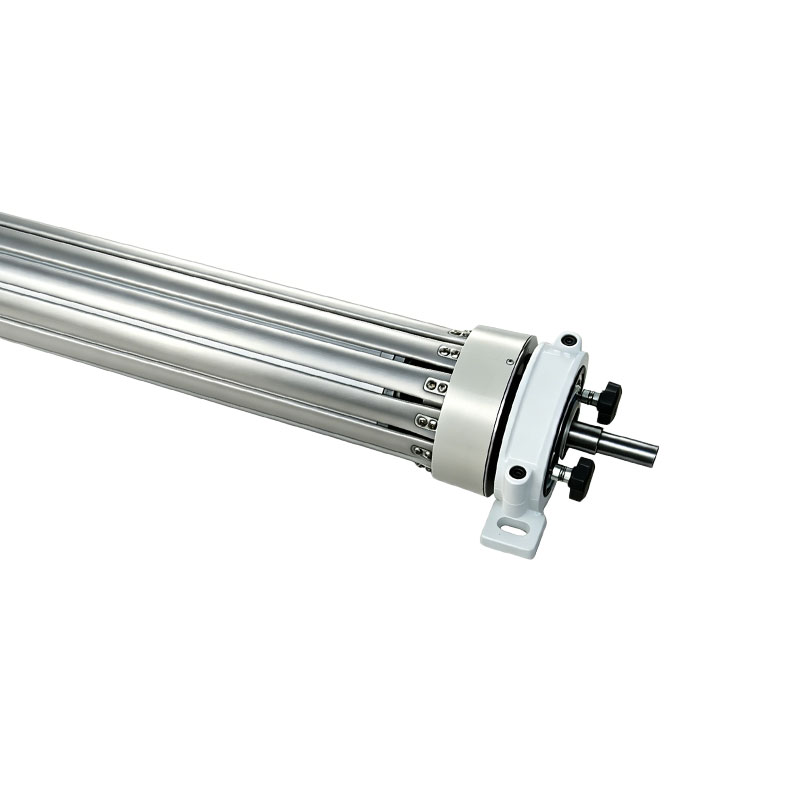

Custom Polyband Expander Roller For Wrinkle-Free Web Handling

The AstraRoll Technical Advantage

We engineer our polyband expanders to provide precise, adjustable spreading action for the most sensitive materials:

Zero Center Distortion: Because the roller core is perfectly straight (unlike a curved, bowed roller), the web path remains completely flat. The spreading action is performed entirely by the lateral stretching of the bands, preventing the center of the film from sagging or bagging.

Adjustable Spreading Action: Different materials require different levels of lateral pull. AstraRoll polyband rollers feature precision end-cams that allow operators to dial in the exact expansion stroke (e.g., from 0 mm to 30 mm of stretch) to perfectly match the elasticity of the specific web being run.

Ultra-Low Tension Compatibility: Running delicate non-wovens or 10-micron PE films requires extremely low web tension. Our rollers utilize ultra-lightweight extruded aluminum cores and low-friction precision bearings, ensuring the roller spins effortlessly without stalling or scratching the web.

Independent Band Functionality: The multiple polybands provide continuous, distributed support across the entire width of the web. Even if the web is slit into multiple narrow strips, each individual strip is actively spread and kept separated before the rewind station.

Key Specifications

Please note: Every AstraRoll polyband expander is 100% custom-engineered to match your machine width, web material, and operating speed.

Outer Diameter (O.D.): Custom from 100mm up to 300mm+.
Face Length: Custom from 500mm up to 4,000mm.
Band Material: Premium Polyurethane (PU), Silicone, or EPDM.
Expansion Stroke: Adjustable lateral stretch (typically 10 mm to 40 mm per side).
Operating Speed: Balanced for high-speed continuous running (up to 800+ m/min).

Why Choose AstraRoll?

1. Modular Band Replacement

In standard spreader rollers, if the rubber sleeve tears, the entire heavy roller must be shipped back to the factory for recovery. AstraRoll Polyband Expanders feature a modular design. If an individual polyurethane band wears out or snaps after years of use, your maintenance team can simply unhook and replace the single band directly on the machine in minutes, completely eliminating costly production downtime.

2. Expert Web Handling Analysis

Selecting the correct spreader roller requires deep web handling knowledge. You don't need to guess. Provide the AstraRoll engineering team with your web material, thickness, width, and running tension, and we will calculate the exact number of polybands, cam angle, and roller diameter required to guarantee a 100% wrinkle-free run.

Frequently Asked Questions (FAQs)

Q: Where is the best place to install a Polyband Expander Roller in my machine?
A: For maximum effectiveness, the polyband roller should be installed immediately before a critical process where wrinkles cause the most damage—such as directly before a coating head, a printing nip, or immediately before the slitter knives to ensure clean, separated cuts.

Q: Does the web need to wrap around the roller to work?
A: Yes. To allow the stretching polybands to grip the material and pull the wrinkles out laterally, the web must have a sufficient wrap angle around the roller. We typically recommend a wrap angle between 90 degrees and 180 degrees for optimal spreading performance.

Q: Can this roller handle multiple slit webs simultaneously?
A: Yes, this is one of its greatest advantages. Unlike a bowed roller, which pulls from the center out, the individual elastic bands of a polyband roller actively spread the material at every point across the face. This makes it perfect for keeping multiple narrow strips separated after they pass through the slitter knives.
