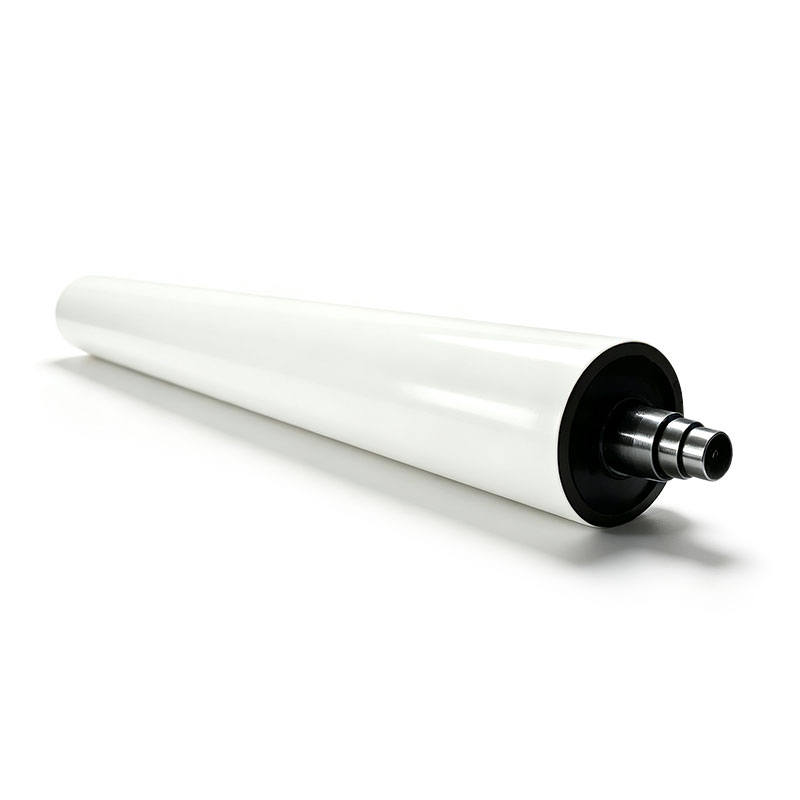

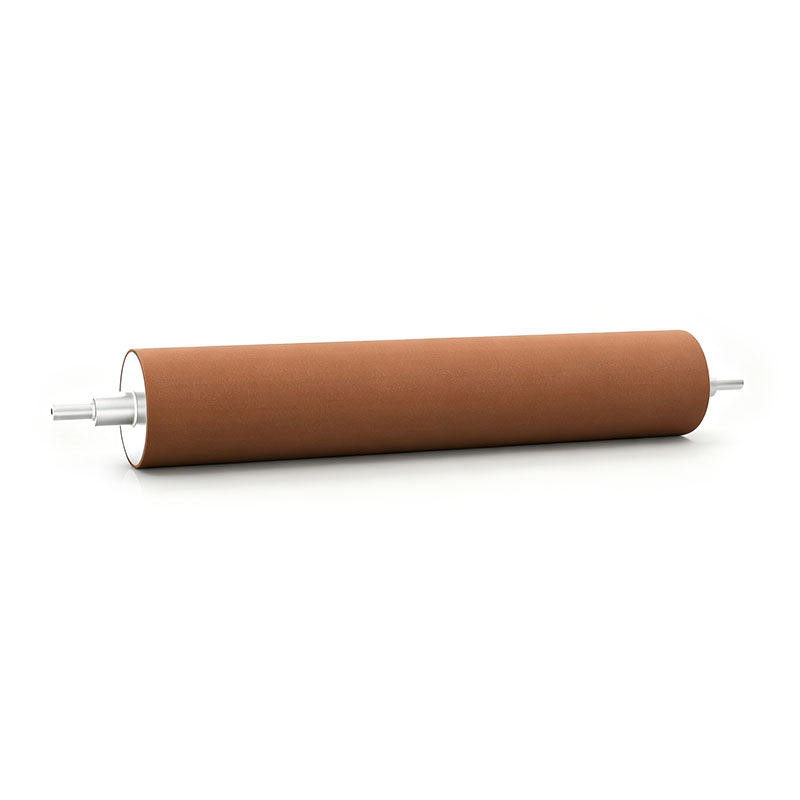

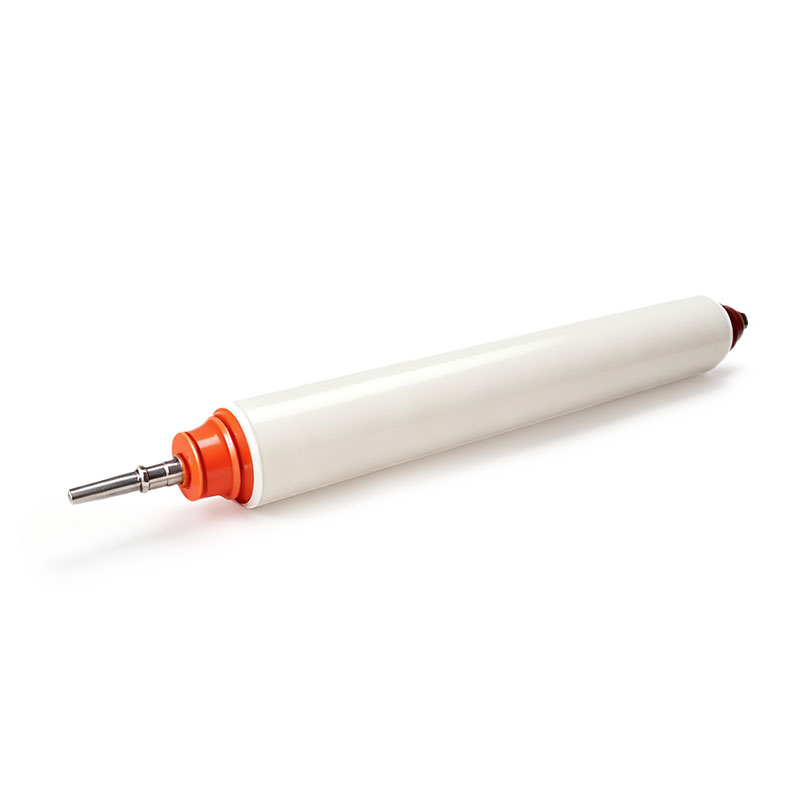

Custom Textile Printing and Dyeing Silicone Rubber Roller

The AstraRoll Custom Textile Printing and Dyeing Silicone Rubber Roller offers unparalleled thermal resistance and precise extraction uniformity for continuous fabric processing machinery. In wide-web dyeing, texturing, and fixing loops, rollers face combinations of elevated operating temperatures, high humidity, and aggressive dyestuff formulations. Standard NBR or EPDM industrial rubbers rapidly oxidize, lose their elasticity, or harden under these stresses—causing uneven dye delivery, tracking marks, and costly maintenance teardowns.

Our high-performance silicone rubber rollers eliminate these textile production bottlenecks. The specialized molecular structure remains highly stable up to 250℃, preventing thermal swelling and maintaining consistent durometer ratings. Its smooth, hydro-phobic surface repels chemical residues and fibers, allowing for immediate color change washing cycles and guaranteeing streak-free fabric finishes.

Technical Parameter

Product Framework: Precision High-Temperature Silicone Rubber Roller for Textile Machinery

Coating Material: Premium High-Purity Heat-Stabilized Silicone (VMQ) Elastomer Matrix

Hardness Window: 40 Shore A - 90 Shore A (±3 Shore A strict compounding)

Thermal Operation: Continuous operation from -50℃ up to +250℃ (Intermittent 300℃)

Core Shaft Base: Heavy-Wall Seamless Carbon Steel / Anti-Corrosive 304 or 316 Stainless Steel

Total Indicator Runout (TIR): ≤0.01mm (CNC turn-ground for perfect parallel fabric alignment)

Dynamic Balancing: ISO 21940 G2.5 standard matching for smooth high-speed line running

Release Property: Superior non-stick profile (Repels sticky printing inks and finishes)

Applications

Textile Printing & Dyeing Lines: Precision ink-transfer, color-padding, and chemical application rollers handling continuous woven and knitted webs.

Fabric Finishing & Calendering: High-heat steering and guiding rollers inside thermal setting ovens, loop dryers, and sanforizing machinery.

Bleaching & Washing Machinery: Squeegee, dewatering, and extraction rollers exposed to oxidative bleaching chemistry and industrial steam.

Coating & Laminating Ranges: Backing and application rollers for technical textiles, synthetic leathers, and functional membrane backing layers.

Why Choose AstraRoll's Custom Textile Printing and Dyeing Silicone Rubber Roller?

Continuous 250℃ Thermal Stability Prevents Face Cracking: Inferior rubbers dry out and develop surface micro-cracks under intense heat, tearing sensitive fabrics. AstraRoll uses premium, heat-stabilized silicone compounds that retain their full flexibility and structural geometry inside demanding drying and curing chambers.

Inherent Hydrophobic Release Cuts Color Changeover Times: Dyes and finishing resins bake onto standard rollers, requiring harsh mechanical scrubbing during color updates. Our silicone coating features exceptional non-stick properties, allowing ink residues and chemical liquors to be wiped away quickly with minimal washing effort.

Elite Multi-Layer Vulcanization Stops Shell Delamination: Extreme combinations of hot water and chemical immersion can cause rubber sleeves to peel away from metal mandrels. We apply multi-stage chemical primers and autoclave vulcanization, forging an unbreakable bond that guarantees zero core delamination.

Micron-Level CNC Grinding for Flawless Dye Uniformity (≤0.01mm TIR): Minor roller deflection or uneven diameter creates pressure variations, causing side-to-center color shading defects. Every silicone roller face is finish-ground on precision CNC machines to a TIR of ≤0.01mm, ensuring consistent, level nip pressure across the entire line width.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
