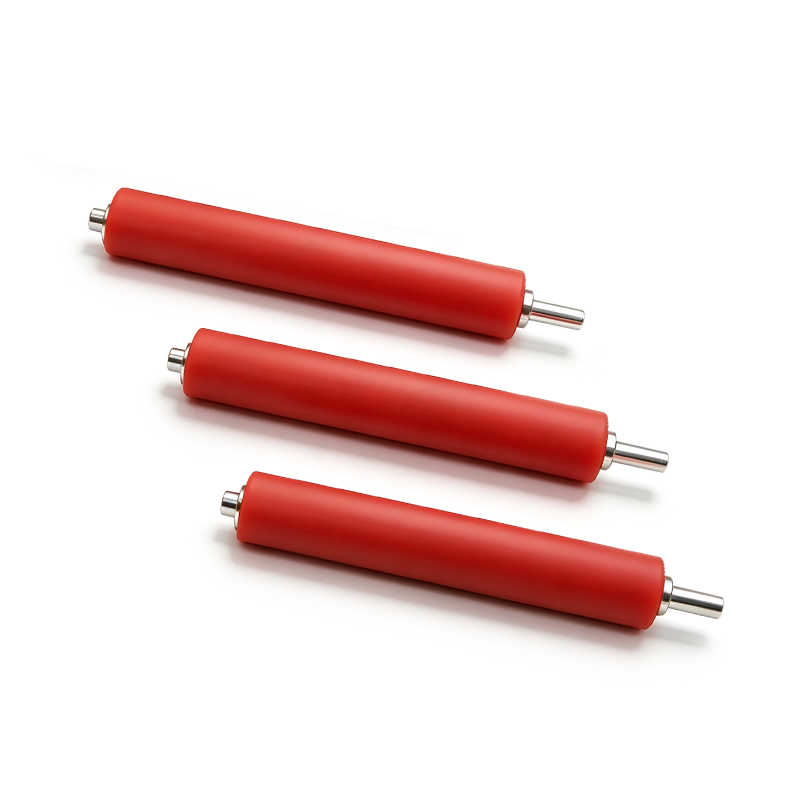

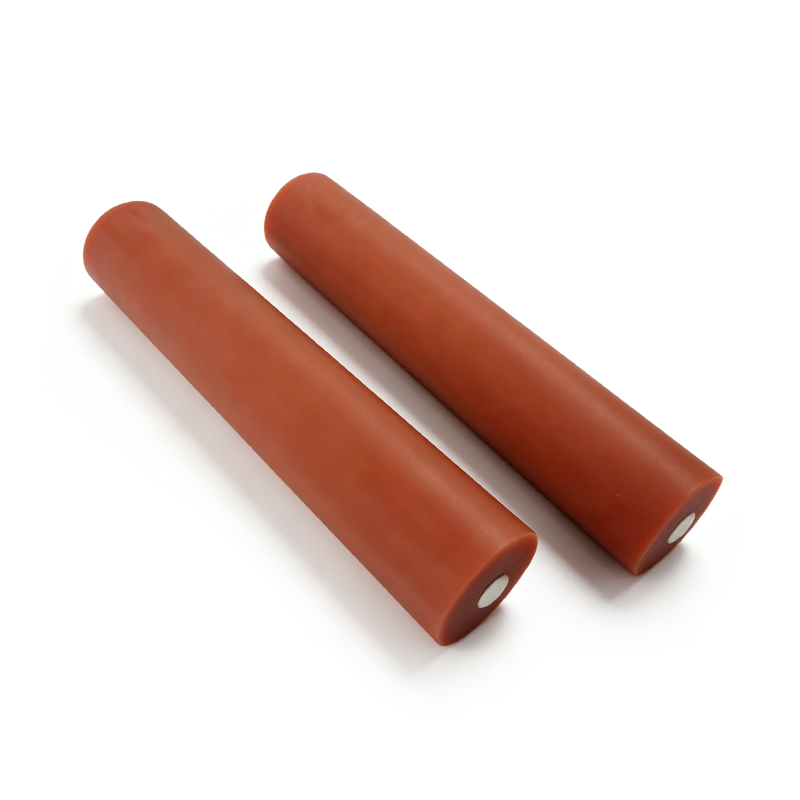

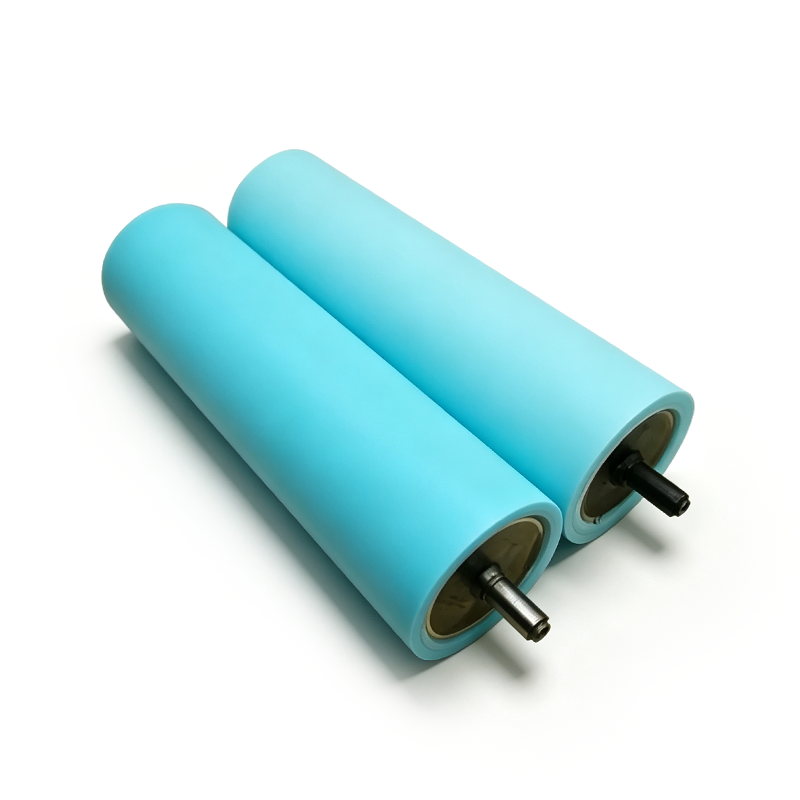

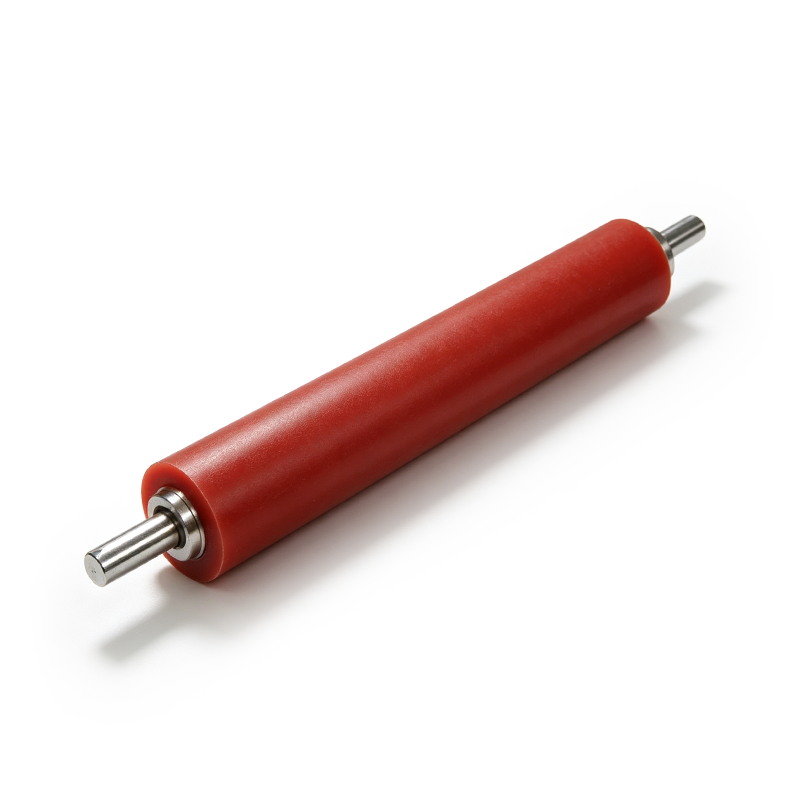

Custom Silicone Nip Roller for Adhesive Materials & Hot Melt Coating

The AstraRoll Custom Silicone Nip Roller is built to deliver outstanding release performance, thermal stability, and precise web tension control in continuous adhesive coating, laminating, and high-temperature converting lines. In hot melt coating and pressure-sensitive adhesive processes, conventional rubber rollers suffer from severe glue adhesion, surface degradation, thermal hardening, and residue buildup, causing frequent line stoppages and web damage.

Our industrial silicone pressure rollers completely eliminate these operational bottlenecks. Built on heavy-wall seamless steel or lightweight aluminum alloy cores, each roller is precision-vulcanized with specialized silicone compounds engineered for high release and thermal tolerance. Featuring high elasticity and chemical resistance, the silicone cover maintains uniform contact pressure without sticking to melted polymers, tacky resins, or hot glues. Whether processing pressure-sensitive tapes, release paper, or heat-laminated packaging films, AstraRoll silicone nip rollers secure flawless, residue-free operation.

Technical Parameters

Product Framework: High-Temperature Anti-Stick Silicone Pressure / Nip Roller

Cover Polymer Base: High-Purity Heat-Resistant Liquid / Solid Silicone Rubber

Hardness Window: 30 Shore A - 85 Shore A (Customizable to coating viscosity)

Operating Temp Limits: Continuous 180℃ - 220℃ (Peak heat resistance up to 250℃)

Core Metal Base: Heavy-Wall Seamless Steel Tubing / Stainless Steel / Aluminum

Surface Finish Profile: Ra 0.2μm - Ra 0.8μm (Micro-ground / Matte / High-Release polish)

Special Cover Options: Anti-stick formulation, anti-static integration, high chemical/solvent resistance

Dynamic Balancing: ISO 21940 G2.5 standard for high-speed operation (600+ m/min)

Concentricity Profile: TIR (Total Indicator Runout) ≤0.015mm via CNC cylindrical grinding

Primary Applications & Industry Uses

Hot Melt Adhesive Coating & Extrusion: Functions as a primary pressure nip roll in hot melt coaters, extrusion laminators, and PUR adhesive application machinery.

Adhesive Tape & Release Liner Converting: Ideal for pressing and guiding double-sided tapes, masking tapes, acrylic adhesives, and silicone-coated release papers.

Heat Lamination & Thermal Foil Stamping: Serves as high-temperature heating and pressing rollers in film-to-board thermal laminators and foil stamping units.

Label & Flexible Packaging Converting: Delivers anti-stick web nip control during multi-layer material bonding, barrier film lamination, and pouch-making processes.

Why Choose AstraRoll's Silicone Nip Roller for Adhesive Materials & Hot Melt Coating?

Exceptional Non-Stick Release Performance:

Specialized silicone chemistry prevents hot glues, acrylics, and tacky resins from adhering to the roller surface, ensuring uninterrupted production without adhesive buildup or web wrap-around.

High Thermal Stability up to 250℃:

Engineered to withstand continuous high-temperature environments, our silicone matrix maintains its flexible elasticity and mechanical strength without cracking, hardening, or melting under heat.

Uniform Linear Pressure & Non-Marking Finish:

Precision-ground silicone covers maintain parallel nip contact across the entire face length, expelling air pockets without damaging or scratching delicate glossy films and adhesive coatings.

ISO G2.5 Dynamic Balancing for High-Speed Precision:

Every silicone nip roller is precision CNC ground to strict TIR≤0.015mm and dynamically balanced to ISO G2.5 standards, ensuring smooth, vibration-free rotation at high line speeds.
