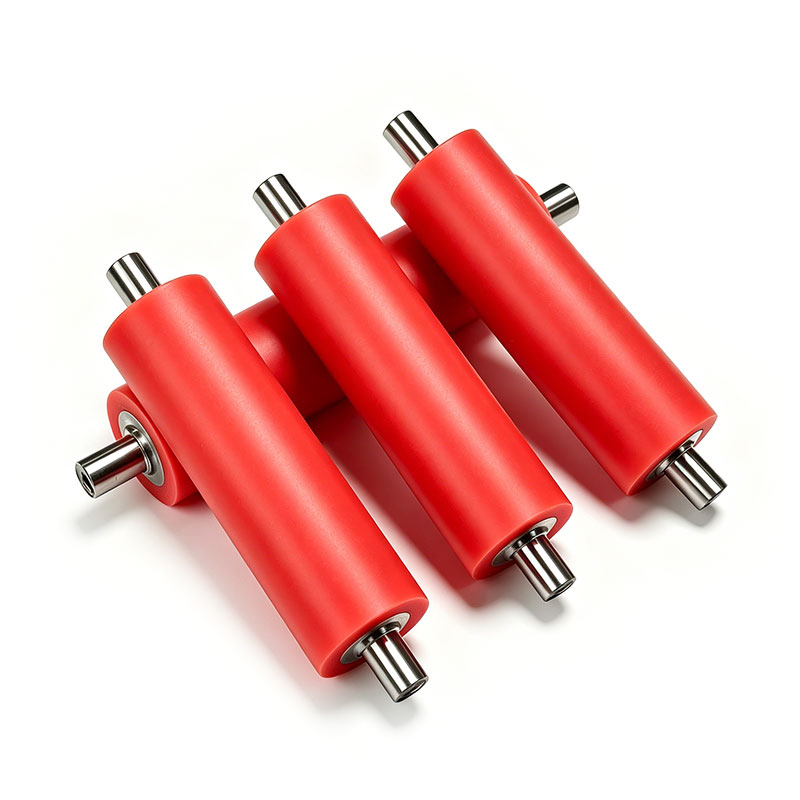

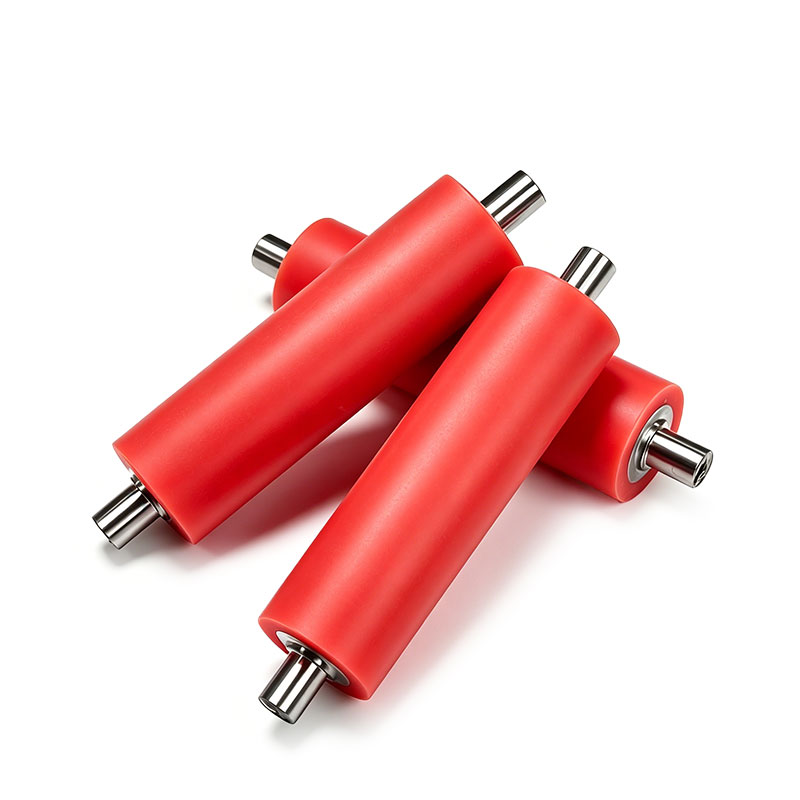

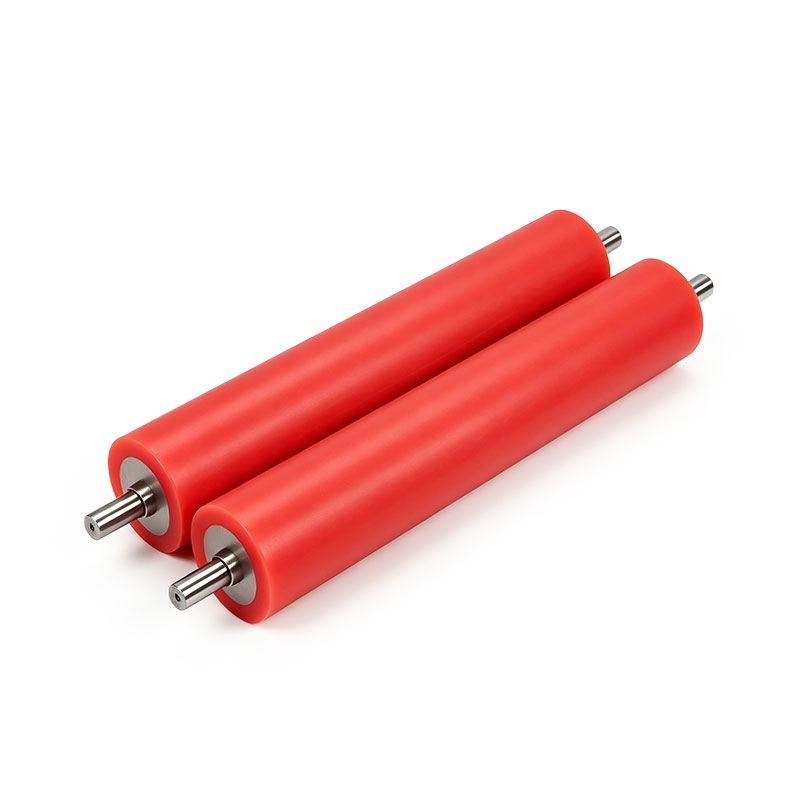

Custom High-Temperature Silicone Coating Roller

The AstraRoll Custom High-Temperature Silicone Coating Roller represents the pinnacle of thermal-transfer and fluid-application engineering, built explicitly to withstand the aggressive combinations of continuous mechanical pressure, harsh coating solvents, and extreme process temperatures. While standard utility rubber components prematurely crack, lose their geometric crown profile, or suffer from severe swelling when coming into contact with hot-melt adhesives or chemical coating formulations, our premium-grade silicone matrix is cross-linked to lock in deep structural resilience and permanent non-marking web properties.

Formulated via a proprietary monolithic vulcanization process, the roller face is completely seamless and free of line streaks. Its outstanding elastomeric rebound property enables flawless deep-embossing performance and uniform cross-web nip pressure without structural sagging or chemical migration. Engineered to optimize production throughput, the roller delivers exceptional release properties and non-stick performance, with surface roughness custom-tailored to provide a perfectly uniform matte or mirror-gloss finish on your films. Furthermore, its superior thermal conductivity and active anti-static defenses ensure rapid heat dissipation and eliminate electrostatic dust attraction, allowing processing lines to safely accelerate to maximum production velocities.

Technical Parameter

Product Framework: Precision High-Temperature Silicone Coating Roller

Surface Elastomer Matrix: Industrial-Grade High-Tear Thermal Vulc Silicone Rubber

Core Shaft Mandrel: Forged 42CrMo Alloy Steel / Heavy-Wall Seamless Carbon Steel Core

Hardness Spectrum: 40 Shore A – 90 Shore A (Tailored to coating viscosity profiles)

Total Indicator Runout (TIR): ≤0.005mm (Achieved via synchronized precision cylindrical grinding)

Thermal Operating Envelope: Continuous, deflection-free performance up to +250℃ (Spikes to 300℃)

Surface Topography Quality: Monolithic Seamless Profiling, customizable fine-matte or high-gloss finish

Chemical Resistance: Outstanding resilience against typical coating solvents, plasticizers, and oils

Applications

Hot-Melt Adhesive Coating: Acting as an applicator, metering, or backing roll in industrial label, tape, and protective liner lines operating at elevated fluid temperatures.

High-Speed Thermal Lamination: Providing heavy-duty, uniform nip pressure to bond multi-layer functional textiles, leather, or synthetic materials without trapping micro-air bubbles.

Optical & Industrial Film Processing: Handling high-speed release sheets, protective barriers, and solar panel encapsulation films inside precision converting lines.

Thermal Transfer Printing: Serving as the primary backing or impression cylinder in machines that transfer decorative wood grains, carbon foils, or high-gloss patterns onto rigid plastics or wood edge bands.

Why Choose AstraRoll's Custom High-Temperature Silicone Coating Roller?

Thermal Resiliency Up to 250℃ Without Structural Sagging: Working with heated coating fluids, hot-melt resins, or inline heated drums exposes rollers to severe thermal loading. Our specialized industrial silicone maintains a constant durometer hardness and precise crown geometry under a continuous +250℃ thermal load. This eliminates thermal expansion distortions, preventing web tension wrinkles and uneven material tracking.

Monolithic Seamless Casting for Streak-Free Coatings: Any micro-seams, parting lines, or geometric imperfections on a coating roller face will leave visible adhesive ridges or thin spots on your running substrate. We employ an advanced monolithic vulcanization process that completely eliminates joint lines. The roller is finished to an ultra-flat profile, ensuring a uniform coat weight and clean edge release across your entire running width.

High-Tear Structural Formulation for Severe Nip Pressures: Industrial coating and lamination lines often subject rollers to intense localized forces at high temperatures. Low-grade silicones quickly experience heat fatigue, resulting in surface cracks, edge chipping, and flat spots. AstraRoll integrates a premium high-tear silicone compound that retains its elastic memory and structural shape over millions of high-pressure cyclic compressions.

Concurrent Micron Grinding for Perfect Runout Precision (≤0.005mm): High-velocity precision coating requires absolute concentricity to avoid "chatter marks" and periodic layer thickness variations on the film. We process the hardened steel core and the silicone matrix together using synchronized CNC cylindrical grinding machinery. Maintaining a TIR of ≤0.005mm locks in a stable nip footprint, ensuring flawless coating and lamination consistency.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
