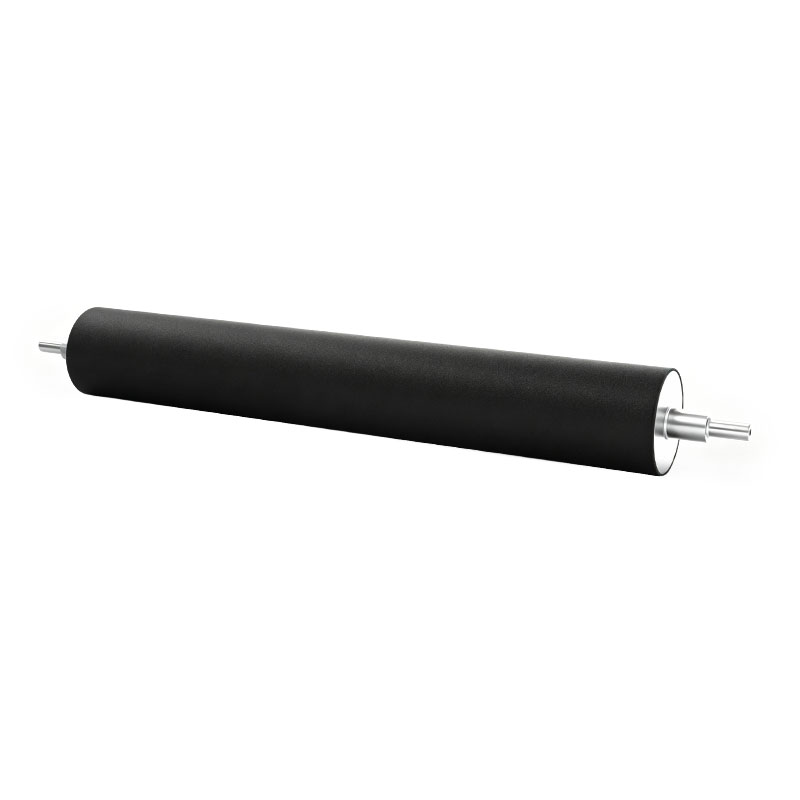

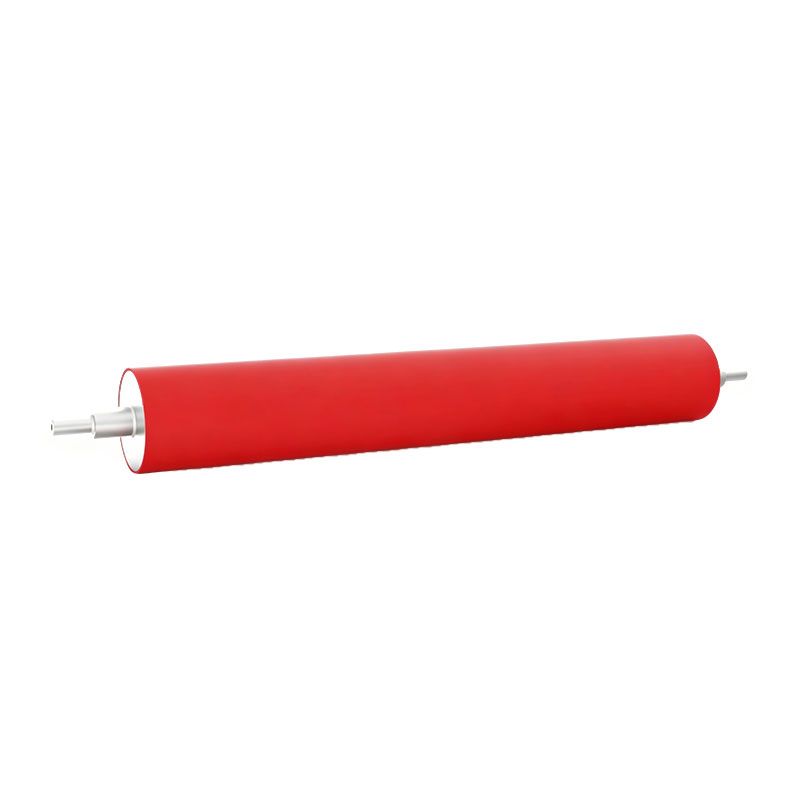

Custom Pull Nip Roller for Film Production Lines
Product Overview:
The AstraRoll Custom Pull Nip Roller is precision-engineered to deliver synchronized web traction, anti-slip feeding, and consistent linear tension across film extrusion, slitting, and converting lines. Utilizing premium-grade high-rebound elastomers vulcanized over a heavy-wall structural core, this roller provides precise cross-web clamping force without deflection or structural sagging. With a strict total indicator runout (TIR ≤0.005mm), it completely eliminates periodic film slippage, tension wrinkles, and tracking variations in high-speed roll-to-roll processing.
Roll Function:
Industry Applications: Industry, Printing, Packaging, Converting
Inquiry Email: sales@astraroll.com
Custom Pull Nip Roller for Film Production Lines Details
The AstraRoll Custom Pull Nip Roller serves as the primary clamping and feeding component paired with steel drive cylinders to advance flexible web materials, including plastic films, metal foils, and laminates. Positioned in the haul-off, slitter-rewinder, or multi-stage tension control sections, this roller secures a firm, non-destructive grip on moving film lines, preventing linear web wandering and velocity drift.
Formulated via an advanced cylindrical casting process, the roller profile features high structural concentricity and zero parting line variations. Its optimized surface roughness and precise elastic memory allow it to grip sensitive, thin-gauge optical or electronic films tightly without transferring mechanical markings, adhesive edge-bleeds, or cosmetic scratches.
Technical Parameter
Compatible Substrates: BOPP, BOPET, BOPA, PE, PVDF, Lithium Foils, and Paper Webs
Surface Elastomer Matrix: High-Performance Rubber / Custom High-Tear Non-Marking Silicone
Hardness Spectrum: 50 Shore A - 90 Shore A (±3 Shore A strict tolerance)
Core Shaft Framework: Q235B Structural Carbon Steel / Heavy-Wall Seamless Core
Total Indicator Runout (TIR): ≤0.005mm (Achieved via precision CNC grinding)
Dynamic Balancing Level: ISO 21940 Grade G2.5 standard for high-speed line traction
Surface Finish Topography: Matte Roughness (Ra) or High-Mirror Polish tailored to film grade
Working Temperature Range: Continuous performance from -20℃ up to +180℃
Applications
Film Extrusion Haul-Off Units: Operating at the discharge end of cast film or blown film lines to draw down the continuous web into processing sections.
Slitter-Rewinder Machinery: Acting as the main pull station nip roller to lock in constant tension profiles prior to final slitting and winding.
Precision Coating & Converting Lines: Synchronizing linear line speeds across multi-stage coating heads, drying ovens, and laminating units.
Why Choose AstraRoll's Custom Pull Nip Roller?
Slip-Free Web Tracking with High Rebound: Formulated with premium elastomer complexes that deliver rapid structural recovery. The roller maintains constant, unvaried friction against high-speed moving film lines, eliminating tracking drift and tension spikes.
Zero-Deflection Core for Uniform Cross-Web Grip: Designed with heavy-wall seamless tubes and engineered core reinforcements to eliminate center sagging under continuous pneumatic clamping pressure, securing uniform cross-web contact.
Non-Marking & Anti-Static Face Architecture: Chemically balanced matrix prevents plasticizer migration and chemical leaching. Available with anti-static additives to eliminate electrostatic attraction, protecting high-clear optical substrates from dust picking and surface tracking marks.
ISO G2.5 Balanced for High-Velocity Stability: Cores are balanced via computer-stabilized ISO 21940 G2.5 engineering, completely removing mechanical chatter marks and layer thickness defects in high-velocity processing lines.
Q1. Are you a trader or direct factory?
We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.
Q2. What are your main products?
AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.
Q3. What about delivery time?
We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.
Q4. How can I get a quote for customized products?
Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.
Q5. What is your payment?
TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
