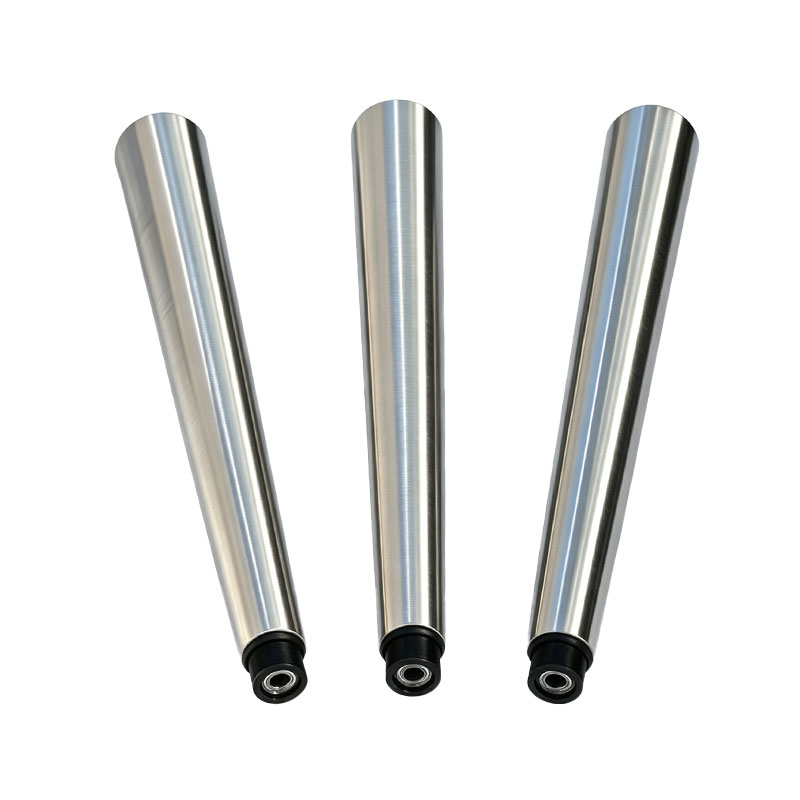

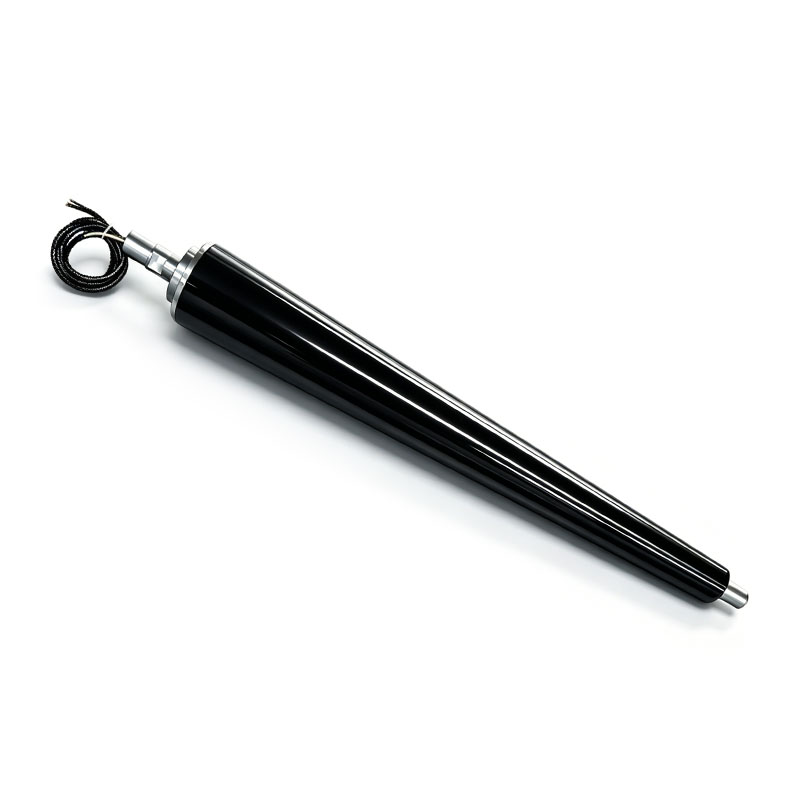

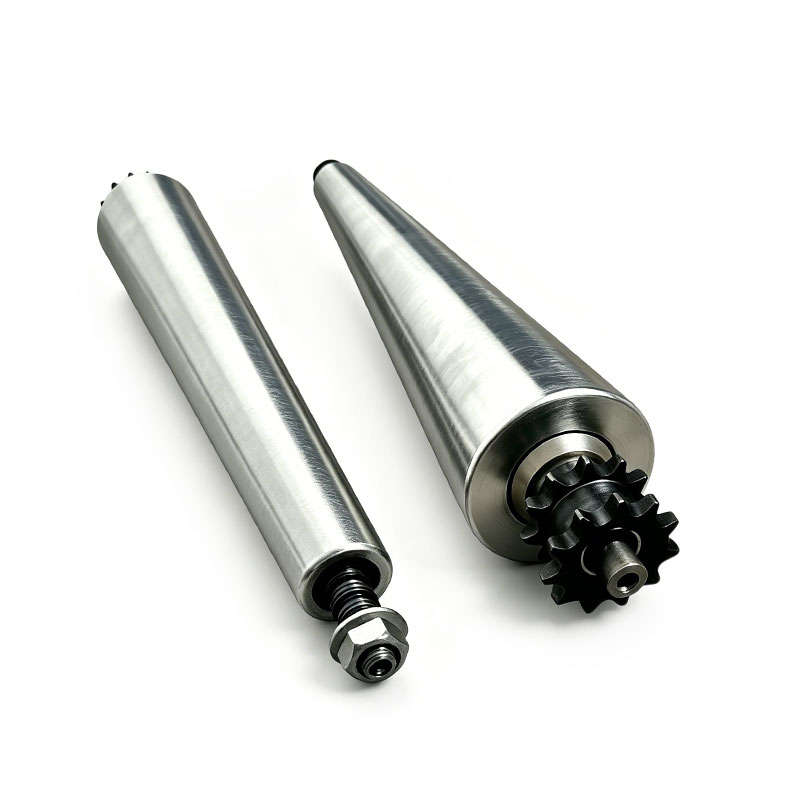

Custom Food Grade Stainless Steel Tapered Drum Motors for Curve Conveyors

The AstraRoll Technical Advantage

Engineering a conical motorized pulley for sanitary environments requires flawless geometric machining and superior sealing:

Precision Speed Synchronization: We do not offer "one size fits all" tapers. Our engineers calculate the exact taper angle based on your conveyor's inner radius, outer radius, and belt width. This ensures the drum motor's surface speed perfectly matches the belt's travel speed at every single point along the curve, eliminating friction, belt wear, and tracking errors.

IP69K Sanitary Sealing: Food processing curves require constant sanitation. We utilize advanced double-lip PTFE rotary shaft seals to completely isolate the internal electronics. This allows the tapered drum motor to be blasted with high-pressure, high-temperature chemical foaming agents without water ingress.

Space-Saving Internal Drive: Curves take up significant factory space. By housing the motor and gears completely inside the tapered shell, there are no protruding motors or bulky external gear reducers on the side of the curve. This creates a beautifully streamlined, safe, and easily cleanable conveyor profile.

Crevice-Free Polished Surface: The SUS304 or SUS316L conical shell is smoothly polished with seamlessly welded end housings. There are no external cooling fins, bolts, or mounting brackets where meat scraps, allergens, or bacterial biofilms can accumulate

Primary Applications

AstraRoll Tapered Drum Motors are essential for maximizing factory floor space while maintaining strict hygiene:

• Meat, Poultry & Seafood: Driving curved radial conveyors that route raw products between cutting, washing, and packaging stations.
• Bakery & Confectionery: Powering 90-degree and 180-degree curves on cooling lines and dough-handling conveyors.
• Dairy & Beverage: High-speed curved routing for bottling lines, eliminating the need for complex, unhygienic external chain drives.
• Pharmaceutical Cleanrooms: Sterile curved packaging and sorting lines requiring zero particulate generation and easy wipe-downs.

Key Specifications

Please note: Every AstraRoll Tapered Drum Motor is custom-built based on the specific geometry of your curve conveyor.

Small Outer Diameter (Min O.D.): Custom from 50mm.
Large Outer Diameter (Max O.D.): Custom up to 320mm+.
Face Length: Custom manufactured from 200mm up to 1,200mm+.
Power Output: 0.05 kW up to 3.0 kW (Fractional to 4 HP).
Voltage Options: 24V / 48V DC, 115V / 230V / 380V / 460V (Single or Three-Phase).

Why Choose AstraRoll?

1. Expert Taper Calculations

Designing a curve conveyor is complex. If the taper angle of the drum motor is even slightly off, the belt will squeak, wear prematurely, and jump the track. AstraRoll's engineering team provides full calculation support. Simply provide us with your belt manufacturer's specs and the radius of your turn, and we will CNC-machine the exact conical profile required for flawless operation.

2. Food-Grade Thermal Management

Enclosing an electric motor inside a sealed steel cone generates heat. AstraRoll strictly utilizes premium copper windings and submerges the internal planetary gears in an FDA H1-approved food-grade synthetic oil bath. This safely transfers heat to the outer stainless steel shell, preventing overheating even during 24/7 continuous operation in warm bakery environments.

Frequently Asked Questions (FAQs)

Q: What information do I need to provide to order a custom tapered drum motor?
A: To machine the correct cone angle, we need three critical measurements: 1) The Inner Radius (IR) of the conveyor curve, 2) The Outer Radius (OR) of the conveyor curve, and 3) The total Face Length (width) of the roller. We also need to know your desired belt speed (m/s) and load requirements.

Q: Can this motorized pulley be controlled by a Variable Frequency Drive (VFD)?
A: Yes. Our internal AC induction and BLDC motors are fully compatible with VFDs. This is especially important for curve conveyors, as you often need to precisely dial in the speed of the curve to perfectly match the speed of the straight conveyors feeding into and out of the turn.

Q: Is it safe to use harsh caustic chemicals and chlorine on the drum motor?
A: Yes. We specifically utilize highly corrosion-resistant SUS304 or SUS316L stainless steel for the tapered shell, shafts, and end caps, paired with chemically resistant Viton or PTFE seals. This configuration easily withstands the caustic foaming agents, chlorinated sanitizers, and high-pressure steam standardly used in food plant sanitation protocols.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
