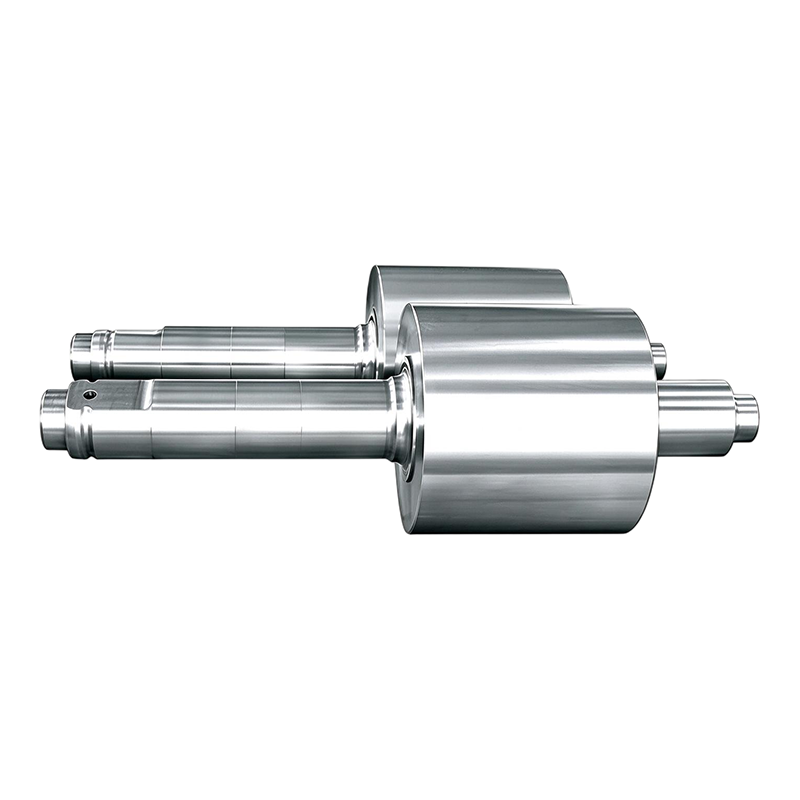

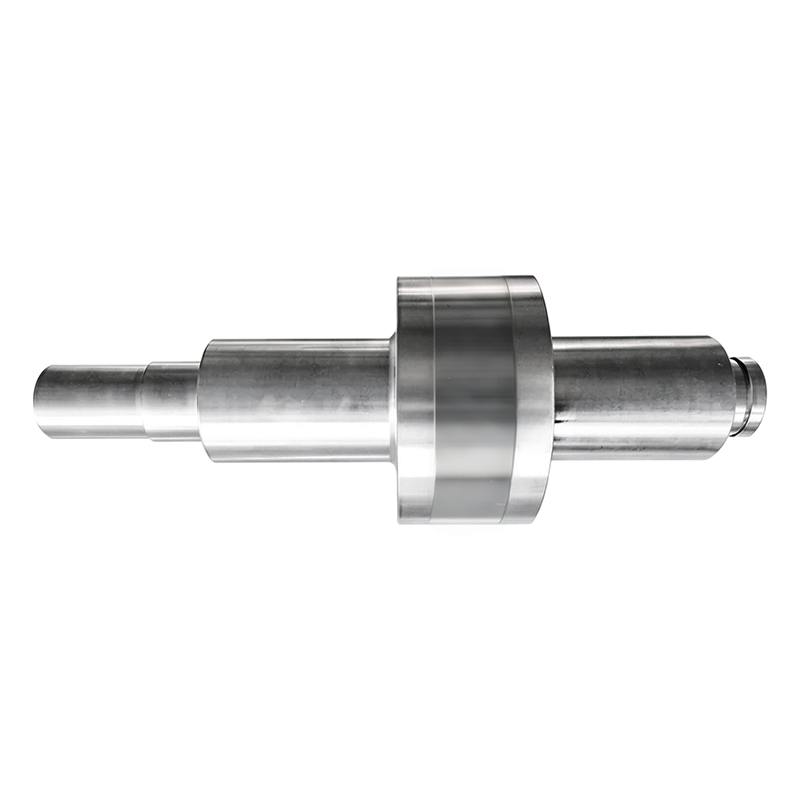

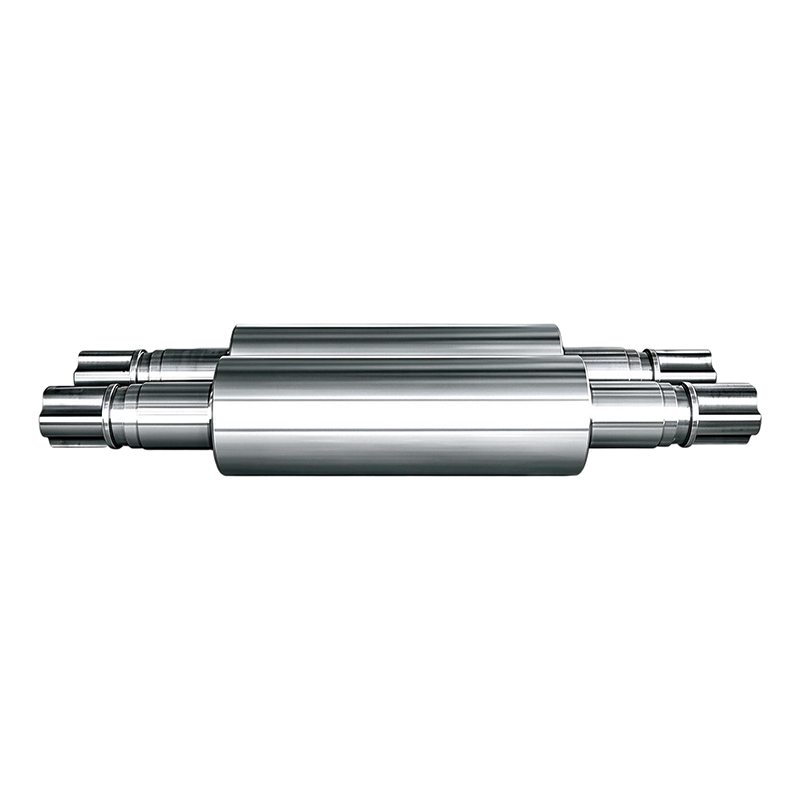

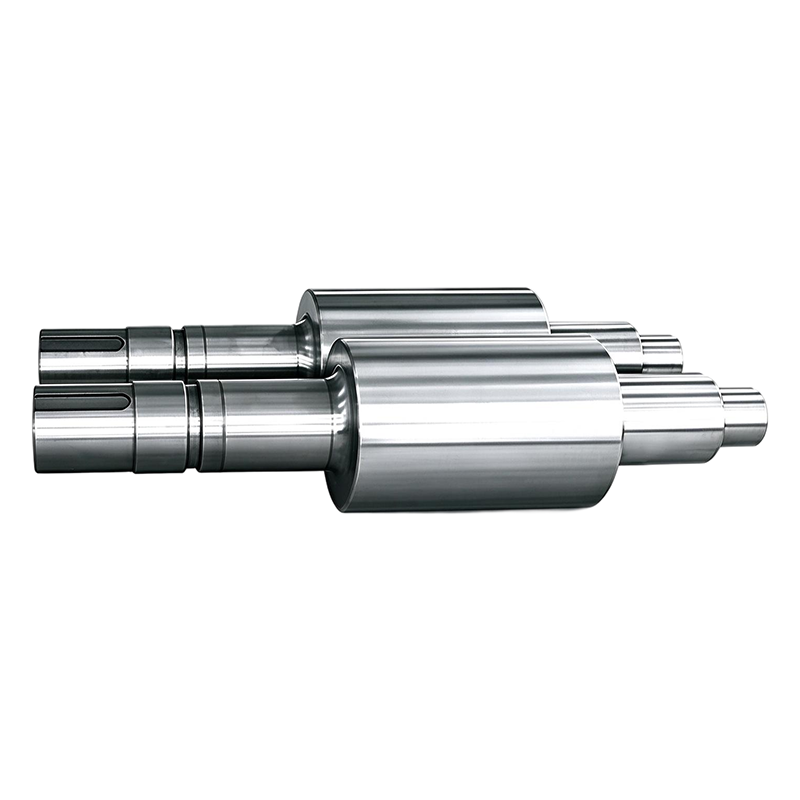

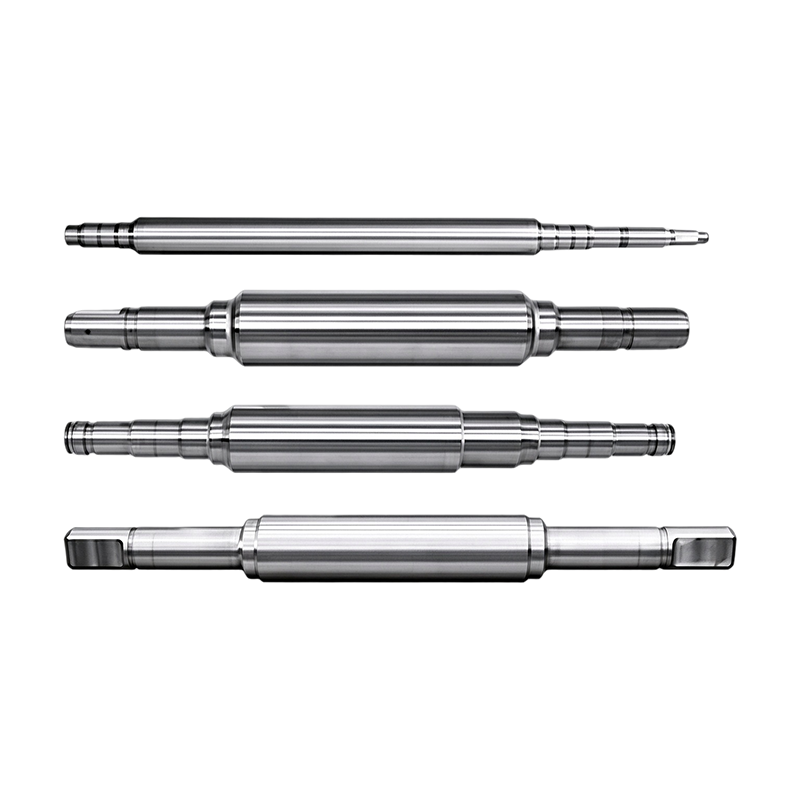

Tungsten Carbide Cold Rolling Steel Wire Roller

The Custom Tungsten Carbide Cold‑Rolling Steel Wire Roller is engineered for high‑precision continuous metal wire cold rolling lines. Built with precision‑ground smooth cylindrical surfaces, this carbide roller applies even rolling force as steel wire passes through the adjustable gap between paired rollers. It achieves progressive diameter reduction, tight dimensional control and stable wire travel for high‑volume fastener wire and welding‑wire production.

Also known as Tungsten Carbide Flat Rolling Roller, Carbide Smooth Rolling Roller, this roller serves carbon steel wire, alloy wire, fastener raw wire and welding‑wire substrate. It fits multi‑pass wire cold‑rolling mills for precise reduction and premium surface quality.

We supply multiple tungsten carbide grades with varied cobalt content to suit different rolling environments. Carbide grade, hardness, roller‑body dimension and surface roughness can be selected based on workpiece material and operating requirements. Medium‑cobalt carbide delivers balanced wear and impact resistance for high‑speed continuous rolling, while low‑cobalt carbide offers exceptional wear resistance under heavy‑load, low‑impact conditions.

Rolling output relies on both carbide material quality and high‑precision machining. We tailor roller diameter, working length and surface finish according to wire specification, material property, reduction rate and mill setup. The custom geometry delivers consistent compression, holding stable dimensional tolerance and improving wire roundness and surface finish throughout continuous high‑load runs.

Additional custom options include edge chamfer, anti‑chipping treatment and ultra‑fine polishing. Proper edge geometry prevents wire scratching and roller chipping, maintaining reliable contact between roller and metal wire.

Wire cold‑rolling equipment differs in working size, installation envelope, bearing layout and operating parameters. Our tungsten carbide rollers are fully custom‑built to equipment requirements, not restricted to fixed standard sizes.

Common roller‑body diameters range 30 mm‑120 mm; working lengths 20 mm‑300 mm, covering mainstream medium‑small wire mills. Total assembly length and related dimensions can be adapted for new‑machine fit‑up or spare‑part replacement.

Complete shaft‑mounting customization is available: shaft diameter, shaft length, keyways, threads, bearing seats and mounting interfaces. Dynamic balance per ISO‑1940 is optional (typical G2.5 / G6.3). Assemblies can directly match existing mill structures for

new installations or retrofits.

The Tungsten Carbide Cold‑Rolling Steel Wire Roller supports a broad scope of continuous metal‑wire cold‑rolling processes:

• Fastener Wire Production: Multi‑pass cold reduction for bolt, screw and rivet raw wire with strict dimensional requirements.
• Welding Wire Manufacturing: Cold forming of welding‑wire substrate prior to drawing and plating for consistent dimension and smooth surface.
• General Steel Wire Processing: Cold reduction for low‑carbon and alloy steel wire to enhance roundness and surface condition.
• Metal Wire Finishing: Stabilize wire geometry ahead of annealing and downstream forming operations.
• Wire Mill Spare Parts: Drop‑in replacement rollers for existing continuous cold‑rolling wire equipment to sustain production uptime.

Application‑Specific Manufacturing

As a professional carbide‑roller manufacturer, we deliver custom rollers from single replacement units and prototypes through small‑batch and mass production. Each roller is developed around your actual mill layout, wire material, reduction rate and operating conditions.

Key parameters including roller‑body size, carbide grade, hardness, surface roughness, edge treatment, shaft geometry, bearing configuration and dynamic balance can all be tuned for your rolling equipment. Supported by precision grinding and application‑oriented manufacturing, we supply custom carbide rollers for fastener, welding‑wire and general wire industries to boost dimensional stability, surface quality and overall line productivity.
