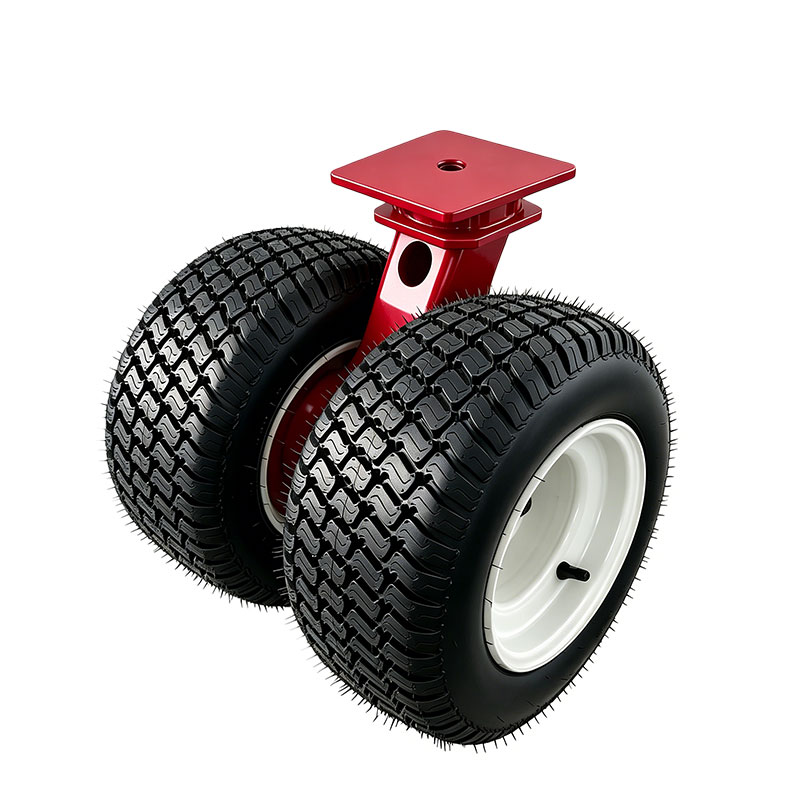

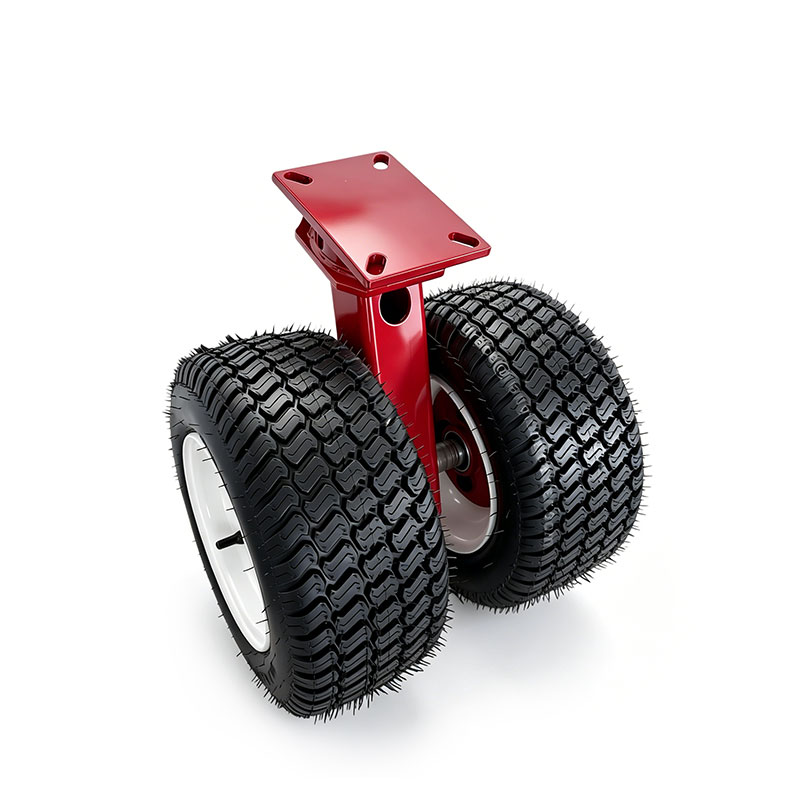

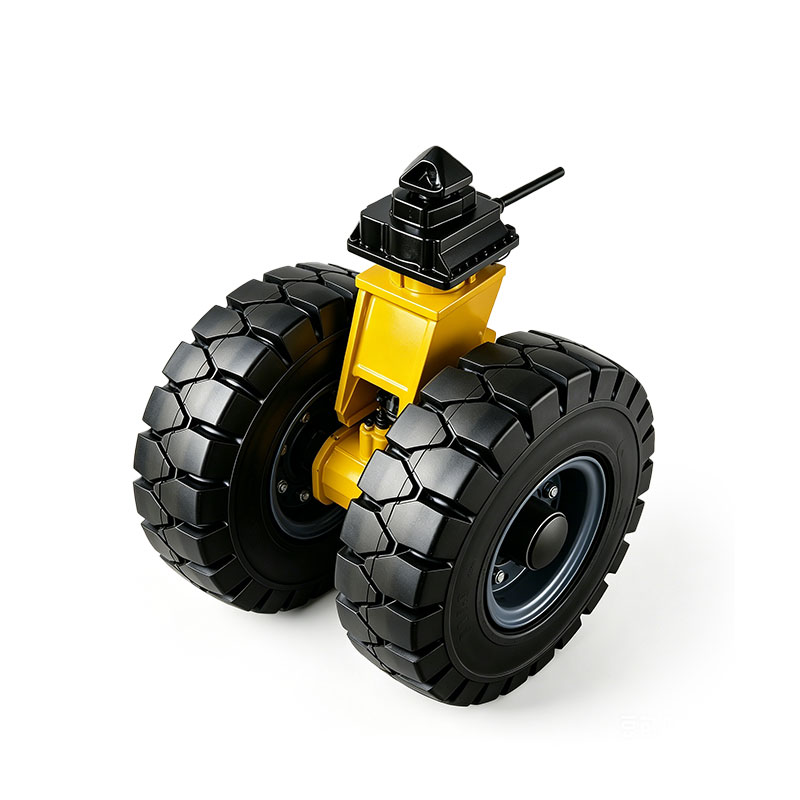

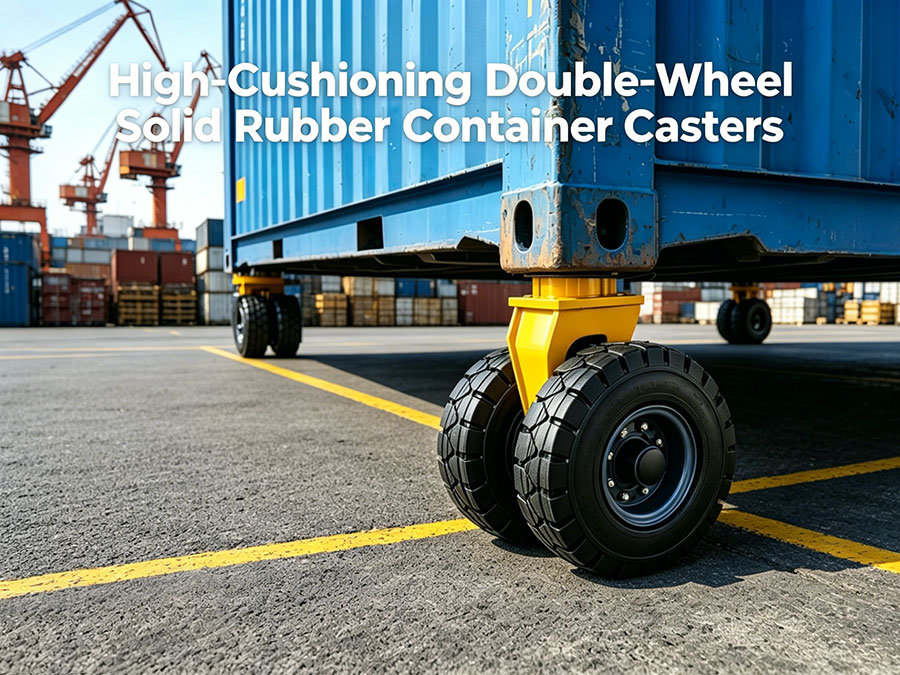

High-Cushioning Double-Wheel Solid Rubber Container Casters

The AstraRoll Technical Advantage

Towing heavy containers over rough outdoor terrain requires a specialized balance of structural rigidity and elastic dampening:

Puncture-Proof Resilience: Because the tires are 100% solid, highly resilient rubber, they are entirely immune to nails, sharp metal debris, and blowouts. You get the soft, quiet ride of an air-filled tire with the zero-maintenance reliability of a solid steel wheel.

Massive Obstacle Clearance: Small wheels get trapped in potholes and expansion joints, causing violent shockwaves to transfer into your container. Our super large diameter wheels (up to 22 inches) easily roll over tarmac cracks, cables, and debris with minimal rolling resistance.

Dual-Wheel Differential Action: When making tight turns with heavy loads, a single wide solid tire will drag and tear its rubber tread. The dual-wheel design halves the scrub friction, allowing the two wheels to rotate independently during a pivot. This makes steering significantly easier for the tow tractor and vastly extends the tire's lifespan.

Heavy-Towing Swivel Assembly: The swivel head is built for brutal towing. It features a massive precision-machined kingpin and heavy-duty tapered roller thrust bearings, completely sealed against outdoor rain, salt, and abrasive dust.

Key Specifications

Please note: AstraRoll solid rubber casters are custom-engineered based on your specific towing speeds and terrain profiles.

Wheel Diameter (O.D.): 16" (400mm), 18" (450mm), 22" (550mm), customizable.
Tread Material: High-resilience solid natural rubber compound.
Dynamic Load Capacity: 3,000 kg to 8,000 kg per caster (Set of 4 carries 12t to 32t safely).
Swivel Head Assembly: Drop-forged steel with sealed tapered roller bearings.
Operating Speed: Rated for continuous towing up to 10-15 km/h (depending on load and terrain).
Temperature Resistance: -20°C to +60°C.

Why Choose AstraRoll?

1. Turnkey Ground Support Solutions

AstraRoll designs complete towing systems. In addition to the solid rubber twist-lock casters, we manufacture the corresponding heavy-duty Container Tow Bars (集装箱牵引拖把) that lock into the front ISO corner castings. This allows you to immediately hook the container up to an airport tugger or terminal tractor the moment the wheels are attached.

2. Specialized High-Speed Towing Bearings

Standard industrial casters are designed for walking speeds (3 km/h). If towed at higher speeds, the bearings will overheat and seize. AstraRoll outfits our solid rubber towing casters with high-speed precision ball bearings in the wheel hubs and high-grade lithium grease, allowing for safe, continuous towing across massive airport tarmacs or port facilities at speeds up to 15 km/h.

Frequently Asked Questions (FAQs)

Q: Can these solid rubber casters be used on dirt or gravel?
A: Yes, to a certain extent. Because of their large diameter (up to 22 inches) and dual-wheel wide footprint, they perform significantly better on packed dirt, crushed gravel, and uneven asphalt than any hard plastic or PU caster. However, they are not intended for deep mud or soft sand.

Q: Is it difficult to push a container manually with solid rubber wheels?
A: Solid rubber has a higher rolling resistance than hard polyurethane or steel. While a 10-ton container on PU wheels on perfectly polished concrete might be pushed by several workers, a container on heavy solid rubber wheels will almost always require a mechanical tow tractor or heavy forklift to initiate movement.

Q: How do the Directional Locks work for towing?
A: A directional lock is a heavy steel pin mechanism mounted on the swivel yoke. When towing a container with a tractor, you want the front two casters to swivel (to steer) and the rear two casters to be locked perfectly straight (to trail). The directional lock allows you to instantly snap the rear swivel casters into a rigid, fixed position, preventing the container from fishtailing or drifting sideways during transport.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
