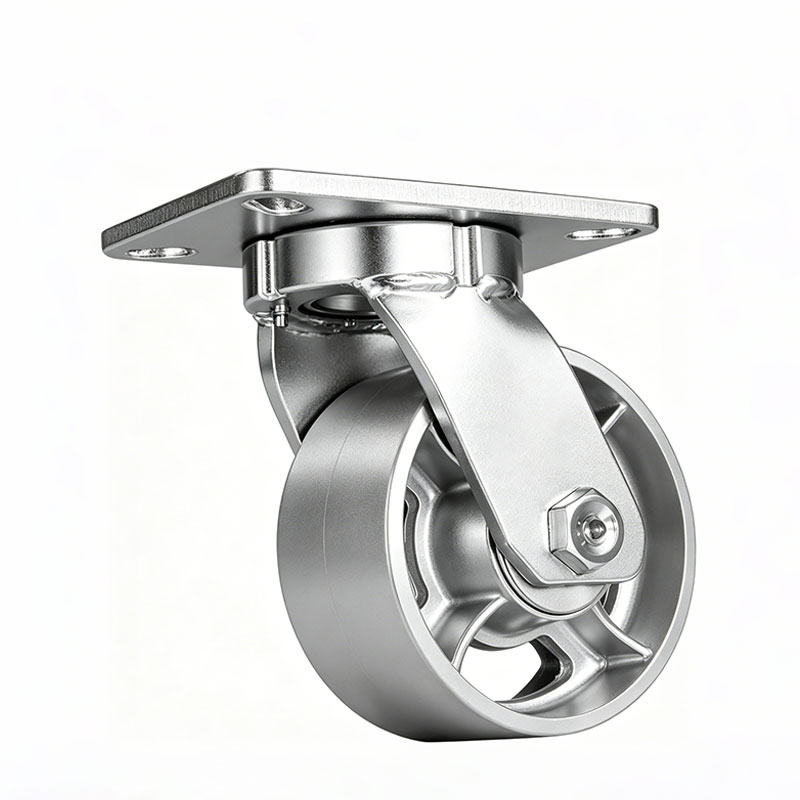

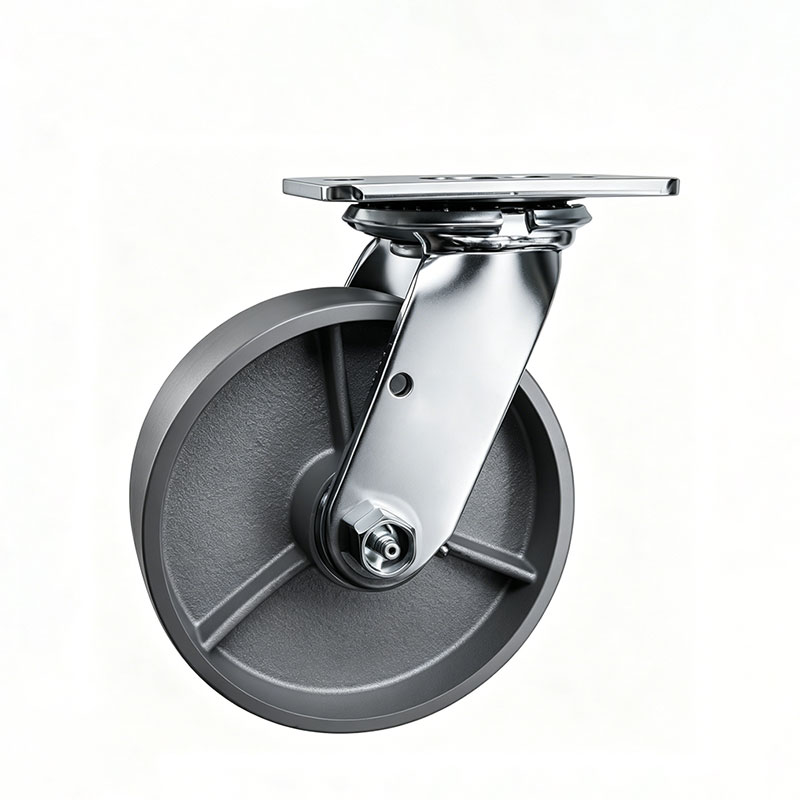

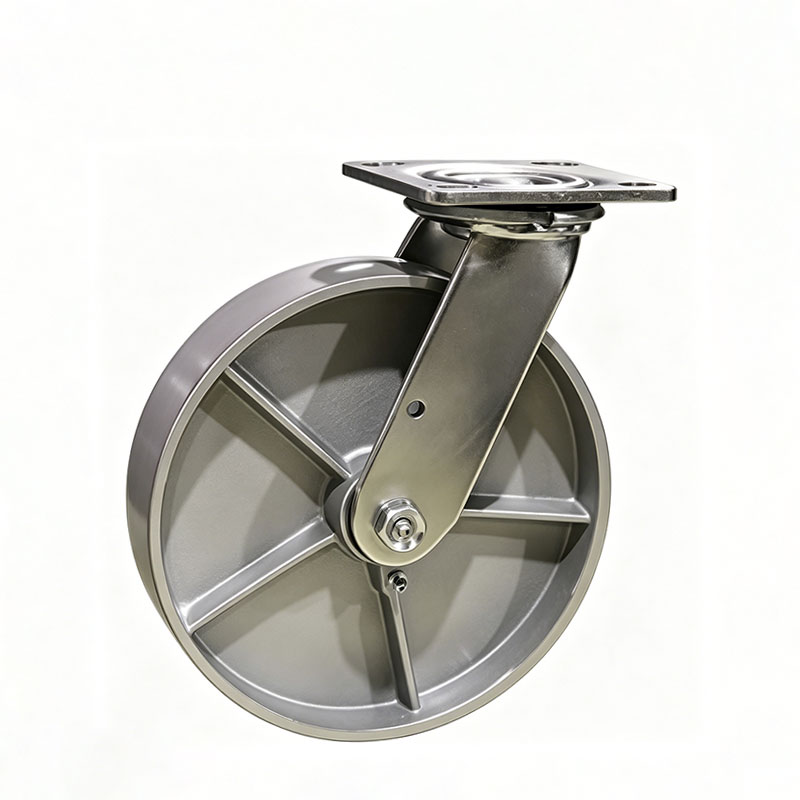

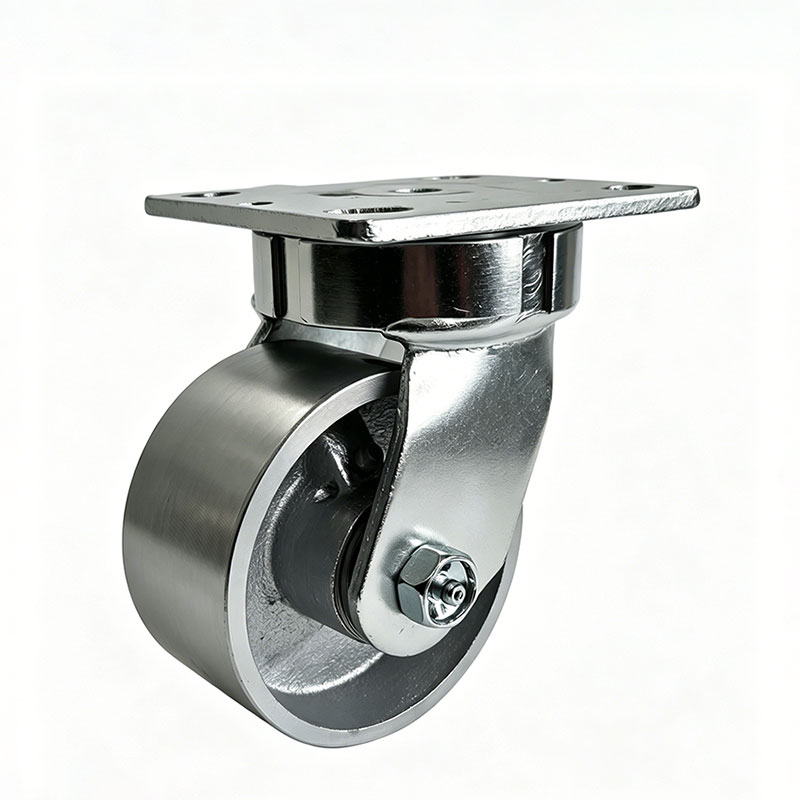

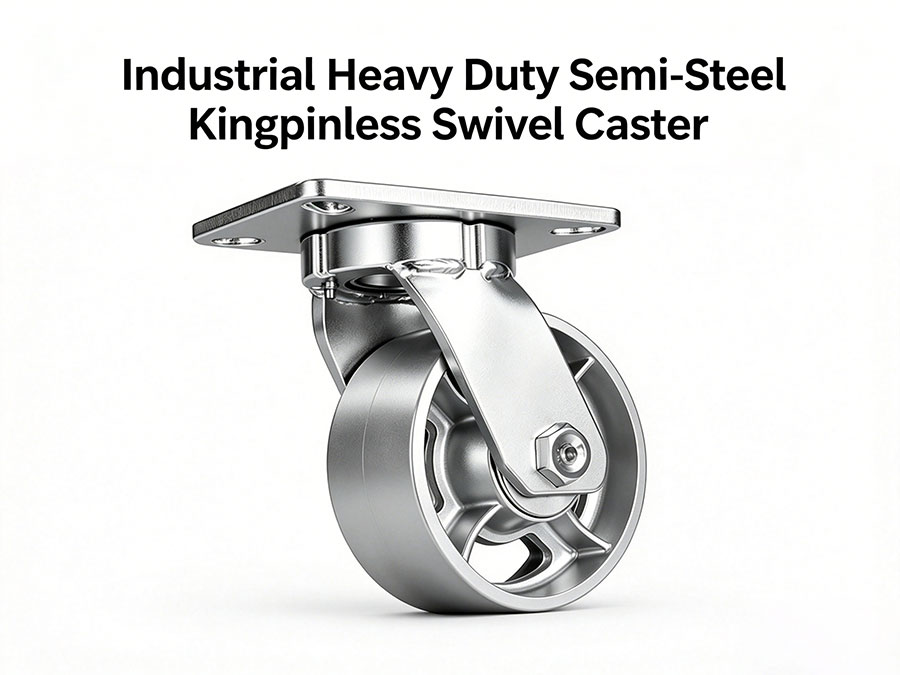

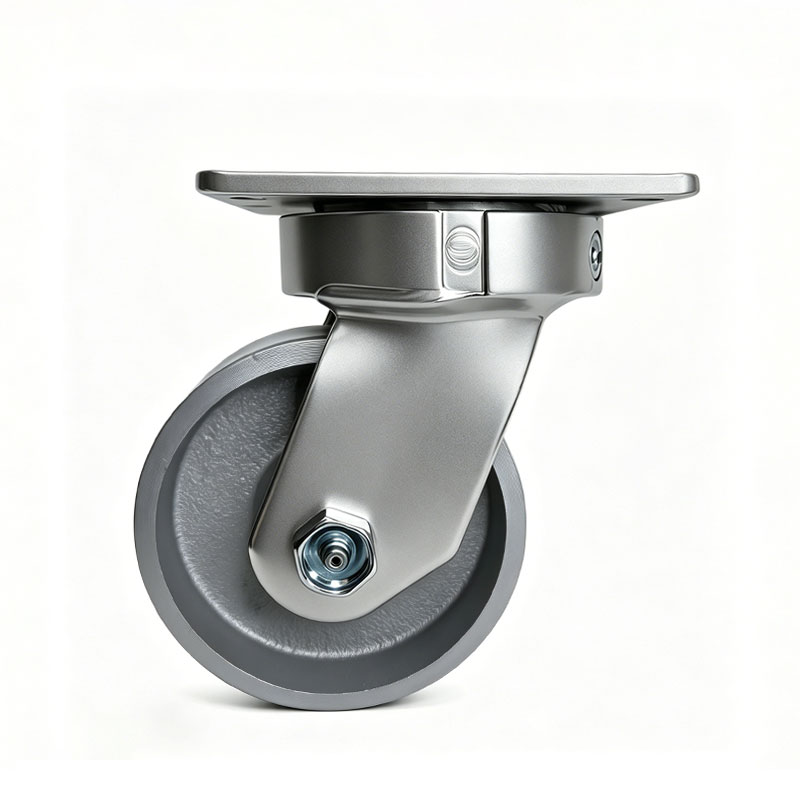

Industrial Heavy Duty Semi-Steel Kingpinless Swivel Caster

The AstraRoll Technical Advantage: The Kingpinless Revolution
Standard heavy-duty casters rely on a kingpin to hold the swivel section together. Under the stress of towing or hitting obstacles, that pin is the first thing to break. AstraRoll eliminates this weakness:

Patented Kingpinless Raceway: Our caster utilizes a single ball-race design where the top plate and yoke are held together by hardened steel balls in a precision-machined channel. This design excels in absorbing "side-thrust" and high-impact shocks that would shatter a standard caster.

Semi-Steel Wheel Performance: Our semi-steel (high-tensile cast iron) wheels are CNC-machined for a smooth, true tread. They offer the highest load-to-diameter ratio, are fire-resistant, and will not develop flat spots even when left under massive static loads for months.

Cold-Forged Steel Construction: The rig is built from heavy-gauge cold-forged steel (up to 3/8" thick), then zinc-plated for rust resistance. This creates a "fortress" for the internal bearings, protecting them from debris and distortion.

Continuous Towing Ready: Because there is no kingpin to stretch or loosen, these casters are ideal for power-towed applications where constant direction changes and high-velocity impacts are common.

Key Specifications & Technical Attributes

Load Capacity: Up to 2,500 LBS per caster (for 6" and 8" models).

Wheel Diameter: 4", 5", 6", 8".
Wheel Tread Width: 2" (Standard) or 2.5" (Heavy-Duty).
Mounting Plate: Standard 4" x 4-1/2" (Industry standard for drop-in replacement).
Finish: Industrial-grade Zinc Plating for superior corrosion resistance.
Temperature Range: Withstands temperatures from -45°F up to 600°F (with high-temp grease).

Why Choose AstraRoll?

1. Factory-Direct Wholesale Pricing

Industrial "Kingpinless" hardware is traditionally expensive. By purchasing direct from AstraRoll, you eliminate distributor margins and secure premium, North American-style engineering at competitive B2B manufacturing rates.

2. Custom Rig & Wheel Engineering

Do you need a specific bolt-hole pattern to match an existing heavy-duty cart? Or a V-groove semi-steel wheel for track-guided production? Our engineering team can modify any Kingpinless rig to meet your exact OEM specifications.

Frequently Asked Questions (FAQs)

Q: What makes "Semi-Steel" different from standard "Cast Iron"?
A: Semi-steel is a high-tensile cast iron reinforced with steel scrap during the melting process. This makes it more durable and less brittle than standard gray iron, providing a much higher weight capacity for industrial wheels.

Q: Can these casters be used for power-towed trailers?
A: Absolutely. Kingpinless casters are the only recommended choice for continuous-duty towing. Without a kingpin to loosen, they maintain precise tracking and swivel response even after thousands of miles on the factory floor.

Q: Will semi-steel wheels damage my floors?
A: Metal wheels are designed for maximum capacity on smooth, debris-free concrete. On high-end epoxy or tile floors, they can cause scratching. If floor protection is required, we recommend our AstraRoll Kingpinless Poly-on-Steel series.

Q: Are these casters maintenance-free?
A: They are nearly maintenance-free compared to kingpin models. However, we include Zerk grease fittings in both the raceway and the wheel axle to allow for easy lubrication, ensuring a lifetime of smooth operation.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
