Drive Drum Pulley
Overview
A drive drum pulley acts as the primary power transmission component for belt conveyor systems. Mounted at the head end of a conveyor setup, it receives torque from motors and gearboxes, transferring driving force to the conveyor belt via surface friction to enable continuous bulk material transportation.
Unlike return idler pulleys that only offer belt support, the drive drum pulley undertakes the core task of power drive. Its structural integrity and surface performance directly govern the operational stability, conveying capacity, and total service life of your entire conveyor line.
AstraRoll is a China-based drive drum pulley manufacturer producing heavy-duty drive, tail, wing and magnetic head pulleys for mining, quarry and recycling conveyor systems. We deliver custom lagging, shell material and shaft assembly specifications, full OEM/ODM capability and reliable international delivery.
1. What Is a Drive Drum Pulley?
Also named head drive pulley or conveyor drive drum, the drive drum pulley is a cylindrical rotary part fitted on the driving station of belt conveyors. Connected to the power source, it drives belt movement through friction between the pulley shell and the conveyor belt.
The pulley consists of four core assemblies:
- Shell: The outer cylindrical barrel that makes direct contact with the conveyor belt
- End discs: Welded plates on both ends linking the shell and shaft hub
- Shaft assembly: Bears the pulley weight and transmits rotational torque from the driving unit
- Lagging: Rubber, ceramic or metal covering bonded to the shell surface to boost friction and resist wear
AstraRoll drive drum pulleys support fully customized lagging styles, shell diameters, face widths, and hub / shaft configurations to match different conveyor layouts and working requirements.
2. Key Features & Product Advantages
High-friction traction design Specially engineered lagging greatly raises the friction coefficient between pulley and belt, effectively preventing belt slippage under heavy loads, dusty, damp or muddy working environments.
Heavy-duty rigid construction Thickened shell plates plus fully welded end discs deliver outstanding structural rigidity. The pulley maintains stable performance and avoids deformation under long-duration heavy load operation for harsh industrial sites.
Multiple optional surface protection Rubber lagging guards the shell from abrasion; ceramic tile lagging serves extreme high-wear mining conditions; metal lagging can be selected for special conveying scenarios. These protective layers extend pulley service life and optimize conveying efficiency.
Precision dynamic balance All shaft assemblies are precision machined and dynamically balanced. Strict concentricity control between shaft and shell cuts down vibration during rotation, protecting bearings and supporting smooth high-speed belt running.
Simple maintenance structure Replaceable lagging and easy-to-access bearing housings simplify routine inspection and component replacement, minimizing equipment downtime for your production line.
3. Industrial Applications & Usage Scenarios
Our heavy-duty drive drum pulleys are widely adopted across bulk material conveying industries:
- Mining & mineral processing: For long-distance conveyors transporting coal, ore and crushed rock on open-pit and underground mine sites. Ceramic lagged pulleys are preferred for abrasive, high-load working conditions.
- Quarry & aggregate plant: Installed on crushing and screening production lines to convey crushed stone, sand and gravel. Self-cleaning wing pulleys prevent material accumulation on the belt surface.
- Recycling & waste sorting: Magnetic head pulleys separate ferrous metals from mixed waste streams, paired with standard drive pulleys for continuous waste material transportation.
- Bulk handling terminals: Used for loading, unloading and stockpiling grain, cement, fertilizer and other bulk cargo at ports, warehouses and logistics yards.
- Other industries: Thermal power plants, sugar mills, cement factories and general manufacturing plants with continuous bulk conveying demands.
4. Technical Specification Reference
Shell outer diameter ranges from 200 mm up to 1600 mm, while face width spans from 500 mm to 3200 mm. All dimensions can be fully customized to meet your conveyor system specifications.
Available lagging options include plain rubber, diamond pattern rubber, ceramic tile and metal lagging, with lagging thickness ranging from 6 mm to 20 mm depending on application requirements.
Shell materials cover carbon steel and stainless steel, equipped with welded end discs and precision machined shaft assemblies. The shaft assembly can be manufactured as solid shaft, stub shaft or hollow shaft configurations according to the layout of your drive unit.
Every pulley undergoes dynamic balancing treatment for stable rotation. We maintain tight tolerances for concentricity between shaft and shell to reduce vibration and prolong bearing service life.
All data above is for reference. Final dimensions and technical parameters will be manufactured strictly according to customer drawings and conveyor design requirements.
5. Lagging Selection Guide
Lagging is the most critical factor influencing drive drum pulley performance. You can select the lagging type based on site environment and conveyed material.
Plain rubber lagging: Smooth wear-resistant surface, suitable for light & medium-duty working conditions.

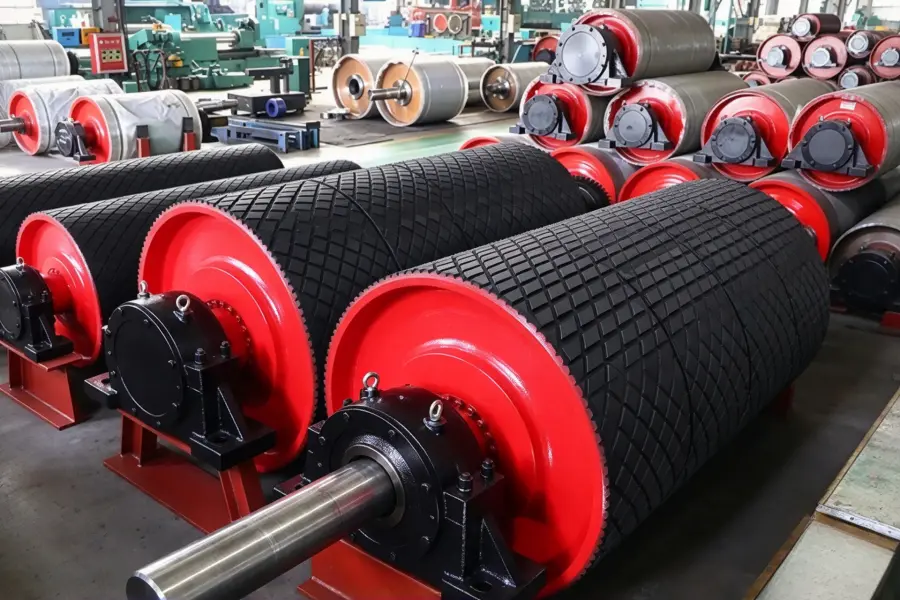

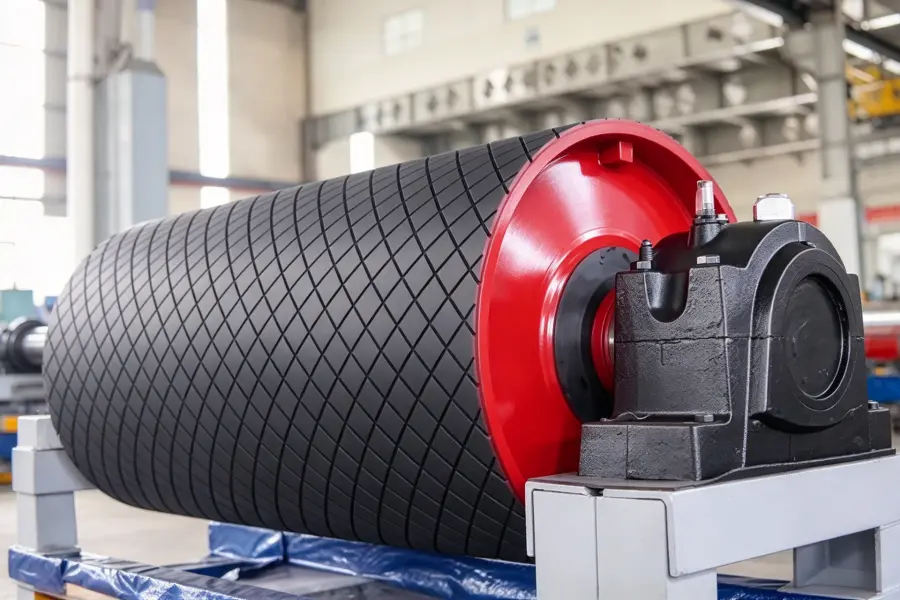

Diamond patterned rubber lagging: Higher friction coefficient, ideal for wet, dusty sites where belt slip frequently occurs.
Ceramic tile lagging: Highest abrasion resistance. Ceramic tiles embedded on rubber base, designed for heavy-load mining and quarry applications to maximize service life.
Metal lagging: Reserved for special working environments where rubber or ceramic lagging cannot meet operational requirements.
Proper lagging choice ensures reliable traction, reduces belt wear and improves the overall durability of your conveyor pulley.
6. Production Process
Raw material inspection: Verify steel plate and shaft raw materials with official material test certificates.
Shell rolling & forming: Roll steel plate into cylindrical shell with required diameter and wall thickness.
Welding & stress relief: Weld shell, end discs and hubs; carry out stress-relief heat treatment to remove internal residual stress.
Precision machining: Machine shaft seats, flange surfaces and keyways to finished dimensional tolerances.
Dynamic balancing test: Test rotating balance to guarantee smooth running at working speed.
Lagging bonding: Apply rubber / ceramic lagging according to customer requirements.
Final QC inspection: Full dimensional measurement, weld inspection and performance check.
Finishing & export packing: Anti-rust paint, protective film wrapping and solid wooden case packaging for overseas shipment.
7. Quality Assurance
Every drive drum pulley undergoes comprehensive quality inspection before delivery. Our QC team uses calibrated measuring instruments to check shell dimension, face width, shaft geometry and concentricity. Weld quality inspection and dynamic balance test reports can be provided upon request.
Material certificates including chemical composition and mechanical property test documents are available. Strict multi-stage quality control guarantees stable, long-lasting pulley performance in real conveyor operation.
8. Customization & OEM / ODM Service
AstraRoll offers full customization service for drive drum pulleys. Our engineering team can tailor shell diameter, face width, lagging type, shaft assembly and bearing housing design to fit your unique conveyor system.
Customers can provide technical drawings or detailed application requirements. We support OEM and ODM manufacturing, producing pulleys strictly matching your design standard.
Share your conveyor layout, drawings or working condition description, and our technical team will recommend the optimal pulley solution for your project.
9. Why Choose AstraRoll
Direct factory manufacturer, no middleman markup, competitive factory price Complete in-house production chain, full quality and lead time control Rich manufacturing experience for mining, quarry and bulk handling conveyor pulleys Professional engineering team to support technical consultation and drawing review Standard export packaging and reliable global shipping service Responsive after-sales technical support
10. Quote Request Guidance
To get an accurate quotation, please provide the following information when contacting us:
Conveyor belt width and required pulley face width
Pulley outer diameter and selected lagging type
Shaft assembly structure and driving arrangement
2D / 3D technical drawings
Order quantity and target delivery schedule
Contact AstraRoll now for professional technical consultation and competitive quotation.
