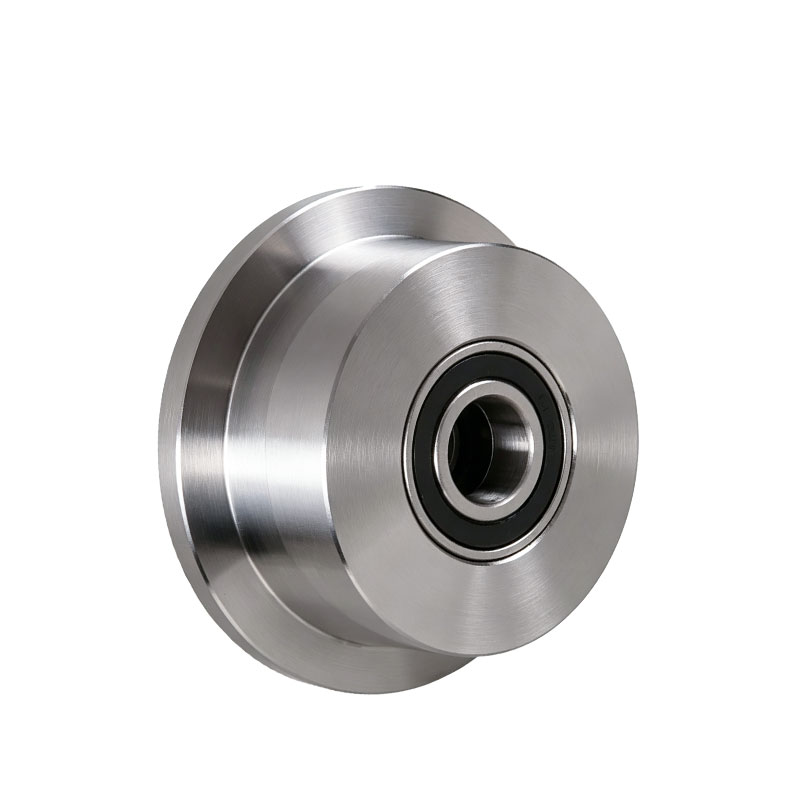

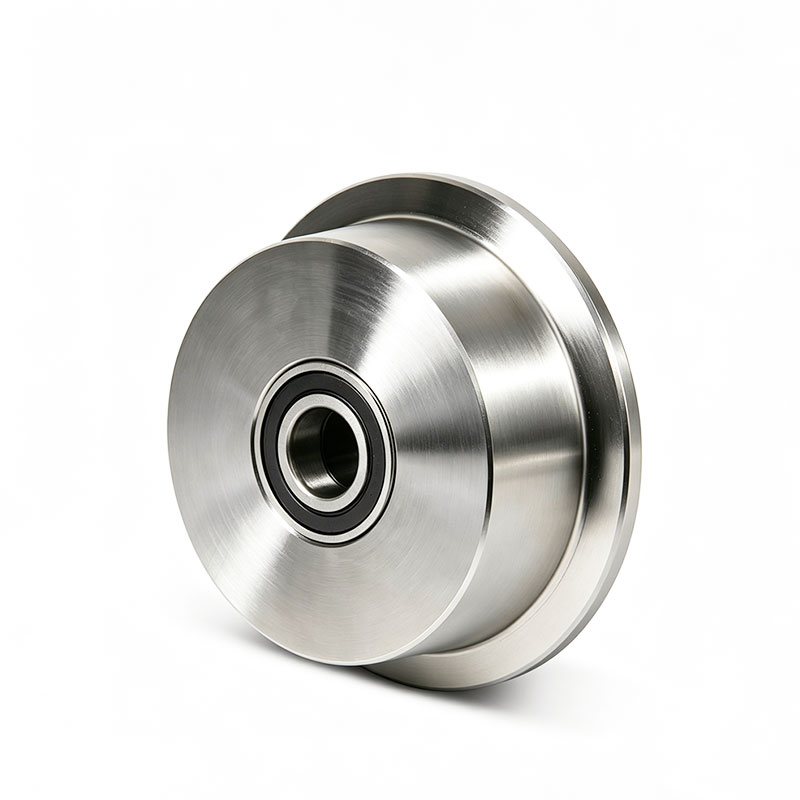

Solid Steel Single Flanged Track Wheels Manufacturer
Product Overview:
In heavy-duty industrial rail applications—such as foundry transfer carts, massive curing oven racks, and overhead hoists—wheels are subjected to extreme multi-ton payloads and severe side-thrust forces. Standard cast iron flanged wheels are inherently brittle and frequently suffer from chipped or snapped flanges when navigating misaligned track joints or absorbing sudden shock loads. The AstraRoll Heavy-Duty Solid Steel Single Flanged Wheel is the ultimate solution for extreme rail mobility. Rather than casting liquid metal, we CNC-machine every wheel directly from premium, solid forged steel billets. This manufacturing process guarantees an ultra-dense, void-free metallic structure capable of supporting massive dynamic loads without fracturing. Featuring a single precision-machined flange to keep the wheel securely on the track and a wide, smooth tread to bear the weight, these wheels deliver relentless, low-friction tracking for your most abusive, high-temperature industrial environments.
Inquiry Email: sales@astraroll.com
Solid Steel Single Flanged Track Wheels Manufacturer Details
The AstraRoll Technical Advantage
We custom-manufacture these wheels from solid steel billets to eliminate the critical failure points found in mass-produced, off-the-shelf track wheels:
Forged Steel Indestructibility: Cast iron will shatter under violent impact. Solid machined steel flexes and absorbs extreme shock loading. Whether a heavy forklift bumps the transfer cart or a multi-ton payload is suddenly dropped, AstraRoll steel wheels will not crack, and the flanges will not snap.
Micron-Perfect Rail Mating: If the tread width and flange draft angle do not perfectly match your rail infrastructure, the wheel will bind, creating severe friction and screeching. We CNC-machine the exact tread profile required to ensure smooth, dead-center riding along your specific ASCE or flat-bar rails.
Extreme High-Heat Immunity: Polymer and rubber wheels melt in extreme environments. When outfitted with high-temperature bronze bushings or specialty high-heat bearings, AstraRoll solid steel track wheels can operate continuously in curing ovens, kilns, and foundries at temperatures exceeding 800°F (425°C).

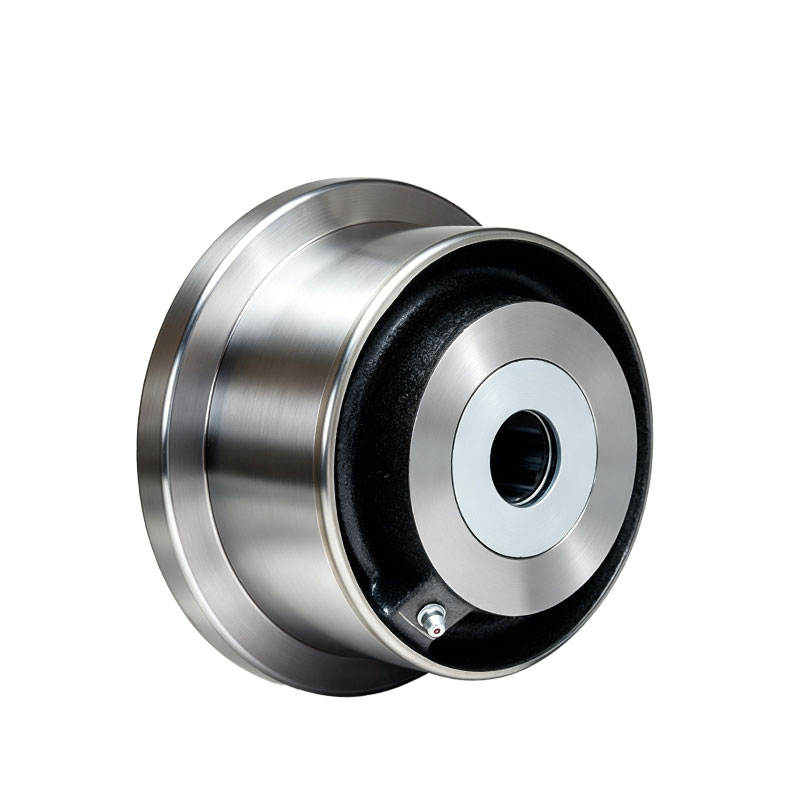

Tapered Bearing Integration: Heavy carts navigating curves generate massive lateral (side-to-side) thrust forces. For extreme load applications, AstraRoll machines the wheel hubs to accept high-capacity Tapered Roller Bearings, which handle multi-ton radial and thrust loads simultaneously without blowing out.
Key Specifications
Please note: While we offer standard sizing, AstraRoll single flanged wheels are frequently custom-engineered and CNC-machined to your exact track dimensions.
Outer Diameter (O.D.): Ranging from 3" (75mm) up to 16"+ (400mm+) including the flange.
Tread Width (Running Face): Custom machined to ride cleanly on your rail (e.g., 1.5", 2", 3", or wider).
Flange Height/Thickness: Custom-engineered to prevent derailment based on cart speed and lateral forces.
Load Capacity: Custom-engineered. (Capacities range from 1,500 lbs to upwards of 20,000+ lbs per wheel based on bearing and alloy selection).
TIR (Total Indicator Runout): ≤ 0.05mm for vibration-free, high-speed rail operation.
Why Choose AstraRoll?
1. Drive-Wheel Conversion for Automated Systems
Not all single flanged wheels are free-spinning "idlers." If you are building a motorized transfer cart, we can manufacture the wheel with a solid core (no bearings) featuring a precision-broached keyway, splined hub, or bolted flange. This allows the wheel to mate directly with your heavy-duty gearbox or drive motor for immediate torque transmission.
2. Precision Tread Crowning
For carts that traverse heavy curves, a perfectly flat tread will grind against the rail head. AstraRoll can engineer a slight "crown" or taper into the running tread of the steel wheel. This allows the wheel to navigate curves smoothly, reducing rolling resistance and significantly extending the lifespan of both the wheel and your rail infrastructure.
Frequently Asked Questions (FAQs)
Q: Should I choose a Single Flanged or Double Flanged wheel for my transfer cart?
A: If you have two parallel rails, industry best practice is to put Double Flanged wheels on one side of the cart (to strictly guide the cart's path) and Single Flanged (or perfectly flat, unflanged) wheels on the opposite side. Because single flanged wheels only restrict movement in one direction, this configuration allows the cart to roll smoothly even if the tracks are not perfectly parallel, completely preventing track binding.
Q: Will a solid steel wheel wear down my steel rail?
A: Yes, over millions of cycles, steel-on-steel contact will result in wear. However, in heavy industrial applications supporting 10,000+ lbs, steel is often the only material strong enough to support the payload without deforming. To minimize track wear, we generally supply a steel alloy for the wheel that is slightly softer than standard crane rail, making the wheel the sacrificial component rather than your expensive infrastructure.
Q: How do I measure my current rail to ensure the wheel fits perfectly?
A: We need the exact width of the top "head" of the rail. The tread width (the flat part of the wheel next to the flange) must be slightly wider than the rail head to allow for comfortable rolling clearance without the flange grinding against the side of the track. Provide us with your rail specification, and we will machine the exact required tread and flange profile.
Q1. Are you a trader or direct factory?
We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.
Q2. What are your main products?
AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.
Q3. What about delivery time?
We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.
Q4. How can I get a quote for customized products?
Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.
Q5. What is your payment?
TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
