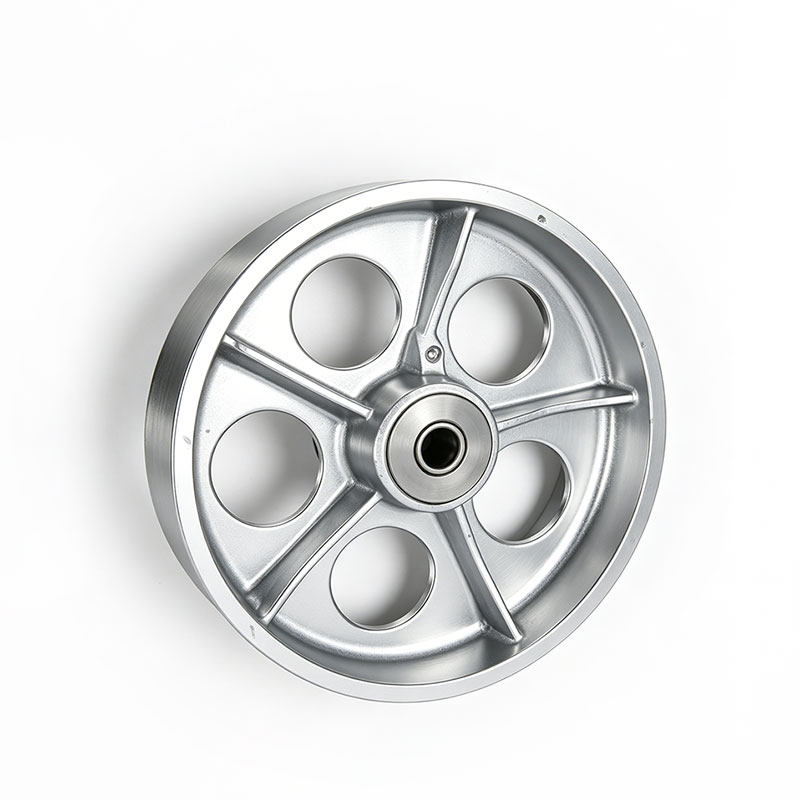

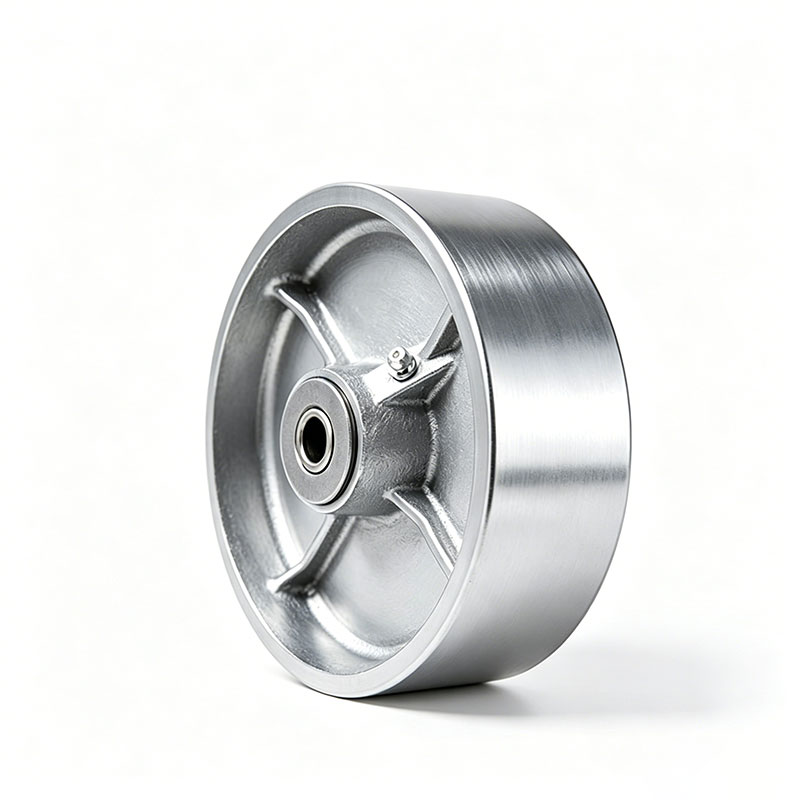

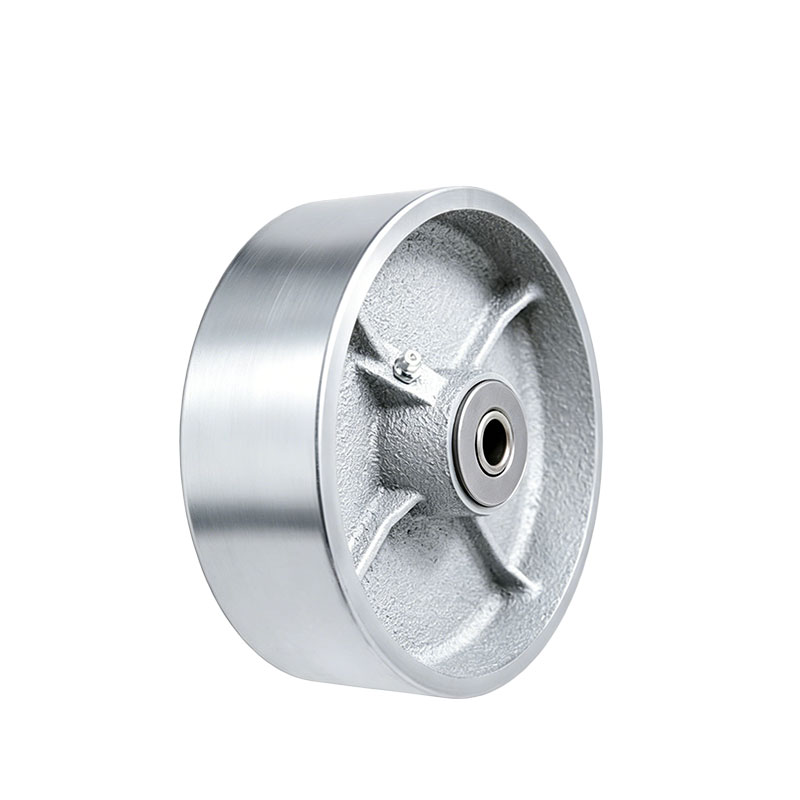

Semi-Steel Cast Iron Wheels for Industrial Casters
Product Overview:
In heavy manufacturing, scrap handling, and high-heat foundry applications, standard polyurethane or rubber caster wheels fail rapidly. They melt under high temperatures, suffer from severe flat-spotting when parked under heavy loads, and require excessive ergonomic force to push. The AstraRoll Industrial Semi-Steel Wheel is the foundational workhorse for extreme material handling. Crafted from a specialized blend of cast iron enriched with steel scrap, these wheels offer significantly higher tensile strength and impact resistance than standard cast iron. Precision-machined for absolute concentricity, their rigid, hard-faced tread provides the lowest possible rolling resistance, allowing operators to move multi-ton loads with minimal manual effort. Impervious to sharp metal debris, welding slag, and extreme temperatures, these semi-steel wheels guarantee relentless, heavy-duty performance across the most unforgiving industrial concrete and steel-plated floors.
Inquiry Email: sales@astraroll.com
Semi-Steel Cast Iron Wheels for Industrial Casters Details
The AstraRoll Technical Advantage
We engineer our semi-steel wheels to deliver uncompromising structural integrity and effortless mobility:
High-Tensile Semi-Steel Alloy: Standard cast iron is brittle and prone to chipping when it hits floor joints or debris. By introducing a specific ratio of steel scrap into the iron casting process, our "Semi-Steel" wheels achieve exceptional structural toughness, resisting the sudden shock loads that shatter cheaper wheels.
Maximum Rollability & Ergonomics: Soft wheels compress under heavy loads, forcing the operator to push a "flattened" tire. Semi-steel wheels do not compress. This minimal floor contact area results in the lowest possible starting and rolling friction, protecting workers from strain injuries when maneuvering multi-ton carts.
Extreme High-Heat Immunity: When equipped with appropriate high-temperature bearings (like bronze bushings) and specialized grease, our unpainted semi-steel wheels can operate continuously in curing ovens, bakeries, and foundries at temperatures exceeding 600°F (315°C)—an environment that instantly destroys any polymer wheel.
Precision CNC-machined treads: The outer treads are not left as rough castings. We CNC-machine the rolling face and the bearing bores to ensure perfectly smooth, concentric rotation, completely eliminating the "wobble" found in low-tier industrial casters.
Key Specifications
Please note: We offer standard catalog sizes matching global caster rig dimensions
Standard Outer Diameters (O.D.): 4", 5", 6", 8", 10", and 12".
Load Capacity: Ranging from 800 lbs up to 3,500+ lbs per wheel.
Hub Length: Precision cut (e.g., 2-3/4", 3-1/4") to fit standard heavy-duty caster forks.
Lubrication System: Integrated zerk fittings (grease nipples) machined directly into the wheel hub for rapid maintenance.
| Comparison Item | AstraRoll Semi-Steel Wheels |
| Vs. Polyurethane Wheels | Debris & Temperature: Polyurethane chunks when rolling over sharp metal shavings and melts in ovens. Semi-steel crushes debris without damage and is entirely immune to extreme industrial heat. |
| Vs. Forged Steel Wheels | Cost Efficiency: Forged steel is virtually indestructible but carries an exorbitant premium. Semi-steel provides 90% of the payload capacity of forged steel at a fraction of the cost, making it the most economical choice for massive cart fleets. |
Why Choose AstraRoll?
1. Turnkey Complete Caster Assemblies
You do not need to source the steel rigs and wheels separately. AstraRoll manufactures thick-forged steel caster yokes (up to 1/2-inch thick top plates) and provides complete, ready-to-bolt Swivel and Rigid Semi-Steel Casters, engineered with heavy-duty thrust bearings in the swivel raceway to handle extreme dynamic payloads.
2. Custom Axle & Spanner Bushing Kits
We understand that replacement wheels must fit perfectly into your existing equipment. We supply our semi-steel wheels with custom-machined hardened steel spanner bushings, allowing a wheel with a 1-inch internal roller bearing to seamlessly adapt to your specific 1/2-inch or 3/4-inch axle bolts.
Frequently Asked Questions (FAQs)
Q: Will semi-steel wheels damage or scratch my concrete floors?
A: Yes, candor is important here: semi-steel is incredibly hard. Under multi-ton loads, these wheels can scratch, groove, or crack unprotected concrete floors, especially when turning swivel casters sharply. They are best utilized on steel-plated floors, rough/sacrificial industrial concrete, or in applications where load capacity and heat resistance outweigh floor protection. If floor protection is your priority, we recommend AstraRoll Heavy-Duty Polyurethane Wheels.
Q: What is the difference between "Semi-Steel" and standard "Cast Iron"?
A: Standard gray cast iron is highly compressive but relatively brittle under impact. "Semi-Steel" is an industry term for cast iron that has been alloyed with steel scrap during the melting process. This increases the metal's tensile strength and impact resistance, ensuring the wheel flanges and treads do not chip when rolling over heavy dock plates or factory debris.
Q: Do I need to buy painted or unpainted wheels?
A: If you are using the wheels at room temperature (e.g., scrap bins, welding carts), the standard enamel-painted wheel prevents surface rust. If you are using the wheels inside high-temperature environments (e.g., bakery ovens or powder-coating lines), you must request unpainted (bare steel) wheels, as standard paint will burn off, create toxic smoke, and contaminate your oven.
