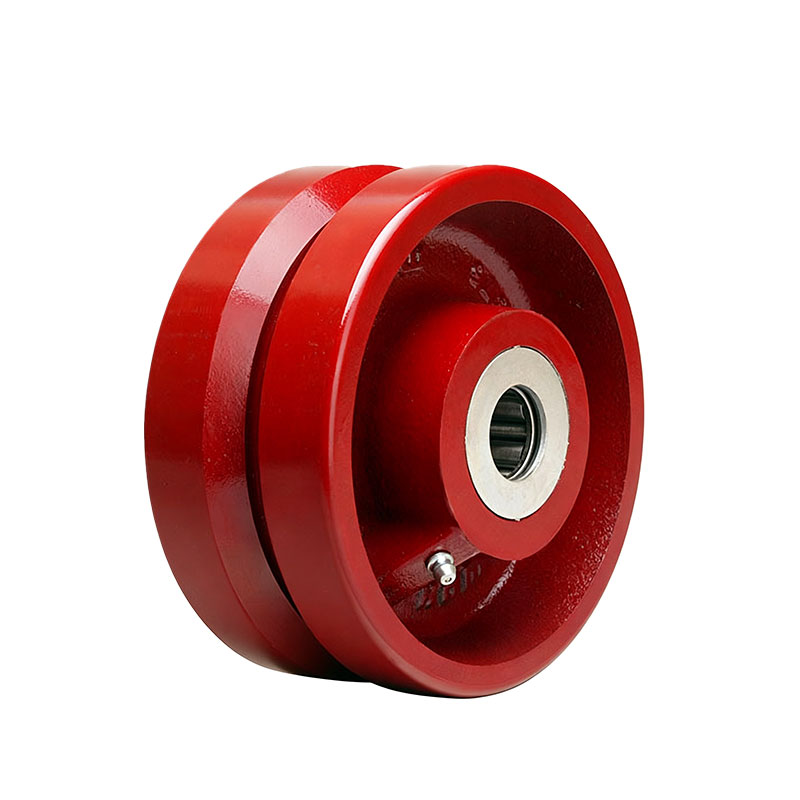

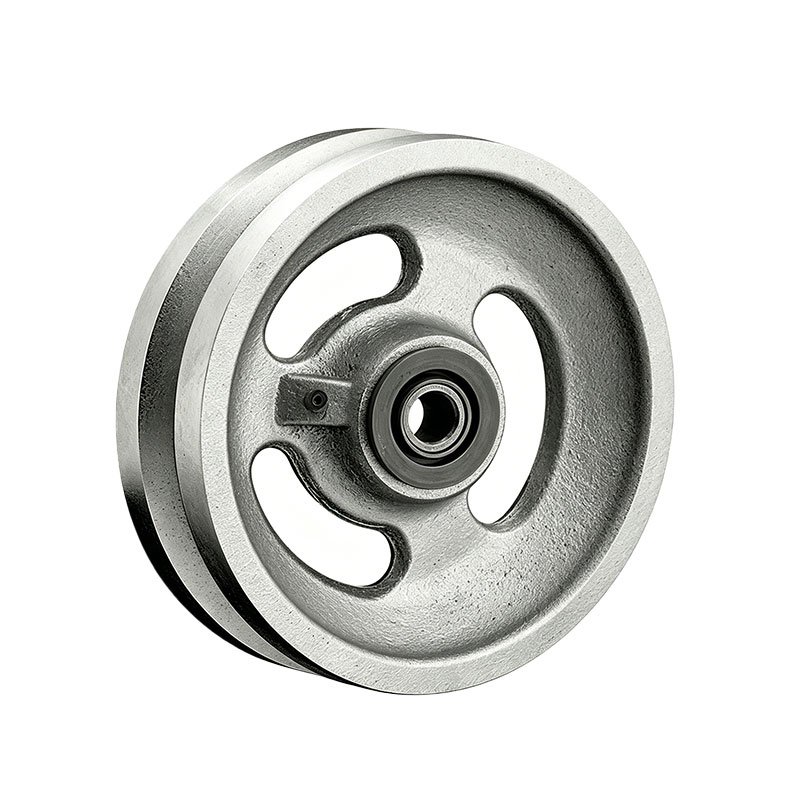

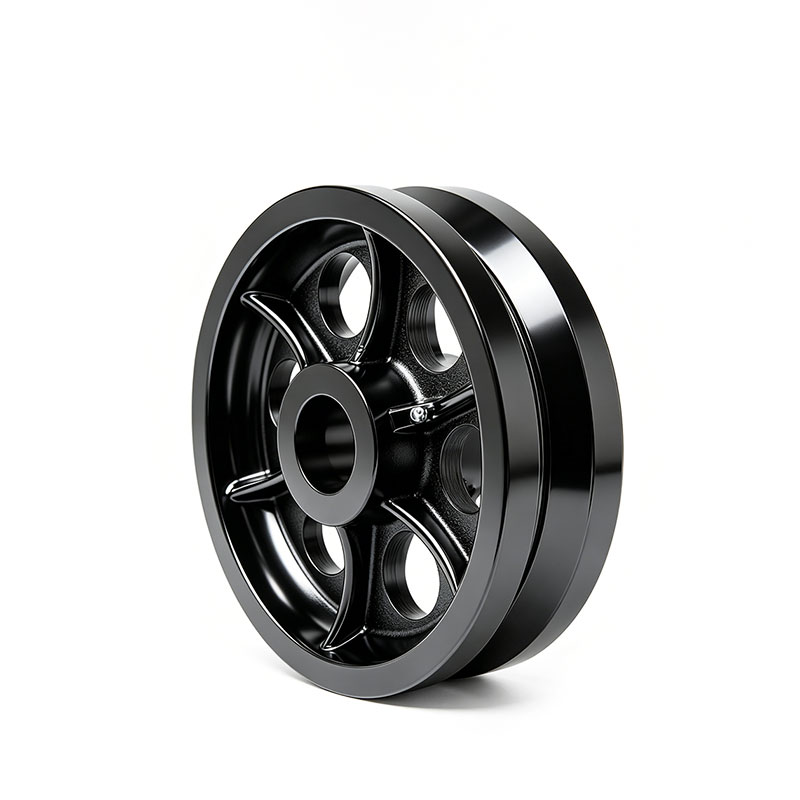

Industrial Heavy-Duty Cast Iron V-Groove Wheels
Product Overview:
In heavy industrial material handling, moving multi-ton loads in a straight, controlled line requires robust track systems. When outfitting sliding gates, oven racks, and foundry transfer carts on inverted angle-iron tracks, you need a wheel that delivers massive load capacity without breaking the budget. The AstraRoll Industrial Heavy-Duty Cast Iron V-Groove Wheel provides the ultimate balance of economy and structural compressive strength. Cast from premium-grade iron and meticulously CNC-machined, these wheels feature a precise 90-degree V-groove designed to perfectly straddle standard angle-iron tracks, ensuring flawless, zero-wander straight-line mobility. Uniquely engineered with flat treads on either side of the groove, these dual-purpose wheels can seamlessly transition from rolling on a track to rolling directly on flat concrete floors. Outfitted with heavy-duty roller bearings, they are the trusted workhorses for high-heat environments and extreme industrial payloads.
Inquiry Email: sales@astraroll.com
Industrial Heavy-Duty Cast Iron V-Groove Wheels Details
The AstraRoll Technical Advantage
We engineer our cast iron wheels to deliver reliable, frictionless tracking under the most demanding industrial conditions:
Dual-Tread Versatility: AstraRoll V-groove wheels are not restricted to tracks. The precision-machined flat treads on the outer edges of the "V" allow the wheel to roll smoothly off the angle-iron track and directly onto flat concrete or steel floors, maximizing operational flexibility.
Precision Relief Cut Engineering: A V-groove wheel should never ride directly on the sharp tip of the angle-iron, which causes binding and friction. We machine a precise "relief cut" (a flat clearance space) at the very root of the groove, ensuring the load is carried entirely by the sloped sides of the track for a self-cleaning, low-drag roll.
Massive Compressive Strength: Cast iron possesses incredible compressive load-bearing properties. A single 8-inch AstraRoll cast iron wheel can easily support static and dynamic loads exceeding 2,500 lbs, making them ideal for heavy factory carts and massive security gates.
High-Heat Resistance: Unlike nylon or polyurethane wheels that melt in paint booths, curing ovens, or foundries, cast iron wheels maintain their structural integrity in extreme temperature environments (often up to 600°F / 315°C when equipped with high-temp grease and appropriate bearings).
Key Specifications
Please note: We offer standard catalog sizes as well as custom-machined profiles.
Outer Diameter (O.D.): Fully custom (e.g., from compact 2" guide wheels to massive 16"+ industrial drive wheels).
V-Groove Angle & Width: Custom machined to match your exact track (Standard 90°, or custom 75°, 120°, etc.).
Load Capacity: Custom-engineered. (Capacities can range from 1,000 lbs to upwards of 30,000+ lbs per wheel based on bearing and alloy selection).
Bushing / Axle: Standardly equipped with hardened steel spanner bushings (e.g., to accommodate 1/2" or 3/4" axles).
Face Width: Custom-machined for optimal weight distribution.
Why Choose AstraRoll?
1. Turnkey Caster Rig Assembly
If you are building a transfer cart, buying the raw wheel is only half the job. AstraRoll can mount these heavy-duty cast iron V-groove wheels directly into our ¼-inch or ⅜-inch thick steel caster forks. We provide complete, ready-to-bolt Swivel or Rigid V-groove casters, saving your fabrication team hours of assembly time.
2. Cost-Effective Heavy Mobility
For applications where the track is straight, the speeds are low to moderate, and the environment is highly abrasive, there is no better return on investment than cast iron. By sourcing directly from the AstraRoll foundry, you secure massive payload capacities for your facility's infrastructure at true B2B wholesale pricing.
Frequently Asked Questions (FAQs)
Q: Will a cast iron wheel damage my concrete warehouse floor if it rolls off the track?
A: Yes, it is a possibility. While the flat treads on the sides of the V-groove allow it to roll on flat surfaces, cast iron is harder than concrete. Under very heavy loads, dragging or turning a cast iron wheel on unprotected concrete can scratch, groove, or chip the floor. They are best utilized strictly on steel tracks or steel-plated floors.
Q: Should I upgrade to Ductile Iron instead of standard Gray Cast Iron?
A: Standard Gray Iron is excellent for smooth, controlled track rolling. However, Gray Iron is somewhat brittle. If your sliding gate or transfer cart frequently suffers from sudden impacts (like dropping heavy loads onto the cart or slamming the gate shut), we highly recommend upgrading to Ductile Iron. Ductile iron flexes slightly under impact, preventing the wheel flanges from chipping or shattering.
Q: Do these wheels require lubrication?
A: The cast iron itself does not need lubrication to roll on the steel track. However, the internal roller bearings do require maintenance. AstraRoll wheels are equipped with zerk fittings (grease nipples) either on the wheel hub or on the axle/spanner bushing, allowing for easy, routine re-greasing of the bearings.
Q1. Are you a trader or direct factory?
We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.
Q2. What are your main products?
AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.
Q3. What about delivery time?
We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.
Q4. How can I get a quote for customized products?
Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.
Q5. What is your payment?
TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
