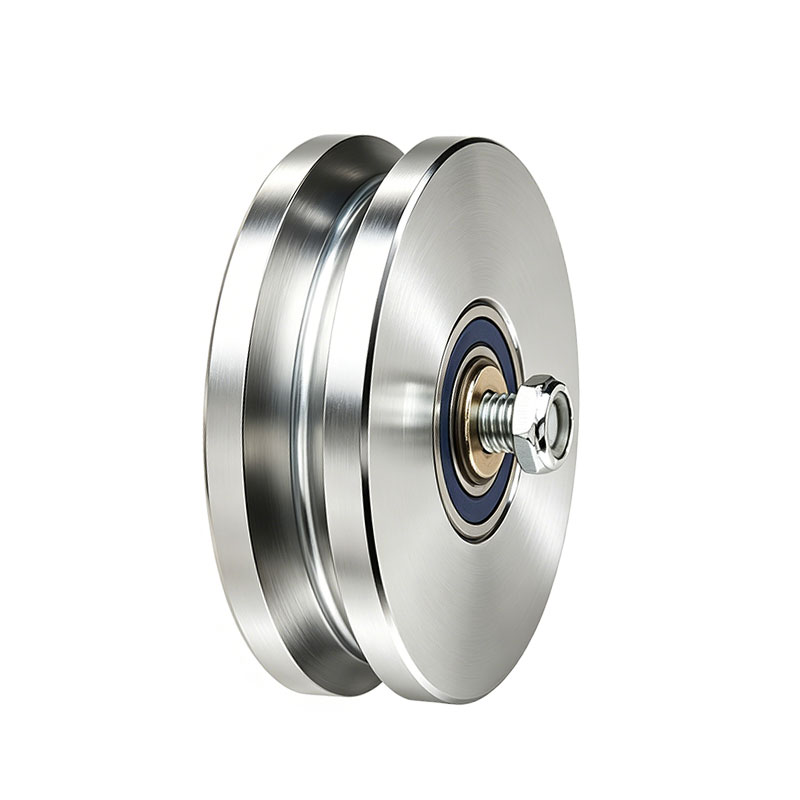

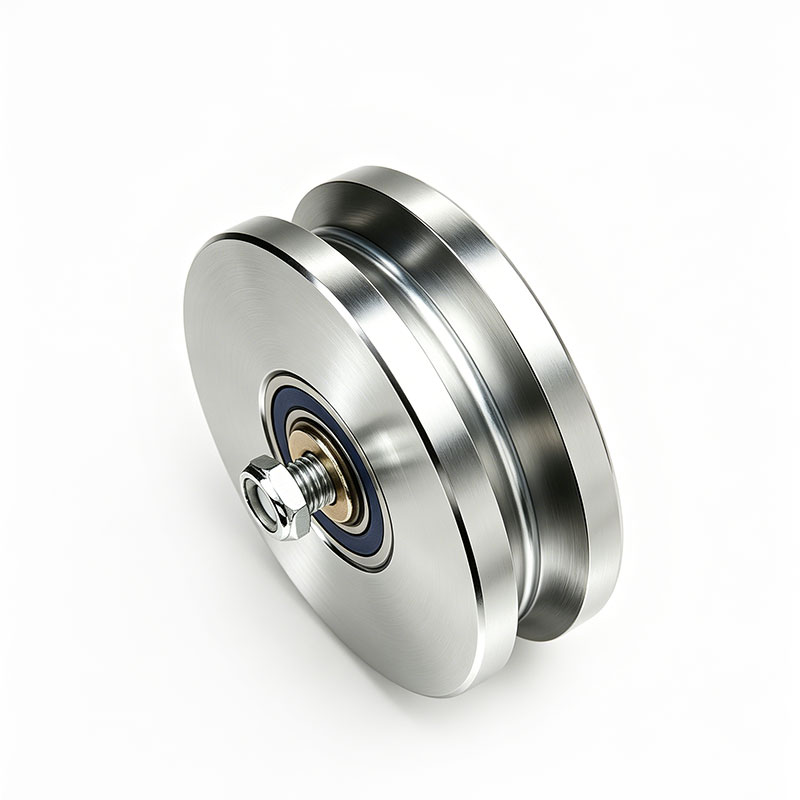

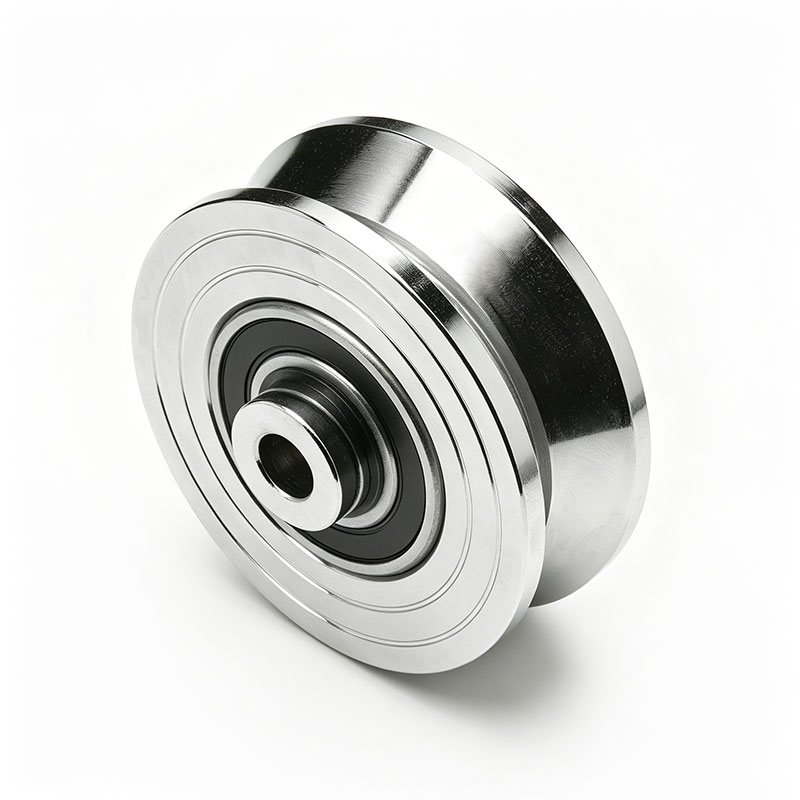

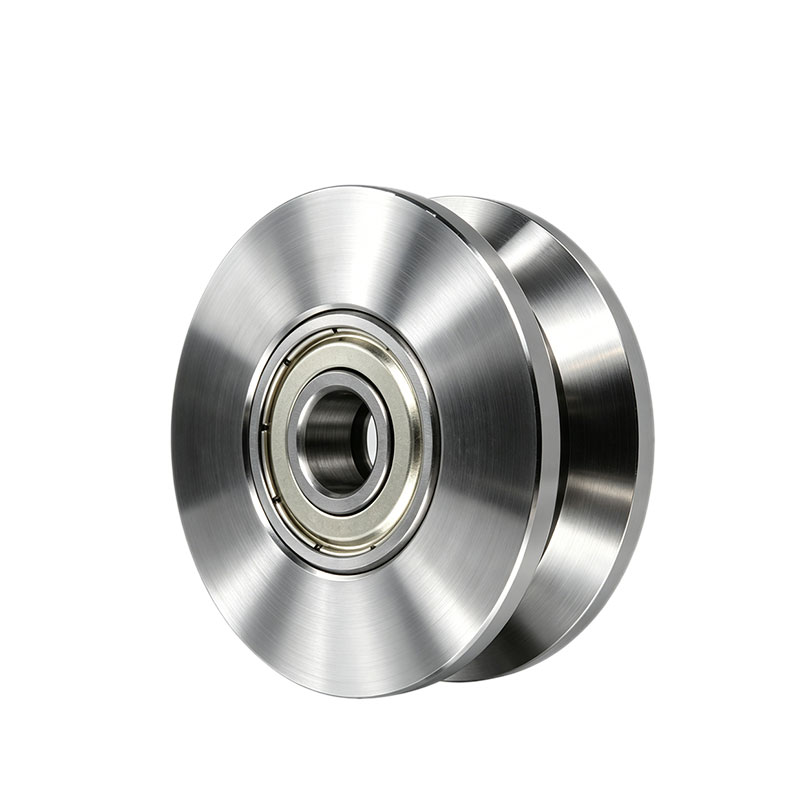

Heavy-Duty Solid Steel V-Groove Sliding Gate Wheels
Product Overview:
In heavy industrial environments, the mobility of massive infrastructure—such as multi-ton security sliding gates, foundry transfer carts, and automated material handling racks—requires wheels of uncompromising structural integrity. Standard cast-iron V-groove wheels are inherently brittle; they easily chip, crack, or shatter under sudden impact or high shock loads. The AstraRoll Custom Heavy-Duty Solid Steel V-Groove Wheel is the ultimate solution for extreme load mobility. Instead of casting liquid metal into molds, we CNC-machine every wheel directly from premium, solid forged steel billets. This manufacturing process guarantees a void-free, ultra-dense metallic structure capable of supporting astronomical load capacities. Custom-engineered in every dimension—from the outer diameter and V-groove angle to the specific bearing payload—these track wheels deliver relentless, frictionless tracking and indestructible performance on any inverted angle-iron or V-track rail system.
Inquiry Email: sales@astraroll.com
Heavy-Duty Solid Steel V-Groove Sliding Gate Wheels Details
The AstraRoll Technical Advantage
Because we custom-manufacture these wheels from solid steel billets, we eliminate the weaknesses found in mass-produced, off-the-shelf catalog wheels:
Forged Steel Indestructibility: Unlike cast iron, which fractures under heavy side-impact, solid machined steel absorbs extreme shock loading. Whether a heavy forklift bumps the gate or a massive load is suddenly dropped onto the transfer cart, AstraRoll steel wheels will not shatter.
Micron-Perfect Track Mating: If the V-groove angle does not perfectly match your angle-iron track, the wheel will wobble, creating high-friction wear points. We CNC-machine the exact draft angle and relief groove required to ensure smooth, dead-center riding along your rails.
Tapered Bearing Integration: Heavy gates and carts generate massive lateral (side-to-side) thrust forces. For extreme load applications, AstraRoll can machine the wheel hubs to accept high-capacity Tapered Roller Bearings, which handle multi-ton radial and thrust loads simultaneously without blowing out.
Turnkey Customization: We do not limit you to standard load ratings. You dictate the weight of your payload, the required speed, and the dimensions of your existing track. Our engineers will calculate the exact wheel diameter, width, and steel alloy required to guarantee failure-free operation.
Key Specifications
Please note: AstraRoll Heavy-Duty V-Groove wheels are 100% custom-engineered to your exact infrastructure requirements. We do not restrict you to standard dimensions or load limits.
Outer Diameter (O.D.): Fully custom (e.g., from compact 2" guide wheels to massive 16"+ industrial drive wheels).
V-Groove Angle & Width: Custom machined to match your exact track (Standard 90°, or custom 75°, 120°, etc.).
Load Capacity: Custom-engineered. (Capacities can range from 1,000 lbs to upwards of 30,000+ lbs per wheel based on bearing and alloy selection).
Face Width: Custom-machined for optimal weight distribution.
TIR (Total Indicator Runout): ≤ 0.05mm for high-speed vibration-free operation.
Why Choose AstraRoll?
1. Drive-Wheel Conversion for Automated Systems
Not all V-Groove wheels are free-spinning "idlers" used for manual gates. If you are building a motorized transfer cart or an automated sliding gate, we can manufacture the V-Groove wheel with a solid core (no bearings) featuring a precision-broached keyway, splined hub, or bolted flange to mate directly with your heavy-duty gearbox or drive motor.
2. Relief Cut Engineering
In poorly designed V-Groove wheels, the very bottom of the "V" grinds directly against the sharp peak of the angle iron track, causing severe binding and friction. AstraRoll CNC-machines a precise, flat "relief cut" at the root of the groove. This ensures the wheel rides entirely on the sloping sides of the angle iron, creating a self-cleaning, low-friction rolling action.
Frequently Asked Questions (FAQs)
Q: How do I measure my current track to ensure the V-Groove fits perfectly?
A: We need two main pieces of information: the angle of the track (most standard angle iron used for tracks is 90 degrees) and the width of the track's face. Provide us with a cross-sectional drawing or just a few basic measurements, and our engineers will design the perfect groove profile with the necessary relief cuts.
Q: Will a solid steel wheel wear down my steel track?
A: Yes, over millions of cycles, steel-on-steel contact will result in wear. However, in heavy industrial applications, this is often the only material strong enough to support the load. To minimize track wear, we can either match the hardness of the wheel to the track, or provide a slightly softer steel alloy for the wheel, making the wheel the sacrificial component rather than your expensive rail infrastructure.
Q: Can you provide these wheels with mounting brackets?
A: Yes. In addition to manufacturing the bare wheels, AstraRoll can design and fabricate heavy-duty steel mounting brackets (caster rigs, weld-on gate boxes, or bolt-on housings) complete with the axle and grease zerks, providing a ready-to-install mobility module.
Q1. Are you a trader or direct factory?
We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.
Q2. What are your main products?
AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.
Q3. What about delivery time?
We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.
Q4. How can I get a quote for customized products?
Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.
Q5. What is your payment?
TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
