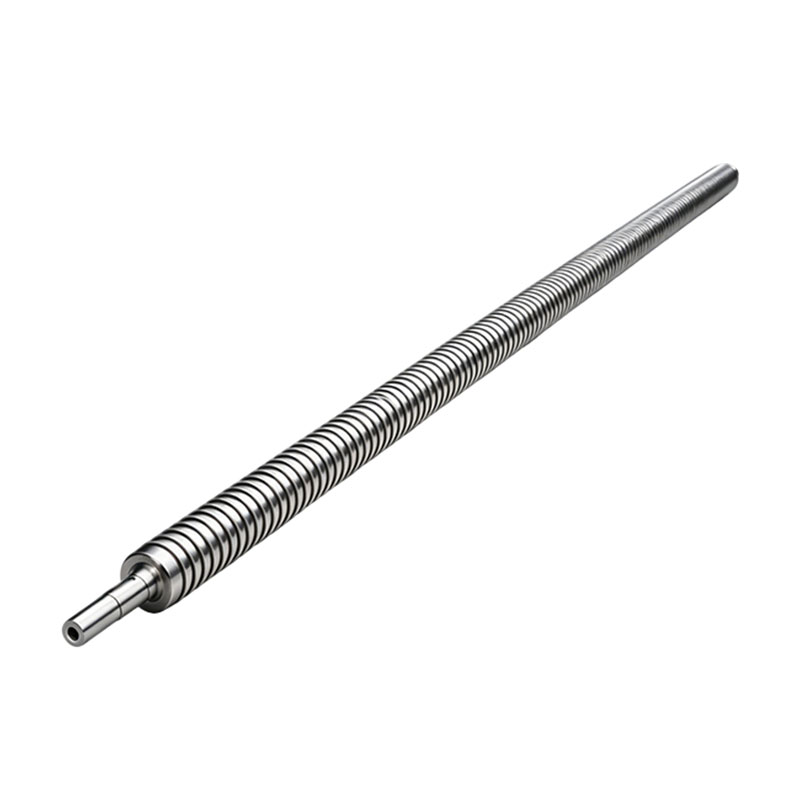

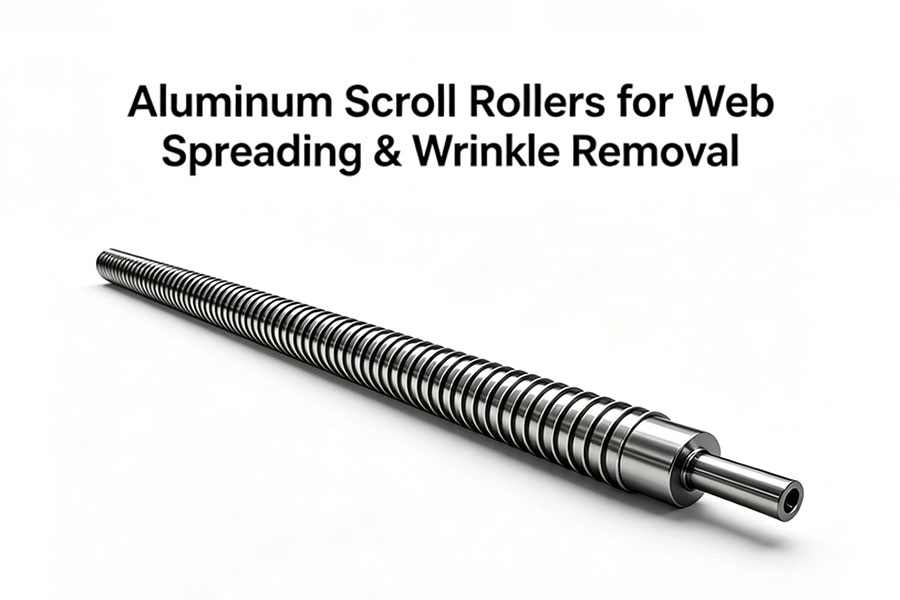

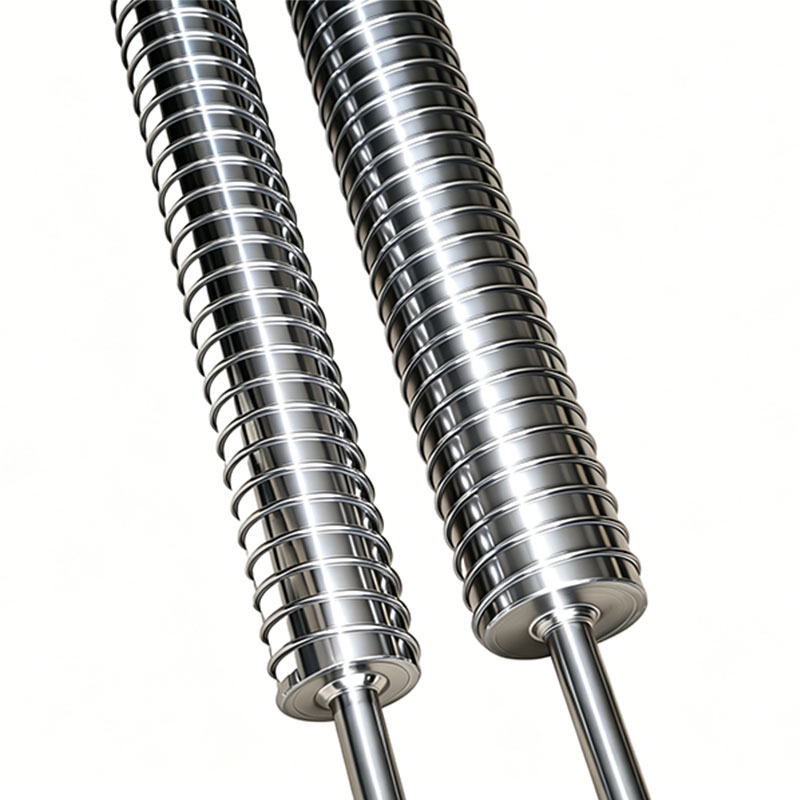

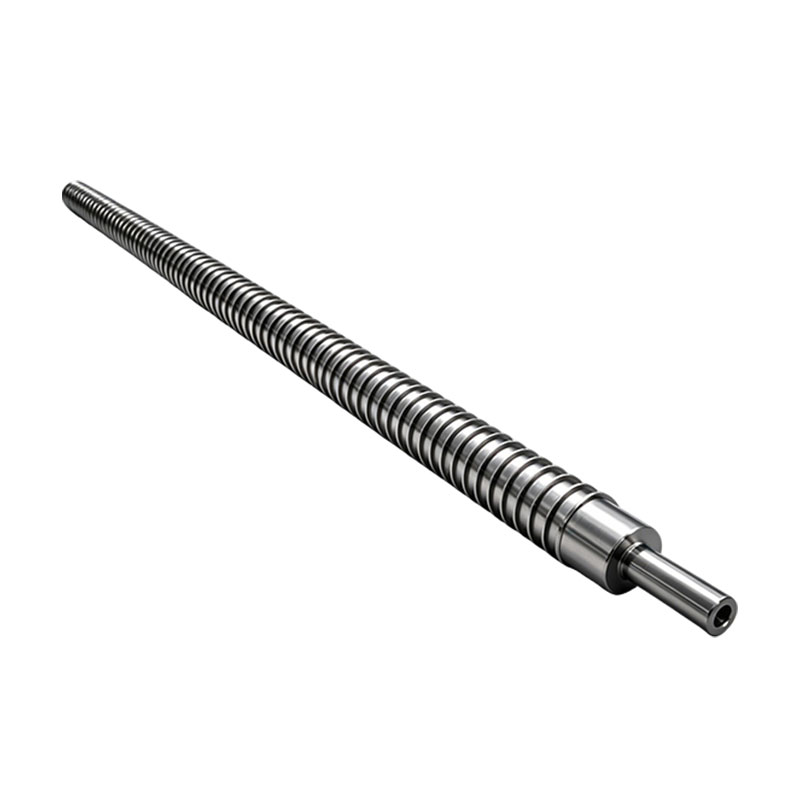

Aluminum Scroll Rollers for Web Spreading & Wrinkle Removal

The AstraRoll Technical Advantage: Smooth, Flat, and Flawless
Unlike complex mechanical spreader rollers, the scroll roller relies on pure geometric physics. We engineer our scroll rollers to deliver consistent, maintenance-free spreading:

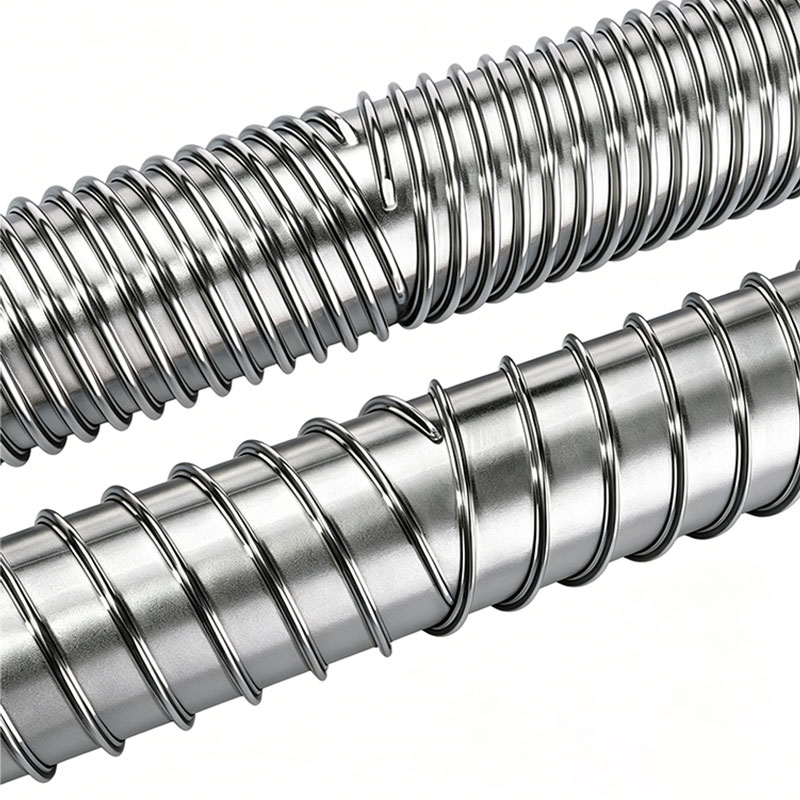

Center-Out Spreading Geometry: Our dual-directional spirals act like a pair of mechanical hands, continuously sweeping outward. This lateral tension holds the web completely flat, ironing out baggy edges and center-creases before they reach critical machine sections.

Dual-Action Air Exhaust: At high speeds, trapped air causes webs to float and lose traction. The deep spiral grooves act as massive air-relief channels, instantly expelling the aerodynamic boundary layer while simultaneously spreading the web.

Ultra-Low Rotational Inertia: A spreader roller must match the web speed exactly; if it drags, it scratches the material. By utilizing high-strength aerospace aluminum, our rollers accelerate instantly, allowing delicate webs to drive the roller with minimal tension.

Precision CNC Pitch & Depth: We do not use standard off-the-shelf grooving. Heavy fabrics require deep, aggressive pitches, while 10-micron optical films require shallow, highly-polished micro-grooves. Our multi-axis CNC lathes cut the exact profile your material demands.

Key Specifications & Custom Capabilities

Please note: We manufacture entirely to your specifications. The following are our standard operating ranges.
Outer Diameter (O.D.): Custom from 3" (75mm) up to 12" (300mm)+.
Face Length: Custom manufactured up to 160" (4,000mm)+ for wide-web lines.
Groove Pitch (Distance between grooves): Custom engineered (e.g., 5mm, 10mm, 25mm).
Groove Depth: Custom engineered (e.g., 1mm to 5mm+).
TIR (Runout): Standard ≤ 0.002" (0.05mm) for vibration-free operation.
Dynamic Balancing: ISO G2.5 at your specified maximum mechanical speed.
Base Material: 6061-T6 Aluminum (Stainless Steel SUS304/316 options available for wet/corrosive environments).

Why Choose AstraRoll? (Your Web Handling OEM Partner)

1. Application-Specific Edge Profiles

A sharp groove edge will tear a thin plastic film, but a rounded edge might not grip a heavy textile enough to spread it. Because we machine everything in-house, our engineers specify the exact edge radius (chamfer) of the grooves, ensuring your material is spread effectively without a single scratch or tear.

2. Factory-Direct Custom Machining

Precision CNC scroll machining is an expensive premium when purchased from western catalog suppliers. By partnering directly with the AstraRoll factory, converting lines and OEM machine builders secure custom-pitched, hard-anodized spreader rollers at aggressive B2B wholesale pricing.

Frequently Asked Questions (FAQs)

Q: Should I use a Scroll Roller or a Bowed (Banana) Roller?
A: If you need adjustable spreading amounts for highly variable webs, a Bowed Roller is better. However, if you are running a consistent material and want a highly durable, cost-effective solution with absolutely zero maintenance, the Scroll Roller is the superior choice.

Q: Will the spiral grooves leave marks or emboss my material?
A: This is a critical concern for thin films. To prevent marking, we design the grooves with a very shallow depth, widen the "land" (the flat top surface between grooves), and heavily polish the edges. For extreme cases, we can also apply a soft rubber coating over a scrolled core.

Q: Does the direction of rotation matter?
A: Yes, absolutely. The roller must be installed so that the "V" shape of the grooves points in the direction of web travel as the roller spins. We permanently engrave directional arrows onto the roller faces to ensure your maintenance team installs them correctly every time.

Q: Can you make these out of Stainless Steel instead of Aluminum?
A: Yes. If the roller is being installed in a wet textile dyeing line, a paper mill wire section, or a highly corrosive chemical washdown area, we will manufacture the identical scroll profile using solid SUS304 or SUS316L Stainless Steel.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
