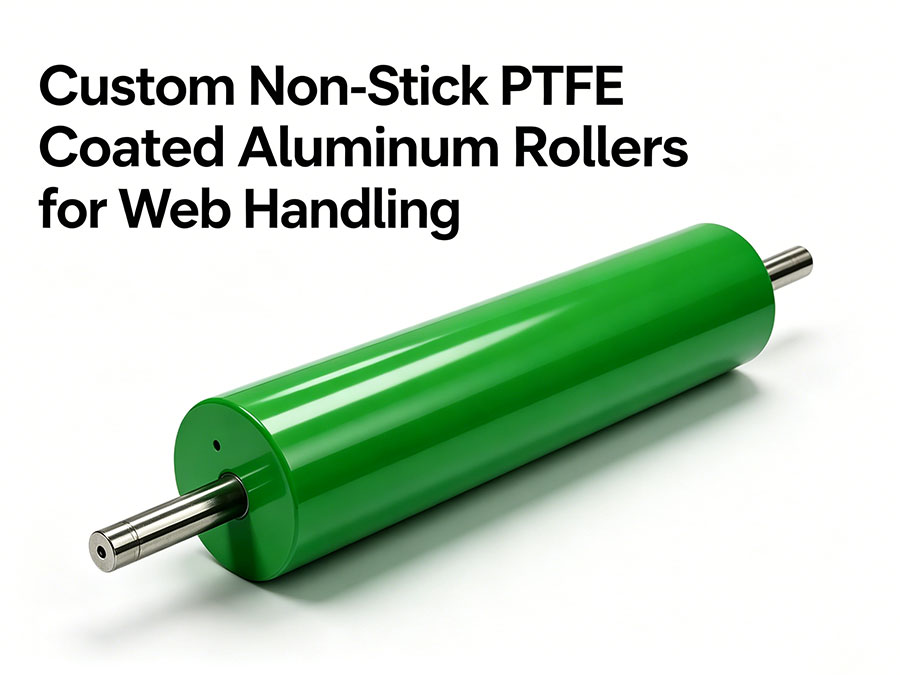

Custom Non-Stick PTFE Coated Aluminum Rollers for Web Handling
Product Overview:
In labeling, tape manufacturing, or hot-melt coating processes, the biggest headache for engineers is adhesive buildup on the web path. Once glue accumulates on a guide roller, it disrupts tension, scratches the web, and forces frequent downtime for manual cleaning. The AstraRoll Custom PTFE (Teflon) Coated Aluminum Roller is engineered for a "zero-adhesion" environment. By combining the ultra-lightweight, low-inertia properties of aerospace aluminum with world-class PTFE non-stick coating technology, we’ve created an idler that accelerates instantly with your web while rejecting any sticky substances. Even when handling aggressive industrial adhesives or high-temperature inks, the AstraRoll coated roller remains clean, drastically increasing your machine uptime and reducing material waste.
Roll Function: Spreader Roller, Printing Roller
Industry Applications: Industry, Printing
Custom Non-Stick PTFE Coated Aluminum Rollers for Web Handling Details
The AstraRoll Technical Advantage: Ultimate Release, Precision Drive
Standard silicone or stainless steel rollers still struggle against high-performance adhesives. We redefine non-stick performance through the following technologies:
Ultimate Anti-Adhesion: PTFE boasts one of the lowest coefficients of friction of any solid material on earth. Our coating process ensures that glue, inks, hot-melt adhesives, and even molten plastics cannot form a permanent bond with the roller surface. Maintenance usually requires nothing more than a simple wipe-down.
Ultra-Low Rotational Inertia: Manufactured from premium aluminum tubing, these rollers weigh roughly 1/3 of their steel counterparts. This allows the idler to start and stop instantly in perfect sync with the web, completely eliminating the "skidding" that causes coating smears or web scratches.
Chemical Immunity: Teflon coatings are immune to almost all industrial solvents, acids, and alkalis. This makes them ideal for flexographic printing and specialized coating lines, as they will not degrade or peel even after prolonged exposure to aggressive wash-up chemicals.
High-Temperature Resistance: Our PTFE coatings can operate continuously at temperatures up to 260°C (500°F), making them perfect for guide applications located near drying ovens, heat-sealing stations, or hot-melt applicator heads.
Key Specifications & Custom Capabilities
Please note: We manufacture entirely to your specifications. The following are our standard operating ranges.
Outer Diameter (O.D.): Custom from 20mm up to 400mm+.
Face Length: Custom manufactured up to 120" (3,000mm)+.
Coating Thickness: 20μm to 80μm (Tailored to your specific wear and release requirements).
Operating Temperature: -100°C to +260°C (-148°F to 500°F).
TIR (Runout): Standard ≤ 0.02mm (Ensures vibration-free tension control).
Dynamic Balancing: ISO G2.5 at your press or coater's maximum mechanical speed.
Base Material: 6061-T6 or 6063 Aerospace Aluminum Alloy.
| Comparison Item | AstraRoll PTFE Coated Rollers |
| Vs. Bare Aluminum / Steel Rollers | Adhesive Rejection: Bare metals trap glue and ink, leading to web breaks. PTFE completely repels sticky substances, drastically reducing machine downtime. |
| Vs. Silicone Coated Rollers | Friction & Chemical Resistance: Silicone provides good release but creates high friction (drag) and degrades under harsh solvents. PTFE offers an ultra-low friction coefficient and total chemical immunity. |
Why Choose AstraRoll? (Your Anti-Adhesive Partner)
1. Tailored to Your Specific Adhesive
Not all glues require the same release properties. The AstraRoll engineering team will match the exact formulation of PTFE, PFA, or FEP coating based on whether you are running Pressure Sensitive Adhesives (PSA), Hot-Melts, or solvent-based inks, ensuring the perfect balance of release and durability.
2. Refurbishing & Re-Coating Services
PTFE is a functional coating that naturally wears over time. To lower your long-term operating costs, we offer a complete recoating service. Send us your worn rollers; we will strip the old coating, blast and clean the aluminum surface, and apply a brand new layer of PTFE, bringing your rollers back to life at a fraction of the cost of buying new ones.
Frequently Asked Questions (FAQs)
Q: Is the PTFE coating durable? Will it wear off quickly if running abrasive paper webs?
A: Pure PTFE coatings are relatively soft. If your web material is abrasive (like rough paper or cardboard), we strongly recommend our "Hard Anodizing + PTFE Infusion" process. This creates a ceramic-hard base layer on the aluminum, with Teflon infused into the micro-pores. Even if the surface Teflon wears, the hard base layer continues to provide excellent release properties and extreme wear resistance.
Q: How should my maintenance team clean these coated rollers?
A: Because of the non-stick properties, most residue can be easily removed by gently wiping the roller with a soft cloth dampened with water or isopropyl alcohol. Never use metal scrapers, wire brushes, or abrasive pads, as these will permanently scratch the coating and destroy its non-stick capabilities.
Q: Can these rollers be used on food packaging lines?
A: Yes. We offer FDA-compliant food-grade PTFE coatings. Please specify "Food Grade" when requesting a quote, and we will ensure the coating formulation meets strict safety standards and provide the necessary compliance certificates.
Q: Can you manufacture the roller from our existing machine drawings?
A: Absolutely. As an OEM manufacturer, we have complete in-house CNC turning, milling, and grinding capabilities. Provide us with your CAD drawings or a physical sample, and we will handle the entire process—from machining the raw aluminum tubing to applying the PTFE coating and performing dynamic balancing.
Q1. Are you a trader or direct factory?
We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.
Q2. What are your main products?
AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.
Q3. What about delivery time?
We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.
Q4. How can I get a quote for customized products?
Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.
Q5. What is your payment?
TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
