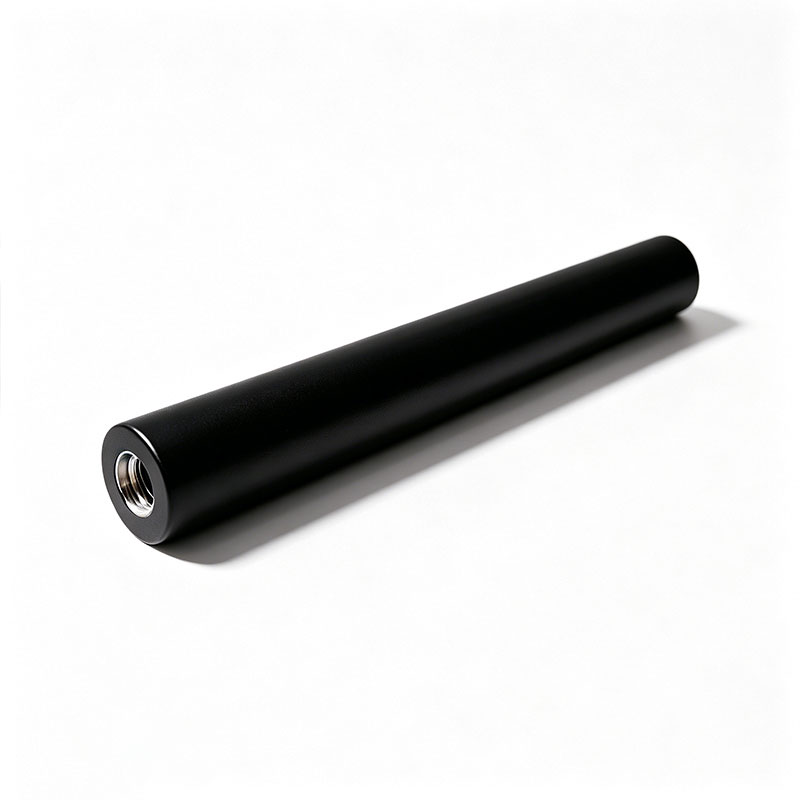

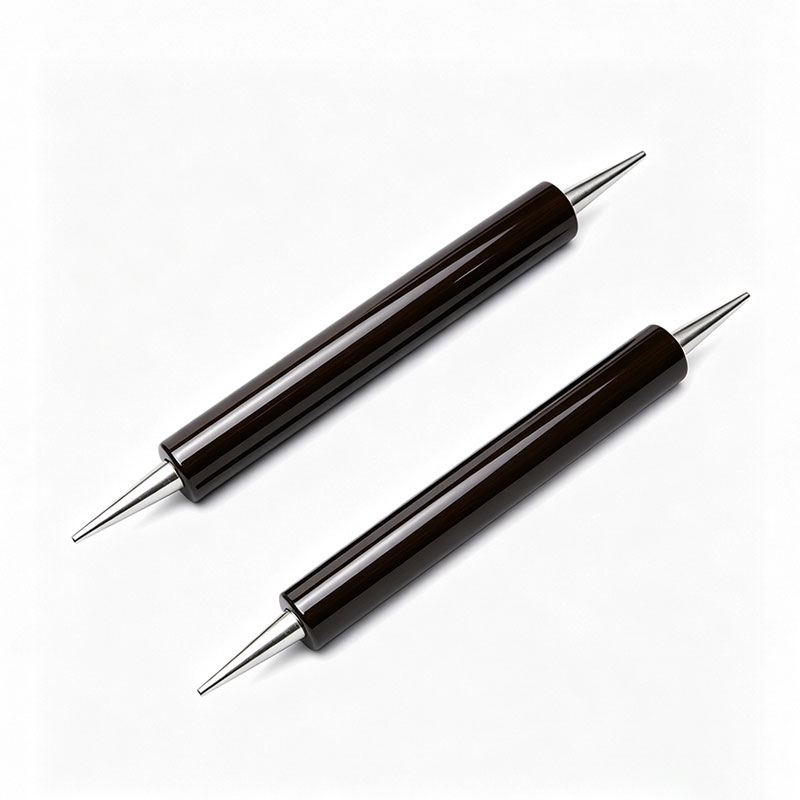

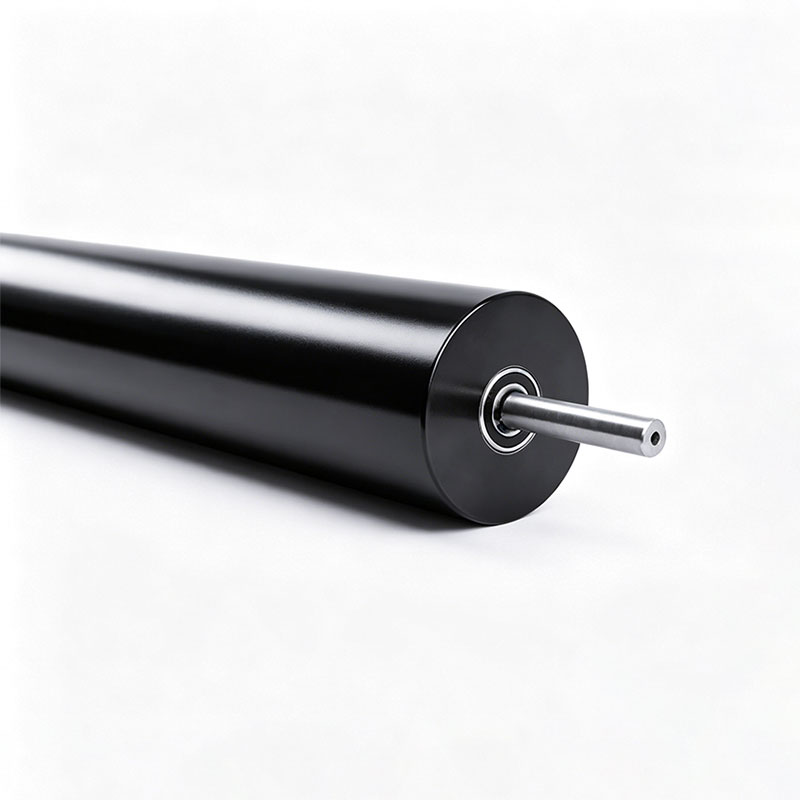

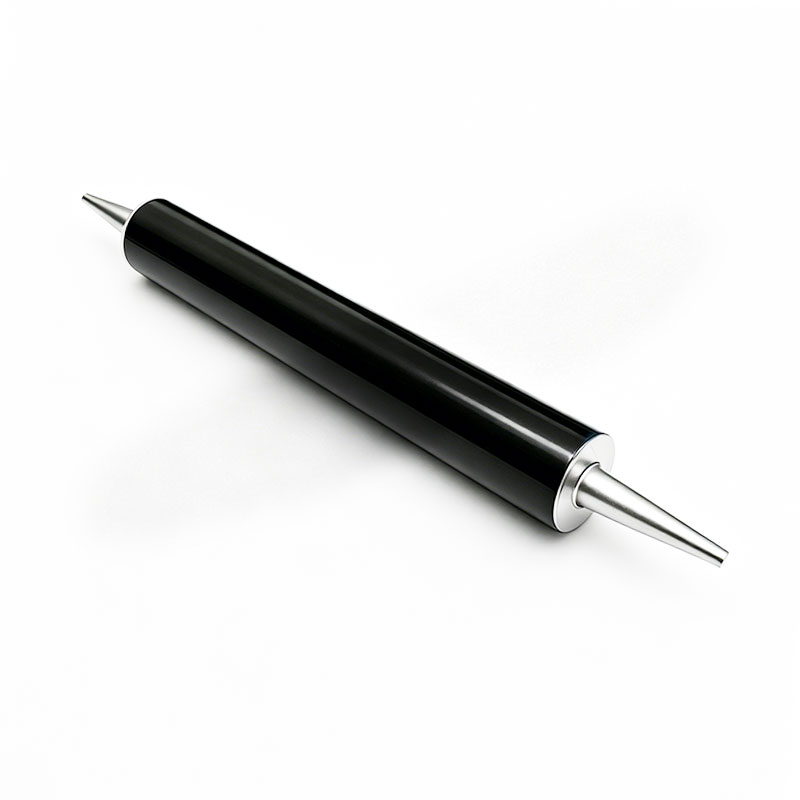

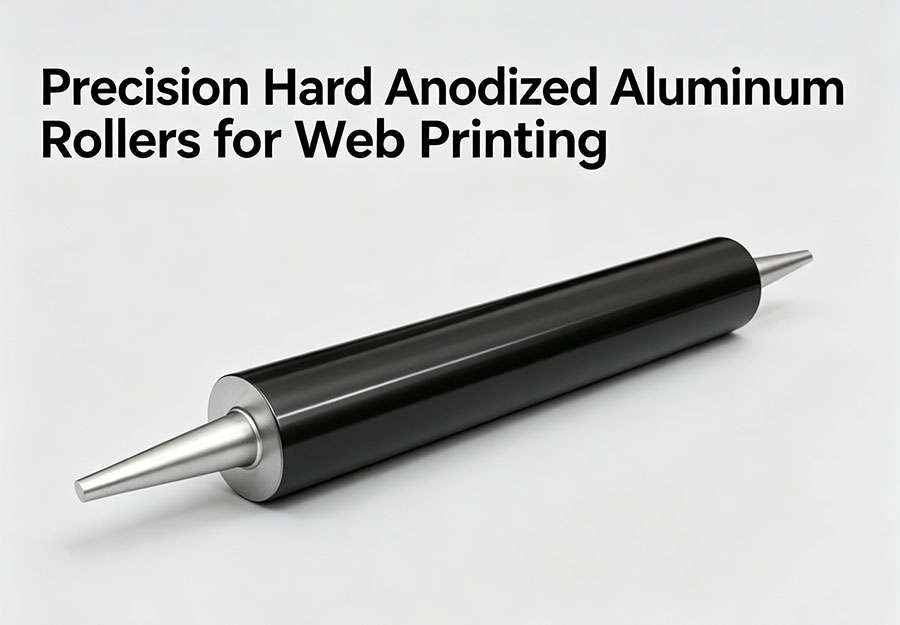

Precision Hard Anodized Aluminum Rollers for Web Printing

The AstraRoll Technical Advantage: Hardness Meets Precision
Standard "clear anodizing" is purely cosmetic. We utilize authentic Hard Coat Anodizing (Type III) to physically alter the aluminum surface, creating an industrial-grade web handling tool:

Extreme HV700 Surface Hardness: Our hard anodizing process grows a layer of aluminum oxide that penetrates the substrate and builds on the surface. This crystalline structure achieves a Vickers Hardness (HV) of 600-700, rivaling the hardness of hardened steel. It completely prevents the abrasive edges of paper or metallic foils from grooving the roller.

Chemical & Solvent Immunity: Printing press environments are saturated with harsh UV inks, ethyl acetate, and aggressive cleaning solvents. The non-porous hard-anodized layer completely seals the aluminum, preventing oxidation, corrosion, and chemical pitting.

Perfect Color Registration via Micro-TIR: We CNC-machine the outer diameter after the bearing housings are bored, ensuring a Total Indicator Runout (TIR) of ≤ 0.02mm. This absolute concentricity guarantees steady web tension across the roller face, preventing the micro-flutter that causes colors to misregister on multi-station presses.

Low-Inertia Acceleration: Despite its steel-like surface, the roller retains the lightweight properties of aluminum. It requires minimal web tension to spin and stops instantly when the press halts, completely eliminating the "skidding" that scuffs freshly printed webs.

Key Specifications & Custom Capabilities

Please note: We manufacture entirely to your machinery's specifications. The following are our standard operating ranges.
Material: Seamless Extruded Aluminum Alloy (e.g., 6063-T5 or 6061-T6).
Surface Treatment: Type III Hard Coat Anodizing (Color: Natural Dark Grey to Black, depending on alloy and thickness).
Coating Thickness: 25μm to 50μm (Customizable based on wear requirements).
Surface Hardness: HV400 to HV700.
TIR (Runout): ≤ 0.02mm (Standard Precision).
Dynamic Balancing: ISO G2.5 at your press's maximum mechanical speed.

Why Choose AstraRoll? (Your Printing OEM Partner)

1. Drop-In Press Replacements

Simply provide AstraRoll with your dimensional drawings or a worn sample. We will reverse-engineer the shaft ends, bearing fits, and roller geometry to provide a flawless, high-performance OEM replacement in a fraction of the time.

2. In-House Anodizing Control

Many machine shops outsource their anodizing, leading to inconsistent coating thicknesses that ruin the roller's concentricity. AstraRoll tightly controls the hard-anodizing parameters in-house (or through exclusive certified partners), guaranteeing a uniform coating thickness that preserves our micro-machined TIR tolerances.

Frequently Asked Questions (FAQs)

Q: What is the difference between "Standard Anodizing" and "Hard Anodizing"?
A: Standard (Type II) anodizing is very thin (under 10 microns) and is mostly for cosmetic color or light corrosion protection; it scratches easily. Hard Anodizing (Type III) is processed at near-freezing temperatures with higher voltage, creating a thick (30-50 micron), highly dense layer that is exceptionally hard (HV600+) and designed specifically for extreme mechanical wear.

Q: Why does the roller look dark grey or black instead of shiny silver?
A: True hard anodizing naturally produces a dark grey, bronze, or charcoal-black finish, depending on the specific aluminum alloy and the thickness of the coating. We do not use dyes; the dark color is the authentic visual indicator of a deep, high-hardness ceramic oxide layer.

Q: Our paper web keeps slipping on the smooth aluminum. Can you fix this?
A: Yes. Before the hard-anodizing process, we can apply a precision sandblasted finish to the raw aluminum. When this textured surface is subsequently hard-anodized, it creates a highly durable, micro-matte finish that dramatically increases the coefficient of friction, locking the web to the roller without scratching it.

Q: Can a scratched hard-anodized roller be repaired?
A: Generally, no. Stripping the hard oxide layer and re-anodizing alters the outer diameter and destroys the precision TIR of the roller. However, because aluminum tubing is relatively inexpensive compared to solid steel, it is highly cost-effective to simply order a brand-new AstraRoll replacement.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
