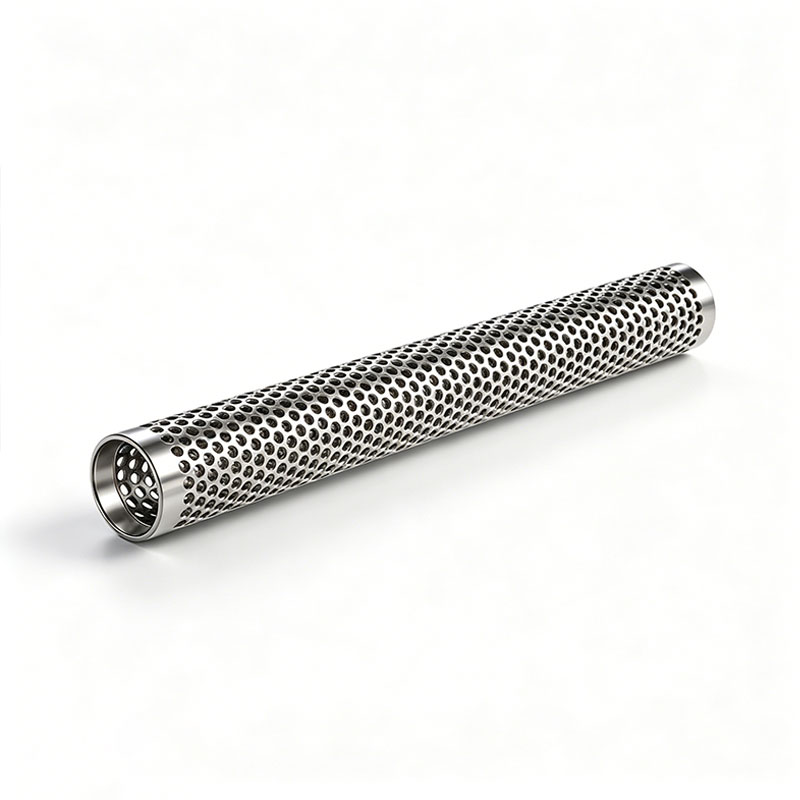

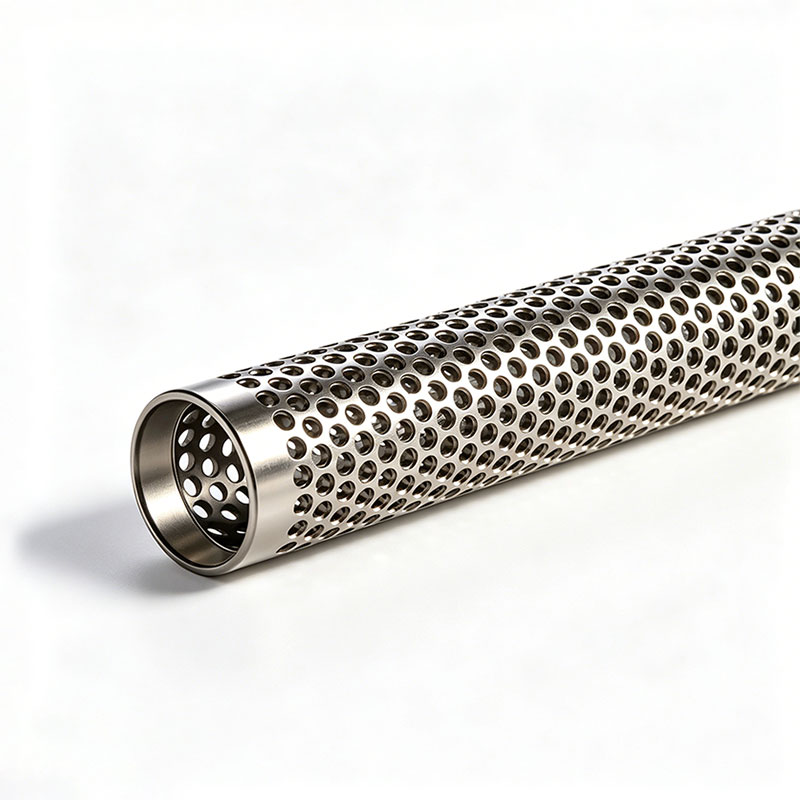

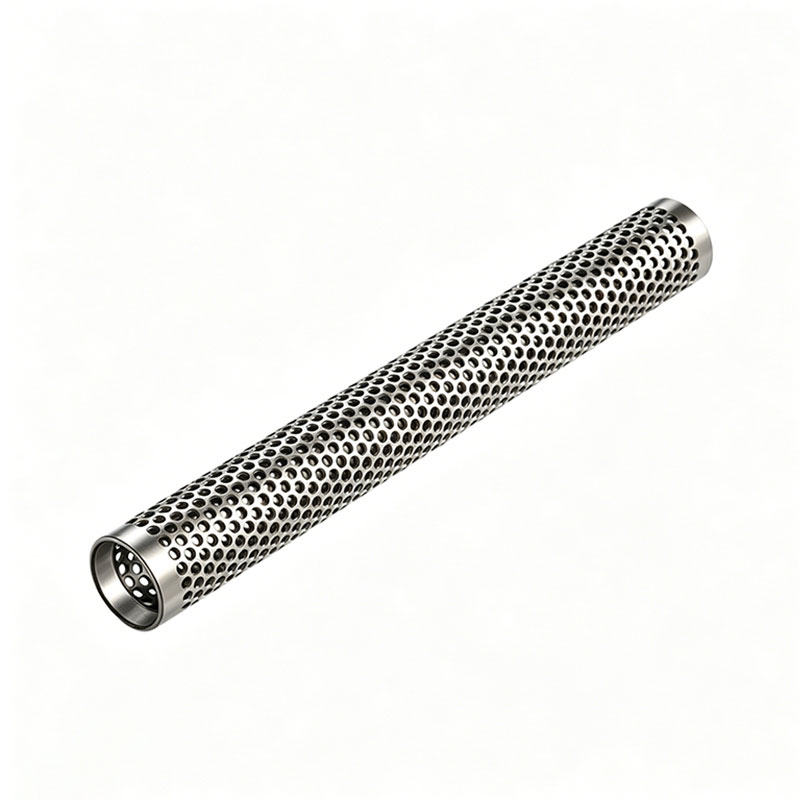

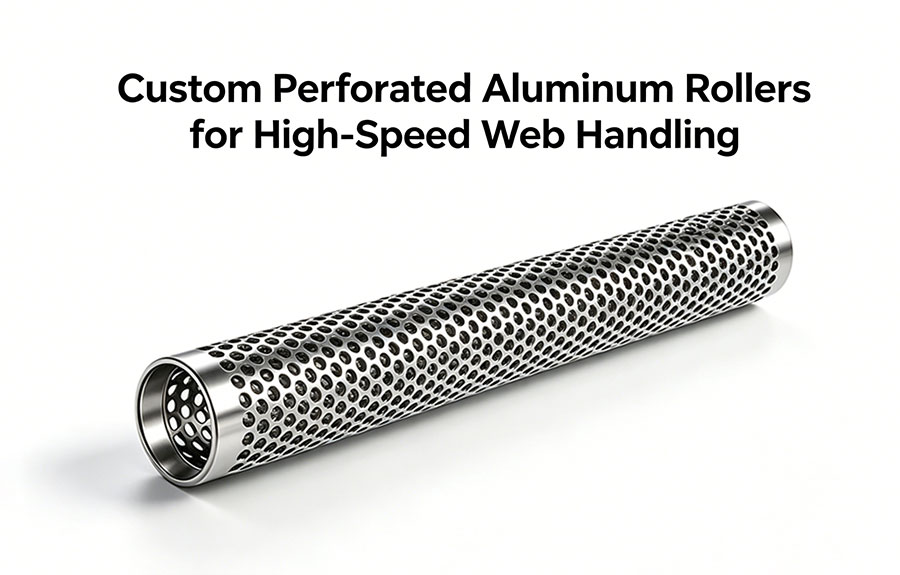

Custom Perforated Aluminum Rollers for High-Speed Web Handling

The AstraRoll Technical Advantage: Mastering Air & Tension

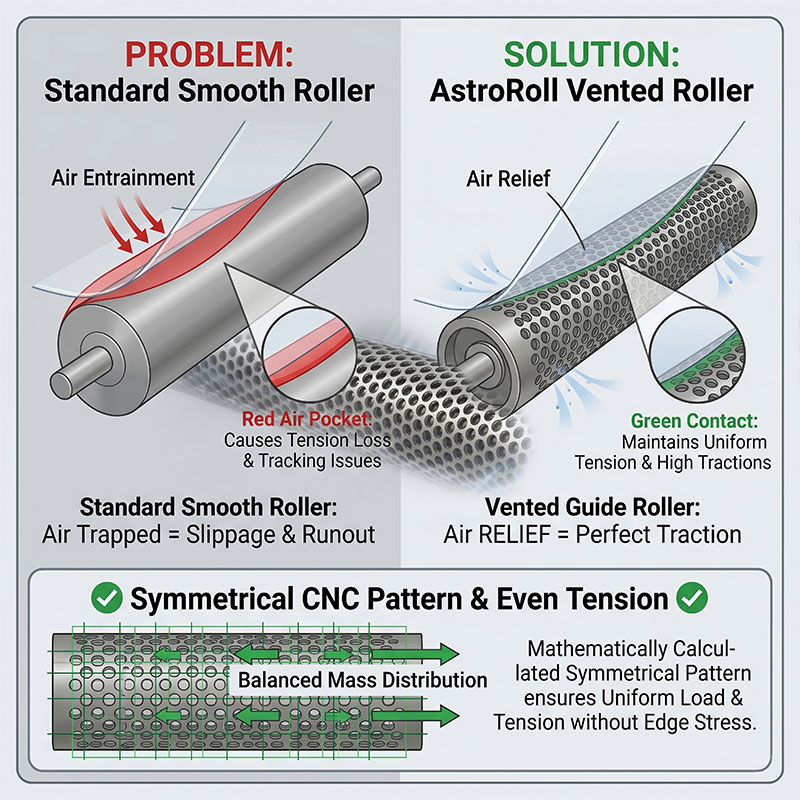

Standard solid rollers act as air-traps at high speeds. We engineered our Perforated Series to let your web breathe and track perfectly:

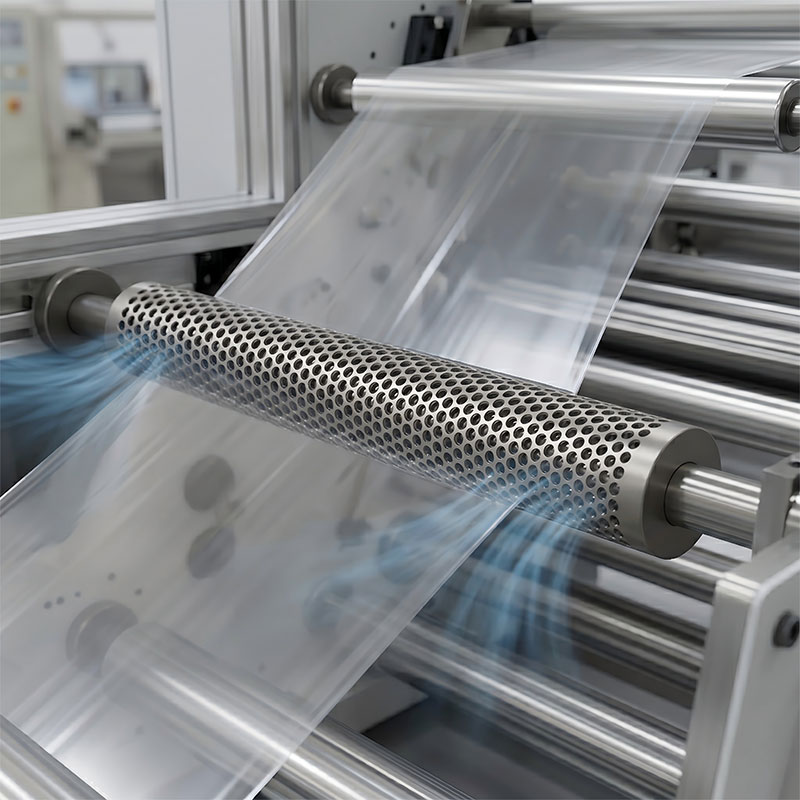

Zero Air Entrainment: The multi-hole surface breaks the aerodynamic boundary layer. Air trapped under the web is instantly forced into the holes and expelled, ensuring 100% surface-to-web contact even at extreme processing speeds.

Vacuum & Air-Flotation Compatibility: AstraRoll can manufacture these rollers as hollow "shells" designed to connect to your facility's blower systems. Draw a vacuum to pull the web tight against the roller for tension isolation, or pump air out to create a frictionless "air bearing" for the web to float over wet coatings.

Featherweight Rotational Inertia: Removing mass by perforating the aluminum creates a roller that is incredibly light. It accelerates and decelerates instantly with your web, completely eliminating the skidding and scratching caused by heavy, sluggish rollers.

Burr-Free Precision Machining: A poorly drilled hole will snag and tear delicate battery foils or optical films. AstraRoll uses advanced CNC milling and internal deburring processes to ensure every single perforation is perfectly smooth and chamfered, protecting your most fragile payloads.

Key Specifications & Custom Capabilities

Please note: We manufacture entirely to your specifications. The following are our standard operating ranges.

Outer Diameter (O.D.): Custom from 3" (75mm) up to 12" (300mm)+.
Face Length: Custom manufactured up to 120" (3,000mm)+.
Hole Diameter: Precision drilled from 1.5mm to 10mm+ depending on application.
Porosity (Open Area): Custom calculated to balance airflow requirements with structural rigidity.
TIR (Runout): Standard ≤ 0.002" (0.05mm).
Dynamic Balancing: ISO G2.5 at your maximum specified operating speed.

Why Choose AstraRoll? (Your Web Handling OEM Partner)

1. Bespoke Hole Patterns for Specific Webs

Not all webs are the same. A heavy paper web requires different air displacement than a 5-micron BOPP film. Our engineering team calculates the exact hole size, pitch, and stagger-pattern needed to maximize your line speed without compromising the crush-resistance of the aluminum tube.

2. Factory-Direct Precision

Complex CNC-perforated rollers are often the most expensive components sourced from specialty catalog brands. By partnering directly with the AstraRoll manufacturing facility, you bypass the distributor markups, receiving world-class, hard-anodized vacuum and porous rollers at authentic B2B OEM pricing.

Frequently Asked Questions (FAQs)

Q: Does drilling holes into the aluminum make the roller too weak?
A: No. We use high-strength extruded aluminum alloys (such as 6061-T6). Our engineers calculate the exact wall thickness required so that even with 30% of the surface area removed for perforations, the roller maintains zero-deflection under your specified web tension.

Q: Can you build this as a complete Vacuum Roller assembly?
A: Yes. We can supply just the perforated outer shell, or we can engineer the complete live-shaft vacuum assembly, complete with internal baffles, rotary unions for the vacuum connection, and masked zones so suction is only applied exactly where the web touches the roller.

Q: Will the holes leave marks or indentations on my material?
A: For thick materials, no. However, if you are running highly sensitive, ultra-thin foils or films under high tension, large holes could cause "dimpling." In these cases, we utilize a micro-perforation strategy (very small holes spaced closely together) and heavily chamfer the edges to ensure the web remains perfectly flat.

Q: Can these rollers be used in a wet environment, like a washing or coating line?
A: Absolutely. Perforated aluminum rollers are excellent for wet applications, acting as drainage rollers. We apply a heavy Hard Anodized coating to protect the aluminum from corrosion, and the holes allow water, solvents, or excess coatings to drain straight through the web and the roller.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
