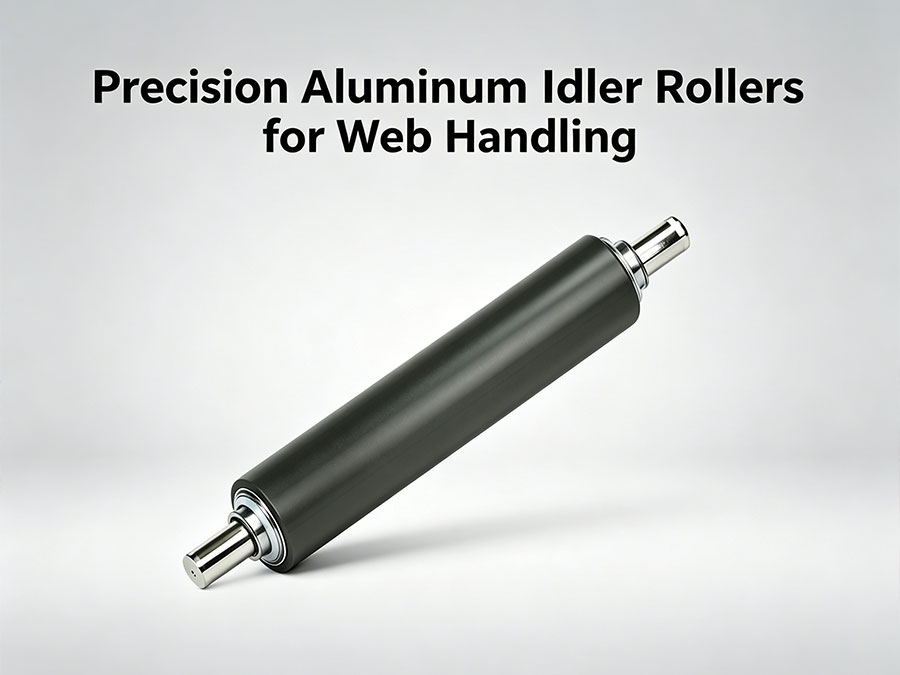

Precision Aluminum Idler Rollers for Web Handling

The AstraRoll Technical Advantage: Control the Web
A wandering or dragging idler roller destroys yield. We engineer our aluminum rollers to provide the most transparent, friction-free web path possible:

Ultra-Low Rotational Inertia: Aluminum is roughly one-third the weight of steel. This means the roller requires significantly less web tension to start spinning and stops immediately when the machine halts. This completely eliminates the "skidding" that scuffs printed graphics or tears thin gauge films.

Micro-Precision TIR: An out-of-round roller creates pulsing tension, leading to web breaks and uneven winding. Our state-of-the-art CNC lathes machine the outer diameter and bearing housings simultaneously, achieving a Total Indicator Runout (TIR) of less than 0.002 inches (0.05mm), ensuring a perfectly concentric spin.

High-Speed Dynamic Balancing: At 2,000 feet per minute, any imbalance turns a roller into a vibrator. Every AstraRoll idler is dynamically balanced on digital balancing machines to ISO G2.5 standards at your specific operating speed, protecting your web and your machine's frame from resonant vibration.

Premium Free-Spinning Bearings: For dead-shaft idlers, we utilize ABEC-rated, lightly lubricated (or dry-lube) shielded ball bearings. This allows the roller to spin freely under the lowest possible web tension, perfect for delicate substrates like optical films or tissue paper.

Key Specifications & Custom Capabilities

Please note: We manufacture entirely to your specifications. The following are our standard operating ranges.
Outer Diameter (O.D.): Custom from 2" (50mm) up to 10" (250mm)+.
Face Length: Custom manufactured up to 120" (3,000mm)+.
Tube Material: High-strength Aluminum Alloy (e.g., 6061-T6).
TIR (Runout): Standard ≤ 0.002" (Ultra-precision options available).
Shaft Material: Carbon Steel, Stainless Steel, or Aluminum.
Mounting Styles: Drilled and tapped shaft ends, flat-milled journals, or custom hex designs.

Why Choose AstraRoll? (Your Converting OEM Partner)

1. Advanced Air Entrainment Solutions

At high web speeds, a microscopic layer of air gets trapped between the web and the roller, causing the material to "float" and lose traction. AstraRoll engineers can CNC-machine precise spiral, reverse-V, or chevron grooves into the aluminum surface. This pushes the trapped air outward, restoring perfect grip and tension control even at maximum line speeds.

2. Direct-to-Factory Value

By sending your drawings directly to the AstraRoll manufacturing facility, OEMs and converting plants secure identical ISO-certified precision at aggressive wholesale B2B pricing.

Frequently Asked Questions (FAQs)

Q: Should I choose a "Dead Shaft" or a "Live Shaft" idler roller?
A: Over 85% of standard web handling applications use Dead Shaft idlers. Because only the aluminum tube rotates around a stationary shaft, the rotational weight is incredibly low, making them perfect for delicate webs. Live Shaft idlers (where the heavy shaft rotates with the tube) are used for extremely heavy loads, wide webs where shaft deflection is a concern, or when the roller needs to be driven by a motor.

Q: Why do I need Hard Anodizing?
A: Raw aluminum is soft and will eventually wear down or oxidize, transferring grey dust onto your product. Hard Clear or Hard Black Anodizing creates an aluminum oxide layer on the surface that is nearly as hard as diamond. This prevents the abrasive edges of paper or film from cutting grooves into the roller over time.

Q: Can you manufacture rollers with a very low drag torque for thin films?
A: Yes. If you are running ultra-thin films (like 10-micron battery separator foils) that require incredibly low web tension, we can equip your dead-shaft rollers with specialized low-friction, non-contact sealed bearings and ultra-light synthetic oils to reduce turning resistance to near zero.

Q: How do I order a replacement for an existing machine?
A: You do not need the original OEM's drawing. Simply provide us with the Outer Diameter, the Face Length (tube length), and the Overall Shaft Length, along with the shaft end details (e.g., tapped holes or flat cuts). We will manufacture a flawless drop-in replacement.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
