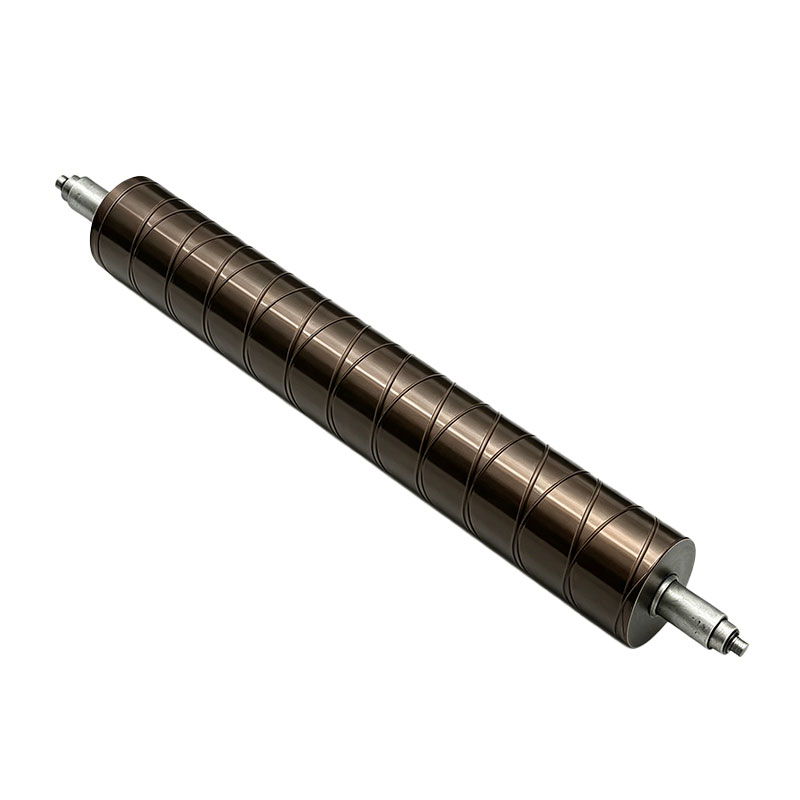

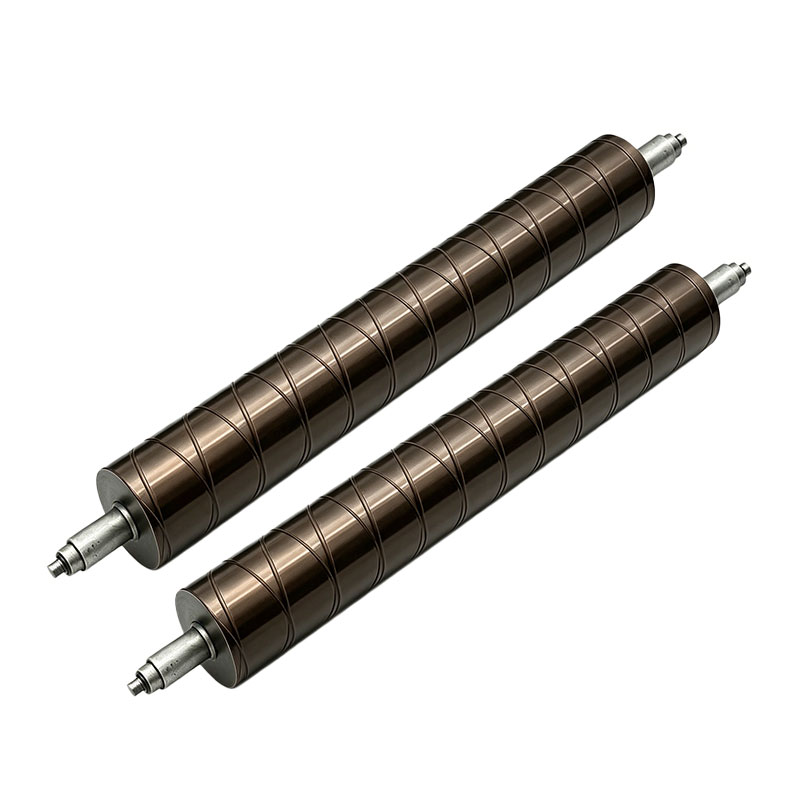

Custom Cross-Hatch Anodized Aluminum Guide Rollers

The AstraRoll Technical Advantage

Engineering a grooved roller that exhausts air without marking the web requires absolute machining precision:

Aerodynamic Air Venting: The CNC-machined cross-hatch grooves act as micro-exhaust channels. As the web wraps around the roller, the trapped air is instantly squeezed into the diamond channels and vented out to the edges, instantly restoring the coefficient of friction required for stable web tracking.

Traction Without Scratching: Unlike rough, sharp knurling that can scratch or emboss delicate films, our cross-hatch grooves are precision-machined with smooth, chamfered "lands" (the flat areas between the grooves). This provides aggressive traction without damaging optical-grade films or thin foils.

Ultra-Low Rotational Inertia: The roller body is extruded from high-strength aluminum with internal ribbing. This keeps the mass incredibly low, allowing the roller to instantly match the acceleration and deceleration of the web, completely eliminating bottom-surface drag and scratching.

Protective Anodizing: Bare aluminum oxidizes easily and leaves dark smudges on your product. We apply a uniform anodic oxide layer (Clear/White or Hardcoat) that seals the aluminum, increases surface hardness, and guarantees a pristine, clean-room-compliant component.

Key Specifications

Please note: Every AstraRoll grooved roller is custom-manufactured to match your specific machine width, web speed, and traction requirements.

Outer Diameter (O.D.): Custom from 40mm up to 250mm+.
Face Length: Custom manufactured from 200mm up to 4,000mm.
Groove Depth & Pitch: Custom calculated based on your web thickness and machine speed (typically 0.5 mm to 2 mm depth).
Surface Treatment: Standard Anodized (HV 200-250) or Hardcoat Anodized (HV 400+).
Dynamic Balancing: Grade G2.5 at your maximum operating RPM.

Why Choose AstraRoll?

1. Precision CNC Pattern Generation

Creating a uniform cross-hatch pattern on a long cylinder is complex. Cheaper manufacturers use aggressive knurling tools that displace metal and create sharp burrs. AstraRoll utilizes precision CNC turning to physically cut the intersecting grooves. This ensures the outer diameter remains perfectly uniform, guaranteeing a vibration-free run that will never emboss your delicate substrates.

2. Turnkey Idler Assemblies

We supply our Custom Cross-Hatch Aluminum Guide Rollers ready for immediate installation. For "Dead Shaft" models, we precision-bore the tube ends and press-fit high-grade, low-friction ball bearings (such as NSK or SKF) directly into the aluminum core, ensuring ultra-low starting torque right out of the crate.

Frequently Asked Questions (FAQs)

Q: Will the cross-hatch (diamond) pattern leave an impression on my plastic film?
A: If you are running an exceptionally thin, highly sensitive film (like a 10-micron lithium battery separator) under high tension, a deep groove might leave a faint impression. For these ultra-delicate applications, our engineers will design a micro-groove profile—very shallow and closely spaced—and heavily polish the lands to ensure maximum air exhaustion with absolutely zero web marking.

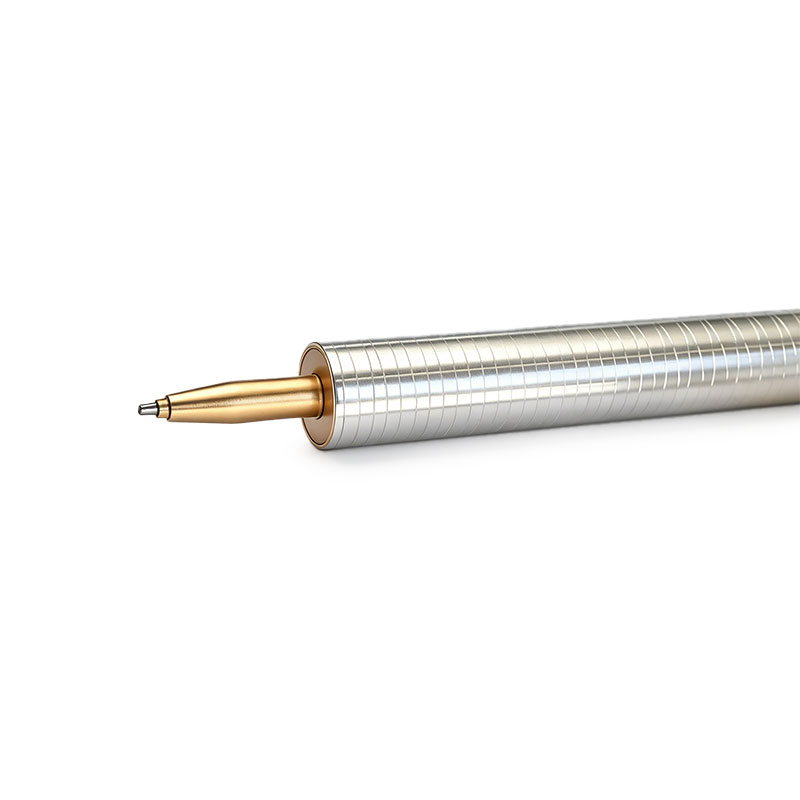

Q: Why do some of your rollers have gold or colored ends but a silver body?
A: This is a custom anodizing request. In multi-roller machines, operators often need visual cues to identify different roller types (e.g., smooth vs. grooved, or dead shaft vs. live shaft). We can anodize the end caps or shaft extensions in Gold, Blue, or Red while keeping the main roller body clear/silver for easy visual factory management.

Q: Does a cross-hatch roller need dynamic balancing?
A: Absolutely. In fact, any roller operating at high speeds (where a cross-hatch pattern is necessary to prevent air entrapment) must be dynamically balanced. We balance every Grooved Aluminum Idler Roller to ISO G2.5 standards to ensure it does not introduce any vibration or chatter into your high-speed web.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
