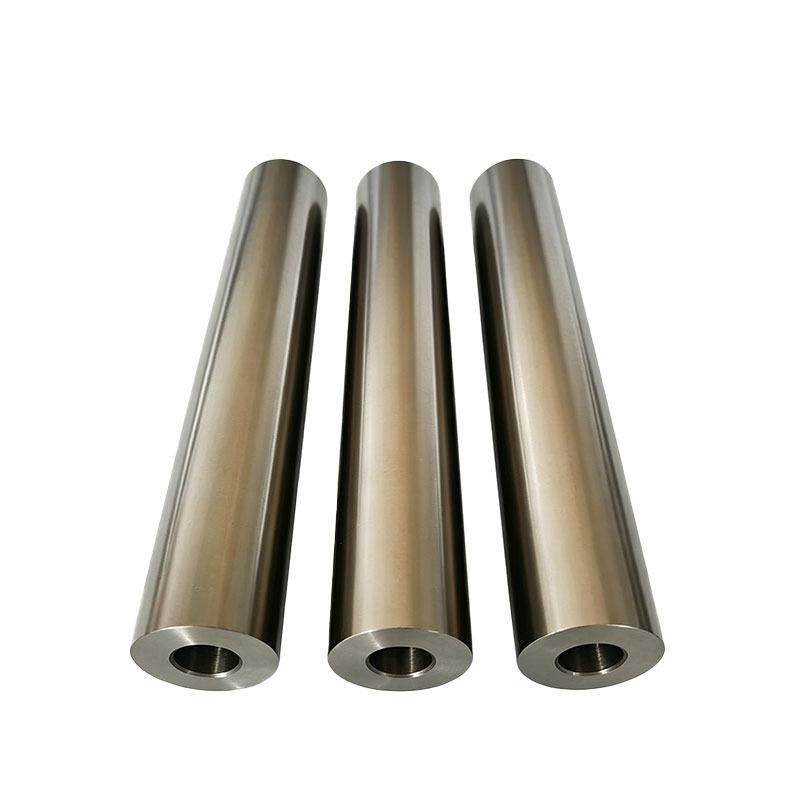

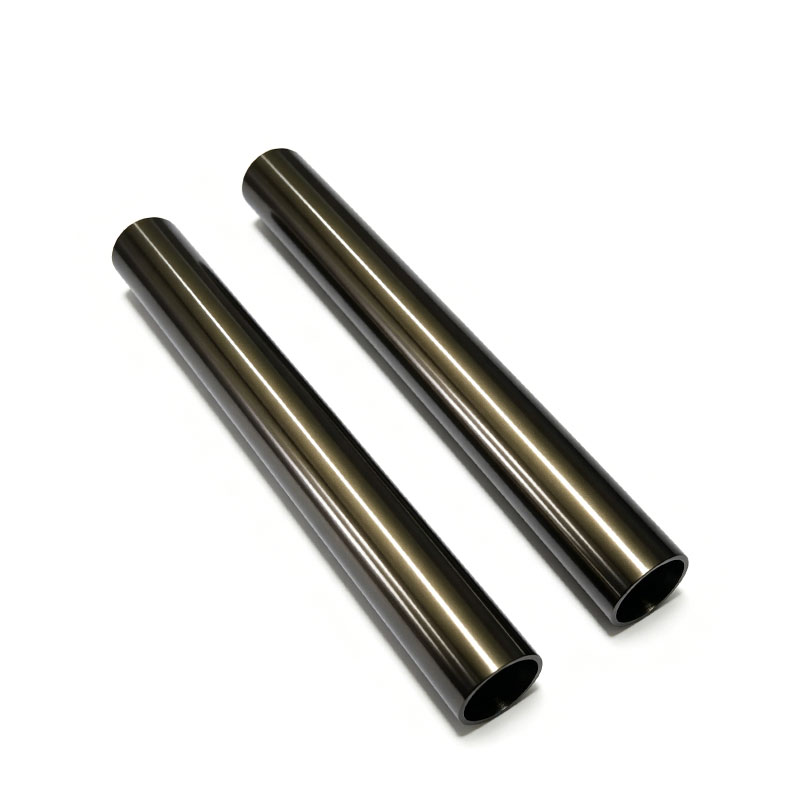

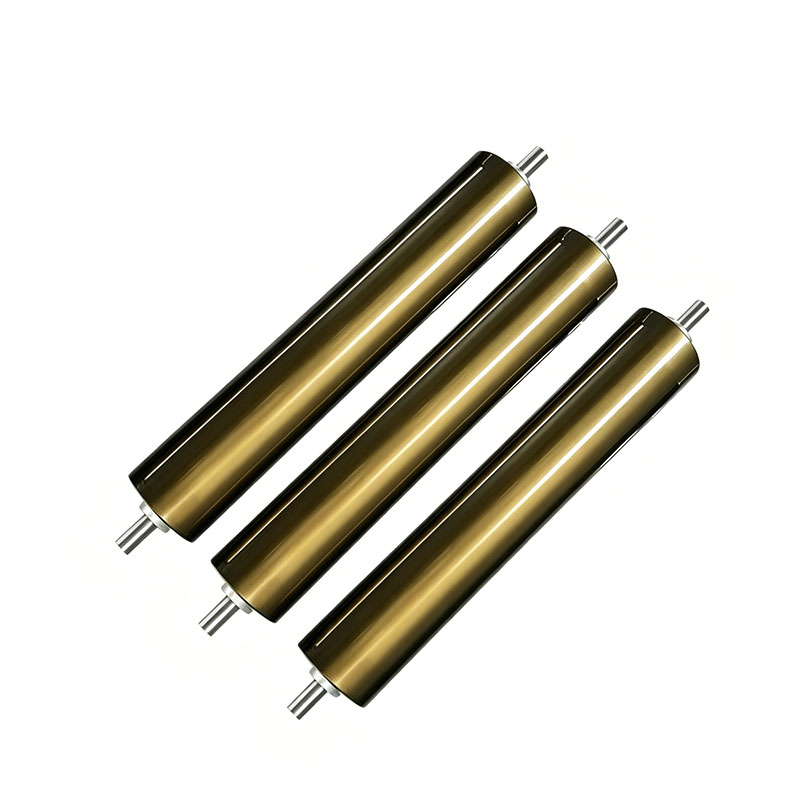

Precision Bronze Hard Anodized Aluminum Guide Rollers
Product Overview:
In high-speed roll-to-roll manufacturing—such as lithium battery foil coating, optical film slitting, or high-speed printing—the guide rollers (idler rollers) must perform flawlessly. If a roller is too heavy, its high rotational inertia will cause it to drag during machine acceleration, scratching and stretching the delicate web. Standard steel rollers are too heavy, and bare aluminum rollers wear out rapidly, creating aluminum dust that contaminates cleanrooms. The AstraRoll Precision Bronze Hard Anodized Aluminum Guide Roller is the ultimate solution. By utilizing advanced multi-ribbed aluminum extrusions, we create a roller that is incredibly lightweight yet structurally rigid. We then apply a proprietary Bronze Hardcoat Anodizing process followed by ultra-fine mirror polishing. This creates a glass-smooth surface with exceptional hardness (exceeding HV 400) that will not scratch optical films or wear down under abrasive copper foils. Dynamically balanced for high-speed, vibration-free rotation, these rollers guarantee perfect web tension and pristine material quality.
Roll Function: Spreader Roller, Material Handling
Industry Applications: Printing, Packaging, Converting, New Energy, Electronics
Inquiry Email: sales@astraroll.com
Precision Bronze Hard Anodized Aluminum Guide Rollers Details
The AstraRoll Technical Advantage
Manufacturing an optical-grade aluminum guide roller requires perfect extrusion, precision machining, and strict electrochemical control:
Bronze Hardcoat Anodizing: Standard decorative anodizing is only a few microns thick. Our hard anodizing process grows a dense, thick layer of aluminum oxide crystals deep into the metal, achieving a surface hardness rivaling hardened steel. The signature bronze/brown color is an indicator of this specific, high-density hardcoat process, highly favored in the clean energy and electronics sectors for its anti-glare and high-contrast properties during optical web inspection.
Ultra-Low Inertia Architecture: The internal cavity of the roller is extruded with cross-ribs or spoke patterns. This maximizes structural rigidity (preventing the roller from bowing under web tension) while keeping the mass exceptionally low. The roller spins up instantly with the web, completely eliminating slippage and scratching.
Mirror-Polished Scratch Prevention: For applications like lithium-ion battery separators (which can be as thin as 9 microns), even microscopic surface pores can tear the film. Our rollers undergo rigorous cylindrical grinding and mirror polishing (Ra 0.2) to ensure a perfectly smooth, frictionless web path.
Computerized Dynamic Balancing: At web speeds exceeding 800 m/min, any imbalance causes severe vibration, leading to web flutter and tension spikes. Every AstraRoll guide roller is dynamically balanced to ISO 1940 G2.5 standards at your machine's specific operating RPM, guaranteeing a whisper-quiet, vibration-free run.
Key Specifications
Please note: AstraRoll aluminum guide rollers are 100% custom-machined to match your specific machine width, web tension, and bearing configurations.
Extrusion Material: Aluminum Alloy 6063-T5 / 6061-T6.
Surface Hardness (Hard Anodized): HV 350 - HV 500 (Depending on alloy and coating thickness).
Outer Diameter (O.D.): 30 mm, 40 mm, 50 mm, 60 mm, 80 mm, 100 mm, up to 250mm+.
Face Length: Custom manufactured from 200mm up to 4,000mm.
Surface Roughness: Ra 0.2 μm (Mirror) to Ra 1.6 μm (Standard).
Dynamic Balancing: Grade G2.5 or G6.3.
Why Choose AstraRoll?
1. In-House CNC and Anodizing Control
Achieving a uniform bronze color and a precise hardcoat thickness requires incredibly strict control over the acid bath temperature and electrical current. By keeping both the CNC precision turning and the hard anodizing processes in-house, AstraRoll eliminates the dimensional inconsistencies and color variations that plague manufacturers who outsource their surface treatments.
2. Premium Dead-Shaft Bearing Assemblies
The lowest inertia roller is useless if the bearings are stiff. For our "Dead Shaft" models, we CNC-bore the aluminum tube ends to perfect H7 tolerances and press-fit high-grade, low-friction precision ball bearings (e.g., NSK or SKF). This ensures the starting torque of the roller is virtually zero, allowing even ultra-low tension webs to rotate the roller effortlessly.
Frequently Asked Questions (FAQs)
Q: Why is the roller specifically "Bronze" or "Brown"? Can I get it in black or silver?
A: The bronze/brown hue is the natural, undyed color result of a highly specific hardcoat anodizing process on 6000-series aluminum. This specific process yields the highest possible surface hardness and density. While we can dye rollers Black or leave them Clear/Silver, the Bronze color has become the visual standard in the electronics and battery industries to verify that the premium hardcoat process was applied.
Q: Should I choose a Dead Shaft or Live Shaft configuration?
A: Dead Shaft (Bearings inside the roller): The shaft is bolted rigidly to your machine frame, and only the aluminum tube spins around the bearings. This provides the absolute lowest inertia and is recommended for 90% of converting applications. Live Shaft (Shaft welded to the tube): The entire roller and shaft spin together in external bearing blocks. This handles higher web tensions but increases the overall rotating mass.
Q: Do you provide grooved aluminum rollers to remove wrinkles?
A: Yes. If your web suffers from wrinkling or air entrapment at high speeds, AstraRoll can CNC-machine precise Center-Out Spiral Grooves, V-Grooves, or Cross-Hatch (Diamond) Patterns into the aluminum surface prior to hard anodizing, transforming the guide roller into an active spreader/venting roller.
Q1. Are you a trader or direct factory?
We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.
Q2. What are your main products?
AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.
Q3. What about delivery time?
We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.
Q4. How can I get a quote for customized products?
Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.
Q5. What is your payment?
TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
