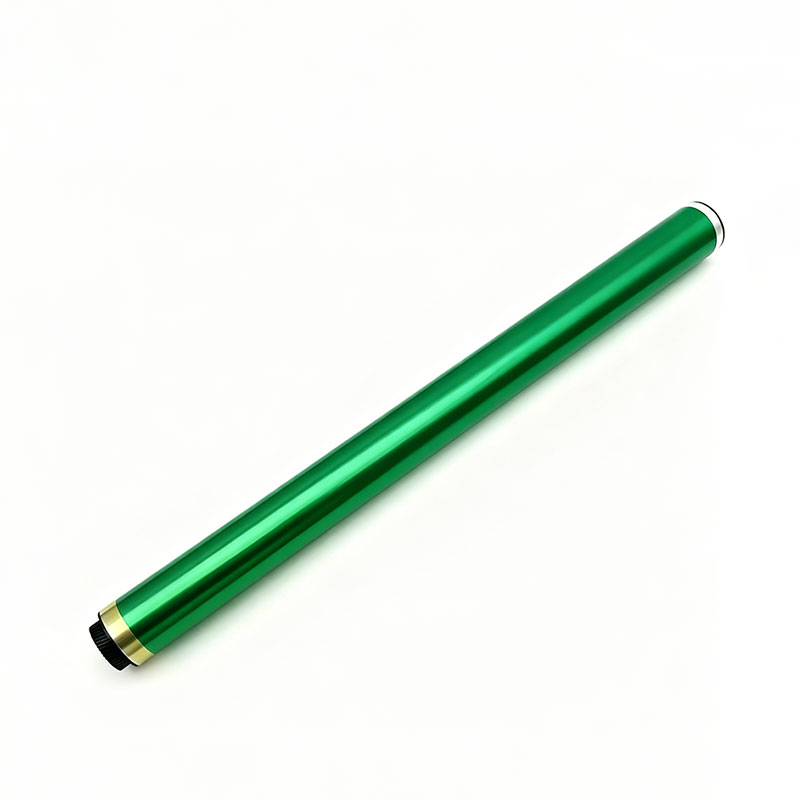

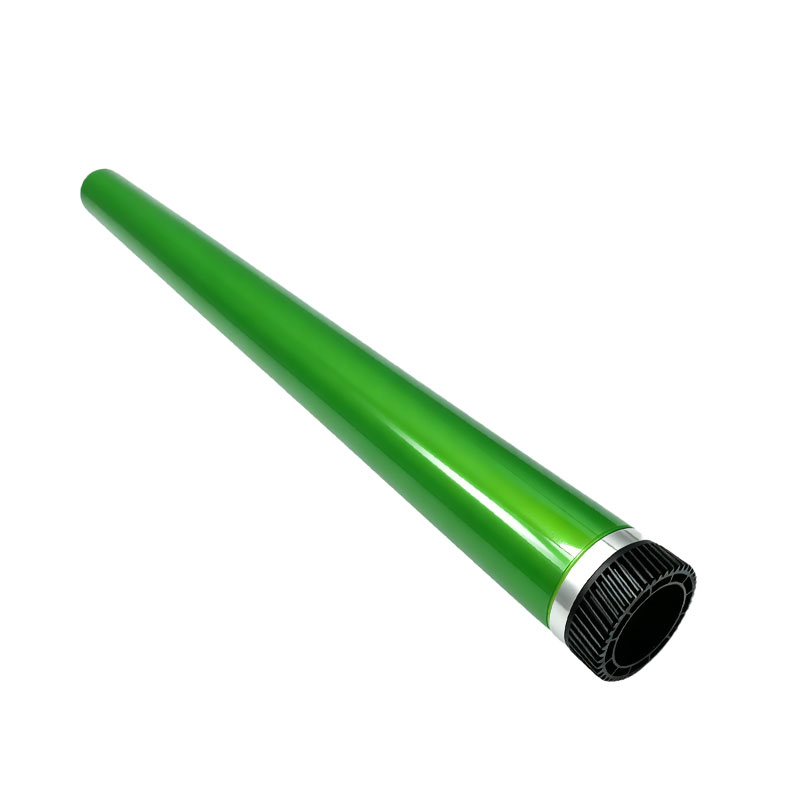

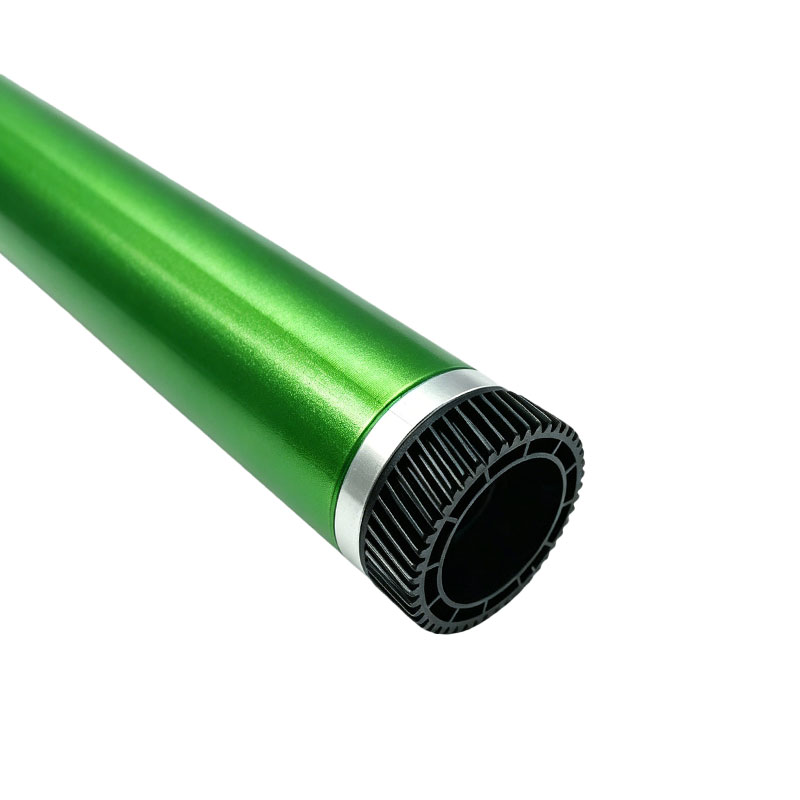

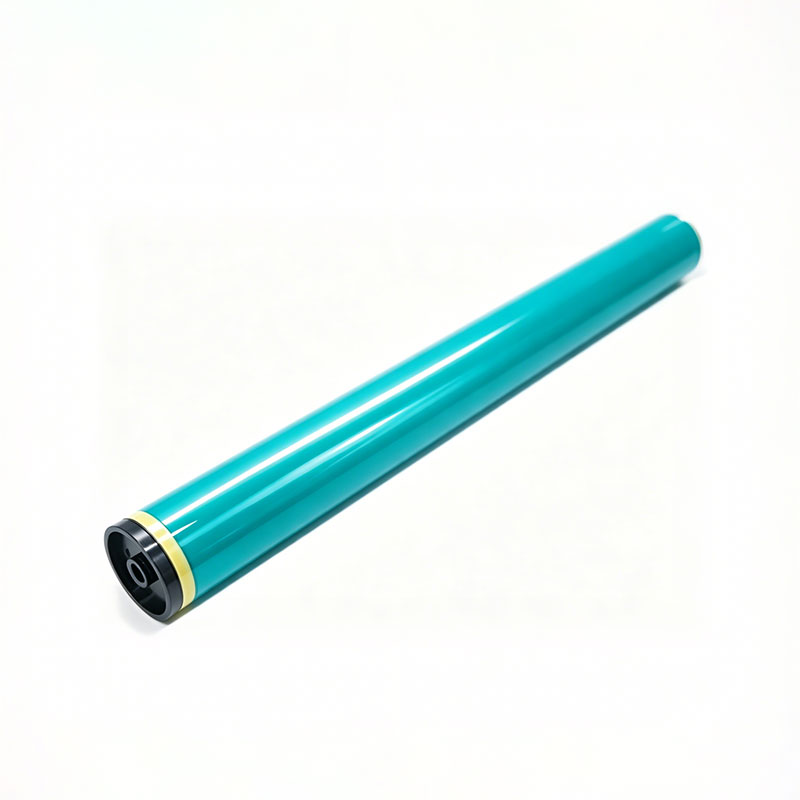

Customized Laser Printer Dedicated Photoconductor Drum

The Laser Printer Dedicated OPC Drum (Organic Photoconductor) manufactured by AstraRoll serves as the foundational core component within electrophotographic laser printing systems and high-speed digital copiers. Its primary purpose is to convert digital data into physical documents by receiving laser light and transferring toner onto paper fibers.

Operating at the center of the xerographic process, the OPC drum undergoes a sequence of high-frequency cycles: precise electrostatic charging via the Primary Charge Roller (PCR), selective laser exposure to form microscopic latent images, toner development, and high-efficiency transfer onto the printing medium.

Precision Engineering & Micro-Structure Details

Every AstraRoll OPC drum is constructed using a multi-layer thin-film architecture applied over a seamless aluminum substrate to guarantee flawless electrical and mechanical performance:

Aluminum Core Substrate: Extruded and centerless-ground from premium-grade aluminum alloys, ensuring absolute concentricity and vibration-free rotation at high speeds.

UCL (Undercoat Layer): A specialized barrier layer that blocks charge injection from the aluminum substrate, smoothing out microscopic surface imperfections and preventing localized electrical breakdowns (pinholes).

CGL (Charge Generation Layer): Utilizing highly purified organic carrier-generation pigments (such as titanyl phthalocyanine) that react instantly to specific laser wavelengths (typically 650nm–780nm) to generate electron-hole pairs.

CTL (Charge Transport Layer): A thick, durable top layer composed of specialized polycarbonate matrices and charge-transport molecules. It provides excellent mechanical hardness to resist blade wear while ensuring ultra-fast charge mobility for sharp, ghost-free contrast.

Technical Parameters

Substrate Material: High-precision seamless Aluminum Alloy Tube (Grade 3003 / 6063)

Surface Treatment: Chemical precision cleaning, mirror-anodizing, and ultra-sonic degreasing to ensure flawless coating adhesion.

Surface Finish (Roughness): Ra less than or equal to 0.2μm (Achieved via precision centerless cylindrical grinding and polishing to minimize friction with cleaning blades).

Coating Technology: Automated dip-coating in a Class 100 dust-free cleanroom environment to guarantee zero surface defects, pinholes, or orange-peel effects.

Coating Thickness: Total OPC Layer: 18μm – 35μm (CGL-Charge Generation Layer: 0.2–0.5 μm; CTL-Charge Transport Layer: 18–32μm, strictly controlled within a tolerance of ±0.5 μm).

Straightness / Runout: ≤0.03 mm across the entire length of the drum to prevent uneven print density and tracking errors.

Concentricity: ≤0.02 mm to ensure uniform distance between the drum surface and the magnetic developer roller.

Dark Decay (Vd): Highly stable, maintaining charge retention > 90% after 5 seconds in dark environments.

Residual Potential (Vr): ≤15V under standard laser exposure, preventing background fogging and ghosting during high-speed printing cycles.

Mechanical Hardness: Pencil Hardness ≥ 2H (Polycarbonate matrix formulation optimized for scratch and abrasion resistance).

Application Products

Office Laser Printers: Single-function and multi-function (MFP) monochrome and color desktop laser printers.

High-Volume Digital Copiers: Commercial-grade, high-speed digital copying systems and production-level print-shop equipment (e.g., Konica Minolta Bizhub, Ricoh Aficio, Xerox WorkCentre series).

All-in-One Toner Cartridges: Ideal OEM-grade replacement cores for remanufacturing and compatible toner cartridge assembly factories.

Wide-Format Plotters: Engineering drawing printers and wide-format LED architectural plotters.

Why Choose AstraRoll's Laser Printer Dedicated OPC Drum?

Industrial-Grade Surface Engineering: Leveraging AstraRoll's extensive expertise in precision industrial rollers, our OPC drums feature an industry-leading surface finish. This ultra-smooth finish drastically reduces friction against the cleaning blade, eliminating chatter, line streaks, and premature blade flipping.

Extended Wear-Life & Cost Efficiency: By reinforcing our Charge Transport Layer (CTL) with high-density polycarbonate resin, our drums resist physical abrasion from paper dust, harsh toner additives, and mechanical friction. This yields a significantly higher page count per lifecycle, lowering the Total Cost of Ownership (TCO) for fleet managers.

Consistent Optical Density: Engineered with precise coating thickness control, AstraRoll OPC drums prevent uneven electrical potential. This ensures deep, rich blacks and crisp, sharp text fonts down to 2-point sizes without background shading or text blurring.

Flawless Environment Adaptability: Our organic photo-sensitive formulations are chemically stabilized to withstand wide ambient fluctuations. Whether operating in low-temperature/dry winter conditions or hot/humid tropical climates, the drum maintains stable electrical properties, eliminating climate-induced print fading.

Rigorous Quality Control: Every single batch undergoes stringent dark decay testing, ghosting evaluations, and continuous high-speed stress runs before leaving our facility, ensuring 100% reliability right out of the box.
