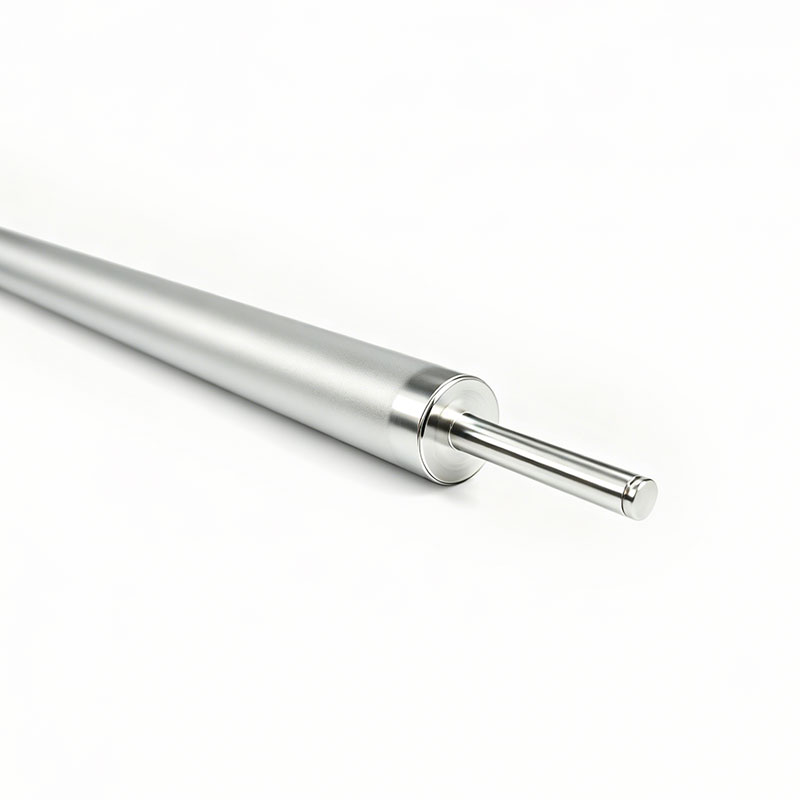

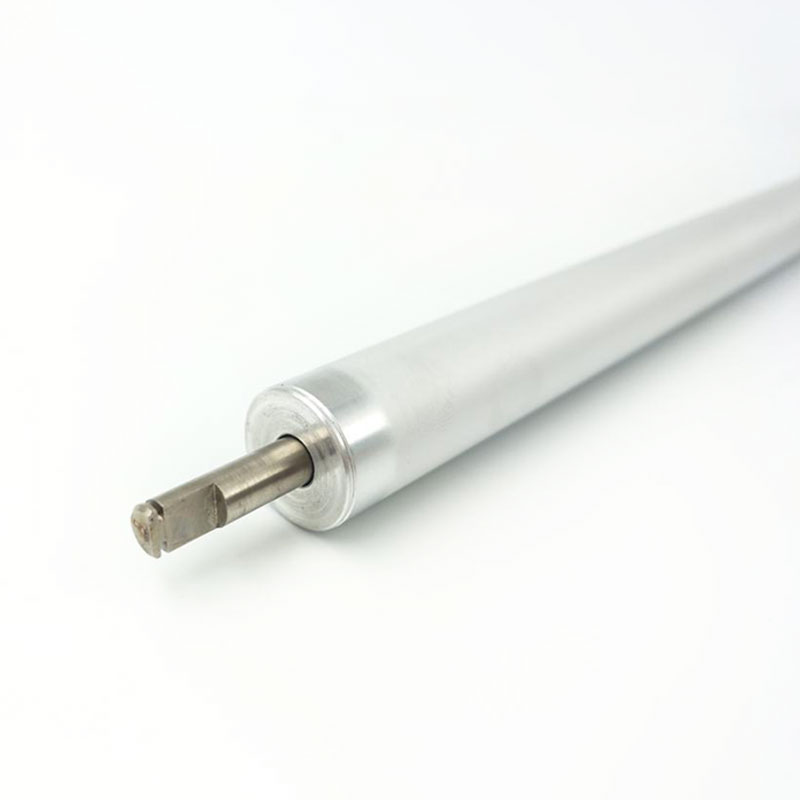

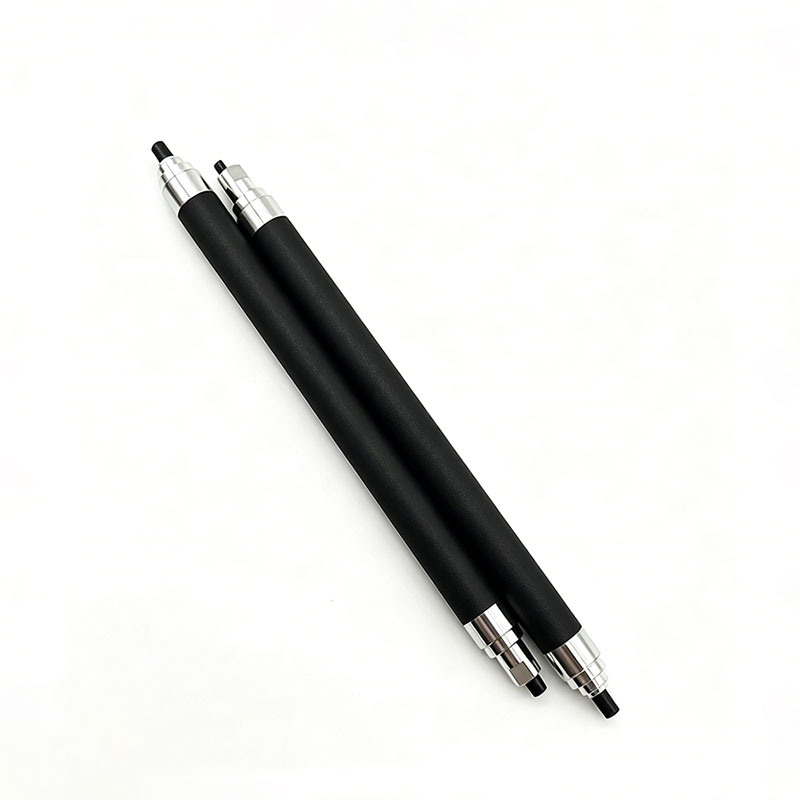

Magnetic and Developer Rollers Manufacturer for Laser Printers
Product Overview:
In laser electrophotographic printing, the developing roller (often called the magnetic roller) acts as the critical bridge between the toner hopper and the imaging drum. It consists of a stationary internal magnetic rod surrounded by a rapidly rotating, micro-textured aluminum sleeve. As the sleeve rotates, the internal magnets attract the iron-oxide-infused toner, forming a precise "brush" of powder on the surface. If the sleeve loses its surface roughness through wear, or if the magnetic flux is uneven, the printer will suffer from faded text, background shading (graying), or uneven print density. AstraRoll OEM-Grade Developing Rollers are engineered to eliminate these imaging defects. Manufactured with microscopic surface precision and perfectly tuned magnetic fields, these rollers ensure the exact required volume of toner is charged and transported to the photoreceptor drum, guaranteeing crisp, high-resolution text and deep, solid blacks for both remanufacturers and commercial print environments.
Roll Function: Printing Roller, Material Handling
Industry Applications: Printing, Electronics
Inquiry Email: sales@astraroll.com
Magnetic and Developer Rollers Manufacturer for Laser Printers Details
We engineer our developing rollers to master the complex physics of toner triboelectrification and magnetic transport:
Micro-Precision Surface Roughness: A smooth developer sleeve cannot carry toner. We utilize advanced, computer-controlled abrasive blasting to create a highly specific surface roughness (Ra value) tailored exactly to the micron-size of the target toner particles, ensuring a uniform, unbroken layer of ink.
OEM-Tuned Magnetic Flux: The stationary internal magnet features a complex multi-pole design (e.g., a strong pole at the doctor blade for metering, and a development pole at the drum). AstraRoll measures and replicates the exact OEM Gauss ratings and pole angles, preventing toner scatter and background fogging.
Dynamic Concentricity: The gap between the developer roller and the OPC drum is microscopic. If the roller is bowed or out of round, the toner will bridge the gap improperly. Our aluminum sleeves are drawn and machined to a strict Total Indicator Runout (TIR) of ≤ 0.02mm, ensuring flawless image resolution and preventing toner leakage.
Durable Conductive Coatings: For modern high-speed copiers, bare aluminum is not enough. We apply proprietary, highly wear-resistant conductive polymer coatings that stabilize the electrical charge of the toner over hundreds of thousands of pages.
Key Specifications
Please note: We manufacture entirely to the strict OEM specifications of your target machine brand.
Outer Diameter (O.D.): Custom from 10mm up to 60mm+ (Depending on cartridge size).
Length: Engineered to match OEM A4, A3, or wide-format developer units.
Magnetic Strength: OEM specified (typically ranging from 500 to 1,200 Gauss at peak poles).
Surface Roughness (Rz/Ra): Strictly controlled to match specific toner formulations.
TIR (Total Indicator Runout): ≤ 0.02mm.
Why Choose AstraRoll?
1. Strategic Partner for Toner Remanufacturers
For large-scale cartridge remanufacturers, the developer sleeve is the most frequently replaced component after the OPC drum. AstraRoll provides bulk, high-yield magnetic rollers and bare aluminum sleeves that integrate seamlessly into your rebuilding lines, dramatically reducing your defect rates and ensuring your aftermarket cartridges rival OEM print quality.
2. Flexible Supply Formats
We understand that different repair depots have different needs. If you have the labor to rebuild units, we can supply thousands of high-precision bare aluminum sleeves to press over your existing magnets. If you need speed, we can supply complete drop-in magnetic roller assemblies (pre-assembled with the magnet core, sleeve, distance rollers, and gears).
Frequently Asked Questions (FAQs)
Q: Why are my prints suddenly looking faded or washed out?
A: If your toner cartridge is full but prints are light, the developing roller is likely the culprit. Over time, the friction from the toner and the doctor blade acts like sandpaper, polishing the aluminum sleeve perfectly smooth. A smooth sleeve cannot grip or carry enough toner to the drum. Replacing the developer sleeve restores the necessary friction and brings back dark, crisp prints.
Q: Do I need to replace the internal magnet, or just the outer aluminum sleeve?
A: Permanent magnets rarely lose their strength under normal office conditions. In 90% of remanufacturing cases, only the outer aluminum sleeve is worn out and needs replacement. However, if the magnetic core has been physically snapped, cracked, or exposed to extreme heat, the entire assembly must be replaced.
Q: Can I use the same magnetic roller for different brands of printers?
A: No. Every OEM (HP, Konica Minolta, Ricoh, etc.) designs its developer units with specific diameters, gear profiles, surface roughness values, and magnetic pole configurations. You must order the exact AstraRoll replacement part number that matches your specific machine model.
Q1. Are you a trader or direct factory?
We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.
Q2. What are your main products?
AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.
Q3. What about delivery time?
We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.
Q4. How can I get a quote for customized products?
Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.
Q5. What is your payment?
TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
