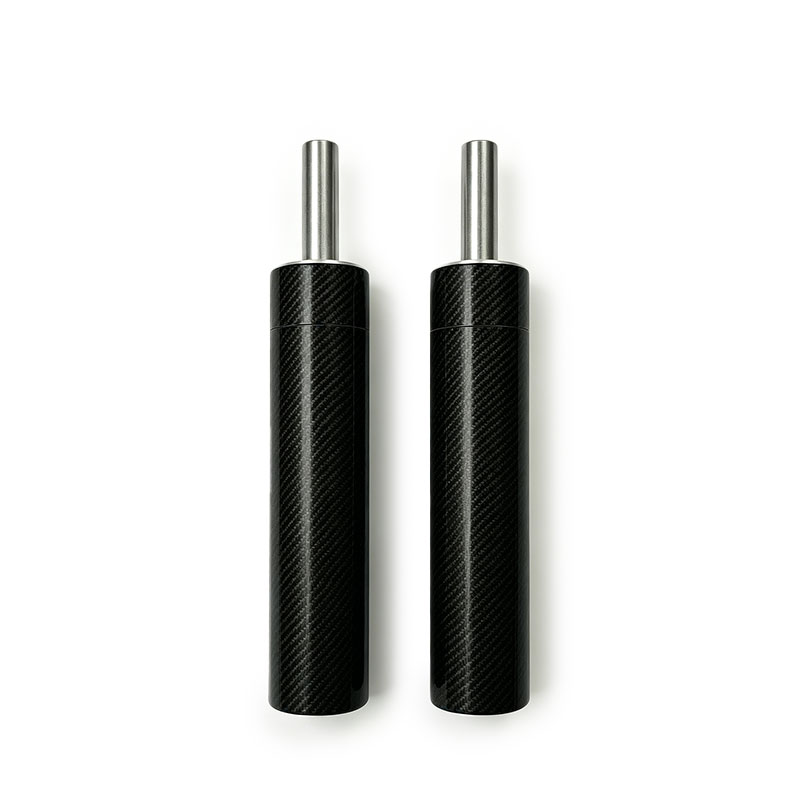

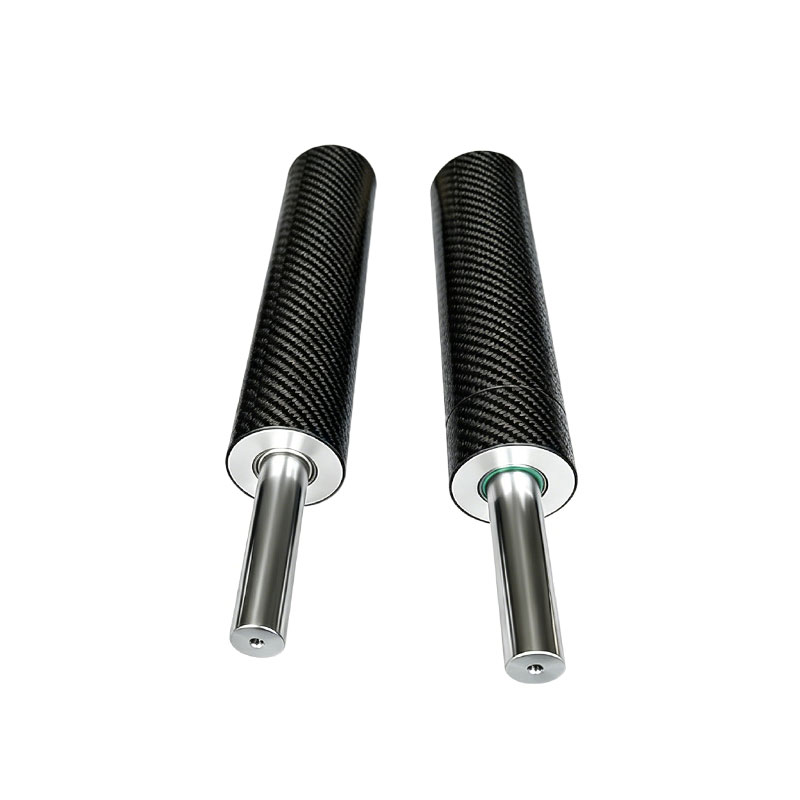

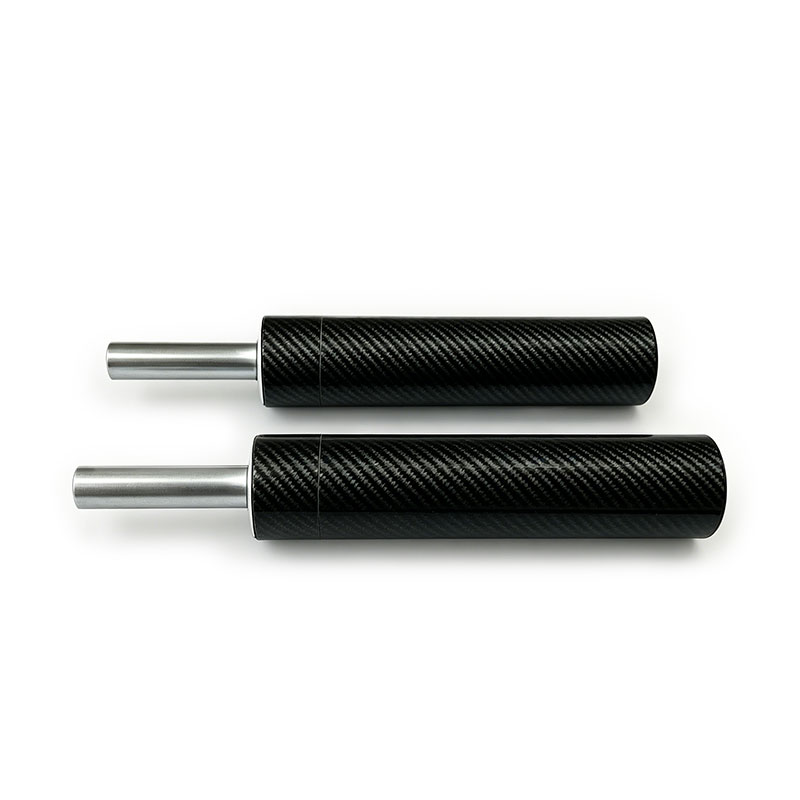

Custom Single-Ended Carbon Fiber Idler Roller for Web Handling

The AstraRoll Technical Advantage

Engineering a cantilever roller requires exceptional stiffness to counteract the physics of a one-sided load:

Zero Cantilever Deflection: The high modulus of elasticity in our prepreg carbon fiber tubes ensures that even when heavy tension is applied to the unsupported end of the roller, it remains perfectly parallel to the machine frame. This guarantees uniform tension across the web and flawless edge alignment.

Rapid Web Threading: By eliminating the outboard bearing support, operators can thread complex web paths in seconds rather than minutes. This drastically reduces machine downtime during roll changeovers or web breaks.

Ultra-Low Rotational Inertia: Narrow webs (like delicate labels or optical films) often lack the tensile strength to easily pull heavy metal rollers. The CFRP core is up to 80% lighter than steel, allowing the roller to spin effortlessly with zero frictional drag, preventing web stretching and scratching.

High-Torque Structural Bonding: Because all the mechanical stress is concentrated on a single shaft, standard adhesives will fail. AstraRoll utilizes proprietary interference-fit geometries and aerospace-grade structural epoxies to permanently bond the mounting shaft into the carbon fiber tube, ensuring it will never snap or shear under high web tension.

Primary Applications

AstraRoll Single-Ended Carbon Fiber Rollers are essential for machinery requiring open-sided web access:

• Narrow Web Label Printing: Flexographic, rotary screen, and digital label presses where quick threading is required.
• Tape & Medical Converting: Multi-layer laminating and die-cutting stations for medical patches and industrial adhesives.
• Battery Foil & Ribbon Processing: Handling narrow, highly sensitive metallic ribbons without edge distortion.
• Optical Fiber & Wire Guiding: Tension control accumulators and dancers for high-speed spooling.

Key Specifications

Please note: Every AstraRoll single-ended roller is custom-manufactured to match your specific machine frame mount and cantilever length.

Outer Diameter (O.D.): Custom from 30mm up to 150mm.
Face Length (Cantilever Reach): Optimized for narrow webs, typically 100mm up to 800mm.
Core Material: Roll-wrapped T300/T700 CFRP (3K Twill or Plain Weave visible).
Mounting Shaft: High-strength Stainless Steel (SUS304) or Alloy Steel, custom threaded or keyed to your frame.
Concentricity (TIR): CNC precision ground to ≤ 0.05mm.

Why Choose AstraRoll?

1. A True Carbon Fiber Guide Roller Manufacturer

Many suppliers buy pre-made carbon tubes and simply glue a metal shaft into one end, which inevitably breaks under industrial tension. AstraRoll engineers the entire assembly. We calculate the exact bending moment your web will exert on the cantilever, lay up the carbon fiber with specific directional orientation to resist that exact force, and precision-machine the integrated shaft housing for bulletproof reliability.

2. Turnkey Drop-In Replacement

You do not need to alter your machine's backplate to upgrade. Provide us with the drawing of your current metal cantilever roller. We will CNC-machine the exact same mounting thread, bolt pattern, or flange on our carbon fiber roller, allowing your maintenance team to screw it directly into your existing machine frame in minutes.

Frequently Asked Questions (FAQs)

Q: Is there a maximum length for a Single-Ended (Cantilever) roller?
A: Yes. Because the roller is only supported on one side, physics dictates that the longer the face length, the higher the leverage force on the mounting bearings. While carbon fiber performs exponentially better than metal, we generally recommend single-ended designs for Narrow Web Converting Rollers with face lengths under 800mm (approx. 31 inches). For webs wider than this, a standard double-supported roller is usually required.

Q: Are these rollers "Dead Shaft" or "Live Shaft"?
A: For single-ended idler applications, they are almost exclusively designed as Dead Shaft (Internal Bearing) rollers. The metal mounting pin is bolted rigidly to your machine wall and does not move. Precision ball bearings are housed inside the carbon fiber tube, allowing only the ultra-lightweight carbon shell to rotate around the stationary pin.

Q: Can you apply coatings to a single-ended carbon fiber roller?
A: Absolutely. While the polished carbon fiber surface is ideal for most applications, we can easily apply anti-static (ESD) coatings, high-grip Polyurethane (PU), or anti-stick Teflon coatings to the cantilevered tube based on your specific web requirements.
