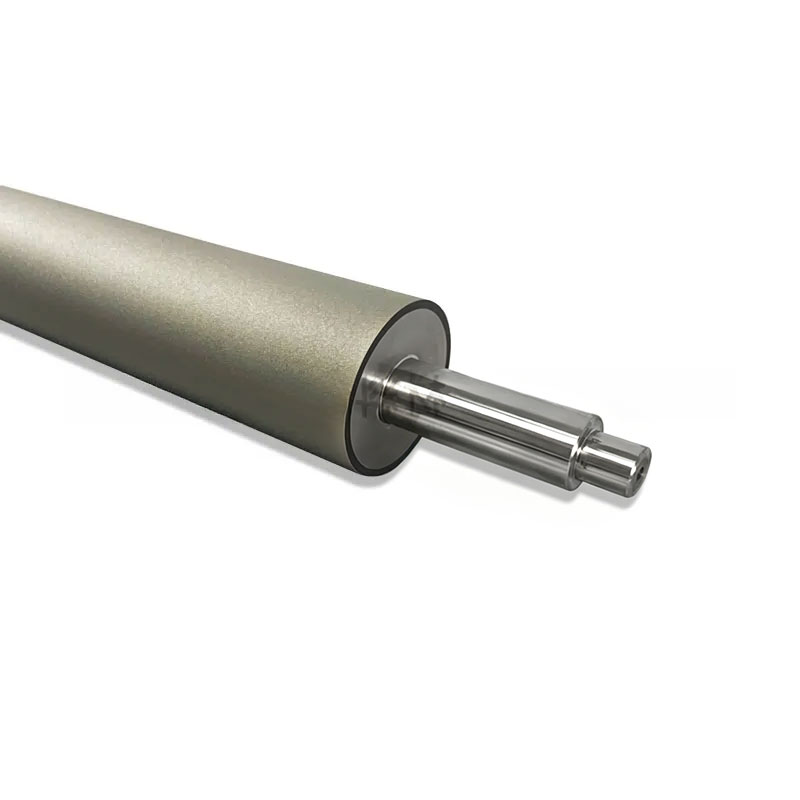

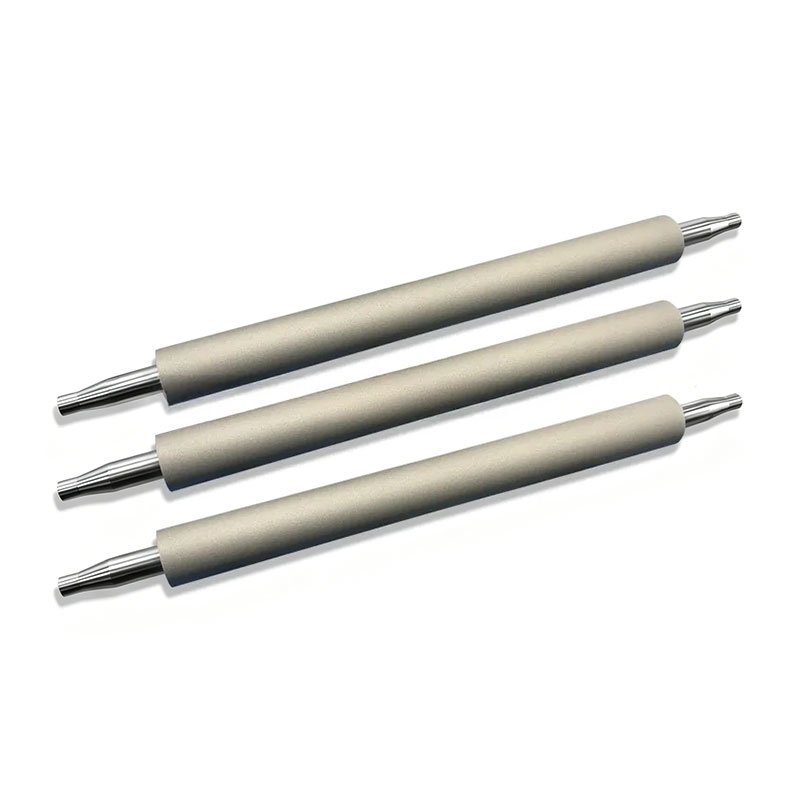

Custom Anti-Sticking Carbon Fiber Roller with Electroplated Coating

The AstraRoll Technical Advantage

Electroplating a metallic matrix directly onto a non-metallic composite tube requires absolute mastery of surface chemistry:

CFRP Metallization Technology: Carbon fiber cannot be electroplated using traditional methods. AstraRoll utilizes a proprietary multi-stage chemical activation and metallization process to create an unbreakable molecular bond between the carbon epoxy matrix and the metallic plating layer, ensuring the coating will never flake or delaminate under high web tension.

Co-Deposited Anti-Stick Matrix: Instead of simply spraying a soft Teflon topcoat that easily scratches off, we utilize composite electroless plating to co-deposit microscopic PTFE (Teflon) particles evenly throughout a hard Nickel matrix. This delivers the extreme wear resistance of metal combined with the permanent anti-stick properties of fluoropolymers.

Ultra-Low Rotational Inertia: The T300 carbon fiber composite core is up to 80% lighter than steel and 30% lighter than aluminum. The roller starts and stops effortlessly with the web, completely eliminating frictional drag and bottom-surface scratching on delicate optical or packaging films.

High Structural Stiffness: Even over wide spans of 3 to 5 meters, the high modulus of carbon fiber prevents the roller from bowing (deflecting) under web tension, guaranteeing perfect web tracking and uniform tension distribution.

Primary Applications (主要应用领域)

AstraRoll Anti-Sticking Electroplated CFRP Rollers are designed for critical tension zones where sticky materials must be processed without web-drag:

• Adhesive Tape & Label Converting: Guiding webs with exposed pressure-sensitive adhesives (PSA) or OCA without sticking or wrapping around the roller.
• Lithium Battery Manufacturing: Handling extremely thin, coated separator films where low inertia and static dissipation are mandatory to prevent tearing.
• High-Speed Printing: Functioning as low-inertia idlers immediately after printing stations to prevent wet ink from offsetting onto the roller.
• Flexible Packaging: Handling films right after hot-melt coating, extrusion lamination, or cold-seal adhesive applications.

Please note: Every AstraRoll carbon fiber roller is 100% custom-engineered to your machine's web tension, width, and specific adhesive challenges.

Outer Diameter (O.D.): Custom from 50mm up to 300mm.
Face Length: Custom manufactured from 300mm up to 5,000mm.

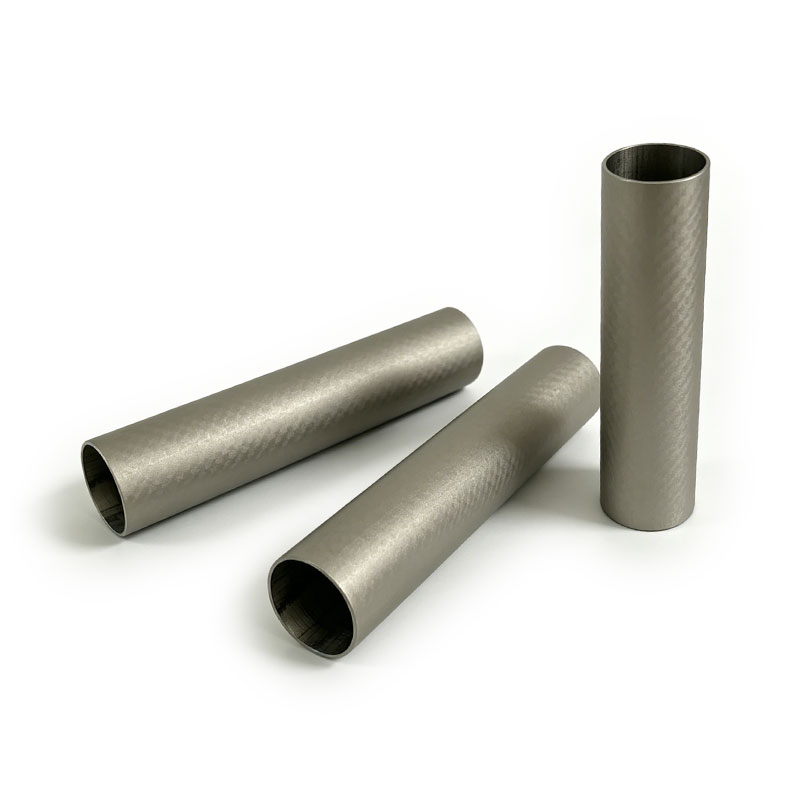

Core Material: Filament-wound or Roll-wrapped T300/T700 CFRP.
Coating System: Electroless Nickel-PTFE Composite or Micro-Textured Hard Chrome.
Concentricity (TIR): CNC precision ground to ≤ 0.05mm.
Dynamic Balancing: ISO Grade G2.5 at maximum operating speeds (up to G1.0 upon request).

Why Choose AstraRoll?

1. Customized Surface Topography

We do not just rely on chemical repellency. Based on your specific adhesive, AstraRoll engineers will customize the physical micro-texture of the electroplated layer. By creating a microscopic "orange peel" or matte finish, we drastically reduce the physical contact area between the roller and the web, mathematically minimizing the adhesive grip.

2. Turnkey Drop-In Replacements

Upgrading your machine to carbon fiber does not require costly frame modifications. Simply send us your existing heavy metal roller drawings. We will manufacture the electroplated CFRP roller with identical shaft extensions, keyways, and bearing housings, allowing your maintenance team to drop it straight into your existing equipment.

Frequently Asked Questions (FAQs)

Q: Are electroplated carbon fiber rollers electrically conductive?
A: Yes! This is a major advantage of an electroplated coating over a standard painted Teflon coating. The continuous metallic layer (Nickel or Chrome) provides an excellent path for static electricity to flow from the web to the machine's ground. This eliminates the massive electrostatic discharge (ESD) issues commonly associated with running plastic films over non-conductive rollers.

Q: Will the metal plating eventually peel away from the carbon fiber tube?
A: No. Delamination is a problem with low-quality suppliers who try to plate directly over smooth epoxy. AstraRoll uses a highly specialized chemical etching and activation process that creates microscopic mechanical interlocking points on the carbon fiber surface, ensuring a permanent, high-peel-strength bond between the composite and the electroplated metal.

Q: Can these rollers be cleaned with harsh industrial solvents?
A: Absolutely. The Electroless Nickel-PTFE composite and Hard Chrome matrices are highly chemically inert. If severe contamination does occur during a machine crash, maintenance teams can safely scrub the rollers down with aggressive solvents like MEK (Methyl Ethyl Ketone), IPA, Acetone, or Toluene without dissolving or degrading the anti-stick coating.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
