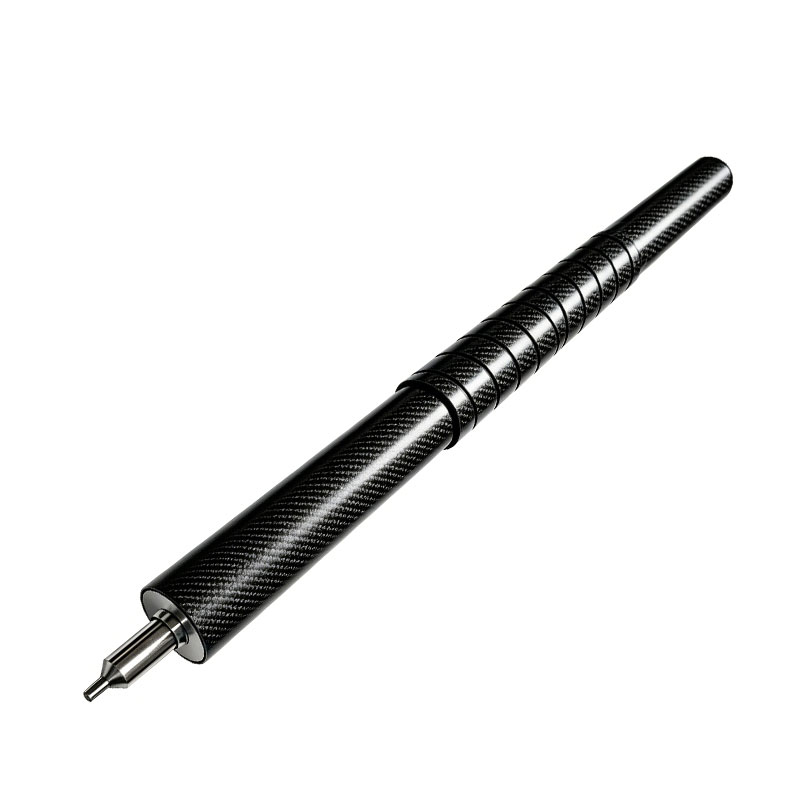

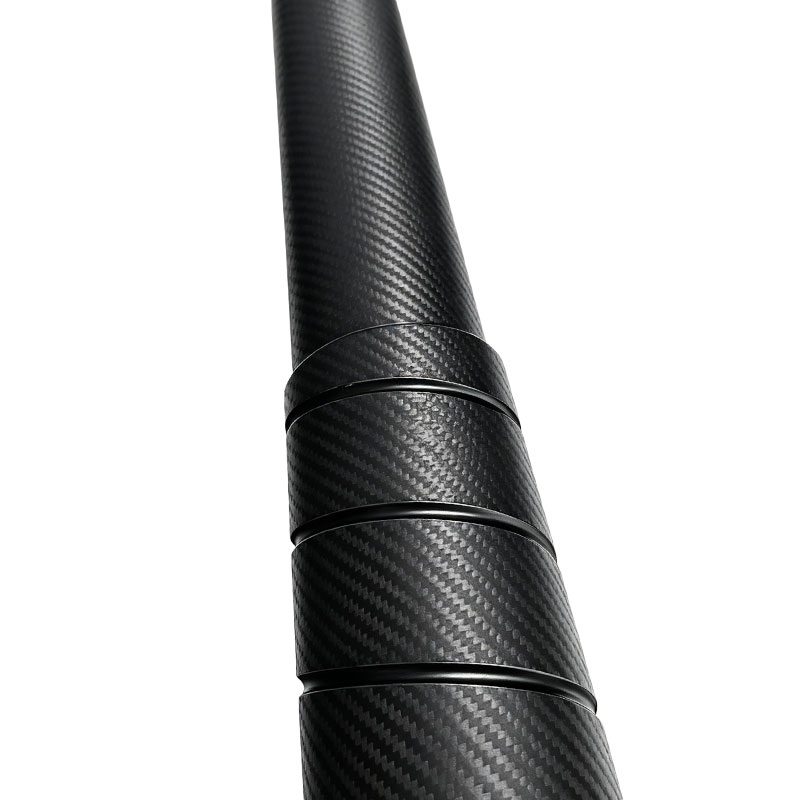

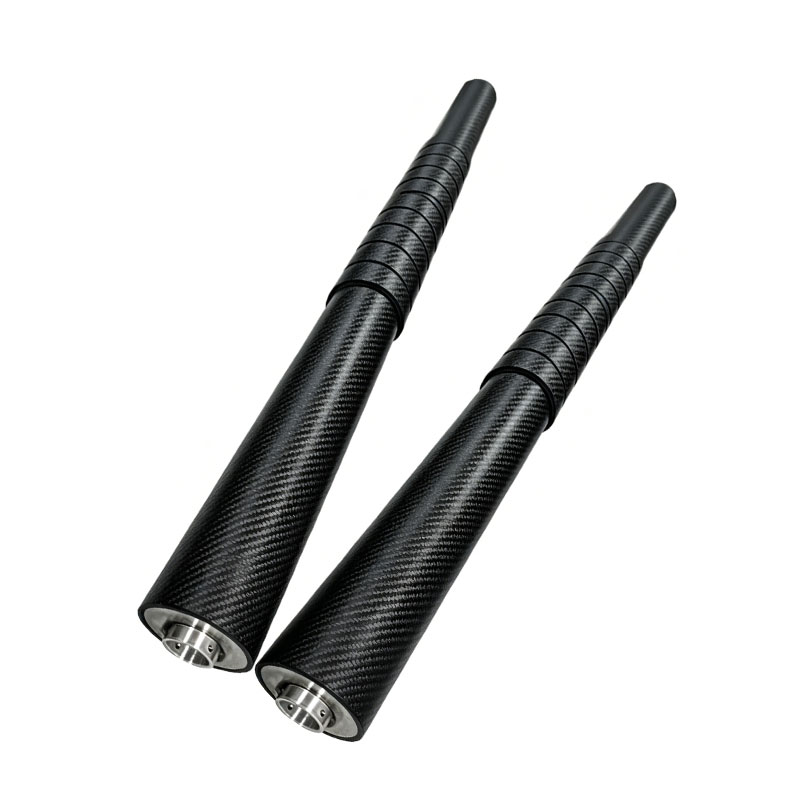

Custom grooved carbon fiber Spreader roller for Web Handling



The AstraRoll Technical Advantage

Machining precise functional grooves into carbon fiber composites requires specialized tooling to prevent fiber delamination:

Active Wrinkle Removal: We machine precision divergent spiral grooves (starting from the center and spiraling outward to the edges). As the web wraps around the roller, the edges of the grooves gently grip the material and pull it laterally, effectively smoothing out wrinkles before they can be pressed into the rewound roll.

High-Speed Air Exhaust: At speeds exceeding 400 m/min, air gets trapped between the web and the roller, causing a loss of traction. The CNC-slotted grooves act as aerodynamic exhaust channels, instantly squeezing out the boundary layer of air and restoring perfect web-to-roller contact.

Ultra-Low Rotational Inertia: A High-Speed Web Handling Carbon Fiber Roller requires virtually zero force to start or stop. This ultra-low inertia completely eliminates the "bottom-surface drag" that plagues heavy metal rollers, protecting delicate optical films and battery separators from micro-scratches.

Extreme Stiffness-to-Weight Ratio: On wide-web machines spanning 2 to 4 meters, metal rollers will bow in the middle. Carbon fiber's extreme modulus of elasticity ensures the spreader roller remains perfectly straight, guaranteeing uniform spreading action across the entire width of the web.

Primary Applications

AstraRoll Grooved CFRP Spreader Rollers are specifically designed for high-speed, low-tension applications where web stability is critical:

• New Energy / Lithium Battery: Spreading and guiding ultra-thin (10-micron) lithium-ion battery separator films where even the slightest tension spike or scratch ruins the product.
• Film Converting & Slitting: Functioning as the final pre-rewind roller to ensure BOPP, PET, and optical films are wound tightly without trapped air or wrinkles.
• Flexible Packaging: Maintaining web flatness prior to printing or laminating stations to ensure flawless registration.
• Non-Wovens & Tissue: Gently spreading lightweight, highly extensible materials without causing web breaks.

Key Specifications

Please note: Every AstraRoll grooved carbon fiber roller is 100% custom-engineered to your machine's web tension, width, and speed parameters.

Outer Diameter (O.D.): Custom from 50mm up to 250mm+.
Face Length: Custom manufactured from 300mm up to 4,000mm.
Core Material: Roll-wrapped T300/T700 Prepreg CFRP.
Groove Geometries: Center-Out Spiral, Chevron, Cross-Hatch, or Straight Micro-Slots.
Concentricity (TIR): CNC precision ground to ≤ 0.05mm.
Dynamic Balancing: ISO Grade G2.5 (or G1.0 upon request) at maximum operating speeds.

Why Choose AstraRoll?

1. Composite-Specific CNC Machining

Machining grooves into carbon fiber is notoriously difficult; standard metal-cutting tools will tear the carbon strands and cause catastrophic delamination. AstraRoll utilizes specialized diamond-tipped multi-axis CNC routers. This allows us to cut extremely clean, precise grooves into the composite matrix while perfectly chamfering the edges so they never catch or tear your delicate films.

2. Turnkey Dynamic Balancing

Once material is removed from a roller to create grooves, its balance is immediately compromised. AstraRoll subjects every completed grooved roller to rigorous computerized dynamic balancing. We strategically place micro-weights internally to achieve an ISO Grade G2.5 balance, ensuring zero harmonic vibration at high operational speeds.

Frequently Asked Questions (FAQs)

Q: Will the hard edges of the grooves scratch or mark my thin plastic films?
A: No. After the grooves are CNC machined, AstraRoll performs a secondary micro-polishing process. We carefully round off (chamfer) the transition edges of every groove and highly polish the "lands" (the flat outer surface). This guarantees a completely smooth, non-abrasive surface that gently guides the web without embossing or scratching.

Q: Can you apply a rubber or polyurethane coating over the carbon fiber before grooving?
A: Yes. If your application requires a higher coefficient of friction to effectively spread the web (for example, with heavy textiles or slippery coated papers), we can wrap the CFRP core in a thin layer of Polyurethane (PU) or NBR rubber, and then machine the divergent spiral grooves directly into the elastomer surface.

Q: How do I know if I need a Spreader Roller (Spiral Grooves) or just an Air Exhaust Roller (Straight/Cross-Hatch Grooves)?
A: If your primary problem is longitudinal wrinkles forming in the web, you need a Spreader Roller with center-out spiral grooves to physically pull the material flat. If your web is already flat but suffers from loss of traction and lateral wandering at high speeds (due to hydroplaning on a layer of air), you need an Air Exhaust Roller with straight or cross-hatch slots strictly designed to vent the trapped air. AstraRoll engineers will help you select the exact geometry for your line.
