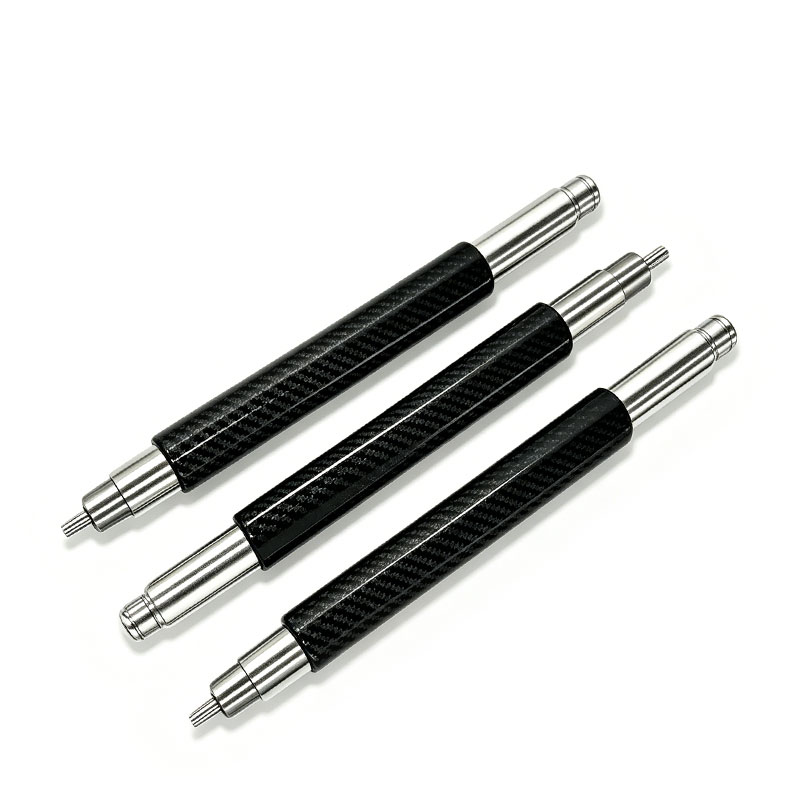

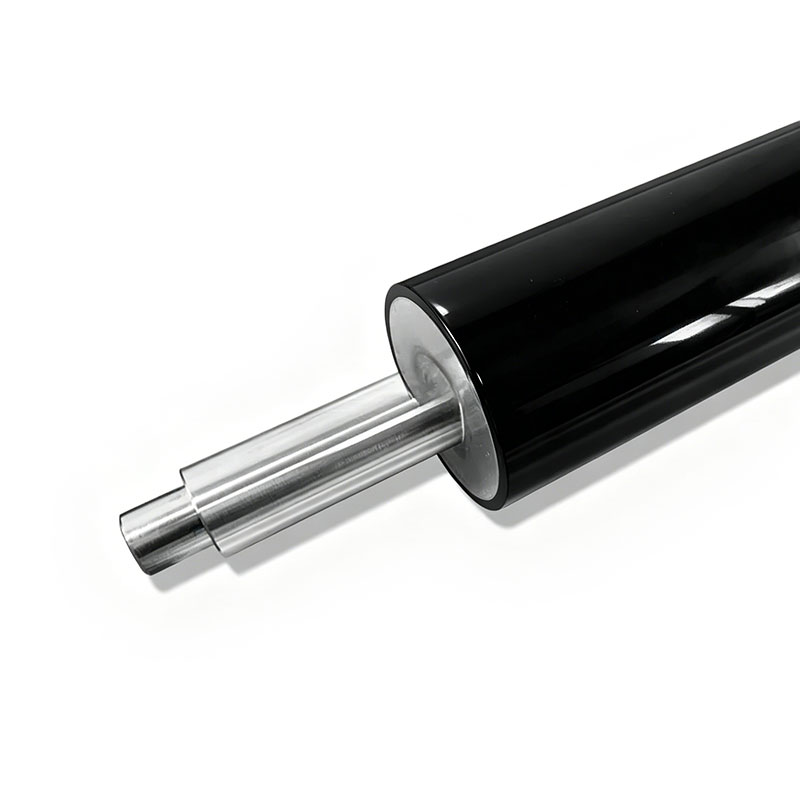

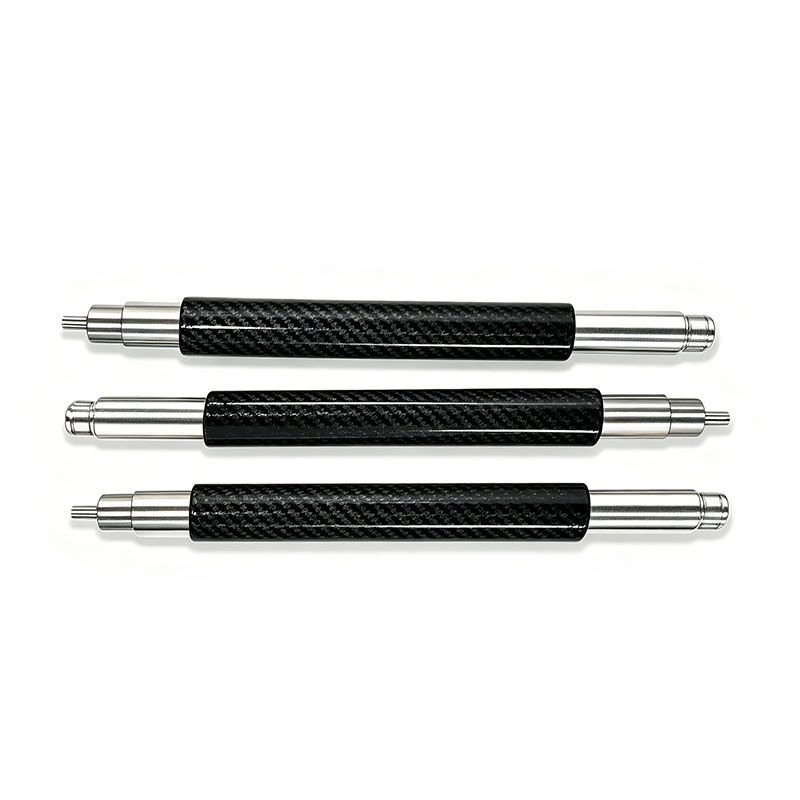

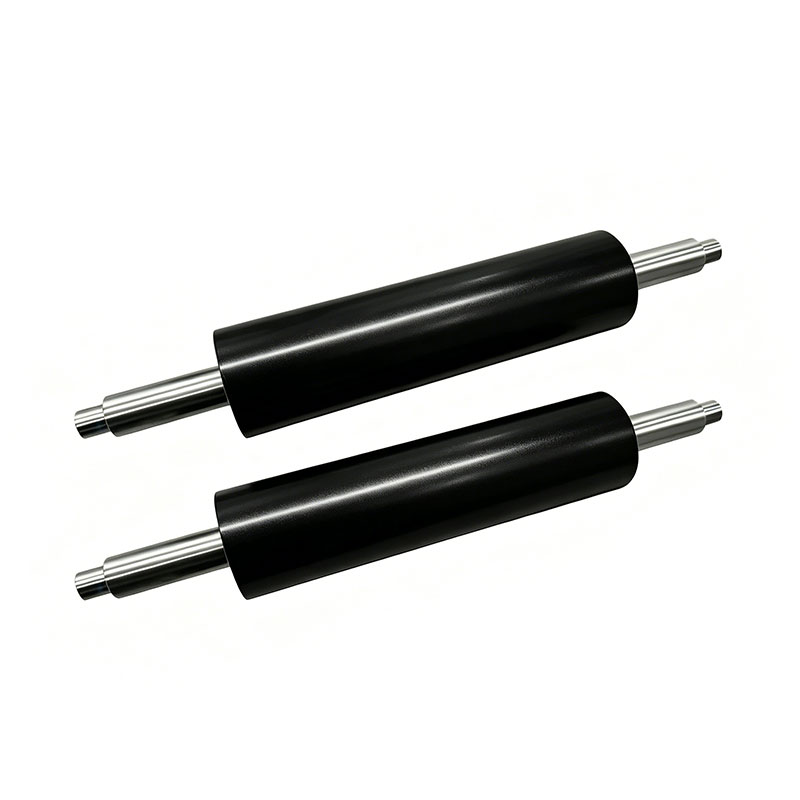

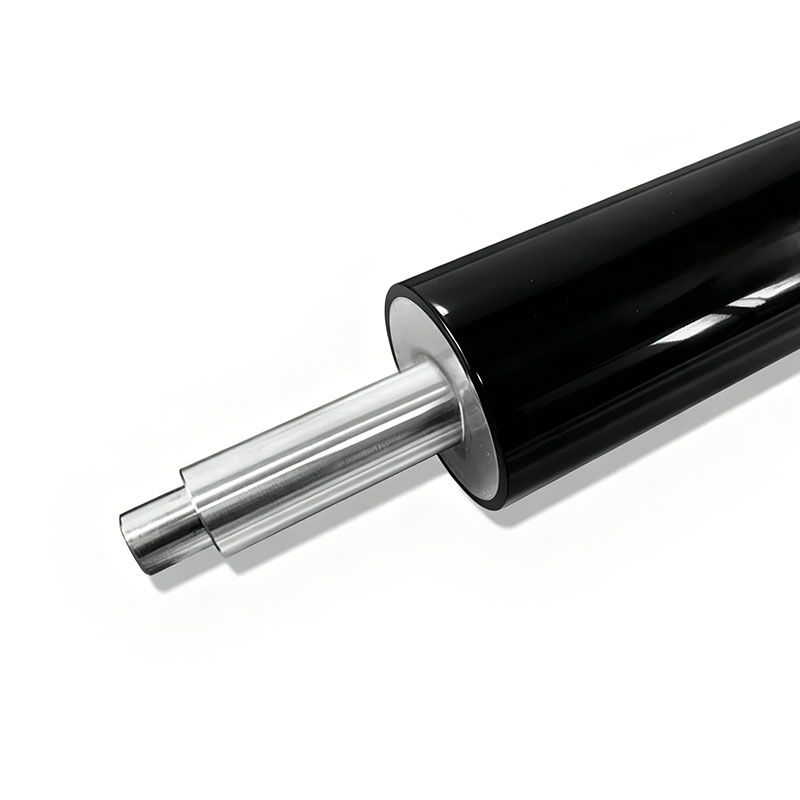

High-Purity Wafer Cutting Carbon Fiber Rollers for Semiconductor Equipment

The AstraRoll Technical Advantage

Manufacturing a guide roller for sub-micron wafer cutting requires absolute purity and dimensional stability:

Prepreg High-Temperature Molding: Instead of standard wet-winding, we utilize premium carbon fiber prepreg tapes cured in high-pressure autoclaves. This results in a highly consolidated, void-free composite structure with extraordinary torsional rigidity, ensuring the roller remains perfectly straight under the immense combined tension of hundreds of cutting wires.

Ultra-Low Rotational Inertia: Diamond cutting wires are incredibly thin and fragile. The ultra-lightweight carbon fiber core reduces the starting and stopping torque to a minimum. This ensures the roller spins synchronously with the wire, completely eliminating the frictional drag that causes wire breakage.

Ceramic Wear Armor: Diamond wire will easily slice through bare carbon fiber or metal. We apply a specialized plasma-sprayed ceramic coating (or tungsten carbide) to the outer diameter. This creates an impenetrable armor that withstands the aggressive cutting action of the wire, drastically extending the roller's maintenance lifecycle.

Cleanroom Purity Compliance: Semiconductor manufacturing cannot tolerate metal ion contamination. Our carbon fiber and specialized resins are chemically inert and manufactured under strict cleanroom conditions, ensuring zero particulate shedding or outgassing into your wafer slurry.

Key Specifications

Please note: AstraRoll wafer cutting rollers are 100% custom-engineered to match your specific multi-wire saw machinery (e.g., Meyer Burger, NTC, Komatsu).

Outer Diameter (O.D.): Custom from 50mm up to 300mm.
Face Length: Custom manufactured from 200mm up to 2,000mm.
Base Material: T300, T700, or Ultra-High Modulus Carbon Fiber.
Concentricity (TIR): CNC precision ground to ≤ 0.01mm (Critical for uniform wafer thickness).
Dynamic Balancing: ISO Grade G1.0 at maximum operating RPM (e.g., 3,000+ RPM).
Coating Hardness (Ceramic): Exceeds HV 1200.

Why Choose AstraRoll?

1. Micron-Level CNC Grooving Capabilities
For rollers that require wire guide grooves, AstraRoll utilizes specialized multi-axis CNC diamond tooling. We can machine hundreds of ultra-precise, micro-pitch grooves directly into the ceramic or urethane coating. This ensures the diamond wire is perfectly spaced and seated, preventing wire wandering and guaranteeing uniform wafer thickness across the entire silicon ingot.

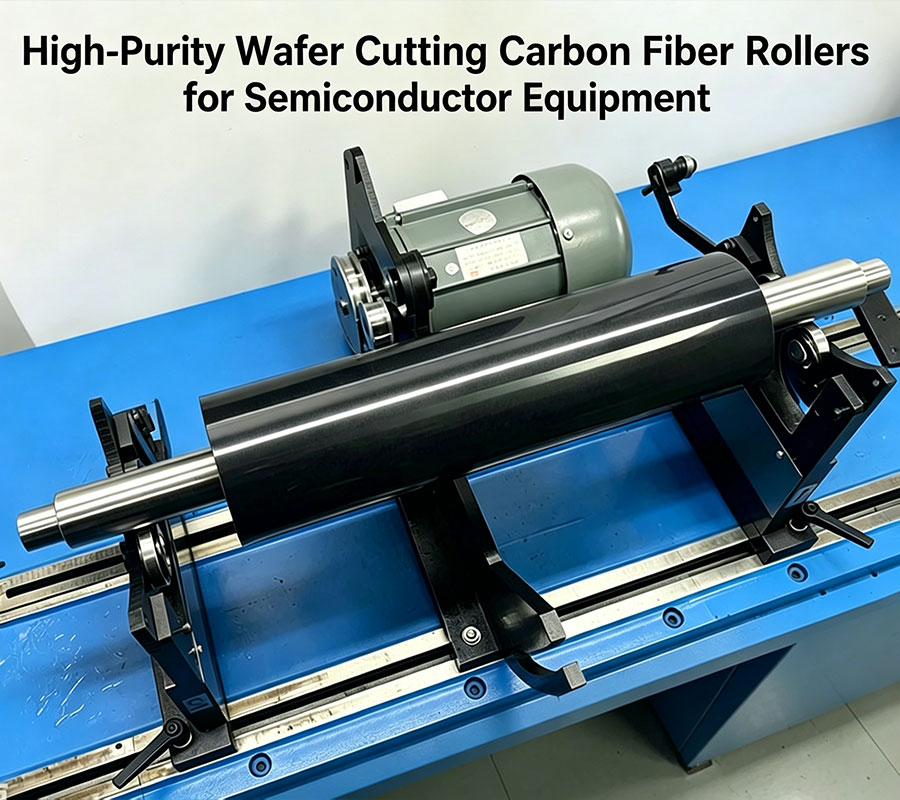

2. Dynamic Balancing for Extreme RPMs
Multi-wire saws operate at exceptionally high speeds to cleanly slice through silicon. Even a microscopic imbalance in the guide roller will cause harmonic vibrations that shatter the silicon ingot. AstraRoll individually balances every carbon fiber roller to the strictest ISO G1.0 standard, ensuring dead-smooth, whisper-quiet rotation at maximum machine speeds.

Frequently Asked Questions (FAQs)

Q: Can the ceramic or polyurethane coating be repaired or replaced when it wears out?
A: Yes! The underlying carbon fiber core has an exceptionally long operational lifespan. When the outer coating eventually wears down from the abrasive friction of the diamond wire, you do not need to purchase a completely new roller. AstraRoll provides a turnkey recovery service. We will strip the worn surface, apply a fresh precision ceramic or specialty urethane coating, re-grind the micro-grooves, and re-balance the assembly to original OEM specifications.

Q: How do you ensure the metal shaft ends (journals) do not break loose from the carbon fiber tube at high speeds?
A: The joint between the metal journal and the composite tube is the most critical stress point in the entire assembly. We do not rely on standard glues. AstraRoll utilizes aerospace-grade structural epoxies combined with a proprietary interference-fit thermal bonding process. This ensures the stainless steel or aluminum journals are permanently fused to the carbon fiber, easily withstanding the extreme rotational torque and tension of multi-wire saws.

Q: Are these rollers compatible with both modern diamond wire and traditional abrasive slurry cutting systems?
A: Yes. While our ceramic-coated carbon fiber rollers are the industry standard for modern diamond wire saws, we also manufacture solutions for traditional PEG/SiC (Polyethylene Glycol and Silicon Carbide) slurry systems. For slurry applications, we apply a highly chemical-resistant and abrasion-resistant specialty Polyurethane (PU) coating to the carbon fiber core, which actively protects the composite matrix from the aggressive cutting fluids.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
